MXR MB301 Bass Synthesizer Pedal

zZounds Gear Experts Say...
Synth tones at your feet! MXR's MB301 bass synthesizer pedal offers three blendable oscillator voices, an analog envelope filter, and expression control.

Turn your bass into a filthy funk machine with the MXR Bass Synth. It serves up intergalactic grooves and vintage analog-style vibes with a range of monophonic synth tones that call back to hits from Stevie Wonder, Michael Jackson, Parliament Funkadelic, and more. Designed with low-end professor and tone connoisseur Ian Martin Allison, this powerhouse of a pedal offers thunderous sub-octave, expressive envelope, and lush modulation effects with killer tracking and sustain.

Features:

- Intergalactic grooves and vintage analog-style vibes reminiscent of your favorite funk hits
- Designed in collaboration with Ian Martin Allison
- Thunderous sub-octave, expressive envelope, and lush modulation effects
- Killer tracking and sustain
- Eight different presets to plug you straight into the groove
- Three different waveforms, additional oscillators, tap and expression control, and more

Funk it up
Dig into your groove with a full, player-friendly suite of controls to shape every detail of your bass synth tone. The Sub Mix knob sets how much of the sub octave is blended with the main synth signal so that you can go as fat and low as you want. The Mod knob brings shimmering liquid tones, from subtle, musical motion to bold, mind-bending pulses--while the Envelope knob sets the filter response from rubber band bounce to slow, syrupy sweeps. Mix, Cutoff, and Resonance knobs help you dial in the perfect tone and feel for your setup--blend dry and wet signals, set filter cutoff read more frequency, and boost that frequency for extra punch.

Finally, the Voice button adds additional harmonically tuned oscillators for more complex tones while the Shape button selects your preferred waveform: smooth and subtle triangle, rich and aggressive sawtooth, or fat and punchy square.

Pre-funk
If you want to skip the set up and get right down to it, then have eight different presets designed by Ian Martin Allison to plug you straight into the groove. Each is inspired by classic synth tones, from those heard on Michael Jackson's "Thriller" and Herbie Hancock's "Chameleon" to Peter Gabriel's "Sledgehammer" and Nine Inch Nails' "Head Like a Hole." Cycling through them is as simple as pressing the Preset button.

Dig Deeper
For the true bottomologists out there, the MXR Bass Synth features a number of additional parameters, from oscillator and modulation mix to compression and tracking style. You can also run the pedal in stereo output mode, use an off-board switch such as the MXR Split + Tap or Tap Tempo Switch to cycle presets, use a Volume (X)(TM) Series Pedal to blend setting configurations, and more.

Go forth and get nasty
Whether you're replicating pop hits in a cover band, holding down the low end at church, or touring the world, this pedal gives you instant synth bass magic. Get down on the one with the MXR Bass Synth.
read less

- Effect Type: Digital bass synthesizer

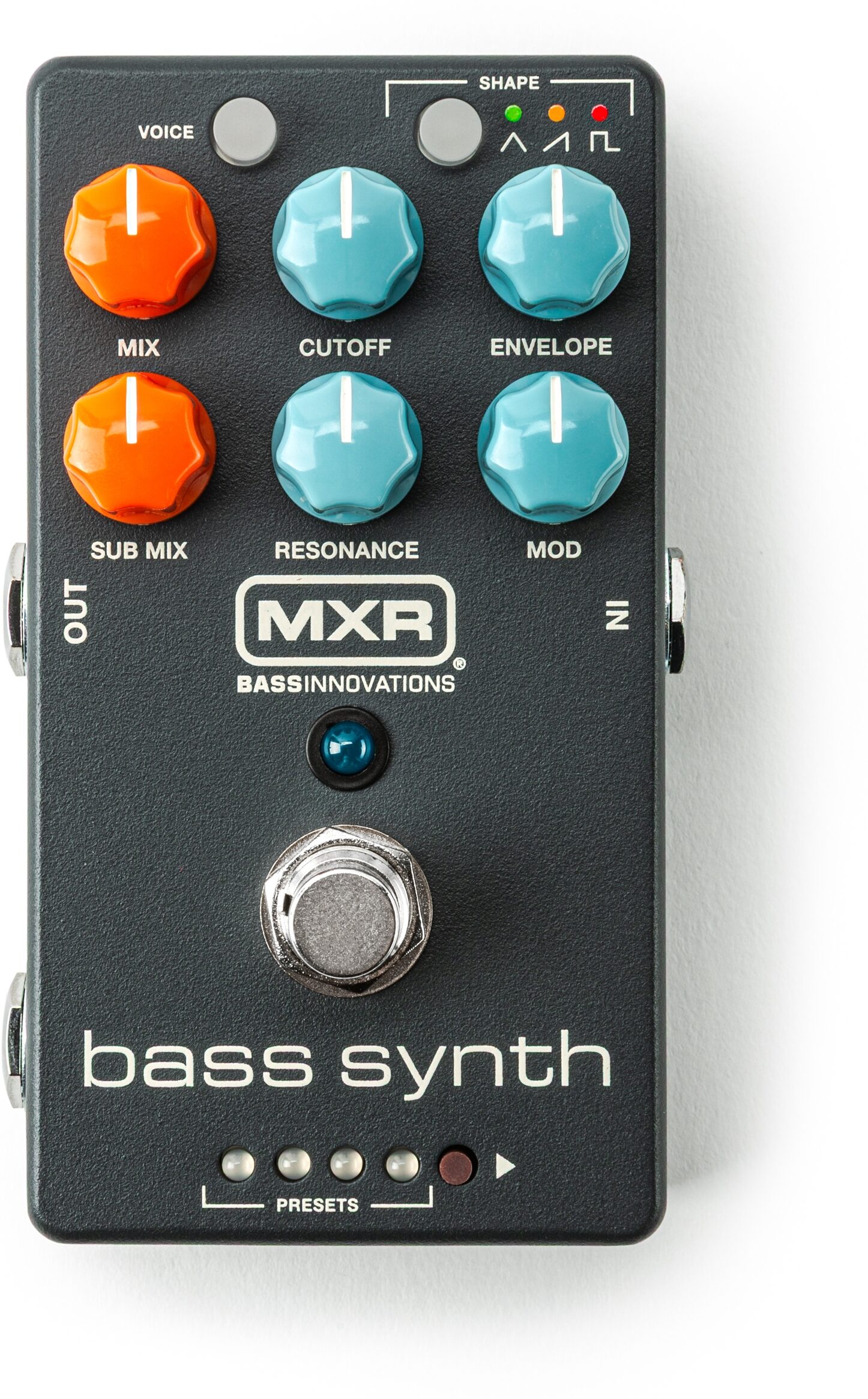

- Controls: Mix, Sub Mix, Cutoff, Resonance, Envelope, Mod rotary controls; Voice and Shape buttons; Preset selector button; On/off footswitch
- Input Connectors: 1/4" TRS jack (mono input on tip only)

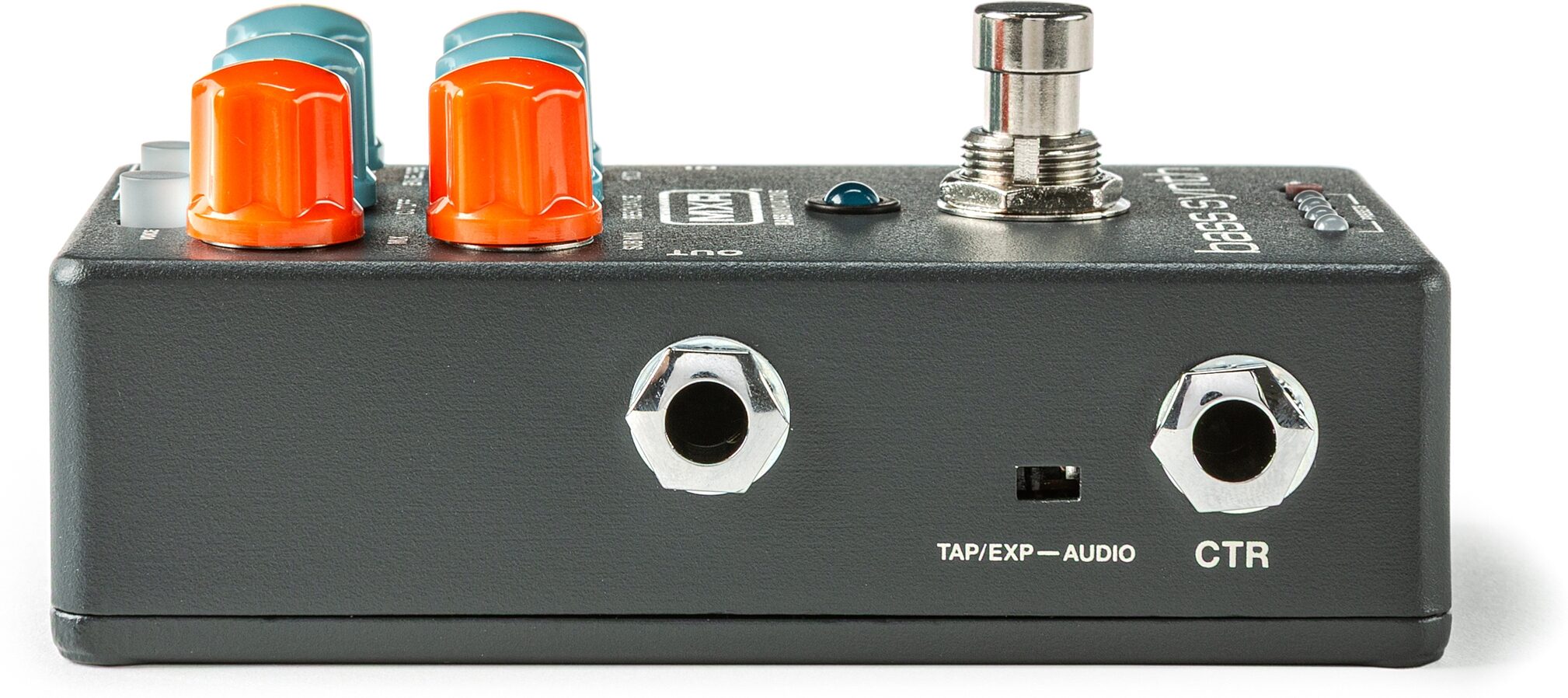

- Output Connectors: 1/4" TRS jack (stereo output capable), CTR jack (expression/tap input or right-channel output)

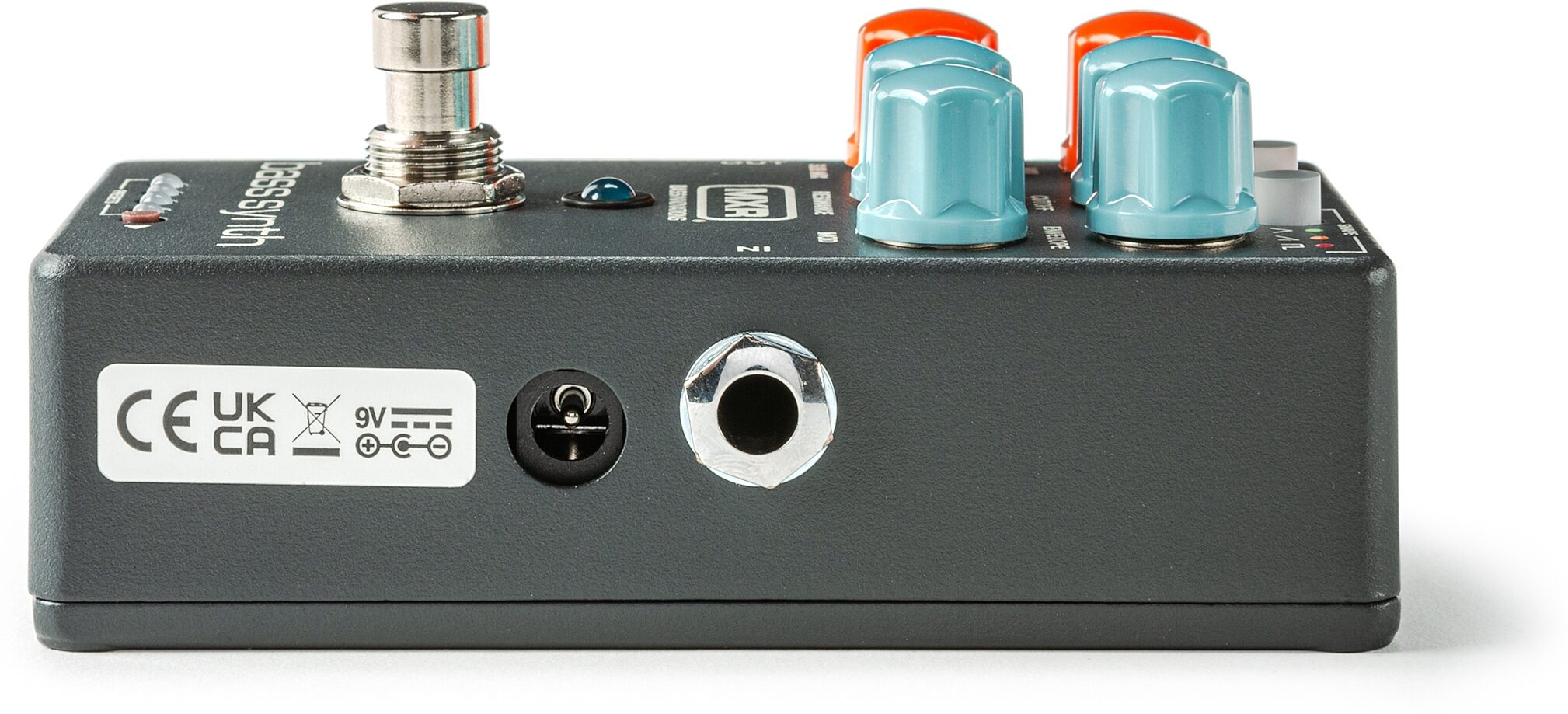

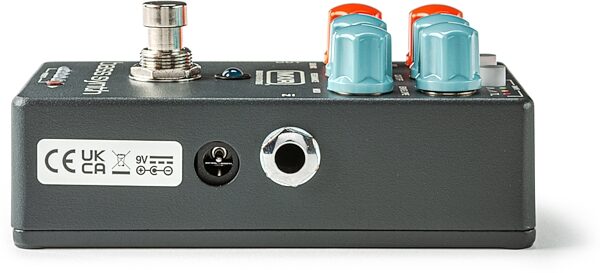

- Power Requirements: 9V DC, 330mA center-negative (no battery option)
- Bypass Type: True bypass in mono mode, buffered bypass in stereo/wet-dry modes
- Input Impedance: 1MΩ
- Output Impedance: 100Ω
- Signal to Noise Ratio: 97dB (noise floor: -97dBV)
- Expression Pedal Input: Yes (via CTR jack with TRS cable)
- Polyphony: Monophonic
- Presets: 8 presets
- Filter Modes: 4-pole resonant low-pass filter

Dimensions and Weight in Packaging

Base Item

  • Shipping Weight: 0.89 lbs
  • Shipping Dimensions: 6 x 5 x 3 in
  • Manufacturer Part Number (MPN): MB301

Open Box (Like New)

  • Shipping Weight: 0.89 lbs
  • Shipping Dimensions: 6 x 5 x 3 in
  • Manufacturer Part Number (MPN): DUN MB301 NFS

For support or warranty questions, please contact the manufacturer:
Phone: 707-745-2722
Web: https://www.jimdunlop.com/gear-support/
