MXR DD30 30th Anniversary Limited Edition Dookie Drive Pedal

zZounds Gear Experts Say...

Celebrate 30 years of the iconic Green Day record Dookie! MXR's Dookie Drive is a limited edition version boasting Billie Joe's unmistakable distortion tone.

Overview

Billie Joe Armstrong's guitar tone on Green Day's groundbreaking album Dookie sounded dirty and punchy with the perfect amount of articulation to express the musicality of his fast, melodic riffs. He got that sound by running his signal through two heavily modified amplifiers--one scooped with a ton of gain and the other with a well-defined midrange. When it came time to mix the record, the band blended the two signals together in different ratios to match the vibe of each track.

The MXR Dookie Drive captures the tones of those amps in a single pedal so that you can dial in your own variations of that famous Dookie sound. MXR borrowed his amps so that their team could carefully analyze all the sonic qualities that make them sound so darn good. After much analysis and A/B testing, their engineers rebuilt the amps from scratch in pedal circuit form and fit them into a single housing. The High Gain and Clean Gain sections each have their own controls, while the Blend control allows you to mix them together just like Green Day did in the studio. If you want some extra scoop in the midrange of the overall output signal, just hit the Scoop switch.

The MXR Dookie Drive isn't just for Green Day fans--this totally unique pedal provides a full harmonic range of overdriven tones for a playing experience that is full of depth and dimension. This special edition features a unique finish to celebrate the 30th anniversary of Dookie's monumental release in 1994.

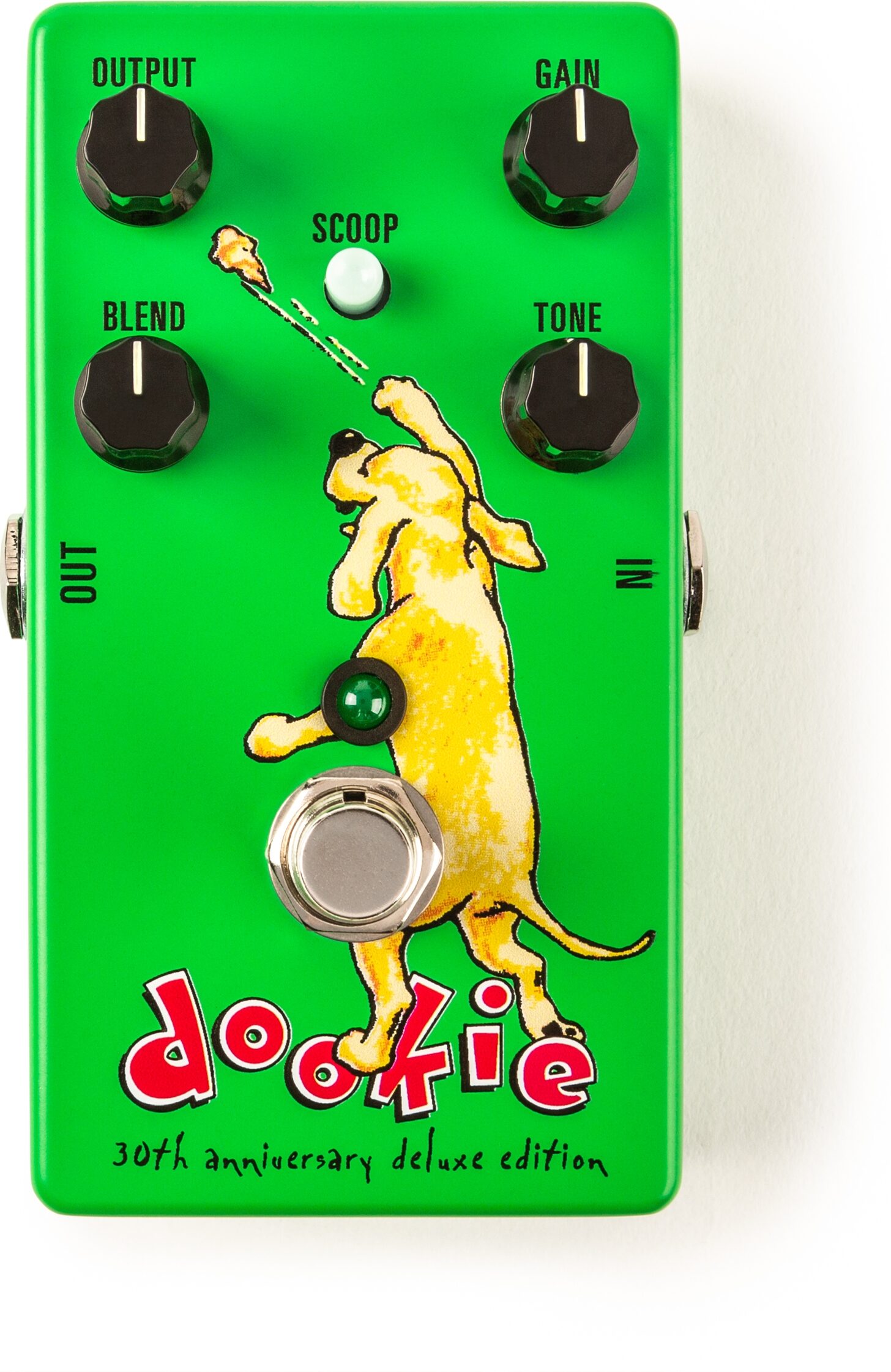

Controls:
- BLEND knob sets… read more mix of High Gain and Crunch Gain circuits
- OUTPUT knob sets overall volume
- GAIN knob sets intensity of High Gain circuit's overdrive
- SCOOP switch cuts overall midrange frequencies
- TONE knob controls overall EQ

Features:

- Limited edition Dookie Drive in honor of Green Day's 30th anniversary of their monumental breakthrough album Dookie
- Get the dirty, punchy overdrive sound that Billie Joe Armb used on Green Day's Dookie
- Captures the tones of both of Billie Joe's custom amplifiers in a single pedal
- High Gain section supplies tons of scooped gain
- Crunch Gain section serves up a well-defined midrange
- Blend the two sounds together just like Green Day did in the studio
- Unique circuit design built from the ground up by the award-winning MXR team
- Limited edition artwork celebrating the release

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

- Input Impedance: 770 kOhm
- Output Impedance: 900 Ohm
- Nominal Output Level: -8 dBV
- Signal-To-Noise Ratio: 89 dBV
- Tone Control: +/-5 dB, 10 kHz
- Scoop: -8 dB, 1 kHz
- High Gain: +9 dB to +70 dB, 1 kHz
- Crunch Gain: +2 dB to +45 dB, 1 kHz
- Bypass: True Hardwire
- Current Draw: 11 mA
- Power Supply: DC 9 volts

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 0.73 lbs; Shipping Dimensions: 6 x 4 x 3 in; Manufacturer Part Number (MPN): DD30
