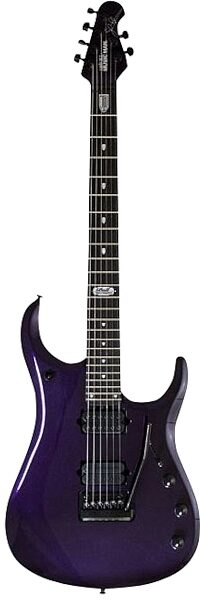

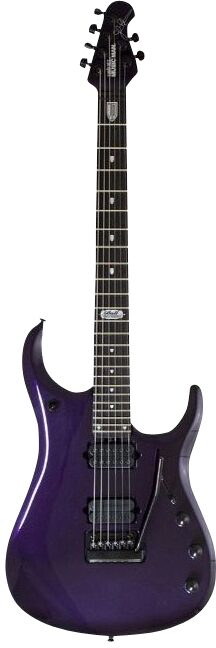

Music Man John Petrucci JPX Piezo Electric Guitar (with Case)

No longer available at zZounds
Add some variety to your stage sound with this guitar. It features a Piezo under-bridge pickup so you can go from electric to acoustic with the same guitar.

What's special about this item?

Feature: What it does:
Maple top Long sustain with crisp, bright tone
Petrucci Music Man floating tremolo Stays in tune through dive bombs or light vibratos
Under-saddle piezo pickup Delivers bright, amplified acoustic tone
M6-IND tuning machines Stable locking tuners, 1:16 gear ratio

With a slightly thinner upper horn and a more symmetric bridge end profile, John Petrucci's Music Man JPX is a culmination of a 10 year relationship with Music Man instruments. An alder body with a maple top, ebony fingerboard and select mahogany neck provides an incredible structure for this high-quality electric. The JPX has a chambered body paired with an in-tremolo piezo bridge gives the JPX solid acoustic tones that adds versatility to this guitar that's already loaded with DiMarzio LiquiFire and Crunch Lab humbuckers.

John Petrucci talks about the Music Man JPX:


- Alder body with maple top
- Select mahogany bolt-on neck
- Slick, 24 fret, ebony fingerboard
- DiMarzio LiquiFire and Crunch Lab humbuckers
- Piezo under-saddle pickup for acoustic-style tones
- Petrucci Music Man Floyd Rose floating tremolo
- Schaller M6-IND tuning machines with black buttons
- Includes Music Man case

Pickup Switching and Piezo

The 5-way switch is specially wired to provide access to the individual pickup coils as well as the full humbuckers so they can be utilized both traditionally or as single coils for more tonal options. A 3-way toggle enables switching between the humbuckers and the piezo pickup or the option to use both simultaneously. The Piezo under-bridge pickup allows you to get acoustic tones during a live performance without having to switch guitars.


The dual output jacks allow you the option of running Piezo/Mono through output 1 or read more Magnetic/Stereo via output 2. read less

Model: John Petrucci JPX 6

Top: Maple

Body: Alder

Tone Block: Mahogany

Finish: High gloss polyester

Neck: Select mahogany

Radius: 15 inches (38.1 cm)

Finish: High gloss polyester

Neck Attachment: 5 bolts perfect alignment with no shifting

Neck Joint: Sculpted, allowing smooth access to higher frets

Scale Length: 25-1/2 inches (64.8 cm)

Fingerboard: Ebony

Frets: 24 Jumbo profile, wide

Inlays: Custom JP

Nut Width: 1-11/16 inches (43 mm)
Width at Last Fret: 2-1/4 inches (57.2 mm)

Headstock Size: Only 5-7/8 inches (14.9 cm) long

Truss Rod: Adjustable, no component or string removal

Pickups: HH (Humbucker/Humbucker)

Neck: DiMarzio LiquiFire

Bridge: DiMarzio Crunch Lab

Under Bridge: Piezo

Electronic Shielding:
- Graphite acrylic resin coated body cavity
- Aluminum lined control cover

Controls: 500kohm volume pot 0.022uF tone capacitor

Switching: 5-way lever pickup selector

Additional 3-way toggle Piezo/Magnetic selector

Bridge: Custom John Petrucci Music Man Piezo floating tremolo

Tuning Machines: Schaller M6-IND

Buttons: Black

Strings: 10p-13p-17p-26w-36w-46w (RPS Slinkys #2240)

Case: Music Man Hardshell Case (included)

- Width: 12-3/8 inches (31.4 cm)
- Thickness: 1-3/4 inches (4.5 cm)
- Length: 37 inches (94.0 cm)

Weight: 7 lbs, 4 oz (3.29 kg) varies slightly
