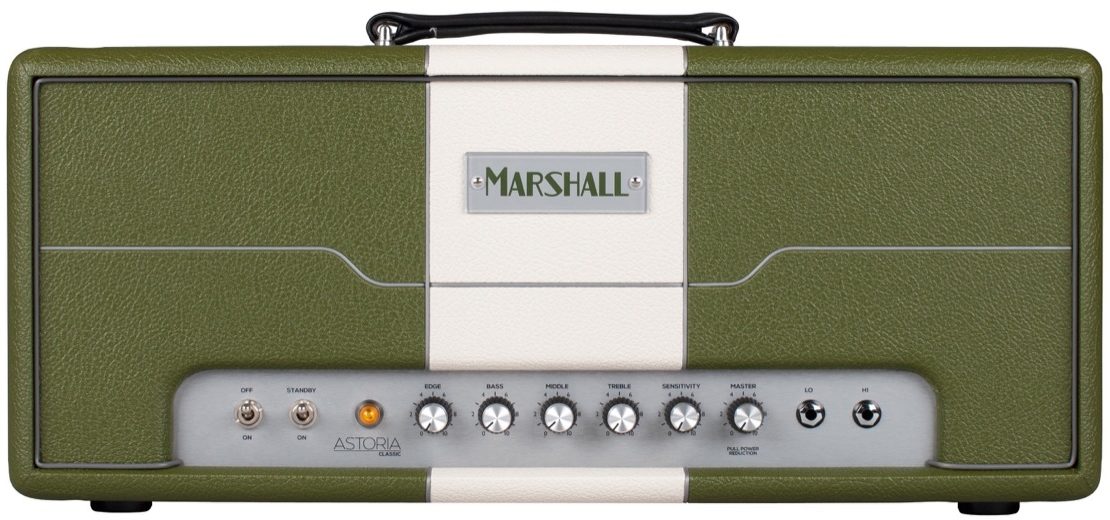

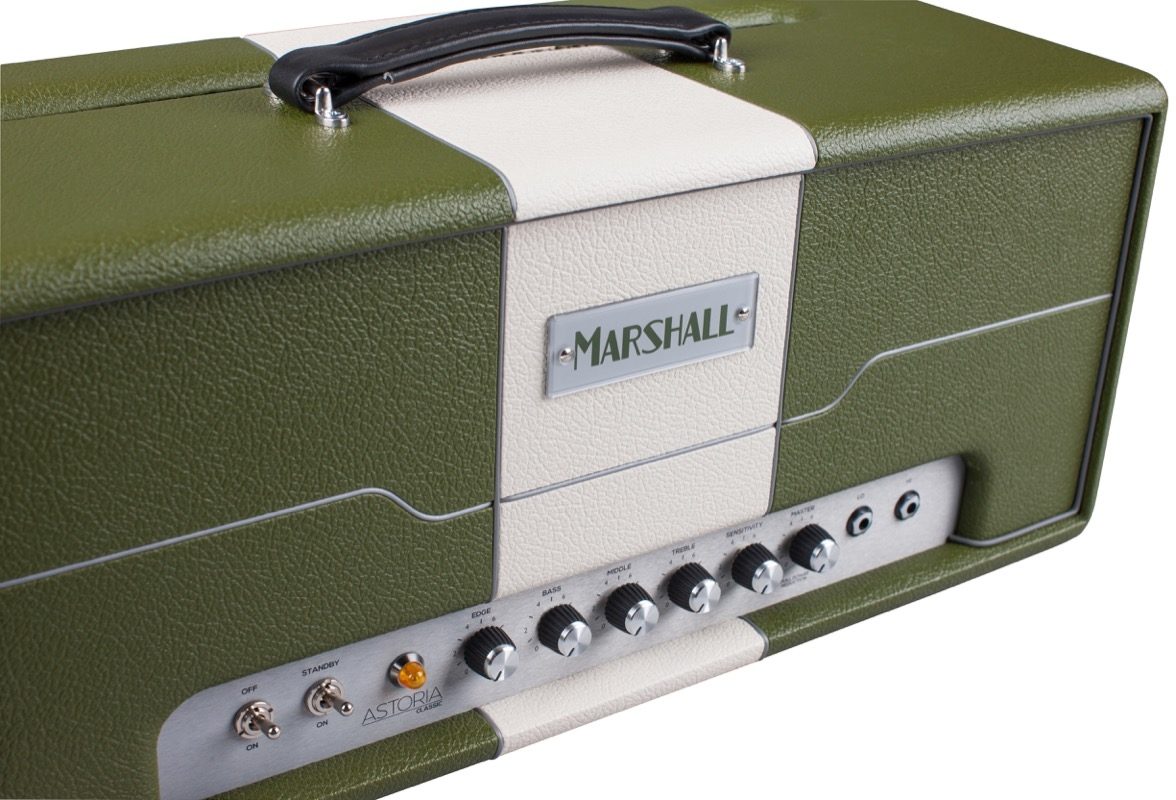

Marshall AST1H Astoria Guitar Amplifier Head
No longer available at zZounds



zZounds Gear Experts Say...
Made in the UK and switchable from 30W to 5W, the hand-wired Marshall Astoria head offers authentic, British valve tone via three ECC83 and two KT66 tubes.
Overview
The Astoria Classic will appeal to purists who want clean, authentic all-valve tone, and to boutique pedal enthusiasts who will find it the perfect pure-valve foundation for their sound.
The Power Reduction pull switch drops the amplifier's output power from 30 Watts to 5 Watts, which produces softer tones and a less 'in your face' sound.
The Sensitivity control optimizes the sensitivity of the preamp by controlling its negative feedback. It increases or decreases gain without changing the output impedance of the first stage. This means that tonal integrity is preserved regardless of where the Sensitivity control level is set.
Edge makes the overall characteristic sound of the amplifier brighter or darker. To achieve this, it cuts high frequencies between the phase splitter and the power valves. Edge is a power stage function with a similar effect to a traditional 'presence' control. Note that the higher the Master volume level, the more pronounced the Edge function will become.
- Power Reduction
- Edge Control
- Bass, Middle, Treble Controls
- Sensitivity Control
- Lo & Hi Sensitivity Inputs
- Contemporary Hand Wired Design
- 30 Watt Output
- 3 x ECC83 & 2 x KT66 Valves
- Two Tone Covering
- Color Coded Marshall Logo
- Brushed Aluminum Panel
- Made in the UK
- Dustcover Included
The Power Reduction pull switch drops the amplifier's output power from 30 Watts to 5 Watts, which produces softer tones and a less 'in your face' sound.
The Sensitivity control optimizes the sensitivity of the preamp by controlling its negative feedback. It increases or decreases gain without changing the output impedance of the first stage. This means that tonal integrity is preserved regardless of where the Sensitivity control level is set.
Edge makes the overall characteristic sound of the amplifier brighter or darker. To achieve this, it cuts high frequencies between the phase splitter and the power valves. Edge is a power stage function with a similar effect to a traditional 'presence' control. Note that the higher the Master volume level, the more pronounced the Edge function will become.
Features:
- Master Volume- Power Reduction
- Edge Control
- Bass, Middle, Treble Controls
- Sensitivity Control
- Lo & Hi Sensitivity Inputs
- Contemporary Hand Wired Design
- 30 Watt Output
- 3 x ECC83 & 2 x KT66 Valves
- Two Tone Covering
- Color Coded Marshall Logo
- Brushed Aluminum Panel
- Made in the UK
- Dustcover Included
Specs
- MODEL NAME: ASTORIA CLASSIC
- RANGE: ASTORIA
- TECHNOLOGY: VALVE
- CHANNELS: 1
- WATTAGE: 30W
- INPUTS: HI/LO (HI provides +6dB Sensitivity)
- CONTROLS: MASTER, SENSITIVITY, TREBLE, MIDDLE, BASS, EDGE
- IMPEDANCE: 4 / 8 / 16 Ohm
- PRE AMP VALVES: 3 x ECC83 (12AX7)
- POWER AMP VALVES: 2 x KT66
- FOOTSWITCH: NONE
- WEIGHT: 16.5kg
- DIMENSIONS: (W x H x D): 600 x 290 x 230mm
- RANGE: ASTORIA
- TECHNOLOGY: VALVE
- CHANNELS: 1
- WATTAGE: 30W
- INPUTS: HI/LO (HI provides +6dB Sensitivity)
- CONTROLS: MASTER, SENSITIVITY, TREBLE, MIDDLE, BASS, EDGE
- IMPEDANCE: 4 / 8 / 16 Ohm
- PRE AMP VALVES: 3 x ECC83 (12AX7)
- POWER AMP VALVES: 2 x KT66
- FOOTSWITCH: NONE
- WEIGHT: 16.5kg
- DIMENSIONS: (W x H x D): 600 x 290 x 230mm
