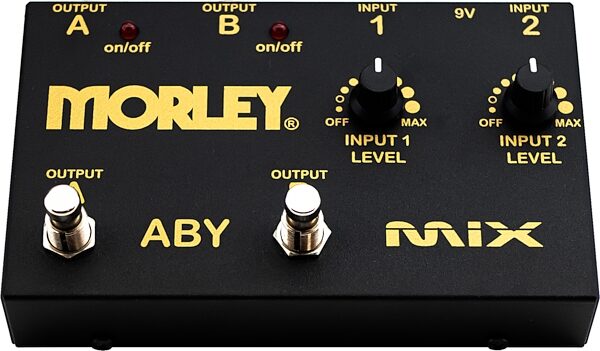

Morley Gold Series ABY MIX Switcher

If you're looking to dial in the volumes of your dual mono amp rig, the Morley Gold Series ABY MIX Switcher gives you the most versatility.

The ABY MIX is essentially a 2-Channel Mixer in a robust pedal enclosure. It's the perfect utility pedal for multi-instrumentalists, teachers, and technicians alike. The Gold Series version comes with a fresh look and upgraded, quieter circuitry. It's also equipped with Morley's premium buffer circuit, so no matter how many cables you're running, your tone will be preserved. Having one of these on hand will prepare you for the most common routing needs. It's a must-have for every musician's tool kit.

Both inputs are routed to each output channel and each output has a bypass switch. The level controls let you mix each input and give you 15dB to work with. Unity begins at 10 o'clock at the undarkened circle. It runs off a standard 9V power supply and can be powered by a 9V battery in a pinch.


- Routes both Inputs to each Output, and has Bypass switches for each Output
- Independent level control for each Input with 15dbs to work with
- Handy LEDs let you know which output is active
- Premium Buffer Circuit protects your tone from any mischief in your signal chain
- Powered by a standard 9V power supply or 9V battery
- Cold Rolled Steel Enclosure for Maximum Protection
- 1 Year Warranty - Please keep your purchase receipt

Dimensions: 6.63" L x 4.38" W x 2" H
Current Draw: 2 mA NOT intended for use on powered speaker lines
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1.25 lbs
Shipping Dimensions: 8 x 5 x 3 in
Manufacturer Part Number (MPN): ABY-MIX-G

For support or warranty questions, please contact the manufacturer:
Phone: 800-284-5172
