Mogami Gold DB25 to XLR-M 8-Channel Audio Snake

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

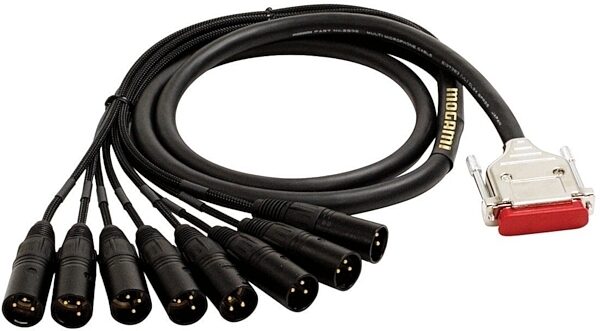

open zoom image for Mogami Gold DB25 to XLR-M 8-Channel Audio Snake, 5 foot, Open Box (Very Good), Main
Mogami Gold DB25 to XLR-M 8-Channel Audio Snake, 5 foot, Open Box (Very Good), Main
zZounds Gear Experts Say...
Got an interface with D-sub connectors? Wire up your studio with these top-quality Mogami cable snakes -- and send 8 analog channels where they need to go.

Mogami 8-channel interface snakes are made using Mogami's 8-channel multi-pair cable, the recognized standard for quality sound in the professional recording industry. These are hand assembled and machine crimped in El Segundo, CA, using the finest components available. They are an excellent choice for patch bays and recording interfaces where D-sub interfaces are becoming increasingly popular.

Features:

- Wired to industry standard analog pin out; fits all analog machines
- Rugged, noise-proof, all metal D-sub shells and state-of-the-art pin termination
- Easy-to-grab, extended length metal thumb screws
- Techflex braided sleeve protection for all fan outs
- Low 23.7 pF/Ft capacitance.
- Mogami signature 100% coverage spiral shield.
- Wired to industry standard analog pin out; fits all analog machines

- Number of Channels: 8
- Send Connectors: DB25 Male
- Return Connectors: 8x XLR Male (Gold Contact)
- Wire Gauge (AWG): 26 AWG
- Conductor Material: OFC (Oxygen Free Copper)
- Insulation Material: XLPE (Cross Linked Polyethylene)
- Shield Type: Individually Twisted Shielded Pairs with Served (Spiral) Bare Copper Shield
- Jacket Material: PVC
- Capacitance (pF/ft): 40 pF/ft (wire-to-shield)

Dimensions and Weight in Packaging

5 foot

  • Shipping Weight: 1.5 lbs
  • Shipping Dimensions: 12 x 8 x 2 in
  • Manufacturer Part Number (MPN): GOLD-DB25-XLRM-05

Open Box (Very Good), 5 foot

  • Shipping Weight: 1.5 lbs
  • Shipping Dimensions: 12 x 8 x 2 in
  • Manufacturer Part Number (MPN): MOG GDB25XLRM05 MBP

For support or warranty questions, please contact the manufacturer:
Phone: 800-800-6608
