Mogami Gold DB25 to XLR-F 8-Channel Audio Snake

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

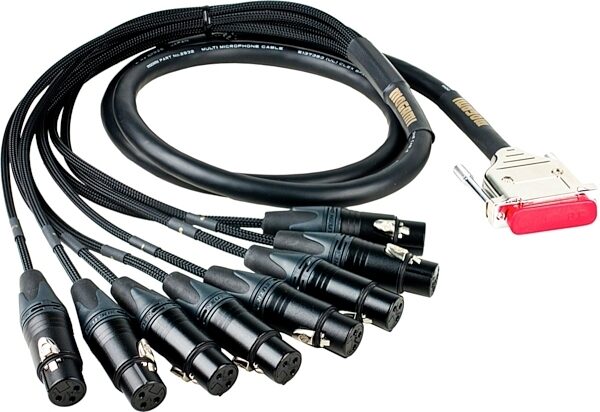

open zoom image for Mogami Gold DB25 to XLR-F 8-Channel Audio Snake, 5 foot, Open Box (Very Good), Main
Mogami Gold DB25 to XLR-F 8-Channel Audio Snake, 5 foot, Open Box (Very Good), Main
zZounds Gear Experts Say...
Does your studio gear have D-sub connectors? Made from Mogami cable, this 8-channel D-sub to XLR female snake is perfect for patch bays and audio interfaces.

Mogami 8 channel interface snakes are made using Mogami's 8 channel multi-pair cable, the recognized standard for quality sound in the professional recording industry. These are hand assembled and machine crimped in El Segundo, CA, using the finest components available. An excellent choice for patch bays and recording interfaces where D-sub interfaces are becoming increasingly popular

Features:

- Wired to industry standard analog pin out; fits ALL analog machines
- Rugged, noise-proof, all metal D-sub shells and state-of-the-art pin termination
- Black epoxy finish gold contact TRS connectors
- Easy-to-grab, extended length metal thumb screws
- Techflex braided sleeve protection for all fan outs
- Lifetime Warranty
- Low 23.7 pF/Ft capacitance
- Mogami signature 100% coverage spiral shield

- Number of Channels: 8
- Send Connectors: DB25 (D-Sub)
- Return Connectors: 8x XLR Female (Gold Contacts)
- Wire Gauge (AWG): 26 AWG
- Conductor Material: OFC (Oxygen Free Copper)
- Insulation Material: XLPE (Cross Linked Polyethylene)
- Shield Type: Served (Spiral) Shield with Drain Wire
- Jacket Material: PVC
- Capacitance (pF/ft): 40 pF/ft (wire-to-shield), 3.7 pF/ft (interpair)
- Color: Black

Dimensions and Weight in Packaging

5 foot

  • Shipping Weight: 1.5 lbs
  • Shipping Dimensions: 12 x 8 x 2 in
  • Manufacturer Part Number (MPN): GOLD-DB25-XLRF-05

Open Box (Very Good), 5 foot

  • Shipping Weight: 1.5 lbs
  • Shipping Dimensions: 12 x 8 x 2 in
  • Manufacturer Part Number (MPN): MOG GDB25XLRF05 MBP

For support or warranty questions, please contact the manufacturer:
Phone: 800-800-6608
