Mono Large Power Supply

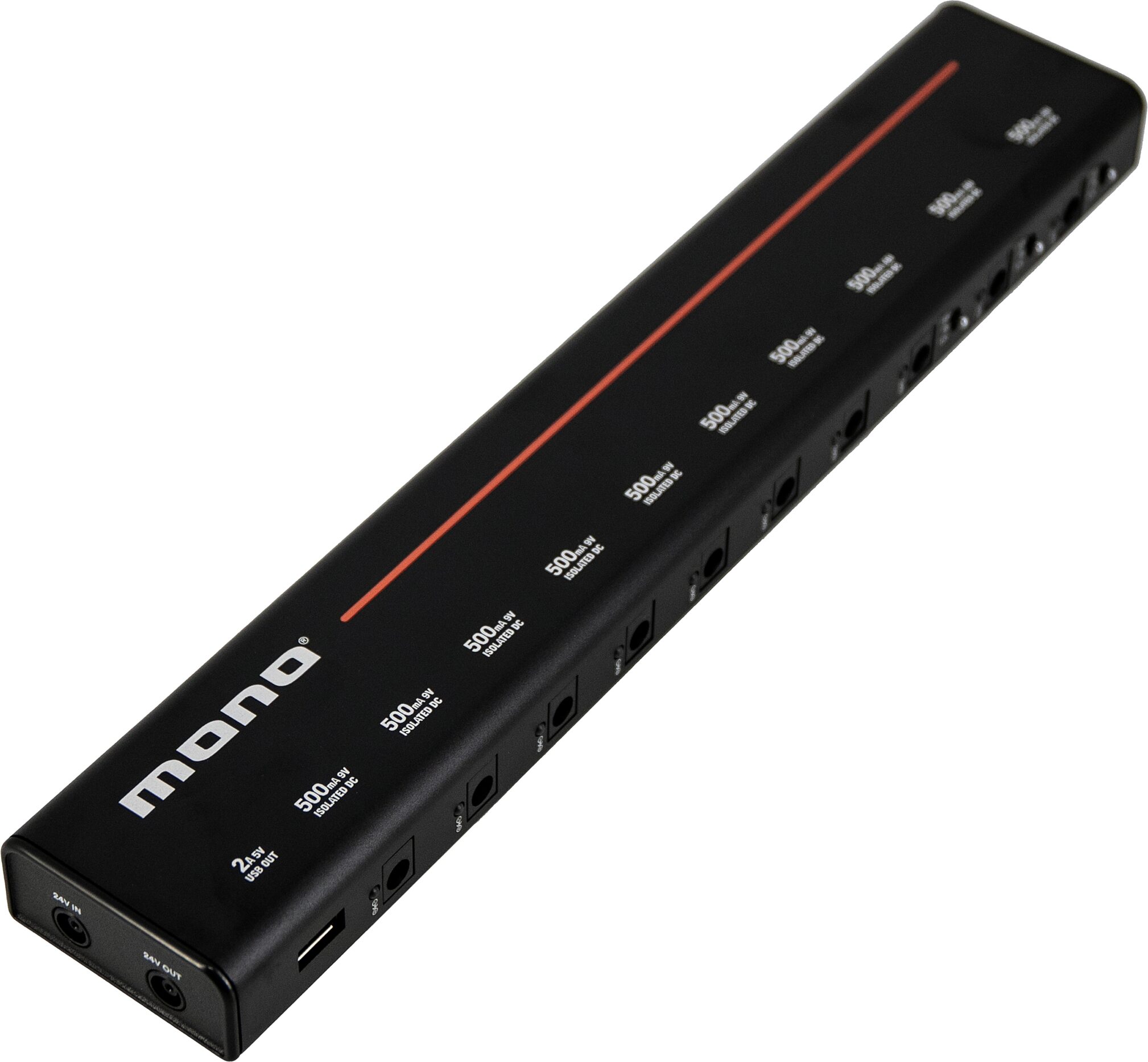

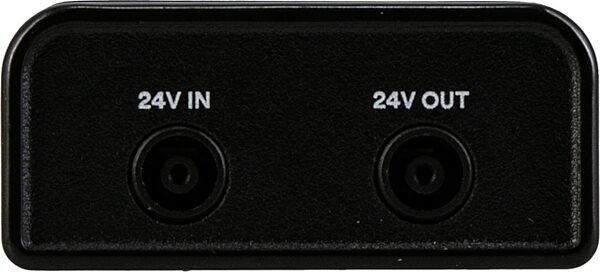

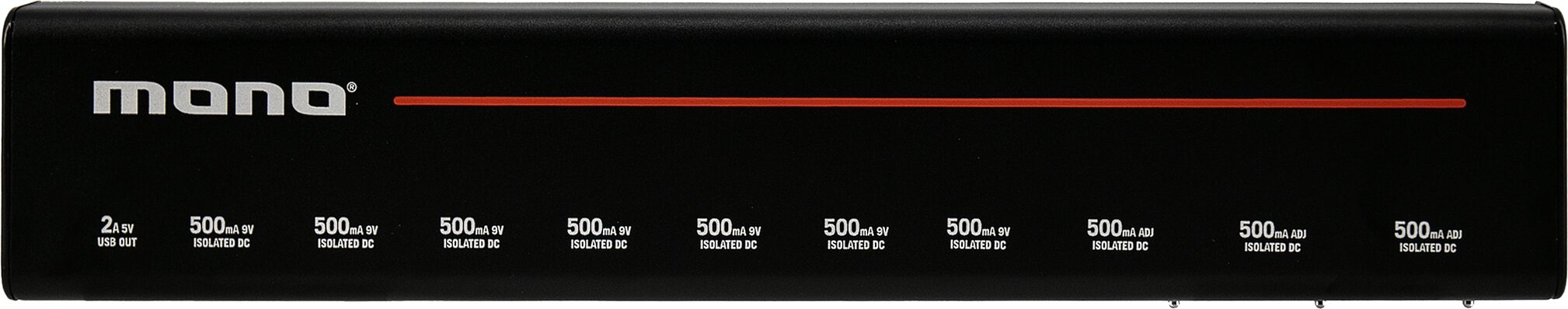

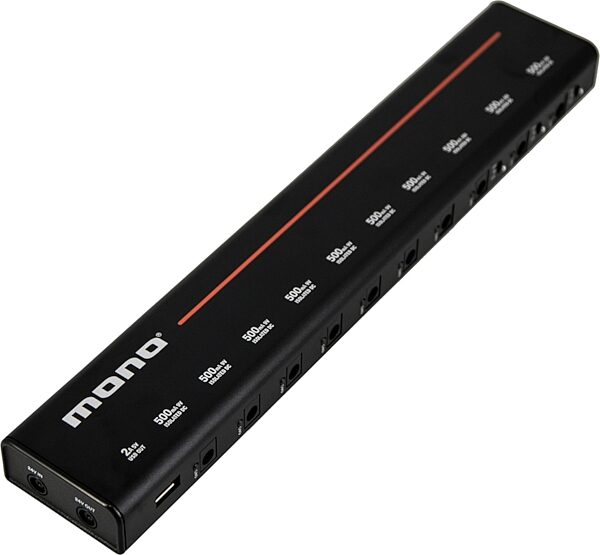

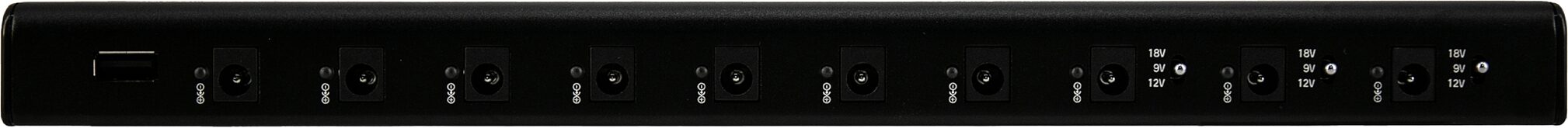

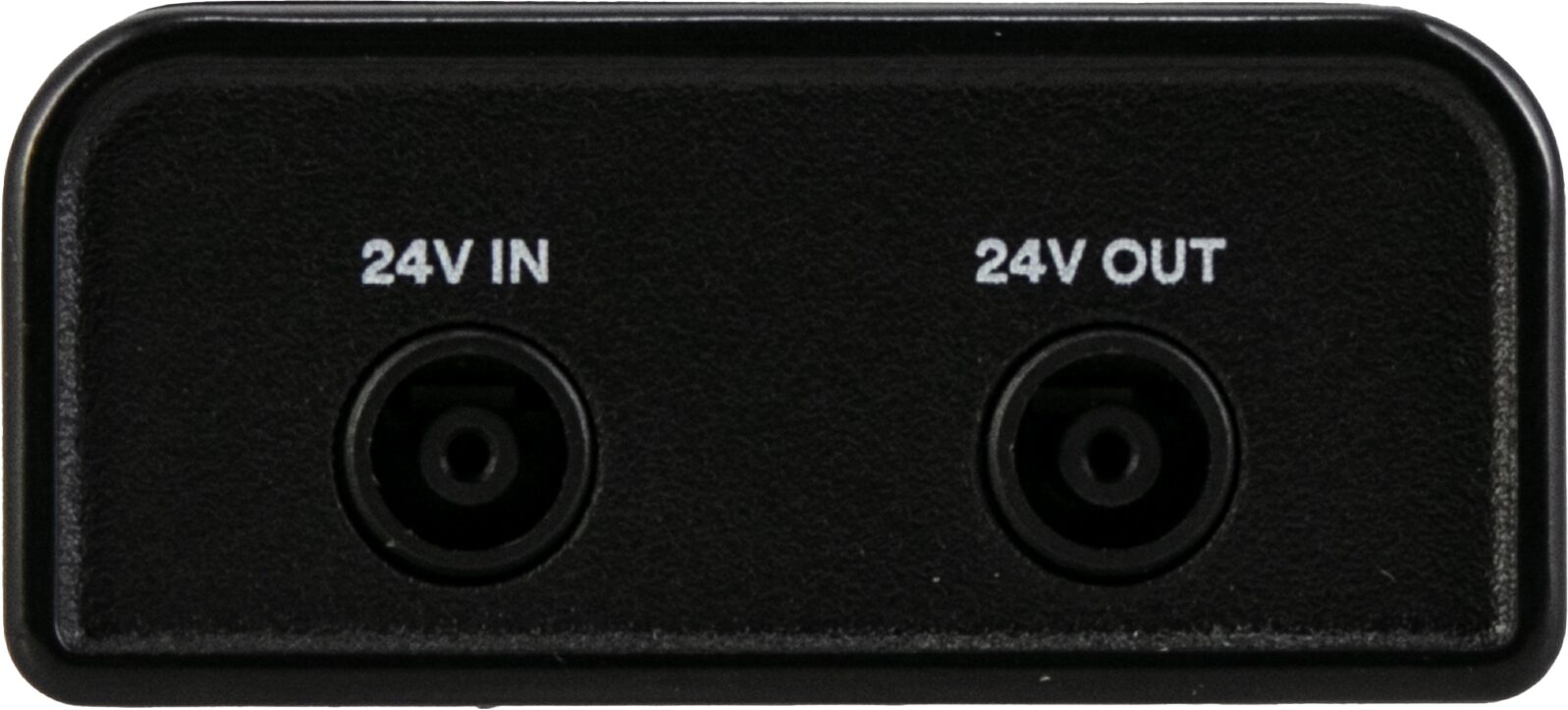

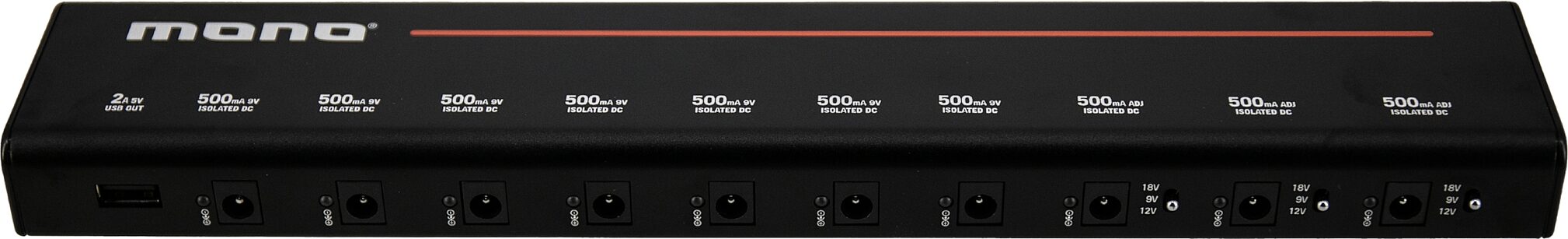

Mono Large Power Supply, New, Main with all components Front

zZounds Gear Experts Say...

If you can't power your whole board with this mammoth power supply, you might have a problem. Mono gets clean, isolated power to all of your pedals!

Overview

The Mono Power Supply, Large is an ultra-slim, expandable pedalboard power supply. It features 10 low-noise isolated outputs, including 3 with variable voltage. Each Power Supply is built with a lightweight and durable aluminum casing and at just 1" depth, will fit underneath the shallowest of pedalboards. Included with the Mono Power Supply comes an IEC Cable, EIAJ-05 Power Adapter Cable and six (6) M3.5*13 Pan Head, Self-Tapping, Dovetail Screws.

Features:

- Input filter and multi-stage output filters for extremely low noise floor
- Short circuit, overload and thermal protection
- Energy efficient usage and design
- 7 high current, isolated, low-noise DC outputs
- 3 variable (9/12/18V) high current isolated, low-noise DC output
- USB OUT (5V/2A) for powering a MONO Power Supply, Small or charging devices
- 24V OUT @ 2A for powering another MONO Power Supply, Medium/Large or other devices
- Ultra slim profile below 1" for mounting below pedalboards
- Ultra light 304g (10.72oz) to always remain portable
- Durable aluminium enclosure for all playing conditions
- Universal 24V power adapter for compatibility with any power source worldwide
- Individual status LED for each outlet to show output status
- 10 2.1mm x 5.5mm power cables included (5 short, 5 long)
- (2) Light weight, rugged mounting brackets included
- Premium hook-and-loop tape for an alternative form of mounting included

Specs

- Input: 24V DC @ 3A (5.5mm x 2.1mm plug)
- Outputs: 9V DC 500mA, center negative (x7) | 9/12/18V DC 500mA, center negative (x3) | 5V 2A, USB-A (x1) | 24V DC 2A (x1)
- Weight: 10.72oz (304g)
- Size: 12.32 x 2.20 x 0.98 inches (313 x 56 x 25 mm)

Dimensions and Weight in Packaging

Base Item

Shipping Weight: 2.63 lbs
Shipping Dimensions: 13 x 6 x 3 in
Manufacturer Part Number (MPN): PFX-PS-L-BLK-US

Documents and Manuals

For support or warranty questions, please contact the manufacturer:
Phone: 415-329-3633
Web: https://monocreators.com/pages/contact

Reviews

(1 ratings)

Submitted September 20, 2025 by a customer from gmail.com

"Mono Large Power Supply - Great!"

Overall:

(see rating details)

Verified Customer zZounds has verified that this reviewer made a purchase from us.

I’ve had this power supply for at least a year now, probably closer to two years, and it’s rock solid. I’ve never had any power delivery issues with it. Huge bonus is that it is very slim, will fit under just about any pedalboard. I have a USB A>C cable plugged in that provides power to my iPad, very convenient. I’d love it if it was a USB-C port, as it would provide better power for my tablet, but it does the job, and my iPadwill at the very least keep the charge that it has and lose no more. I use this mono power supply to power my two Eventide H9s, my boss GM 800 synth pedal, a tuner pedal, a USB light, a MIDI controller, and two overdrives. I believe this is my favorite power supply that I’ve ever had. The only one that I’d compare it to as in the same class would be the true tone CS 12 pro. Highly recommend recommended product.

Did you find this review helpful?
