Mackie Big Knob Studio Plus Monitor Controller and USB Audio Interface

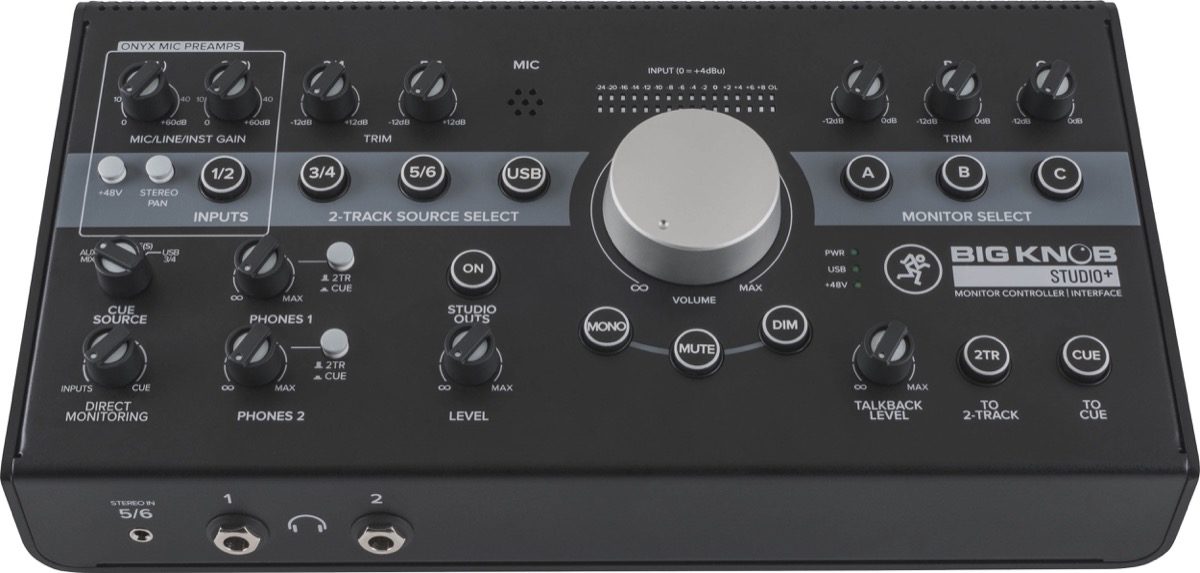

Mackie Big Knob Studio Plus Monitor Controller and USB Audio Interface, New, Main

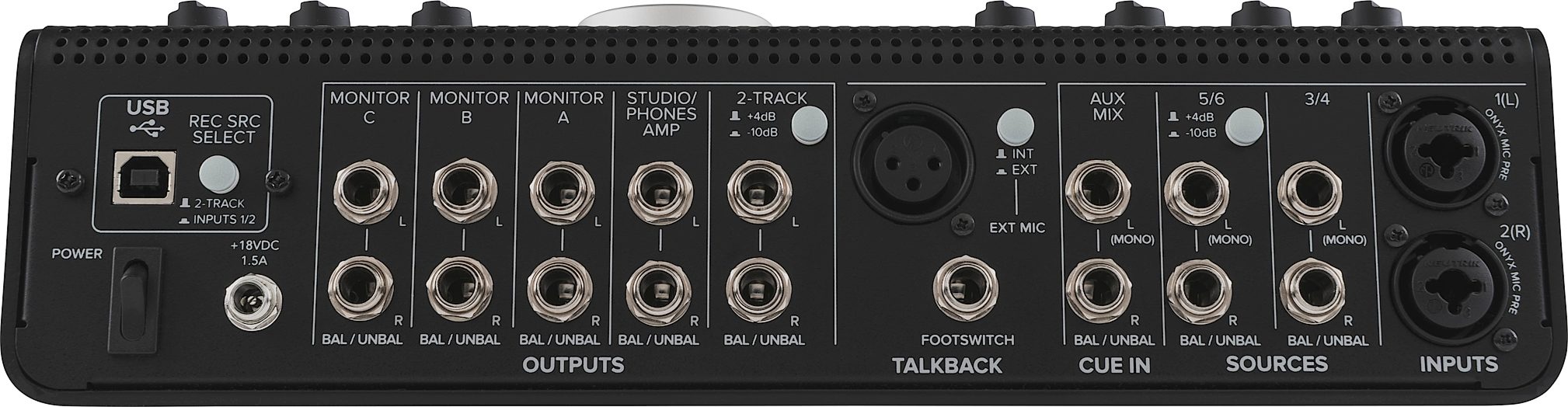

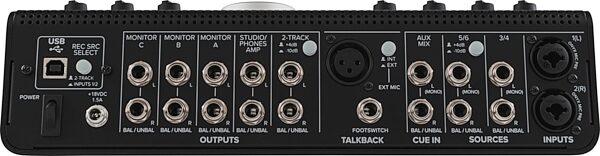

Mackie Big Knob Studio Plus Monitor Controller and USB Audio Interface, New, Rear

zZounds Gear Experts Say...

The heart of your studio, Mackie's Big Knob Studio Plus lets you route 4 sources to 3 monitor pairs -- and record at 192 kHz through 2 Onyx preamps over USB!

Overview

Mackie Big Knob Studio Plus delivers a modernized, smart monitoring control solution based on the bestselling Big Knob, plus integrated USB recording and playback. Professional routing and switching includes a selection of four sources, including USB playback, and a choice between three pairs of monitors, each with independent gain trim to ensure balanced listening levels. Two Onyx(TM) mic preamps deliver a convenient, high-quality desktop recording source coupled with high-resolution 192kHz / 24-bit audio conversion for solid sound quality whether recording or mixing. With dual headphone outs, a dedicated amp-driven studio output and flexible I/O options, Big Knob Studio+ is truly a nerve center for any professional studio.

Features:

Professional source and monitor selection
- Choose between 4 sources and 3 monitor pairs
- Classic Big Knob volume control
- Independent trim on all sources and monitor outs
- Mono, mute and dim functions
Flexible 2x4 USB recording interface
- Two boutique-quality Onyx mic preamps including phantom power for condenser microphones
- High-resolution 192kHz / 24-bit recording and playback
- Cue mix allows controlled blending of direct inputs with other signals for zero-latency recording
- Choice of recording paths provide flexibility for applications like podcasting
Comprehensive feature set for professional studios
- Flexible source connections including convenient front panel 1/8" input for your smartphone
- Dual headphone outs with independent… read more level control and both USB and Aux source options
- Flexible talkback options including external mic input and footswitch control
- Dedicated amp-driven studio output perfect for headphone distribution system
- 16-segment high-resolution input source metering
- Sturdy "Built-Like-A-Tank" design
- Compatible with all major DAWs on both Mac and Windows
- Includes Tracktion(R) recording software

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

- Inputs: 2 x XLR-1/4" combo (mic/line), 4 x 1/4" TRS (line), 2 x 1/4" TRS (cue), 1 x 1/8" stereo aux, 1 x XLR talkback mic, USB 2.0 Type-B
- Outputs: 6 x 1/4" TRS monitor outputs (3 pairs A/B/C), 2 x 1/4" TRS 2-track outputs, 2 x 1/4" TRS studio/phones outputs
- Channels: 2x4 USB interface (2 inputs, 4 outputs)
- Routing Matrix: 4 selectable stereo input sources to 3 selectable stereo monitor pairs with independent trim control
- Frequency Response: 20 Hz to 20 kHz (±0.5 dB, Unity Gain, +4 dBu Input)
- Signal-to-Noise Ratio: < -100 dB
- Total Harmonic Distortion: <0.01% Unweighted (Unity Gain, 1 kHz at +4 dBu Input, 80 kHz Bandwidth)
- Gain Range: 60 dB (Onyx mic preamps)
- Crosstalk: < -60 dB at 1 kHz (Unity Gain, -1 dBFS Input)
- Power Requirements: 100 to 240 VAC, 50/60 Hz, External power supply included
- Compatibility: Mac and Windows, compatible with all major DAWs
- Audio Format: 24-bit / 192 kHz
- Latency: Zero-latency direct monitoring available
- Maximum Input Level: +22 dBu
- Maximum Output Level: +15 dBu

Dimensions and Weight in Packaging

Base Item

Shipping Weight: 6 lbs
Shipping Dimensions: 16 x 10 x 6 in
Manufacturer Part Number (MPN): 2053314-00

Documents and Manuals

For support or warranty questions, please contact the manufacturer:
Phone: 800-898-3211
Email: support@mackie.com
Web: https://mackie.com/en/support/contact

Reviews

(3 ratings)

Submitted March 27, 2024 by a customer from mac.com

"Mackie Big Knob Studio Issues with frozen LEDs"

Overall:

(see rating details)

Verified Customer zZounds has verified that this reviewer made a purchase from us.

I powered up my Mackie Big Knob Studio Plus and noticed the input LEDs were lit up despite nothing being plugged into the input section. After some online research, I came across a helpful video. Since I'm only using it to control my speakers and not as a sound card, disconnecting the USB port from the motherboard resolved the issue for me. I'm hoping Mackie will address this issue because this unit is only 2 1/2 years old and I use it every day. With the USB disconnected I can no longer multitrack with it but now the unit gets very hot and at times it starts to make really funny noises and I have to shut it down constantly. I take really good care of all of my equipment and this is the only equipment that is failing on me which is sad because I really love Mackie products, but unfortunately this is a real problem.

3 of 3 people (100%) people found this review helpful. Did you?
