Mackie 3204VLZ4 32-Channel USB Mixer

open zoom image for Mackie 3204VLZ4 32-Channel USB Mixer, New, Left

open zoom image for Mackie 3204VLZ4 32-Channel USB Mixer, New, Rear

open zoom image for Mackie 3204VLZ4 32-Channel USB Mixer, New, Right

open zoom image for Mackie 3204VLZ4 32-Channel USB Mixer, New, Side

Mackie 3204VLZ4 32-Channel USB Mixer, New, Main

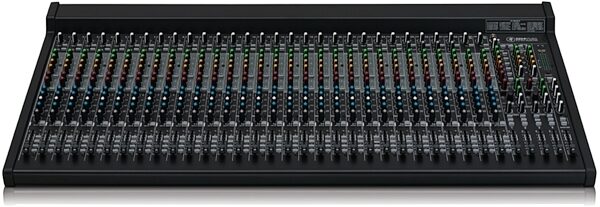

Mackie 3204VLZ4 32-Channel USB Mixer, New, Front

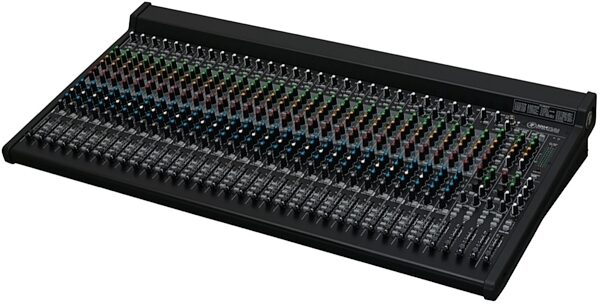

Mackie 3204VLZ4 32-Channel USB Mixer, New, Left

Mackie 3204VLZ4 32-Channel USB Mixer, New, Rear

Mackie 3204VLZ4 32-Channel USB Mixer, New, Right

Mackie 3204VLZ4 32-Channel USB Mixer, New, Side

zZounds Gear Experts Say...

Build your venue's PA around the Mackie 3204VLZ4 console -- with one-knob compression on 4 channels and 4 buses, 2 FX processors with tap delay, and USB I/O.

Overview

The 32-channel 3204VLZ4 features the proven performance of Mackie's Onyx mic preamps in a high-headroom/low-noise 4-bus design with a feature set perfect for live sound.

Learn more about the Mackie VLZ4 Series:

The Mackie 3204VLZ4 features dual 32-bit RMFX+ effects processors each with 24 effects including tap delay. Plus, compression on dedicated channels and subgroups allows for simple, sweet dynamic control. There's even 4x2 USB connectivity for flexible recording of the show. And, of course, Mackie's legendary "Built-Like-A-Tank" construction delivers years of reliable use under the most strenuous conditions. The 3204VLZ4 is the premium compact FX mixer solution for anybody serious about performance in a design that's flexible, rugged and professional.

Check out this video from Mackie's MixBusters:

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

- Mixer Type: 32-channel 4-bus analog mixer with digital effects and USB interface
- Total Channels: 32
- Mono Channels: 28
- Stereo Channels: 2
- Mic Preamps: 28 Onyx microphone preamps
- Phantom Power: +48V phantom power
- Channel EQ: 3-band EQ with sweepable midrange (100 Hz - 8 kHz)
- Aux Sends: 6 aux sends per channel
- Subgroups: 4 subgroups with dedicated compressors
- Main Outputs: XLR and 1/4" main L/R outputs, mono output
- Other I/O: 28 high-headroom line inputs, channel inserts, aux outputs, tape I/O
- Digital Interface: 4x2 USB 1.1 interface, 24-bit at 44.1/48 kHz
- Frequency Response: 20 Hz - 20 kHz
- Total Harmonic Distortion (THD): <0.005% (mic to main out), <0.001% (mic to insert)
- Signal-to-Noise Ratio (SNR): Main mix fader @ unity, channel faders down: -84.5 dBu (-88.5 dB Signal to Noise Ratio, ref +4 dBu)
- Built-in Effects: Dual 32-bit RMFX+ processors with 24 reverbs, choruses, and tap delays
- Power Requirements: 100-240 VAC, 50-60 Hz universal power supply
- Power Consumption: 65 watts

Dimensions and Weight in Packaging

Base Item

Shipping Weight: 47 lbs
Shipping Dimensions: 43 x 24 x 11 in
Manufacturer Part Number (MPN): 2051284-00

Documents and Manuals

For support or warranty questions, please contact the manufacturer:
Phone: 800-898-3211
Email: support@mackie.com
Web: https://mackie.com/en/support/contact

Reviews

(1 ratings)

Submitted March 11, 2022 by Manuel A Alvarez in Miami, FL

"3204vlz4"

Overall:

(see rating details)

Excellent equipmment, but Mackie does not carry any spare in case of failure.

Sound

The mixer is one of the best mixers I work with, with excellent construction, great stability

Features

the VZL amplifier is excellent, the construction is sturdy, the audio input distribution as the output is excellent, USB, etc

Ease of Use

yes it is

Quality

Very well constructed

Value

The product is excellent, the support fail.

Manufacturer Support

Yes, they do not carry any spare either and do not provide repair manuals to customers, they just send you to service centers to charge an arm and leg for repairs, and they returned with a letter telling that the parts are obsolete.

The Wow Factor

excellent product, when is working, if fails, is ready for the next garbish can available
