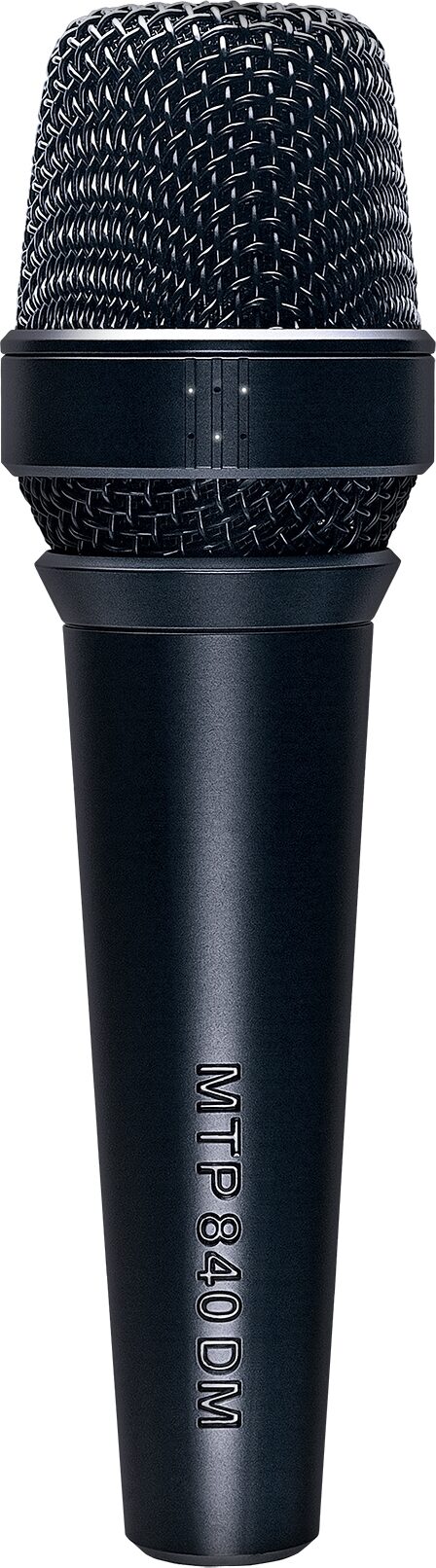

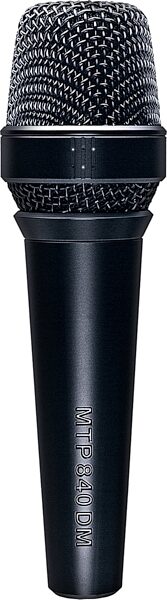

Lewitt MTP 840 DM Dynamic Supercardioid Vocal Microphone

Get a premium vocal sound onstage with the Lewitt Audio MTP 840 DM, a dynamic supercardioid vocal mic with a built-in active mode for extra sensitivity.

Versatility and durability, plus optimal suitability for punishing touring conditions with no compromises on sound: this is what the MTP 840 DM stands for. Its excellent transient response, refined electronics, and superior capsule design make the MTP 840 DM a unique tool for onstage use. Innovatively designed circuitry and the highest-quality components make for exceptionally low self-noise and a maximum of dynamic range when in Active Mode, and the frequency curve, which is specially tailored for vocal recordings provides the ultimate in sound quality.

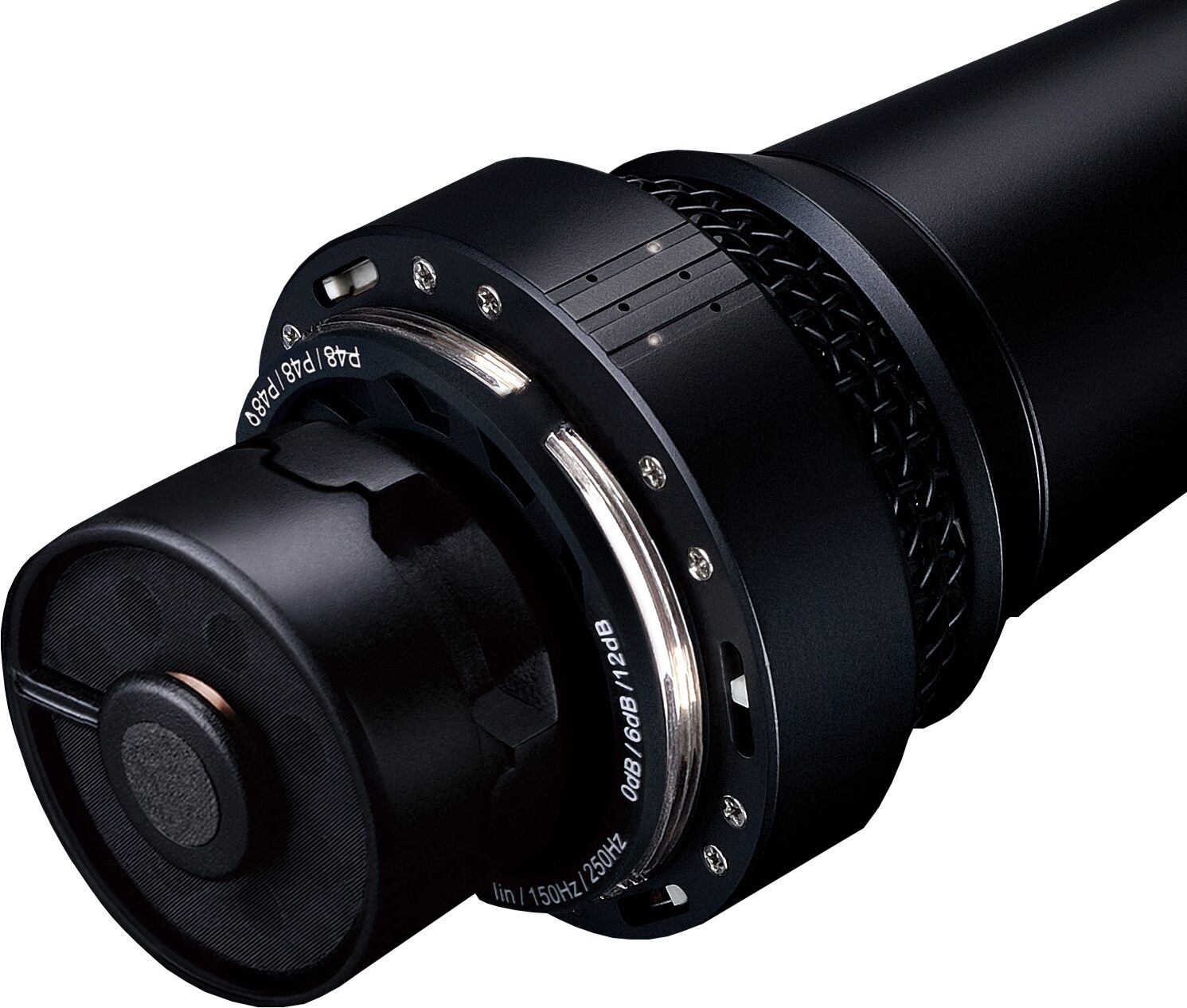

A three-step low-cut filter directly influences the proximity effect, permitting adaptation of the mic to individual preferences. The built-in three-position switchable amplifier, is specially adapted to the MTP 840 DM's components, allowing lossless recording of even far-off sources. A supercardioid polar pattern provides maximum protection against feedback, and the flexibly suspended capsule reduces structure-borne noise to a minimum. The MTP 840 DM transports the artist's voice in a powerful way, lending it the necessary presence without falsifying its individual character.

Features:

- Dynamic vocal microphone
- Active mode to boost sensitivity
- Tailored vocal sound
- Low-cut settings
- Supercardioid pattern

- Type: Dynamic, moving coil
- Acoustical operating principle: Pressure gradient transducer
- Polar pattern: Supercardioid
- Frequency range: 40 ... 18,000 Hz
- Sensitivity: 3.5 mV/Pa, -49 dBV/Pa
- Signal / noise ratio: 75 dB (A)
- Equivalent noise level: 19 dB (A)
- Dynamic range, passive mode: 135 dB
- Dynamic range, active mode:
121 dB, 0 dB gain
115 dB, 6 dB gain
109 dB, 12 dB gain
- Gain settings, active mode: 0 dB, 6 dB, 12 dB
- Low-cut filter:
linear
150 Hz (12 dB/oct)
250 Hz (12 dB/oct)
- Internal impedance: 600 O
- Rated load impedance: 1,000 O
- Supply voltage: 48 V 4 V
- Current consumption: 5.5 mA
- Connector: Gold plated 3-pin XLR
- Microphone dimensions: 51 dia. x 183 mm, 2 dia. x 7.2 in
- Microphone net weight: 336 g, 11.85 oz
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 2 lbs
Shipping Dimensions: 10 x 8 x 4 in
Manufacturer Part Number (MPN): MTP840DM
