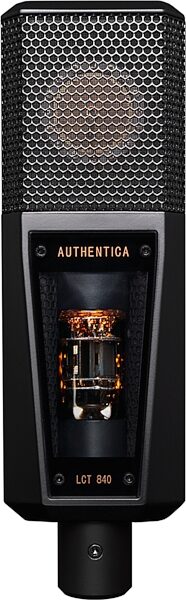

Lewitt LCT 840 Multi-Pattern Tube Condenser Microphone

Watch your vocal tone glow right before your eyes! The Lewitt LCT 840 tube condenser microphone is engineered with a 1" capsule and delivers warm tube tones.
The LCT 840, equipped with a precision-engineered 1" capsule, stands for exceptionally warm and classic tube sound. It offers highly nuanced and authentic sound reproduction in the studio and even onstage. 5 switchable polar patterns, 3 low-cut settings, and 3 pre-attenuations settings make the LCT 840 a highly versatile tool.
Type: Condenser, externally polarized
Acoustical Operating Principle: Pressure gradient transducer
Transducer: 25.4 mm, 1 in
Polar Pattern: Omni, wide cardioid, cardioid, supercardioid, figure-8
Frequency Range: 20 - 20,000 Hz
Sensitivity:
- 23 mV/Pa, -33 dBV/Pa (cardioid)
- 20 mV/Pa, -34 dBV/Pa (omni)
- 23 mV/Pa, -33 dBV/Pa (figure-8)
Equivalent Noise Level: 9 dB (A)
Max. SPL for 0.5 % THD: 139 dBSPL, 0 dB pre-attenuation
Signal / Noise Ratio: 85 dB (A)
Dynamic Range: 130 dB (A)
Pre-Attenuation Pad:
- 0 dB
- -10 dB
- -20 dB
Low-Cut Filter: linear
- 40 Hz (12 dB/oct)
- 300 Hz (6 dB/oct)
Internal Impedance: 200 O
Rated Load Impedance: 1,000 O
PSU - Supply Voltage:
- 230 V, 50 Hz
- 110 V, 60 Hz
Current Consumption: 170 mA
Connector: Gold plated 11-pin XLR
Microphone Dimensions: 192 x 60 x 46 mm, 7.5 x 2.4 x 1.8 in
Microphone Net Weight: 662 g, 23.3 oz
PSU Dimensions: 250 x 150 x 70 mm, 9.8 x 5.9 x 2.8 in
PSU Net Weight: 1894 g, 66.8 oz
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 21.08 lbs
Shipping Dimensions: 19 x 16 x 6 in
Manufacturer Part Number (MPN): AMS-LCT-840
