LD Systems ICOA PRO 15 A Powered Loudspeaker















zZounds Gear Experts Say...
Powerful and clear performance! LD Systems' ICOA PRO 15 A offers a 15" coaxial driver, 1500W RMS output, and advanced DSP for optimal sound dispersion.
Overview
The ICOA PRO 15 A combines the sonic precision of a true coaxial system with the power and impact of a high-performance 15" loudspeaker. Its professional full-range performance and robust design make it exceptionally versatile, ideal for a wide range of applications, from club gigs and live events to permanent installations.
- Rotatable, BEM-optimized horn ensures precise dispersion
- Custom 15" woofer with a 3" voice coil and 3" titanium tweeter
- 1500 W RMS (3000 W peak) and 135 dB max SPL
- Airflow-optimized bass reflex ports
- SysCore DSP with FIR/IIR filters ensures distortion-free sound

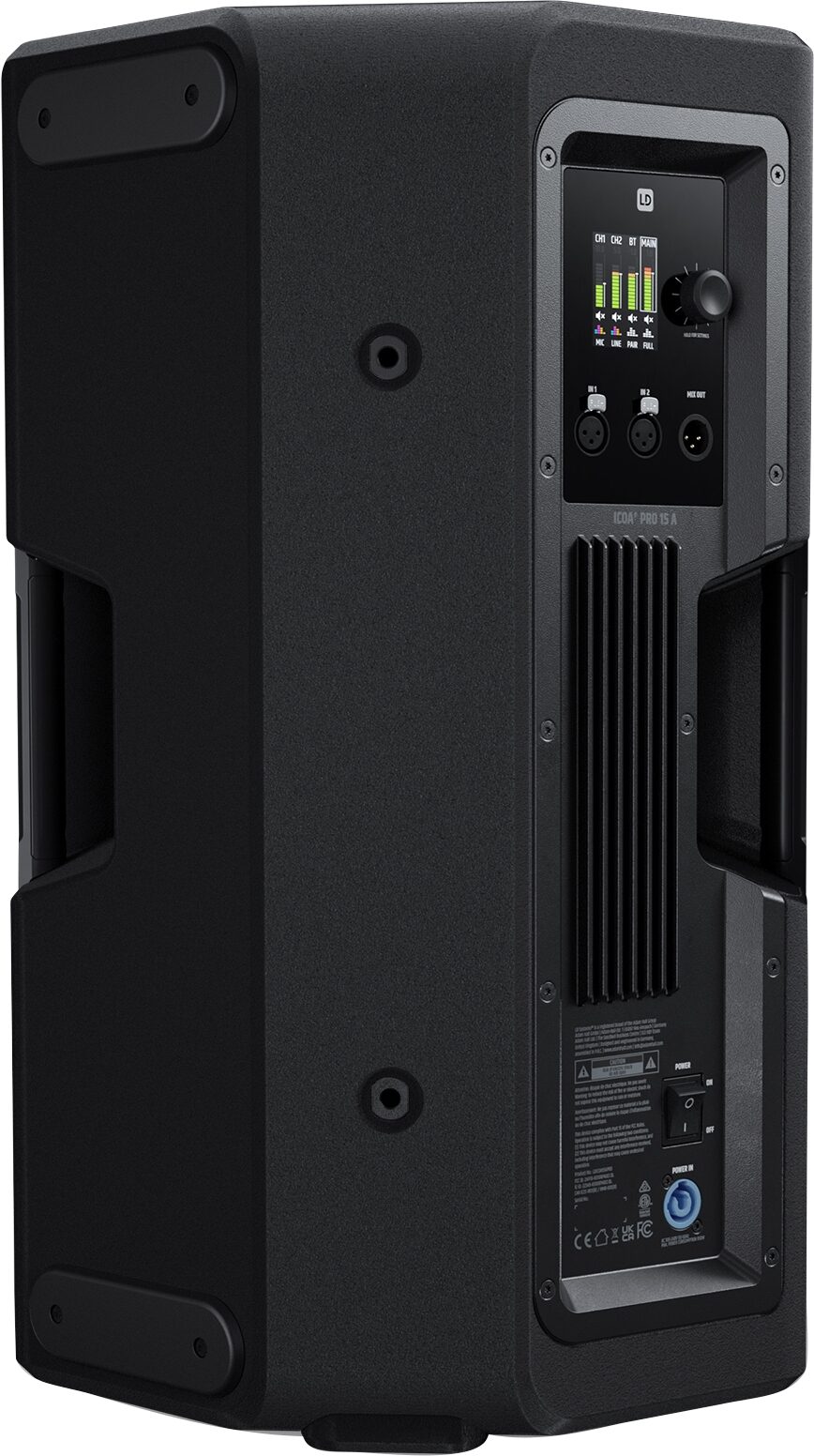

- 2 XLR inputs, 2 XLR outputs, and a powerCON loop-thru connection
- 4-band PEQ, delay function, and 3 selectable crossover frequencies
- Free "ICOA PRO" app and Bluetooth connectivity

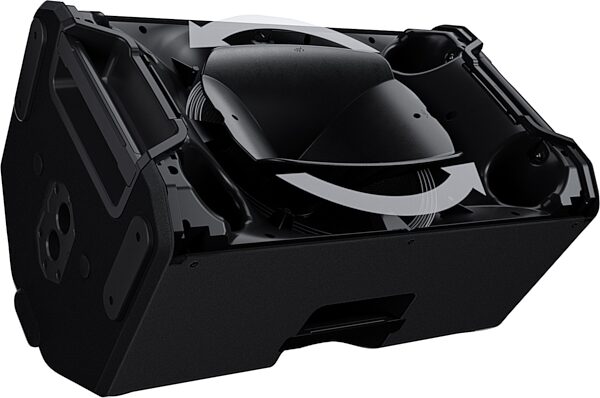

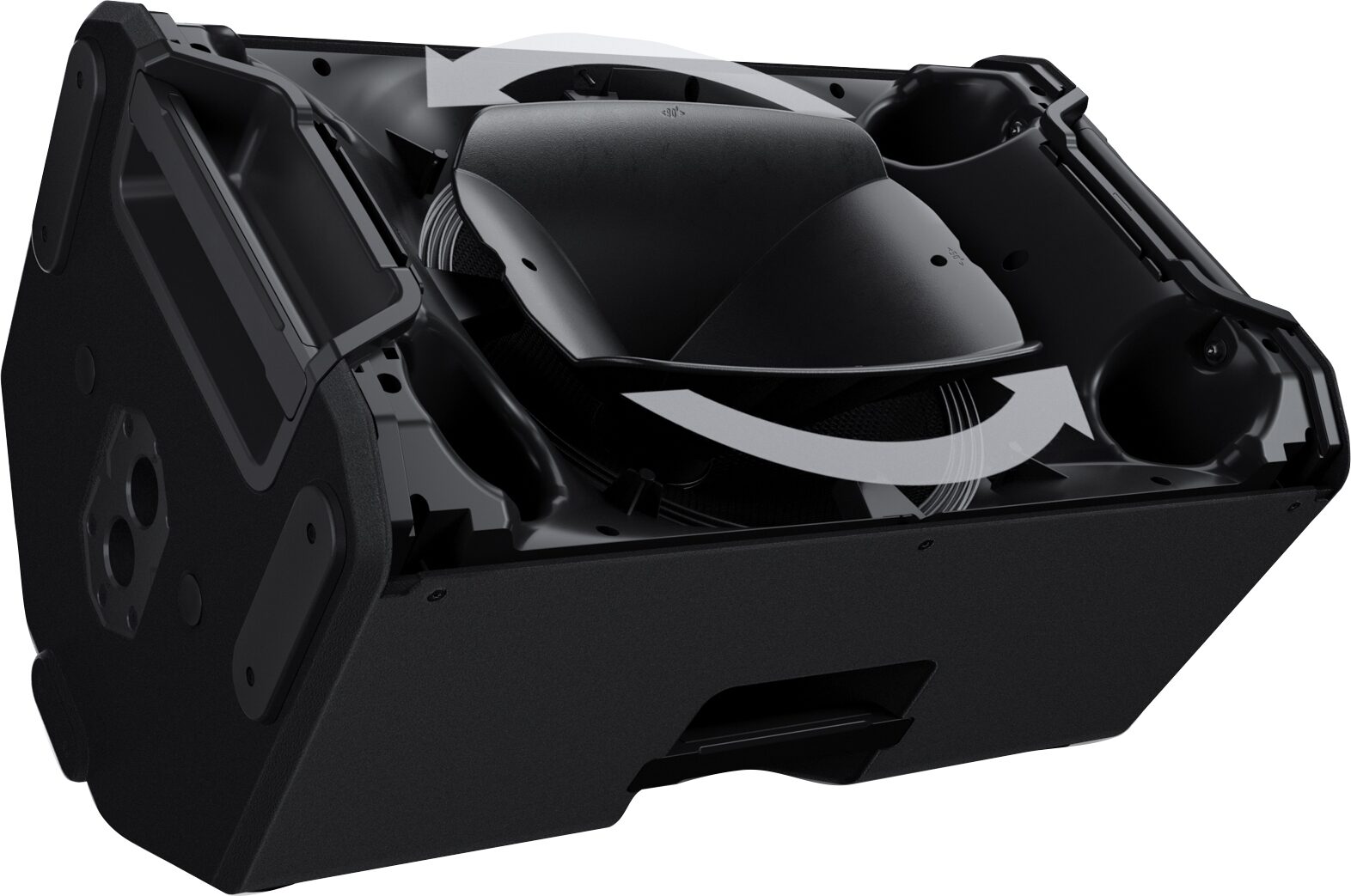

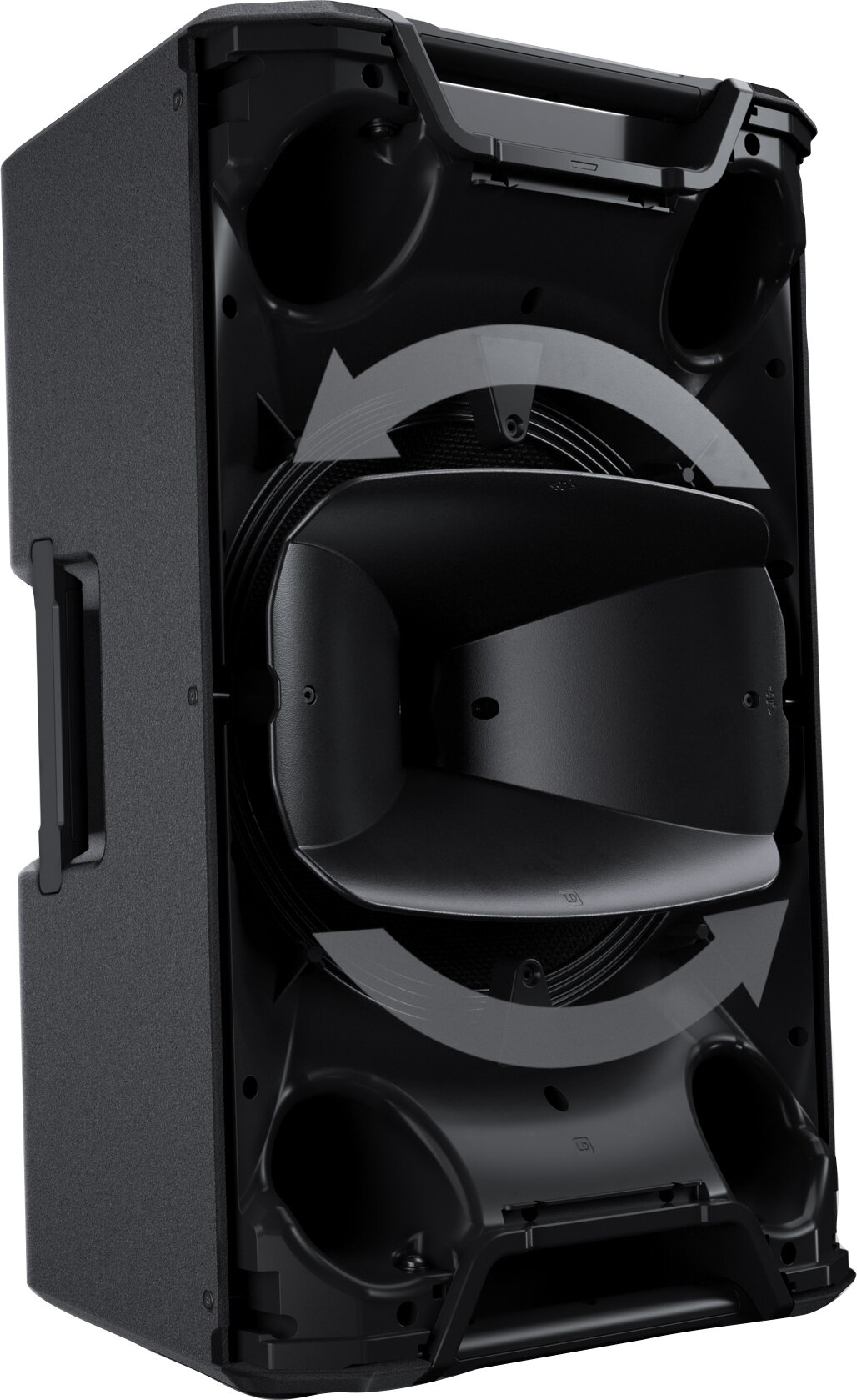

The coaxial design integrates the specially manufactured 15" woofer with a 3" voice coil and 3" titanium tweeter into a true point source. The common-motor-design enhances the coherence and timing accuracy of the audio signal, resulting in particularly natural and detailed sound reproduction. The rotatable, BEM-optimized horn ensures precise dispersion characteristics while simultaneously providing horn loading for both the woofer and tweeter. This dual horn loading enables accurate sound wave bundling down to the midrange (approx. 500 Hz), offering a significant advantage in acoustically demanding environments by directing the sound energy… read more exactly where it is needed. Thanks to its airflow-optimized bass reflex ports, the ICOA PRO 15 A delivers a solid low-end down to 50 Hz, ensuring an impressive full-range experience.
The powerful Class-D amplifier delivers up to 1500 W RMS (3000 W peak) and 135 dB max. SPL, providing sufficient headroom when powerful sound is required. The modern SysCore DSP with FIR/IIR filters and advanced limiters ensures distortion-free sound and safe operation with maximum clarity and punch - even at high output levels. Two line/mic input channels and an XLR mix output enable various signal sources to be connected and forwarded. Four application presets (including a low-latency monitor), delay function, and parametric 4-band EQs for both input and master channels allow for precise settings.

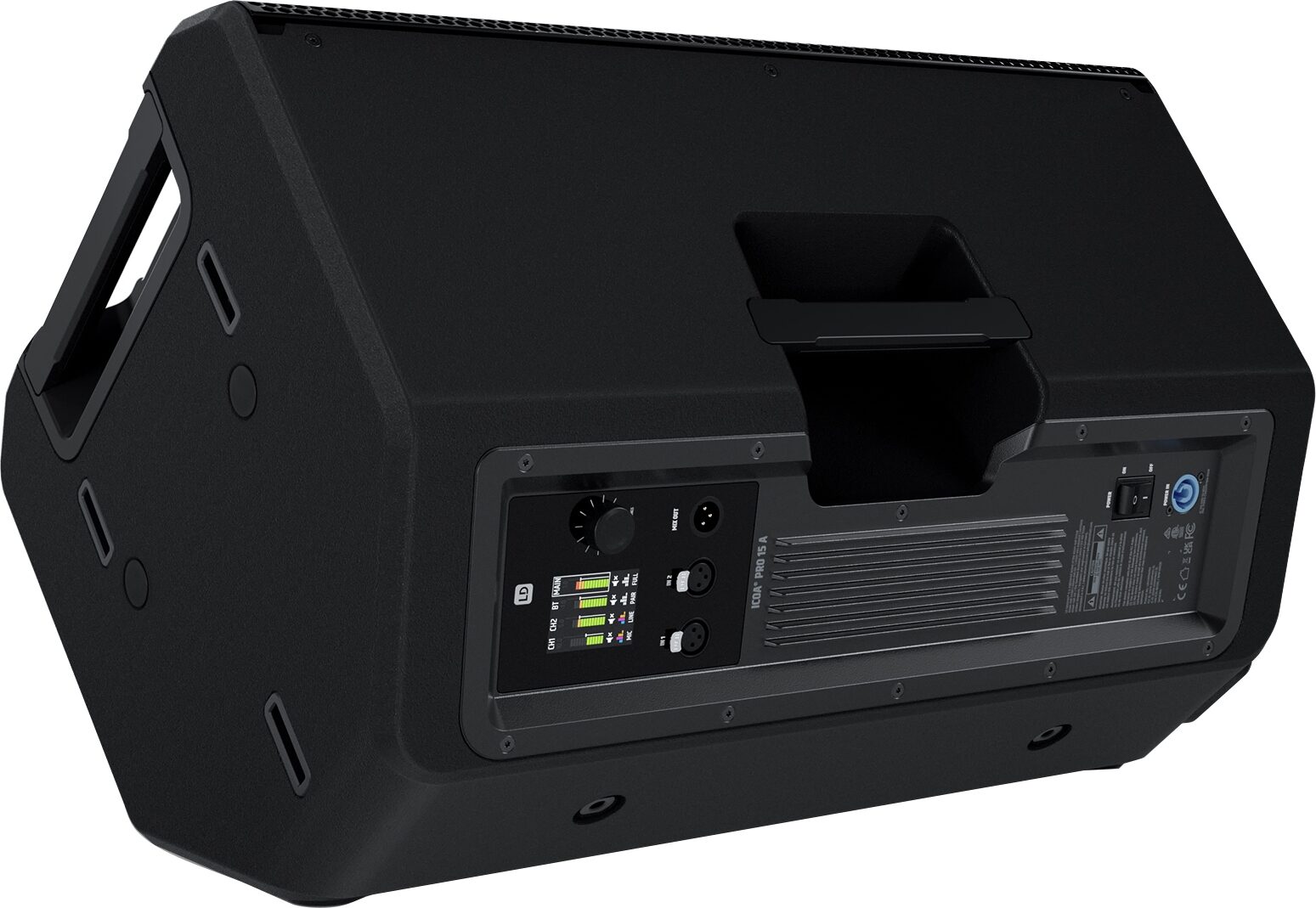

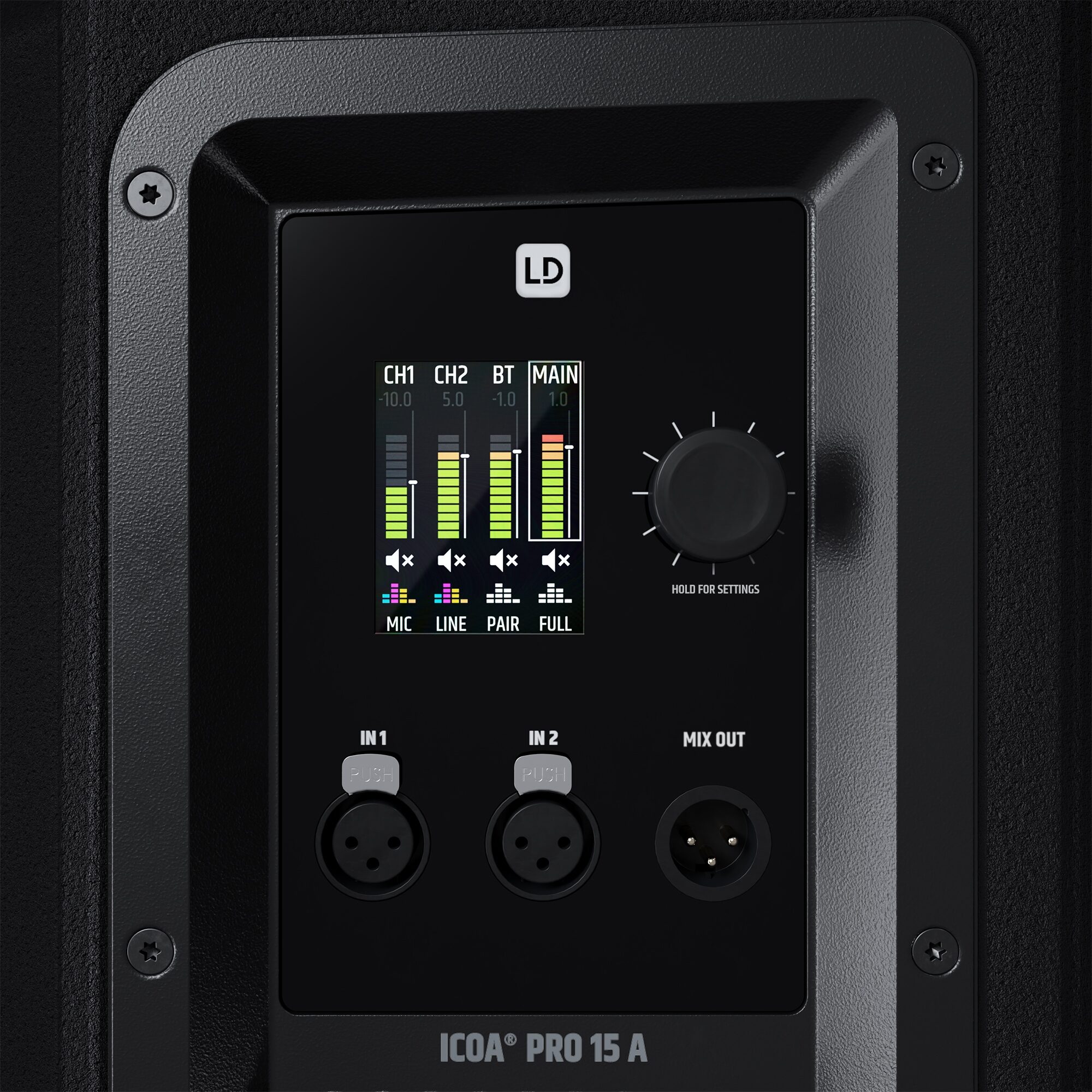

All settings can be controlled intuitively via the colour display with One-Knob control or through the free "ICOA PRO" app. The app enables quick and wireless adjustments and allows you to connect multiple loudspeakers. A stereo setup with up to two tops and four subs, including direct music streaming via Bluetooth 5.1 and TWS, can be configured and set up in the app within seconds. A status LED on the front of the loudspeaker simplifies identification and provides feedback on the limiter's operation when needed.

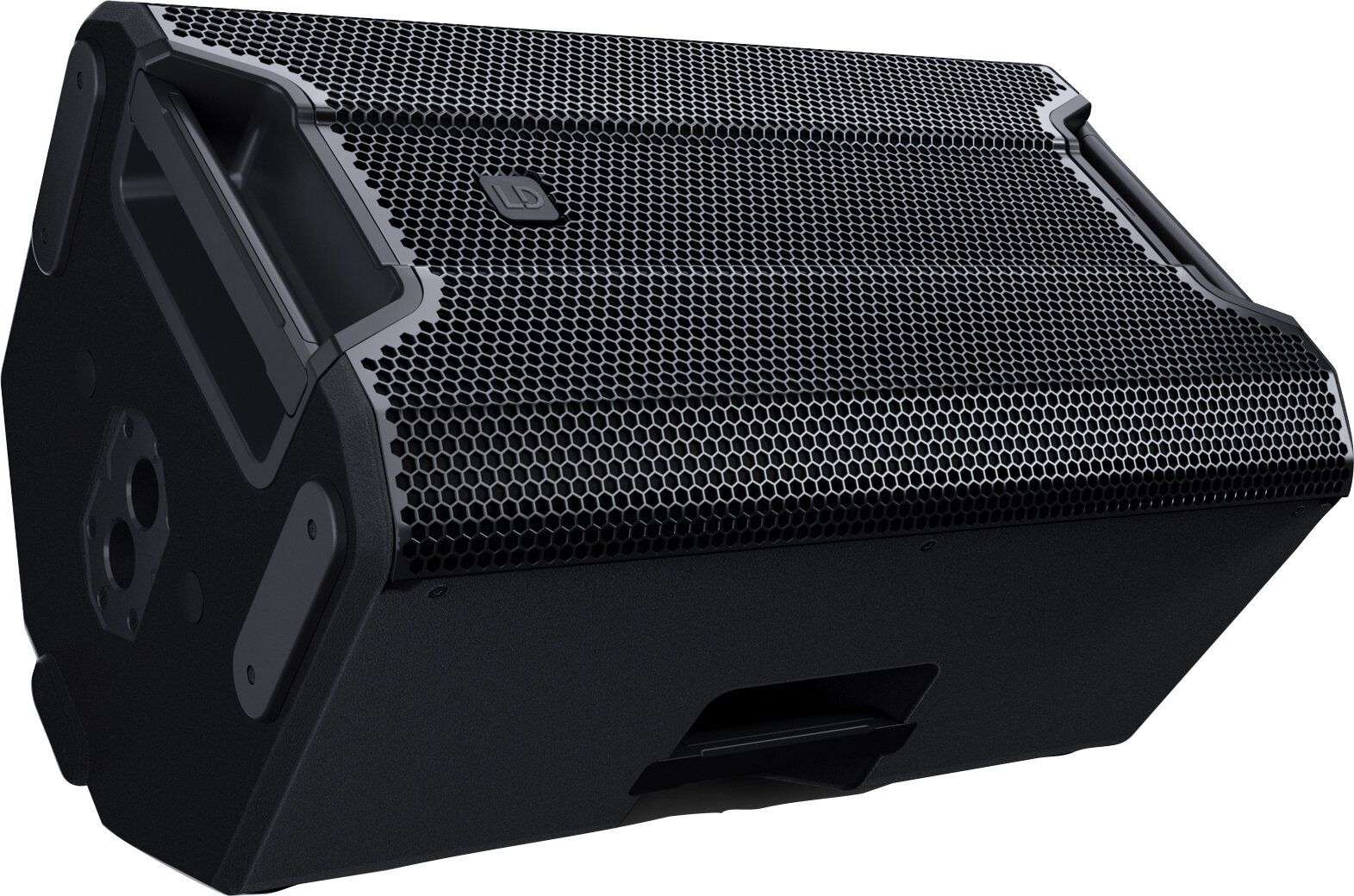

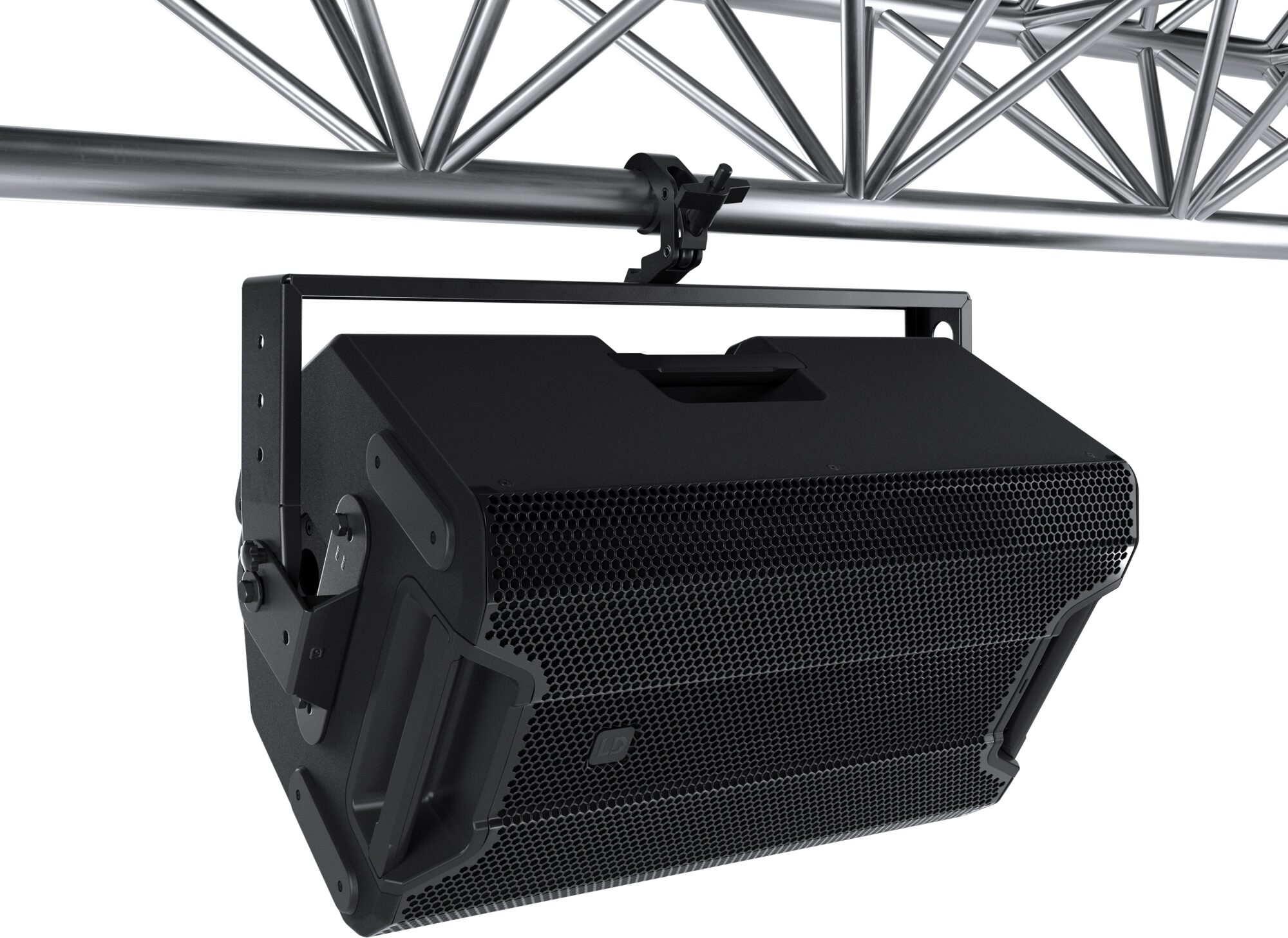

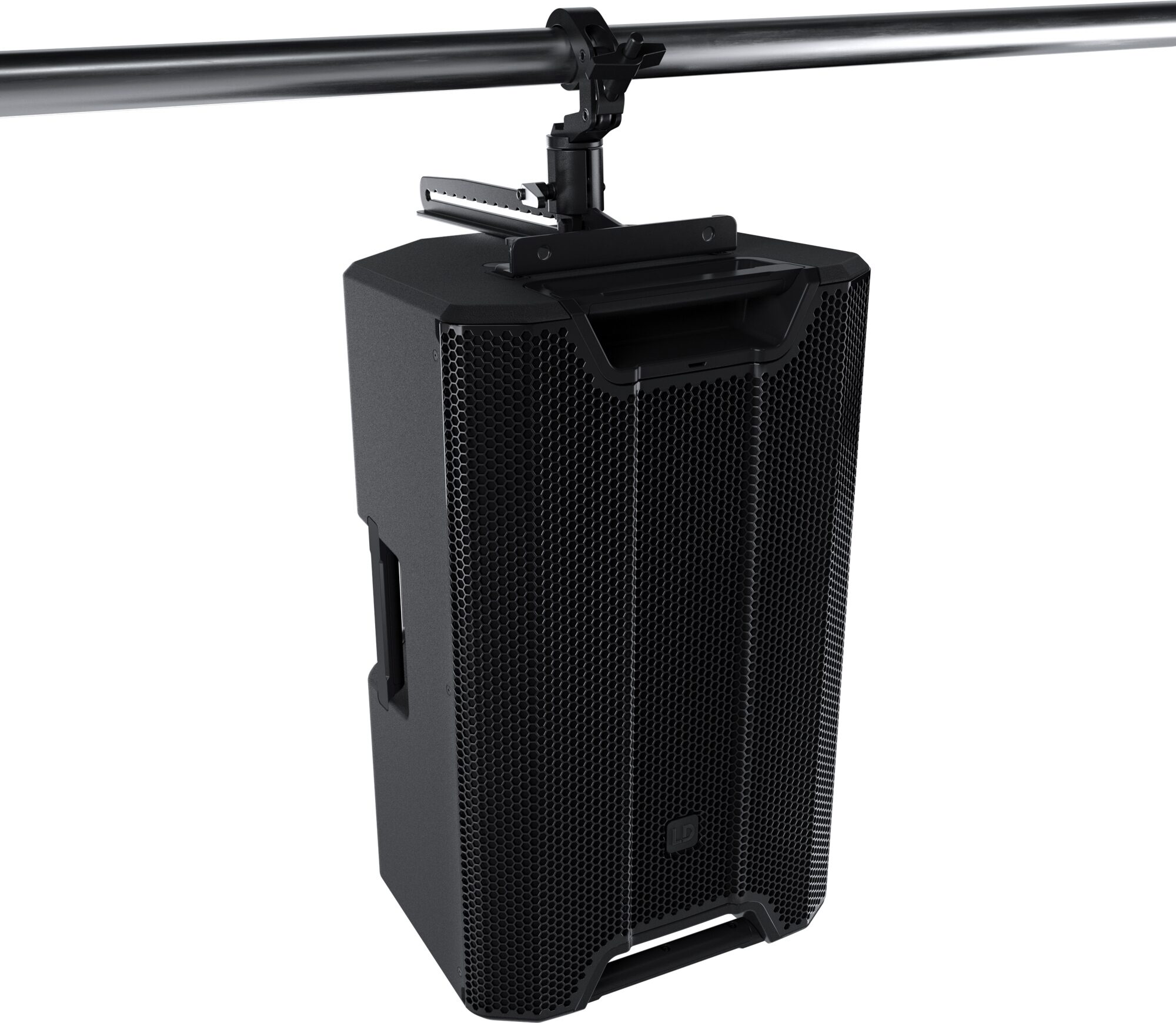

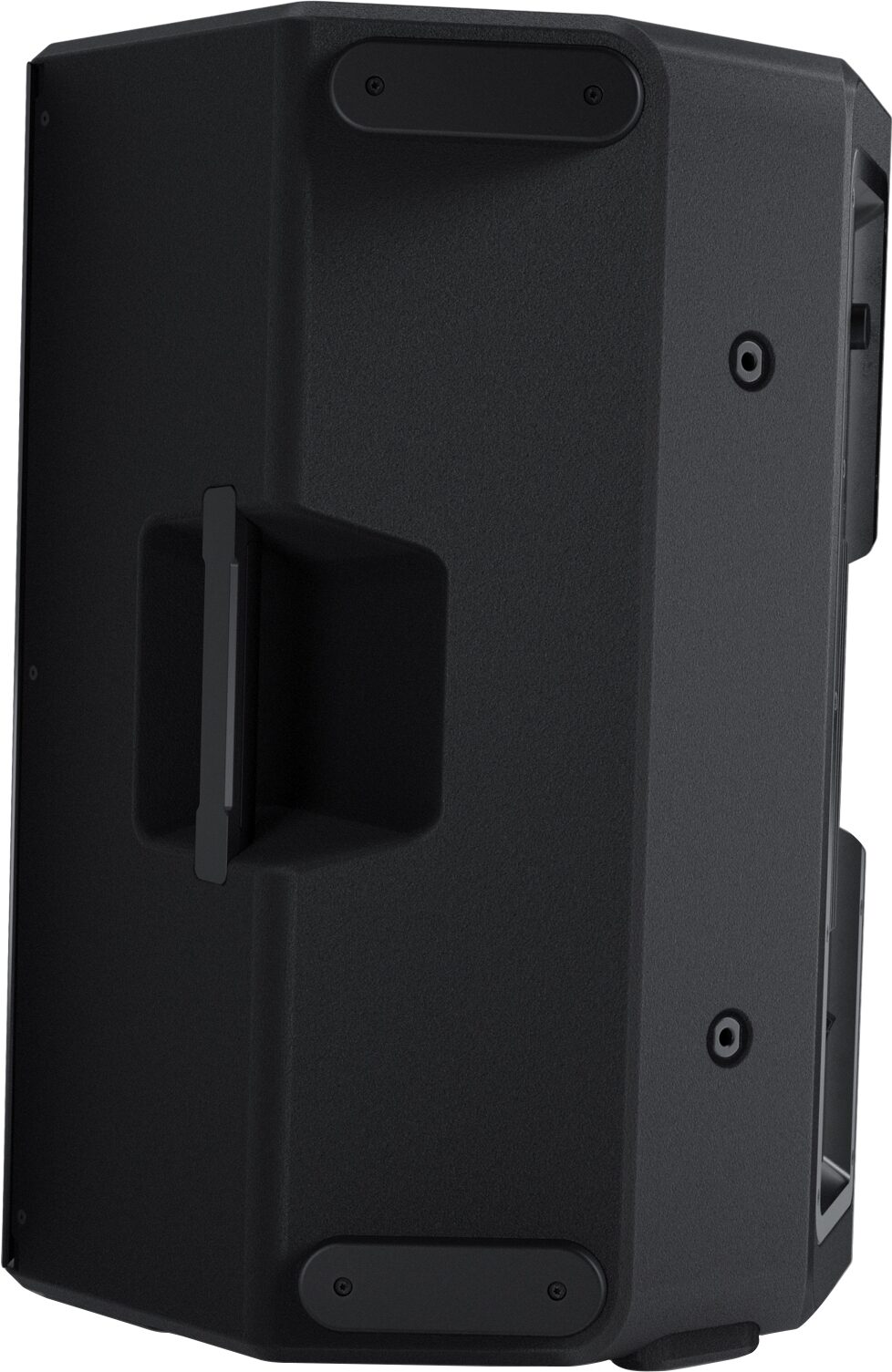

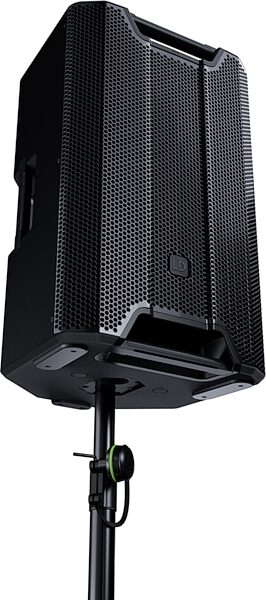

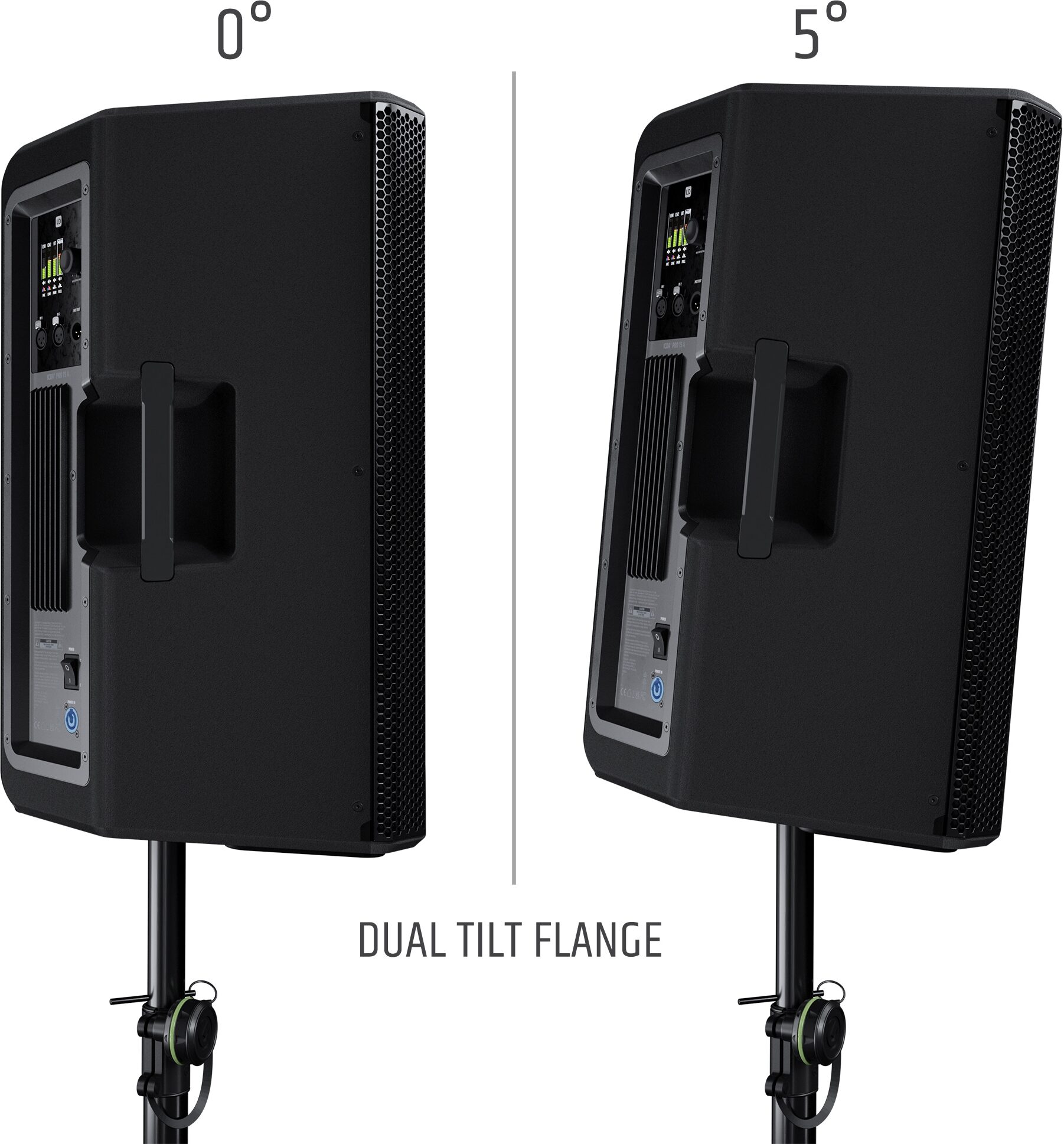

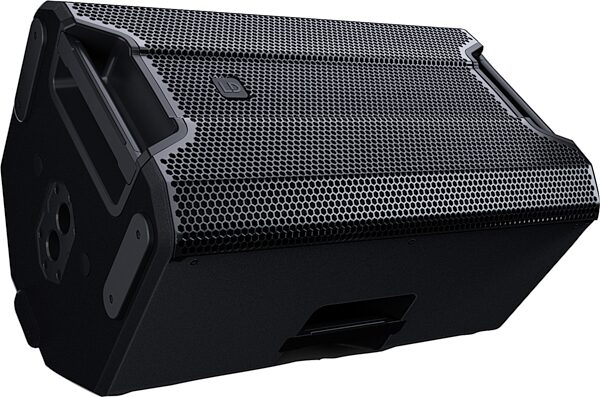

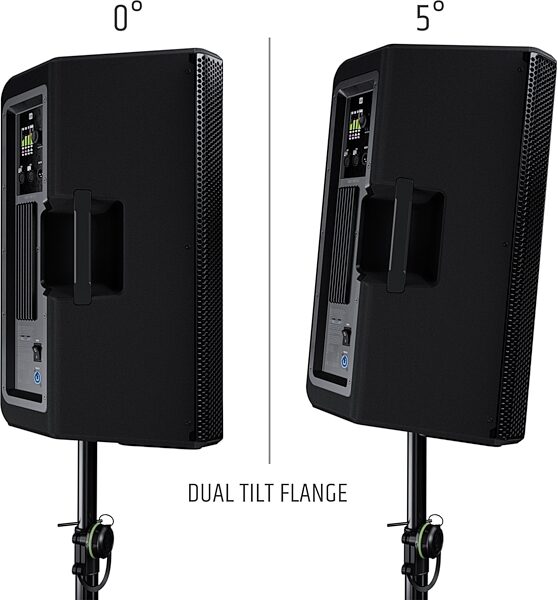

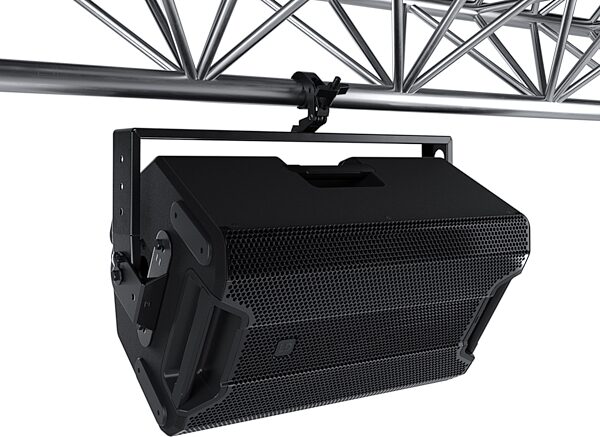

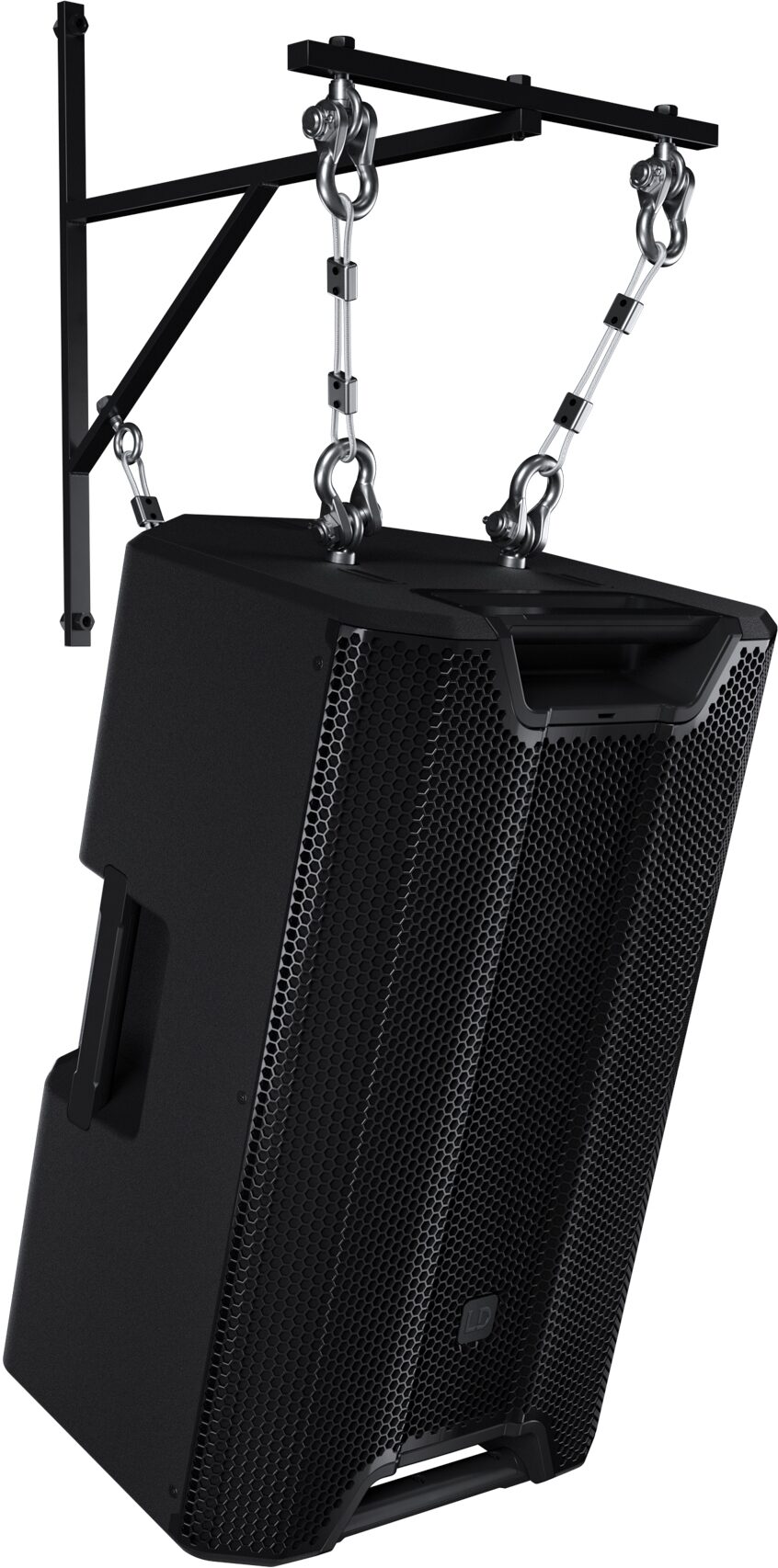

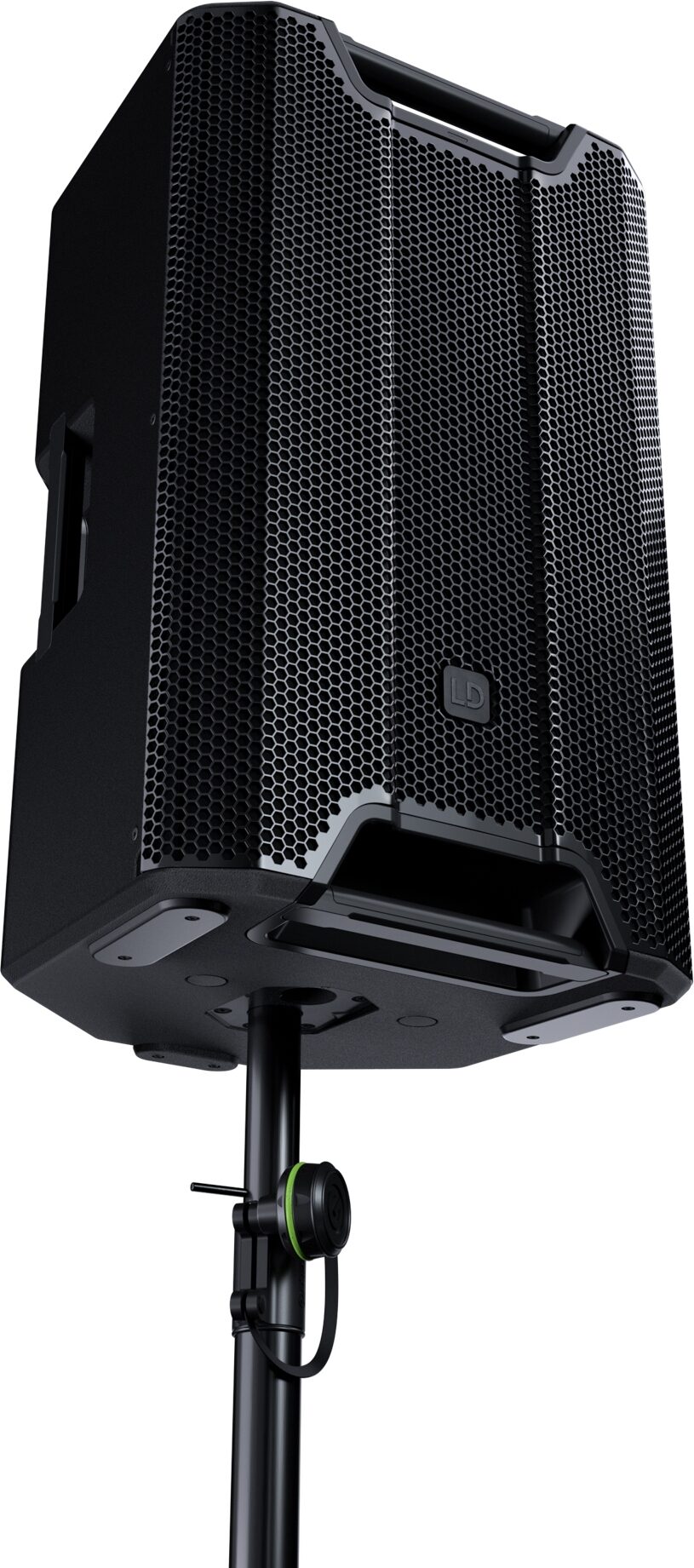

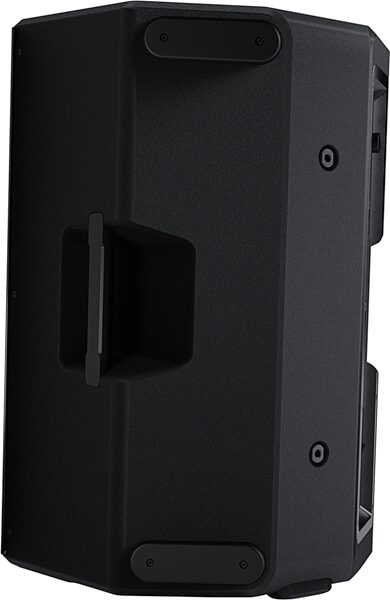

The rugged ABS enclosure with steel reinforcement, a durable front grille, and a 50- tilt angle makes the ICOA PRO 15 A an excellent and robust loudspeaker, even as a floor monitor. Four ergonomic handles ensure optimal grip for easy setup and teardown. When used with a stand, a tilt angle of 0- or 5- can be selected. Whether used vertically or horizontally, the rotatable horn and the multiple mounting options, such as 6 - M10 rigging points and the EasyMount truss bracket allow for flexible deployment in a wide variety of environments.
For safe use and transport, custom-fit protective covers with additional storage space, made from water-resistant and padded material, are available as accessories. This makes the ICOA PRO 15 A the perfect companion as a versatile tool for event and installation applications.
read less
Features:
- Full-range performance and robust design- Rotatable, BEM-optimized horn ensures precise dispersion
- Custom 15" woofer with a 3" voice coil and 3" titanium tweeter
- 1500 W RMS (3000 W peak) and 135 dB max SPL
- Airflow-optimized bass reflex ports
- SysCore DSP with FIR/IIR filters ensures distortion-free sound
- 2 XLR inputs, 2 XLR outputs, and a powerCON loop-thru connection
- 4-band PEQ, delay function, and 3 selectable crossover frequencies
- Free "ICOA PRO" app and Bluetooth connectivity
The coaxial design integrates the specially manufactured 15" woofer with a 3" voice coil and 3" titanium tweeter into a true point source. The common-motor-design enhances the coherence and timing accuracy of the audio signal, resulting in particularly natural and detailed sound reproduction. The rotatable, BEM-optimized horn ensures precise dispersion characteristics while simultaneously providing horn loading for both the woofer and tweeter. This dual horn loading enables accurate sound wave bundling down to the midrange (approx. 500 Hz), offering a significant advantage in acoustically demanding environments by directing the sound energy… read more exactly where it is needed. Thanks to its airflow-optimized bass reflex ports, the ICOA PRO 15 A delivers a solid low-end down to 50 Hz, ensuring an impressive full-range experience.
The powerful Class-D amplifier delivers up to 1500 W RMS (3000 W peak) and 135 dB max. SPL, providing sufficient headroom when powerful sound is required. The modern SysCore DSP with FIR/IIR filters and advanced limiters ensures distortion-free sound and safe operation with maximum clarity and punch - even at high output levels. Two line/mic input channels and an XLR mix output enable various signal sources to be connected and forwarded. Four application presets (including a low-latency monitor), delay function, and parametric 4-band EQs for both input and master channels allow for precise settings.
All settings can be controlled intuitively via the colour display with One-Knob control or through the free "ICOA PRO" app. The app enables quick and wireless adjustments and allows you to connect multiple loudspeakers. A stereo setup with up to two tops and four subs, including direct music streaming via Bluetooth 5.1 and TWS, can be configured and set up in the app within seconds. A status LED on the front of the loudspeaker simplifies identification and provides feedback on the limiter's operation when needed.
The rugged ABS enclosure with steel reinforcement, a durable front grille, and a 50- tilt angle makes the ICOA PRO 15 A an excellent and robust loudspeaker, even as a floor monitor. Four ergonomic handles ensure optimal grip for easy setup and teardown. When used with a stand, a tilt angle of 0- or 5- can be selected. Whether used vertically or horizontally, the rotatable horn and the multiple mounting options, such as 6 - M10 rigging points and the EasyMount truss bracket allow for flexible deployment in a wide variety of environments.
For safe use and transport, custom-fit protective covers with additional storage space, made from water-resistant and padded material, are available as accessories. This makes the ICOA PRO 15 A the perfect companion as a versatile tool for event and installation applications.
Specs
Peak output power: 3000 W
RMS output power: 1500 W
Amp class: Class D
Max. SPL peak (sine burst, fullspace/1 m, THD=10 %): 130 dB
Max. SPL peak (pink noise, fullspace/1 m, CF 4): 135 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD=10 %): 120 dB
Frequency response (-10 dB, rel. Avg): 50 - 20.000 Hz
Speaker system: 2-way coaxial system (Common Motor Design)
Crossover frequency: 800 Hz
Beam angle: 90- (hor.) / 50- (vert.)
Monitor angle: 50 -
Input connector types: XLR combo socket
Output connector types: XLR 3-pole female
Protection features: Multiband Limiter, Short circuit, Overheating, Direct current
Colour: Black
Bluetooth version: Bluetooth 5.1
Features: Audio Streaming (A2DP), TrueWireless- Stereo, TrueWireless- Mirroring, App control
Supported audio codecs: SBC, AAC
Number of mic/line inputs: 2
Mic/Line inputs connection type: XLR combo socket
Number of line inputs: 2
Number of line outputs: 1
Line outputs connector type: XLR combo socket
DSP model: SysCore
AD/DA converter bit depth: 24 Bit
AD/DA converter sampling rate: 48 kHz
Min. Signal-to-noise ratio (SNR): 108 dB
Size: 15"
Outer diameter: 386.3 mm
Manufacturer: Celestion Custom Made
Magnet: Ferrite
Voice coil: 3"
Driver size: 3"
Outlet diameter: 36.68 mm
Manufacturer: Celestion Custom Made
Magnet: Ferrite
Voice coil: 3"
Operation voltage: 100 V AC - 240 V AC / 50 - 60 Hz
Rated power: 950 W
Power supply type: Switch mode power supply (SMPS)
Mains connection model name: powerCON
Mains fuse: T10AH/250 V
Design: Bass reflex
Number of handles: 4
Number of mounting points: 6
Flange: 35 mm (0-/5-)
Chassis material: ABS
Cooling system: Convection cooling
Ambient temperature: 0 - 40 -C
Maximum air humidity (non-condensing): 80 %
Width: 417 mm
Height: 690.7 mm
Depth: 414.8 mm
Weight: 25.8 kg
RMS output power: 1500 W
Amp class: Class D
Max. SPL peak (sine burst, fullspace/1 m, THD=10 %): 130 dB
Max. SPL peak (pink noise, fullspace/1 m, CF 4): 135 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD=10 %): 120 dB
Frequency response (-10 dB, rel. Avg): 50 - 20.000 Hz
Speaker system: 2-way coaxial system (Common Motor Design)
Crossover frequency: 800 Hz
Beam angle: 90- (hor.) / 50- (vert.)
Monitor angle: 50 -
Input connector types: XLR combo socket
Output connector types: XLR 3-pole female
Protection features: Multiband Limiter, Short circuit, Overheating, Direct current
Colour: Black
Bluetooth version: Bluetooth 5.1
Features: Audio Streaming (A2DP), TrueWireless- Stereo, TrueWireless- Mirroring, App control
Supported audio codecs: SBC, AAC
Number of mic/line inputs: 2
Mic/Line inputs connection type: XLR combo socket
Number of line inputs: 2
Number of line outputs: 1
Line outputs connector type: XLR combo socket
DSP model: SysCore
AD/DA converter bit depth: 24 Bit
AD/DA converter sampling rate: 48 kHz
Min. Signal-to-noise ratio (SNR): 108 dB
Size: 15"
Outer diameter: 386.3 mm
Manufacturer: Celestion Custom Made
Magnet: Ferrite
Voice coil: 3"
Driver size: 3"
Outlet diameter: 36.68 mm
Manufacturer: Celestion Custom Made
Magnet: Ferrite
Voice coil: 3"
Operation voltage: 100 V AC - 240 V AC / 50 - 60 Hz
Rated power: 950 W
Power supply type: Switch mode power supply (SMPS)
Mains connection model name: powerCON
Mains fuse: T10AH/250 V
Design: Bass reflex
Number of handles: 4
Number of mounting points: 6
Flange: 35 mm (0-/5-)
Chassis material: ABS
Cooling system: Convection cooling
Ambient temperature: 0 - 40 -C
Maximum air humidity (non-condensing): 80 %
Width: 417 mm
Height: 690.7 mm
Depth: 414.8 mm
Weight: 25.8 kg
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 66.8 lbs
- Shipping Dimensions: 32 x 22 x 21 in
- Manufacturer Part Number (MPN): LDS-ICOA15APRO(US)
