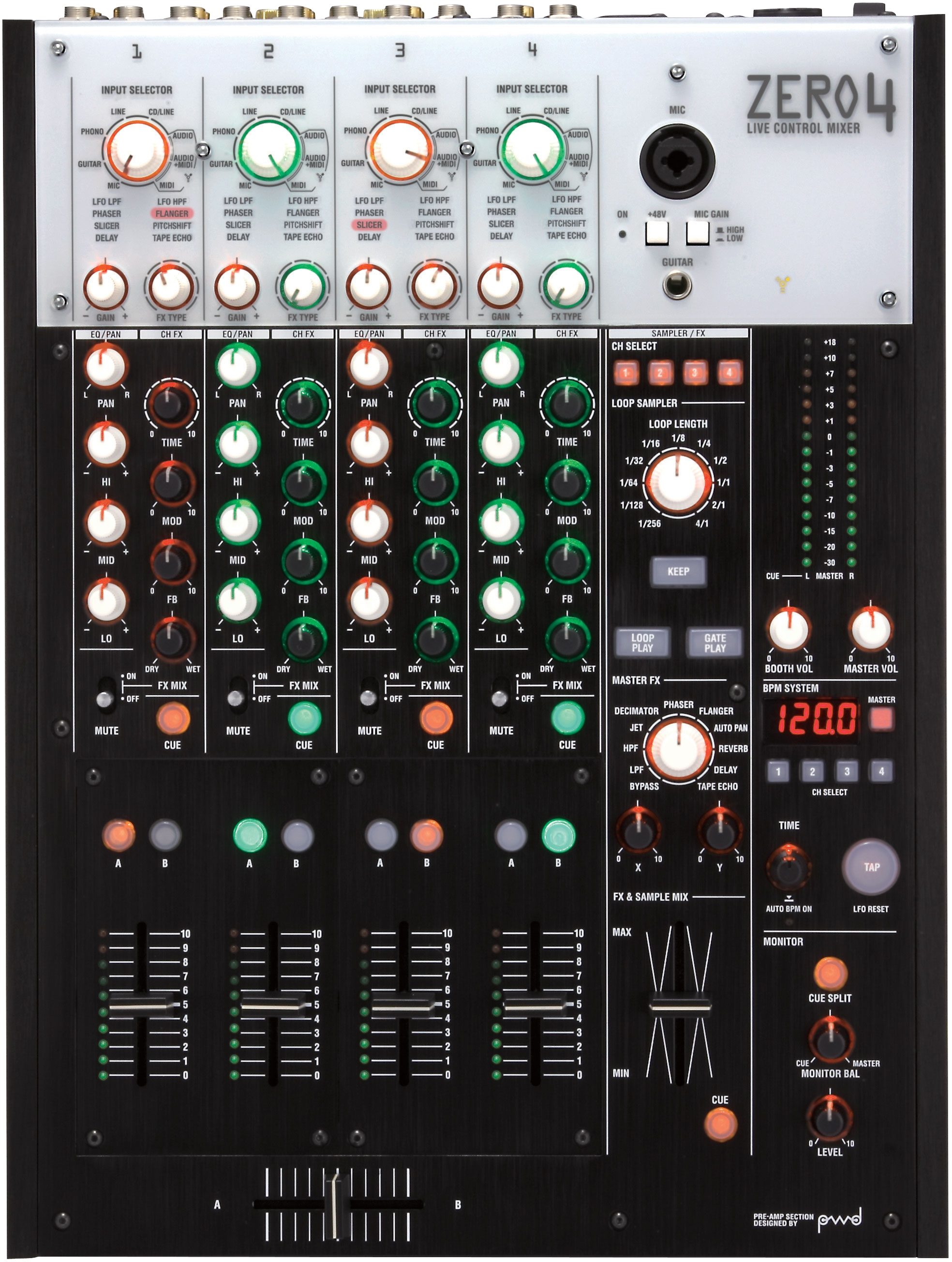

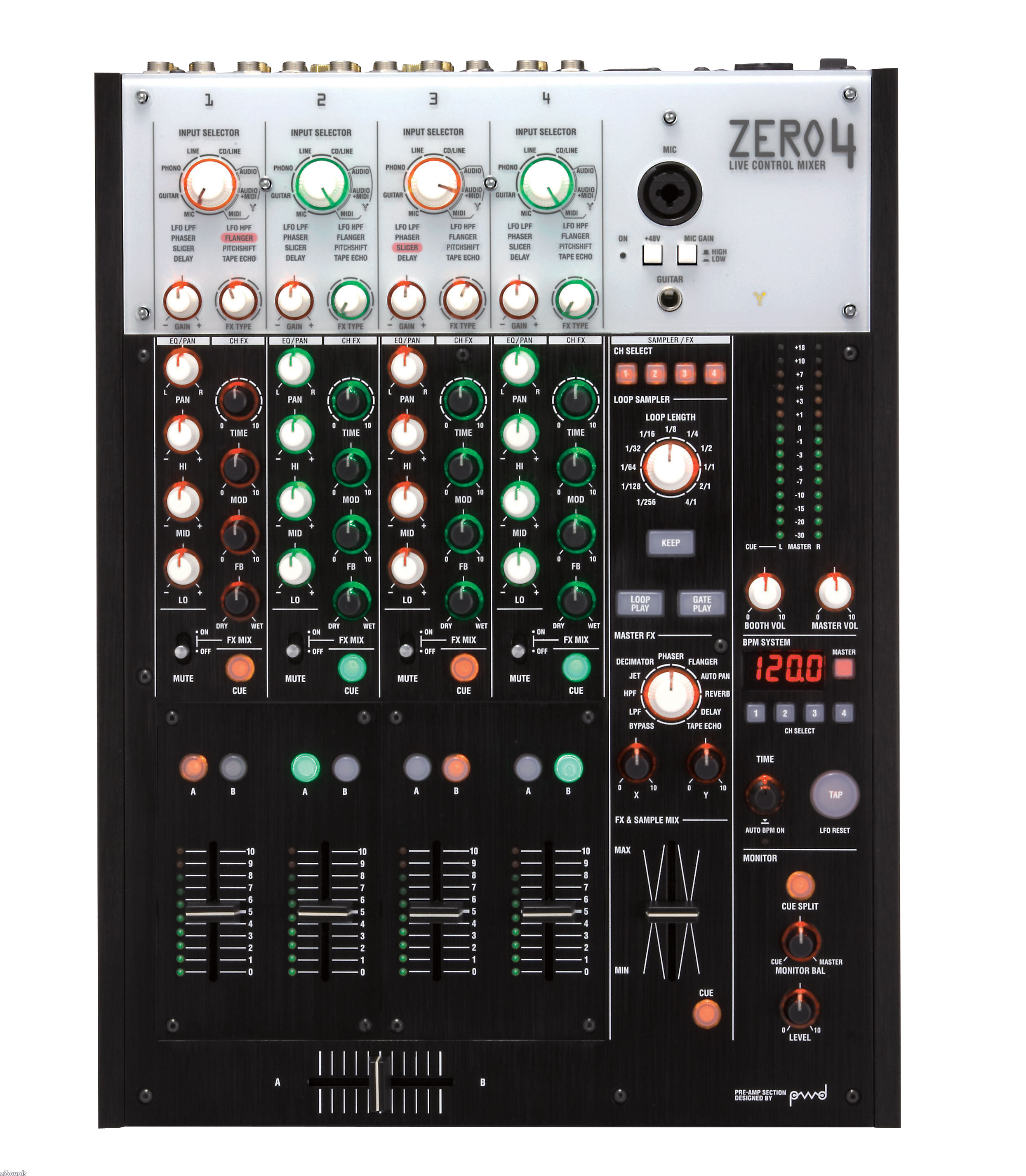

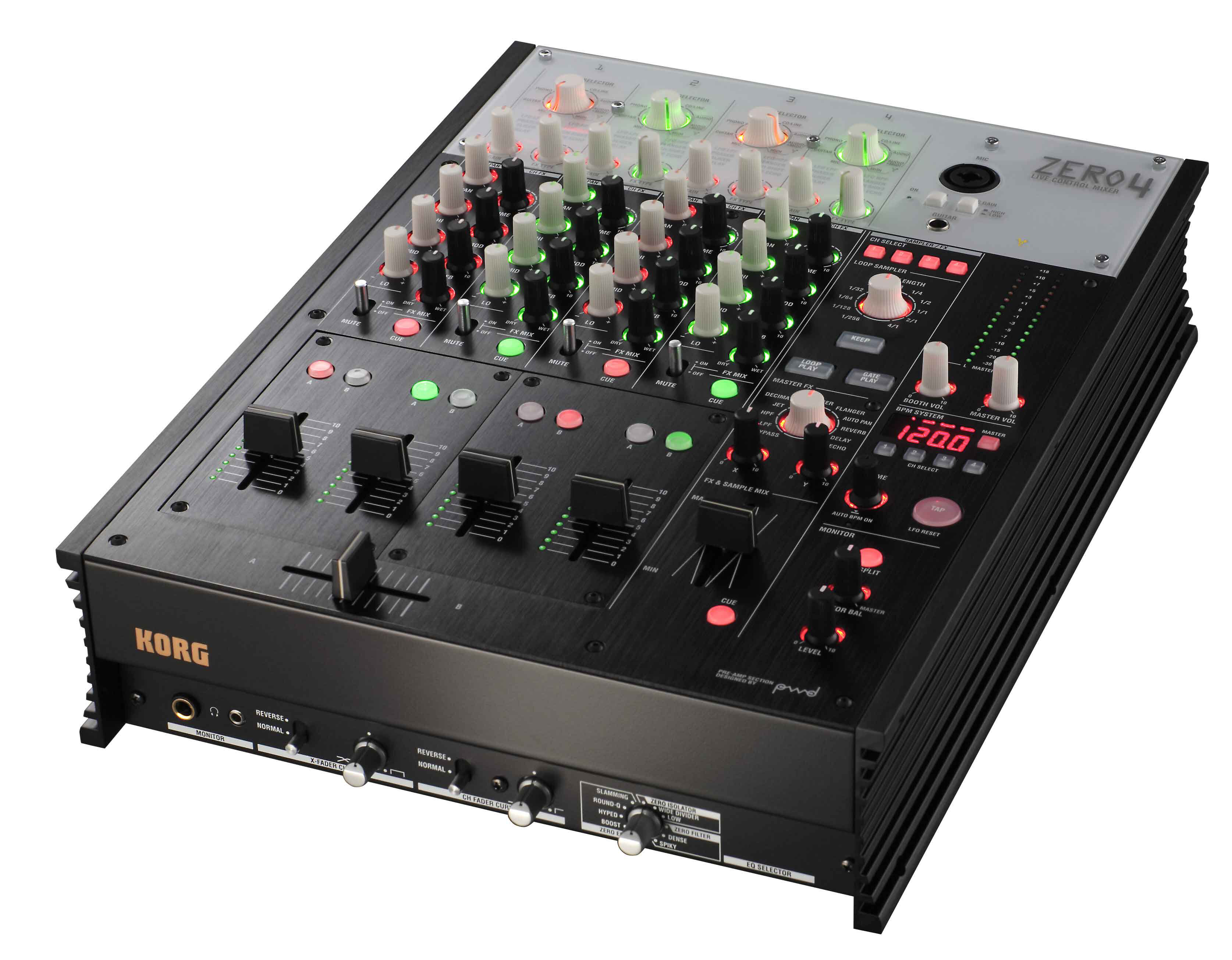

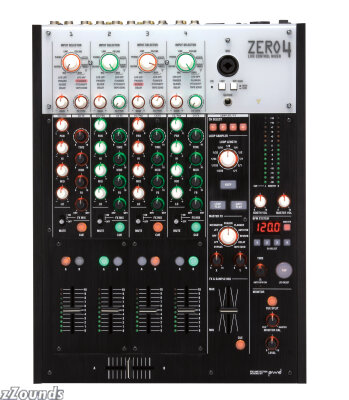

Korg Zero4 4-Channel DJ Mixer FireWire Controller
No longer available at zZounds
zZounds Gear Experts Say...
Complete MIDI control surface. 4-channel Firewire audio interface.
Overview
Music is created in a dynamic process, where the artist works in a fluid fashion following their inspiration freely. The tools of the stage/studio have become more like instruments, to be played and manipulated in realtime as part of this creative process. Mixing, control, and effects all are part of the performance, and all are at the core of this revolutionary new instrument. Zero Live Control Mixer, you have just met the future.
Zero Live Control Mixer is an all-in-one "core station" designed for live performance artists, remix producers, and serious computer musicians providing a digital mixer, audio I/O, MIDI controller, and effect processor all in a single unit. Each channel can be switched between sources such as a turntable, CD player, microphone, computer, instrument, MIDI controller, or MIDI controller + audio to implement a sophisticated live mixing setup with the simplicity of a FireWire connection. This gives you an incredibly powerful and flexible tool designed specifically for live performance and remix production.
Two models are available: ZERO4 is a four-channel version designed for the needs of the modern DJ, and ZERO8 is an eight-channel version covering the needs of advanced laptop musicians, studio remixers and DJs requiring more channels.
Designed for high-quality digital and analog audio
Zero Live Control Mixer delivers truly professional-spec audio. It supports 24-bit 48 kHz high-resolution audio as standard, and can support up to 24-bit 192 kHz audio… read more that’s equivalent to DVD audio fidelity. Along with the digital domain, analog components such as the input/output circuitry and power supply have been designed with painstaking attention to high-quality sound. The internal +/- 18 volt power supply design delivers plenty of headroom and excellent audio quality. The mic preamps are ultra-low impedance. The mic preamps are designed by Peter Watts, a veteran designer of numerous professional mixers throughout his tenure at the Trident Corporation in the UK and as chief designer and vice president for product development at Mackie Designs in the USA. Finally, the power supply is a universal design that does not require an AC adapter, ensuring that the world-traveling professional can get to work immediately, assured of the highest level of performance.
EQ Variety
The EQ Selector is a completely new idea, providing an EQ section with eleven different simulation types. They cover needs ranging from corrective equalization to boldly creative sound-shaping, giving you a variety of EQ responses and curves, filter characteristics, and even isolator modeling that can be switched independently for each channel as needed. The stereo four-channel ZERO4 provides one unit that is shared by all channels.
FireWire control over audio and MIDI
Zero Live Control Mixer contains a FireWire interface that lets you process and mix audio sources digitally, at the same time as performing MIDI control. Since Zero Live Control Mixer contains everything else you need (audio interface, mixer, effect processor, MIDI controller), setup is simple, making it an extremely convenient choice for the mobile computer-based professional.

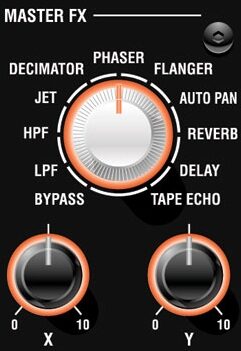

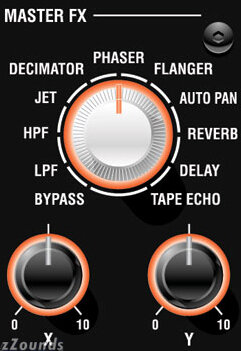

A full complement of effects
One particular advantage of the ZERO series is its powerful effect system. On the stereo four-channel ZERO4, there are Insert effects for independent use on each channel, plus a Master effect connected to sampler/effect buss.

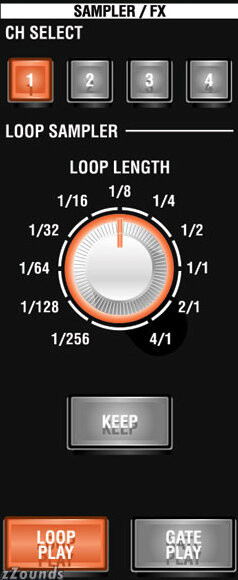

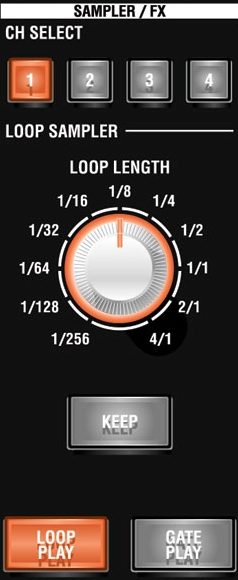

ZERO4 BPM Sampler
The ZERO4 also contains a loop sampler that can synchronize to the BPM. This makes it easy to sample or play back loops (or one-shot samples) in perfect time with the current tempo, giving you the flexibility for complex mixes or dub mixing.
A complete MIDI control surface
By using the dedicated "Zero Edit" software you can freely assign MIDI messages to the faders, knobs, buttons, and toggle switches. This allows you to use the abundant hardware on the Zero Mixers to control soft synths, DAWs, effects processors and much more. Since each channel of the mixer can be assigned to different functions you can be mixing the audio from your computer with one channel while adjusting MIDI parameters with another.
Professional-level hardware design
The crossfader of the stereo four-channel ZERO4 uses a two-rail design for excellent durability. The compact chassis is made of aluminum alloy and steel for portability and durability. The periphery of the control knobs is illuminated in two colors depicting audio mode and MIDI mode, ensuring accurate control on stage or in dim lighting. read less
Zero Live Control Mixer is an all-in-one "core station" designed for live performance artists, remix producers, and serious computer musicians providing a digital mixer, audio I/O, MIDI controller, and effect processor all in a single unit. Each channel can be switched between sources such as a turntable, CD player, microphone, computer, instrument, MIDI controller, or MIDI controller + audio to implement a sophisticated live mixing setup with the simplicity of a FireWire connection. This gives you an incredibly powerful and flexible tool designed specifically for live performance and remix production.
Two models are available: ZERO4 is a four-channel version designed for the needs of the modern DJ, and ZERO8 is an eight-channel version covering the needs of advanced laptop musicians, studio remixers and DJs requiring more channels.
Designed for high-quality digital and analog audio
Zero Live Control Mixer delivers truly professional-spec audio. It supports 24-bit 48 kHz high-resolution audio as standard, and can support up to 24-bit 192 kHz audio… read more that’s equivalent to DVD audio fidelity. Along with the digital domain, analog components such as the input/output circuitry and power supply have been designed with painstaking attention to high-quality sound. The internal +/- 18 volt power supply design delivers plenty of headroom and excellent audio quality. The mic preamps are ultra-low impedance. The mic preamps are designed by Peter Watts, a veteran designer of numerous professional mixers throughout his tenure at the Trident Corporation in the UK and as chief designer and vice president for product development at Mackie Designs in the USA. Finally, the power supply is a universal design that does not require an AC adapter, ensuring that the world-traveling professional can get to work immediately, assured of the highest level of performance.
EQ Variety
The EQ Selector is a completely new idea, providing an EQ section with eleven different simulation types. They cover needs ranging from corrective equalization to boldly creative sound-shaping, giving you a variety of EQ responses and curves, filter characteristics, and even isolator modeling that can be switched independently for each channel as needed. The stereo four-channel ZERO4 provides one unit that is shared by all channels.
FireWire control over audio and MIDI
Zero Live Control Mixer contains a FireWire interface that lets you process and mix audio sources digitally, at the same time as performing MIDI control. Since Zero Live Control Mixer contains everything else you need (audio interface, mixer, effect processor, MIDI controller), setup is simple, making it an extremely convenient choice for the mobile computer-based professional.
A full complement of effects
One particular advantage of the ZERO series is its powerful effect system. On the stereo four-channel ZERO4, there are Insert effects for independent use on each channel, plus a Master effect connected to sampler/effect buss.
ZERO4 BPM Sampler
The ZERO4 also contains a loop sampler that can synchronize to the BPM. This makes it easy to sample or play back loops (or one-shot samples) in perfect time with the current tempo, giving you the flexibility for complex mixes or dub mixing.
A complete MIDI control surface
By using the dedicated "Zero Edit" software you can freely assign MIDI messages to the faders, knobs, buttons, and toggle switches. This allows you to use the abundant hardware on the Zero Mixers to control soft synths, DAWs, effects processors and much more. Since each channel of the mixer can be assigned to different functions you can be mixing the audio from your computer with one channel while adjusting MIDI parameters with another.
Professional-level hardware design
The crossfader of the stereo four-channel ZERO4 uses a two-rail design for excellent durability. The compact chassis is made of aluminum alloy and steel for portability and durability. The periphery of the control knobs is illuminated in two colors depicting audio mode and MIDI mode, ensuring accurate control on stage or in dim lighting. read less
Specs
Frequency Response:
10 Hz ~ 20 kHz +/-1 dB, -2dB @ fs 44.1 kHz
10 Hz ~ 21 kHz +/-1 dB @ fs 48 kHz
10Hz ~ 40 kHz +/-1 dB @ fs 96 kHz
15 Hz ~ 50 kHz +/-1 dB @ 192 kHz
S/N: 93 dB (typical) @ IHF-A
THD+N: 0.02 % (typical) INPUT: +22dBu@GAIN=0dB
A/D Conversion: 24-bit, 64-time oversampling
D/A Conversion: 24-bit, 128-time oversampling
Sampling Frequency (fs): Internal 44.1 kHz, 48 kHz, 96 kHz, 192 kHz

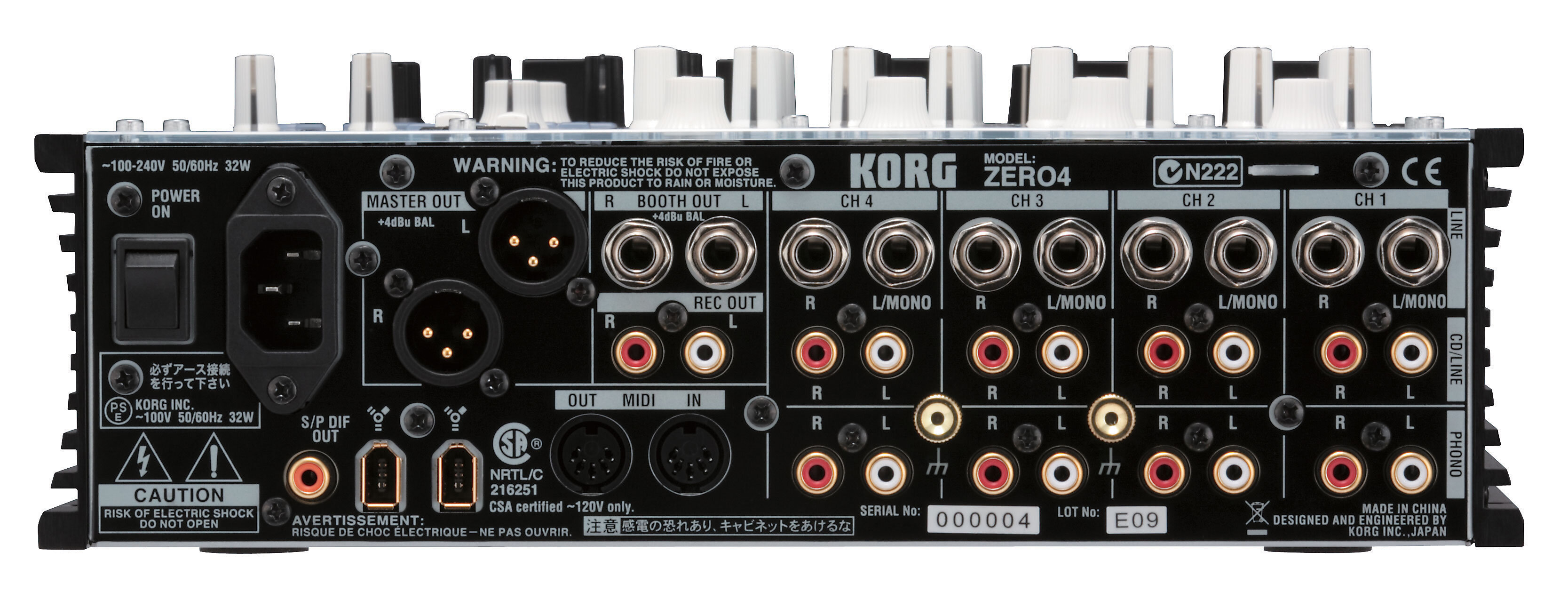

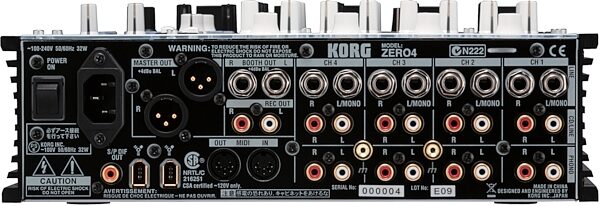

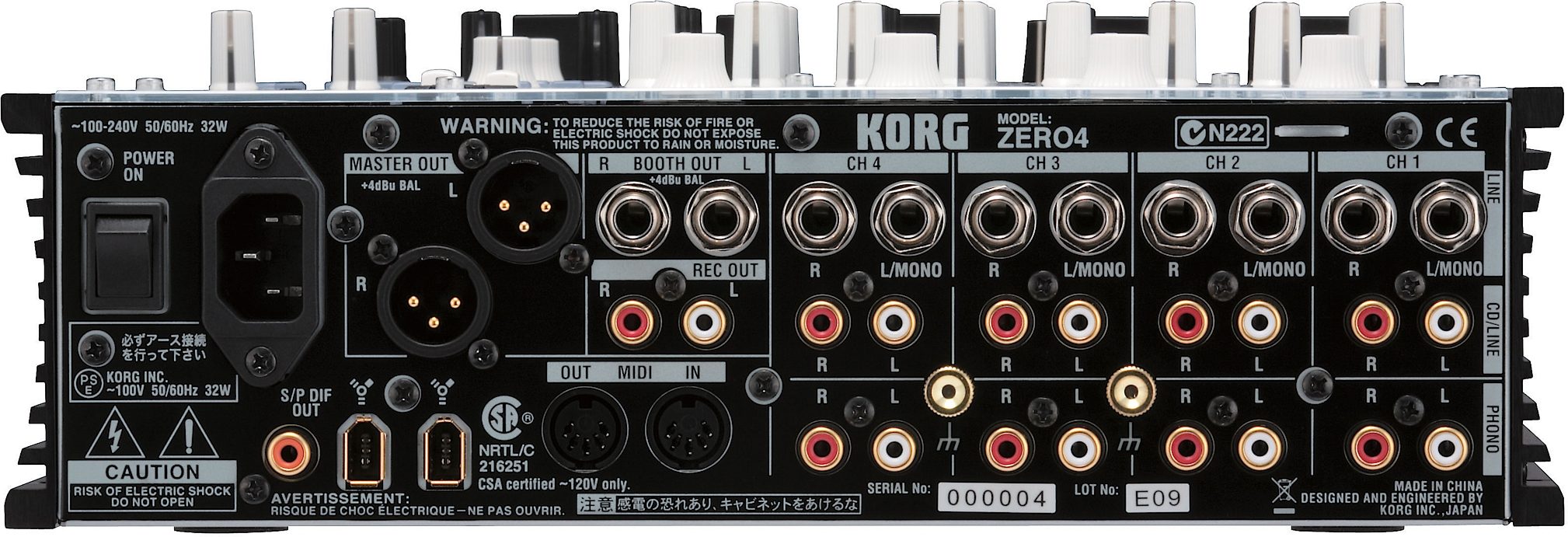

Input 1-4 (Line, CD/Line)
Connectors: 1/4 in. TRS phone jacks (balanced) L/R, RCA jacks L/R
Input Impedance: 10,000 ohms
Nominal Level; TRS: +4 dBu@ GAIN = 0 dB (GAIN = -infinity ~ 0 dB), RCA: -10 dBu@ GAIN = 0 dB (GAIN = -infinity ~ +6 dB)
Maximum Level; TRS: +22 dBu@ GAIN = 0 dB (GAIN = -infinity ~ 0 dB), RCA: +8 dBu@ GAIN = 0 dB (GAIN = -infinity ~ +6 dB)
Source Impedance: 600 Ohms
Phono 1-4
Connectors: RCA jacks L/R
Input Impedance: 50,000 ohms
Nominal Level: -44 dBu @ 1kHz, GAIN = 0 dB (GAIN = -infinity ~ +6 dB), RIAA compliant
Mic Input
Connectors:
XLR-3-31 type (+48 V phantom power, with switch)
1/4" TRS phone jack (balanced)
Input Impedance: 3k Ohms/XLR, 5k Ohms/TRS
Nominal Level: Hi: 60 dBu @ GAIN = 0 dB (GAIN = -infinity ~ 0 dB), Low: -40 dBu @ GAIN = 0 dB (GAIN = -infinity ~ 0 dB)
Maximum Level: Hi: -42 dBu @ GAIN = 0 dB (GAIN = -infinity ~ 0 dB),
Low: -22 dBu @ GAIN = 0 dB (GAIN = -infinity ~ 0 dB)
Source Impedance: 600 ohms
Guitar Input
Connector: 1/4" phone jack (unbalanced)
Input Impedance: 1M ohm
Nominal Level: -6 dBu @ GAIN = 0 dB (GAIN = -infinity ~ +6 dB)
Maximum Level: +12 dBu @ GAIN = 0 dB (GAIN = -infinity ~ +6 dB)
Source Impedance: 600 ohms
Master Output
Connectors: XLR-3-32 type L/R
Output Impedance: 150 ohms
Nominal Level: +4 dBu
Maximum Level: +22 dBu
Load Impedance: >10,000 ohms
Booth Output
Connectors: 1/4 in. TRS phone jacks (balanced) L/R
Output Impedance: 150 ohms
Nominal Level: +4 dBu
Maximum Level: +22 dBu
Load Impedance: >10,000 ohms
Rec Output
Connectors: RCA jacks L/R
Output Impedance: 150 ohms
Nominal Level: -10 dBu
Maximum Level: +8 dBu
Load Impedance: >10,000 ohms
Phones Output
Connectors: 1/4 in. stereo phone jack, 1/8 in. mini-stereo phone jack
Output Impedance: 100 ohms
Maximum Level: 80 mW + 80 mW @ 32 ohms
S/PDIF Output
Connector: coaxial
Format: 24-bit S/PDIF (IEC60958)
Firewire
Connector: IEEE 1394 6-pin connector x2
Format: IEEE 1394a
MIDI
Connector: MIDI In/Out
General
Power Supply: AC Local Voltage
Power Consumption: 32 Watts
Dimensions (WxHxD): 300 x 105 x 402 mm. / 11.81 x 4.13 x 15.83 in.
Weight: 5.5 kg / 12.13 lbs.
Included items: Power cable, CD-ROM
10 Hz ~ 20 kHz +/-1 dB, -2dB @ fs 44.1 kHz
10 Hz ~ 21 kHz +/-1 dB @ fs 48 kHz
10Hz ~ 40 kHz +/-1 dB @ fs 96 kHz
15 Hz ~ 50 kHz +/-1 dB @ 192 kHz
S/N: 93 dB (typical) @ IHF-A
THD+N: 0.02 % (typical) INPUT: +22dBu@GAIN=0dB
A/D Conversion: 24-bit, 64-time oversampling
D/A Conversion: 24-bit, 128-time oversampling
Sampling Frequency (fs): Internal 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
Input 1-4 (Line, CD/Line)
Connectors: 1/4 in. TRS phone jacks (balanced) L/R, RCA jacks L/R
Input Impedance: 10,000 ohms
Nominal Level; TRS: +4 dBu@ GAIN = 0 dB (GAIN = -infinity ~ 0 dB), RCA: -10 dBu@ GAIN = 0 dB (GAIN = -infinity ~ +6 dB)
Maximum Level; TRS: +22 dBu@ GAIN = 0 dB (GAIN = -infinity ~ 0 dB), RCA: +8 dBu@ GAIN = 0 dB (GAIN = -infinity ~ +6 dB)
Source Impedance: 600 Ohms
Phono 1-4
Connectors: RCA jacks L/R
Input Impedance: 50,000 ohms
Nominal Level: -44 dBu @ 1kHz, GAIN = 0 dB (GAIN = -infinity ~ +6 dB), RIAA compliant
Mic Input
Connectors:
XLR-3-31 type (+48 V phantom power, with switch)
1/4" TRS phone jack (balanced)
Input Impedance: 3k Ohms/XLR, 5k Ohms/TRS
Nominal Level: Hi: 60 dBu @ GAIN = 0 dB (GAIN = -infinity ~ 0 dB), Low: -40 dBu @ GAIN = 0 dB (GAIN = -infinity ~ 0 dB)
Maximum Level: Hi: -42 dBu @ GAIN = 0 dB (GAIN = -infinity ~ 0 dB),
Low: -22 dBu @ GAIN = 0 dB (GAIN = -infinity ~ 0 dB)
Source Impedance: 600 ohms
Guitar Input
Connector: 1/4" phone jack (unbalanced)
Input Impedance: 1M ohm
Nominal Level: -6 dBu @ GAIN = 0 dB (GAIN = -infinity ~ +6 dB)
Maximum Level: +12 dBu @ GAIN = 0 dB (GAIN = -infinity ~ +6 dB)
Source Impedance: 600 ohms
Master Output
Connectors: XLR-3-32 type L/R
Output Impedance: 150 ohms
Nominal Level: +4 dBu
Maximum Level: +22 dBu
Load Impedance: >10,000 ohms
Booth Output
Connectors: 1/4 in. TRS phone jacks (balanced) L/R
Output Impedance: 150 ohms
Nominal Level: +4 dBu
Maximum Level: +22 dBu
Load Impedance: >10,000 ohms
Rec Output
Connectors: RCA jacks L/R
Output Impedance: 150 ohms
Nominal Level: -10 dBu
Maximum Level: +8 dBu
Load Impedance: >10,000 ohms
Phones Output
Connectors: 1/4 in. stereo phone jack, 1/8 in. mini-stereo phone jack
Output Impedance: 100 ohms
Maximum Level: 80 mW + 80 mW @ 32 ohms
S/PDIF Output
Connector: coaxial
Format: 24-bit S/PDIF (IEC60958)
Firewire
Connector: IEEE 1394 6-pin connector x2
Format: IEEE 1394a
MIDI
Connector: MIDI In/Out
General
Power Supply: AC Local Voltage
Power Consumption: 32 Watts
Dimensions (WxHxD): 300 x 105 x 402 mm. / 11.81 x 4.13 x 15.83 in.
Weight: 5.5 kg / 12.13 lbs.
Included items: Power cable, CD-ROM
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 631-390-6800
Web: https://www.korgusa.com/support
Phone: 631-390-6800
Web: https://www.korgusa.com/support
Reviews
Reviewers gave this product an overall rating of 5 out of 5 stars.
(7 ratings)
Submitted August 8, 2009 by a customer from djsynystr.com
"Great multi mixer: midi, sound card and mixer A+"
Verified Purchaser
zZounds has verified that this reviewer purchased this specific product from us.
as my demands change so does my equipment. i am always trying to stay on top of what i need to stay on top of my game. i am a professional dj and will always be looking for new and better equipment. i will def. use this one for a long time.
Sound
Sound is great. i love how you can change the sound of the mixer with one control knob. some clubs have less bass in there systems and this feature helps a bunch! I have only used it in live play not recording yet but i plan on it. can't see what i record sounding any different than live play.
Features
for $800 you should a get a fire wire cord included. also i would like to see the entire mixer midi mappable.
Ease of Use
works well with VSL, CUE, VDJ so far so good.
Quality
has a great feel to it. not light like some other midi control mixers. buttons, faders and knobs all seem to be holding up after 2 months of 4 nights a week 4 hours a night use.
Value
i think for $800ish its a GREAT piece of equipment and i have recommended it to many other pro djs.
Manufacturer Support
no problems so far to deal with korg.
The Wow Factor
looks good and i like the color coded knobs. i cna tell what i have each channel set to at a glance, midi, audio, mic etc.
Musical Background:
Professional DJ
Musical Style:
All
4 of 5 people (80%) people found this review helpful. Did you?
