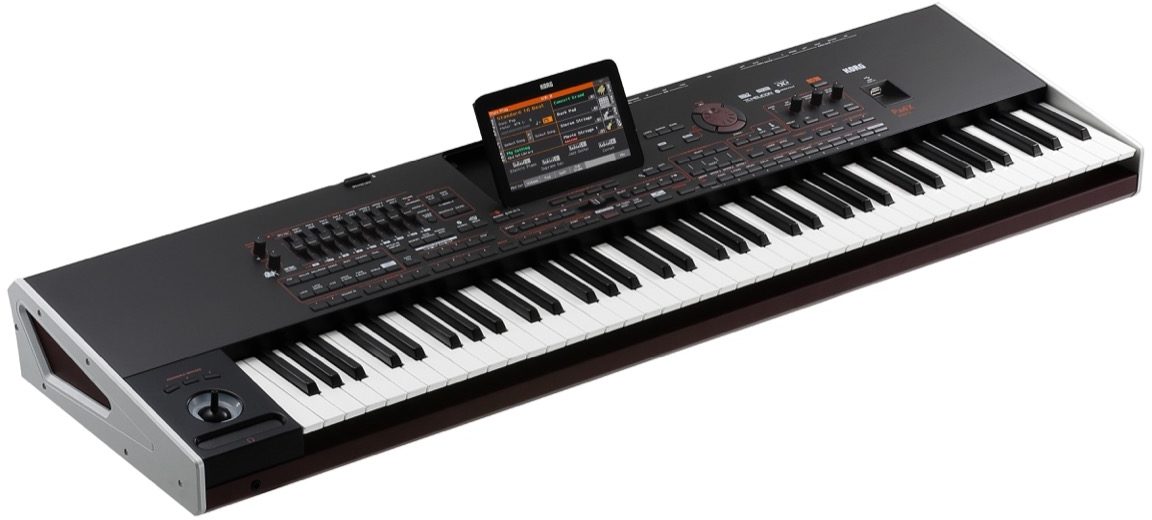

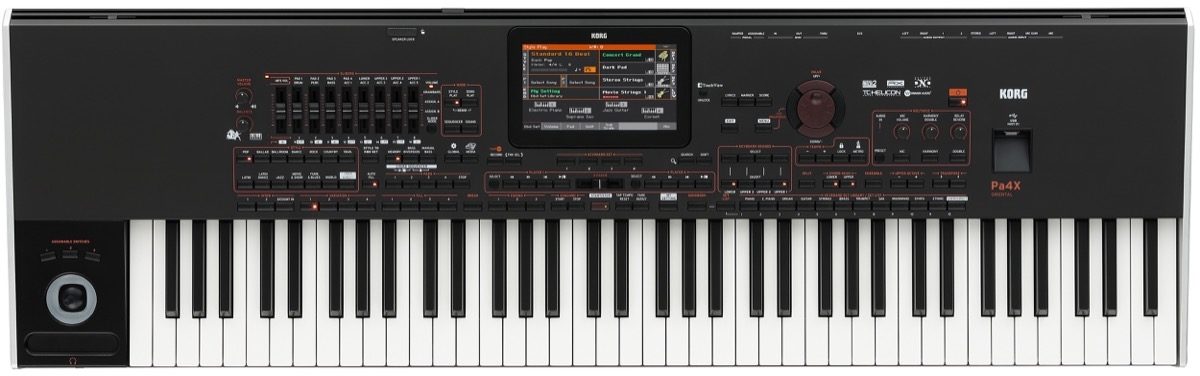

Korg Pa4X Oriental Professional Arranger Workstation Keyboard, 76-Key

No longer available at zZounds
Explore Middle Eastern music! Korg added authentic Arabic, Persian and Turkish instruments and quarter-tone scales to this edition of the 76-key Pa4X synth.

The Korg Pa4X Oriental Professional Arranger is more than a keyboard. It's your backup band; your accompanist; and your musical director. Whatever music you are going to play, from Western to Oriental - Arabic, Persian, Turkish - the Pa4X ORIENTAL delivers.

Ideal for composing, recording, and combo use, the intuitive Pa4X Oriental really comes to life in the hands of the solo keyboard performer and entertainer. And nowhere else is the flawless operation and superior sound of one keyboard instrument more in the spotlight. To that end, every aspect of KORG's industry-leading Professional Arranger series has been re-examined and improved, resulting in the Pa4X Oriental -- an instrument without equal. The all-new EDS-X (Enhanced Definition Synthesis - Expanded) sound engine delivers unprecedented realism and highly detailed sounds.

KORG's exclusive DNC (Defined Nuance Control) provides highly-articulate solo instruments. Partnerships with Waves Audio and TC Helicon provide state-of-the-art audio processing and vocal effects. The Oriental version comes with a bonus package including the most effective musical resources available from top-class Middle East libraries.

Features:

- 15 easy access custom preset for Quarter Tone scales + cancel button
- 76 Semi-weighted keys with velocity sensitivity and aftertouch
- Elegant, streamlined aluminum cabinet
- 7-inch capacitive TouchView(TM) display with tilting system
- Easy-to-use panel layout and intuitive redesigned graphical read more interface
- New EDS-X (Enhanced Definition Synthesis-eXpanded) sound engine
- Improved realism and pristine sound quality
- Massive internal ROM with a renewed PCM database
- Plus up to 400 MB of user PCM data
- Over 1,650 sounds (more than 190 Oriental Sound and 60 Oriental DK) including GM and XG sets
- 512 user Sound and 128 user Drumkit locations with full editing features
- Digital Drawbar Organ sound engine
- DNC (Defined Nuance Control) and realtime articulation:
- Three assignable switches
- Four-way joystick
- Ribbon controller
- Complete sample recording and editing features
- Import audio waveforms in the most common formats including Wav, Aiff and SoundFont(TM).
- Over 650 Styles (more than 190 Oriental) with Intros, Endings, Fills, Count-ins, and Breaks
- 4 Keyboard Sets and 4 Pads per Style,
- 13 Internal user banks and 13 Direct user banks locations for unlimited storage
- Guitar Mode 2 provides more realistic guitar parts
- Chord Sequencer function in Style Play mode records any chord progression on-the-fly
- Chord Sequences can be saved in each Style and SongBook entry
- Search function for quickly locating any musical resource
- New standard MidiFile to Style converter feature
- Keyboard Set Library includes a collection of best ready to play sounds
- Keyboard Sets can be recalled even from Direct locations
- Multiple Effects processors - 148 effect types:
- 4 Insert and 3 Master effects for accompaniment parts,
- 1 Insert and 2 Master effects for Keyboard Tracks
- Waves MAXXAUDIO Mastering Suite:
- MaxxEQ(TM), MaxxBass(TM), MaxxTreble(TM), MaxxStereo(TM), MaxxVolume(TM)
- TC Helicon(R) Vocal Processing:
- Four-part Harmonizer, Double, uMod, Reverb, Delay, Filter, HardTune, Pitch Correction plus Compressor, EQ, Gate (Adaptive Mic Setting on the Mic input)
- Double MP3/MIDI file players with recording capability, X-Fader and Vocal Remover
- Score, Chords, and Lyric display
- Compatible with most common lyrics formats including graphical (+G) for MP3.
- Lyrics can be showed in their original languages (except Oriental and Arabic Languages)
- Enhanced compatibility for GM and XG songs
- Fully programmable SongBook database based on Styles, SMF, Karaoke, and MP3
- Instant recall of any song setting
- User-definable Set Lists assig
read less

Keyboard:
- Pa4X ORIENTAL 76: 76 keys (E1 - G7)
- Semi-weighted keys with Velocity and Aftertouch

System:
- Upgradable Operating System
- Multitasking, load while play feature

Sound Generator:
- EDS-X (Enhanced Definition Synthesis-eXpanded)
- Filters with Resonance - Three band EQ for each track

Polyphony:
- 128 Voices, 128 Oscillators

Effects
- Accompaniment/Song: 4 Insert Effects; 3 Master Effects (148 Types)
- Keyboard Tracks: 1 Insert Effect; 2 Master Effects (148 Types)
- Final Mastering Effects: Waves Audio Ltd. MAXX Suite (Includes MaxxEQ, MaxxBass, MaxxTreble, MaxxStereo, MaxxVolume)

Voice Processor Technology by TC Helicon:
- Four-part Harmonizer, Double, uMod, Reverb, Delay, Filter, HardTune, Pitch Correction; plus Compressor, EQ, Gate (Adaptive Mic Setting on the Mic input)

Sounds / Drumkits:
- Factory: More than 1,650 Sounds including a multilayer Stereo Piano with damper/body resonance, GM/XG sound sets and more than 140 Drumkits including Ambient Drums
- User Area: 512 Sounds, 128 Drumkits
- Digital Drawbars: 9 Footages, Percussion, Key On/Off, Leakage (Effect section includes rotary speaker)
- Defined Nuance Control (DNC) Technology
- Natural Ambience Drums Sound
- Full Sounds/Drumkits editing capability
- User PCM RAM Memory: 400 MB

Sampling:
- Load KORG, Wav, AIFF and SoundFont formats
- Save KORG, Wav and AIFF formats
- Full Edit, Time Slice, Sampling feature

Styles:
- More than 650 preloaded Styles, freely reconfigurable
- 1,872 locations including the User banks and Direct function
- Eight Style tracks, 4 Keyboard Sets, 4 Pads and one Style Setting per Style
- Guitar Mode 2, Parallel and Fixed NTT
- Style Record with Step Record, Track and Event Edit functions
- Style controls: 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start, Synchro Stop, Tap Tempo/Reset, Bass Inversion, Auto Fill, Manual Bass, Memory, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Style to KBD Set Mode

Chord Sequencer:
- Chord Sequence recorder in Style Play mode
- Chord Sequences can be saved to Style and SongBook En-tries
- Edit functions: delete, copy from Style/SongBook, import/export from/to SMF

Keyboard Set Library:
- Memorize keyboard tracks settings 1,584 locations including the User banks and Direct function "My Setting" special Keyboard Set

Song Play:
- Patented XDS Crossfade Dual Sequencer Player with X-Fader Balance control
- Supported formats: MID, KAR, MP3 + lyrics, MP3+G
- 2 Players with separate Select, Start/Stop, Home, Rewind and Fast Forward controls
- Lyrics, Score, and Chord data can be displayed on screen, or on external video monitor
- Markers with Add, Delete, Edit and Loop functions
- Jukebox function

MP3 Player / Recorder:
- Double MP3 Player and MP3 Recorder
- Transpose (+6/-5 semitones)
- Tempo change (+/-30%)
- Vocal Remover
- Records MP3 files including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Microphone and Effects

Sequencer:
- Quick Record (Backing Sequence), Multitrack and Step Record functions -
- Full-featured sequencer, 16 tracks, Up to 200,000 events, SMF (MID) native format

SongBook:
- Fully programmable music database based on Styles, MIDI Songs (MID and KAR files), MP3 Songs with automatic selection of Style Play and Song Play modes
- User definable Set Lists, with Entries selectable from the control panel
- Filtering and sorting options

Compatibility:
- "i-Series" models: Styles
- Pa-Series models: Styles, Performances, Programs/Sounds, Songs, SongBook Entries, Pads

Pads:
- Four Assignable Pads + Stop Buttons
- Pad Record function

General Controls:
- Master Volume; Fade In/Out; Keyboard-Acc/Song Balance Volume; Ensemble; Octave Transpose; Master Transpose; Quarter Tone and Arabic Scale memorized inside Keyboard Sets; Joystick (pitch + modulation); Ribbon; Mic Volume; Harmony/Double; Delay/Reverb; Mic Preset; Mic On/Off; Harmony On/Off; Double On/Off; 8 Assignable Sliders; Slider Mode; MP3 Volume; 3 Assignable Switches; Tempo +/-; Tempo Lock; Metronome On/Off; Dial; Up/+; Down/-; Search; Shift; Chord Scan (Lower, Upper); Split; Keyboard Tracks Sound Select and On/Off; Record

Control Inputs:
- Damper pedal (support half-pedaling with optional DS-1H pedal)
- Assignable pedal/switch
- EC5 multiswitch pedal

Mic/Line Inputs:
- Mic: Combo XLR balanced with Gain control and Phantom Power
- Line 1: Left/Right Jack (1/4") Line Input, balanced
- Line 2: Stereo Mini-jack (1/8") Line Input, unbalanced

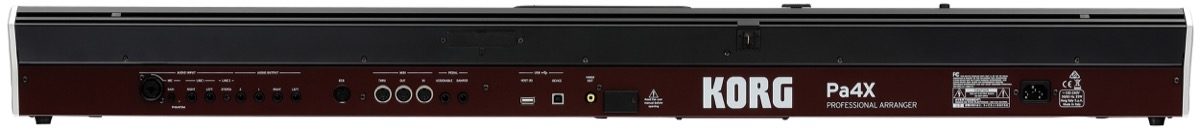

Outputs:
- Audio Output: Left/Right, Out 1, Out 2; (1/4" Jack) balanced
- Headphone Output x 1 (1/4" Jack)
- Video Out (RCA connector)

MIDI:
- IN, OUT, THRU standard MIDI connectors
- USB to MIDI using the USB Device port

USB
- Type A (Host) x 2 (Front/Rear)
- Type B (Device) x 1 (Rear)
- 2.0 Hi-Speed connections

Storage:
- Hard Drive:
- Pa4X 76: Standard
- Pa4X 61: optional, user installable; HDIK-3 hard disk installation kit required
- Micro SD card: (Card not included)
- Rear panel slot with plastic cover
- USB Flash Drive: (Drive not included)
- 1 Front panel port
- 1 Rear panel port

Display:
- 7" Wide capacitive color TouchView TFT display

Clock:
- Internal System Clock
AC - Power Consumption:
- 100-240 Volts, 50/60 Hz
- 0.5 Watt in standby / 16 Watt normal / 38 Watt with PaAS installed

Dimensions (W x D x H):
- Pa4X-76: 1,192 x 364.4 x 125.56 mm / 46.93" x 14.35" x 4.94"
- Pa4X-61: 980 x 364.4 x 125.56 mm / 38.58" x 14.35" x 4.94"

Weight:
- Pa4X-76: 16.3 kg/35.93 lbs
- Pa4X-61: 13.9 kg/30.64 lbs

Accessories:
- AC Power Cable, Music Stand, Accessory Disc containing the Video Manuals, additional manuals and software utilities

Options
- PaAS Amplification System
- ST-SV1 Keyboard Stand
- HDIK-3 Hard Disk Installation Kit (for 61 keys only)
- EC-5 External Controller
- EXP-2 Foot Controller
- XVP-10 Expression/Volume Pedal
- DS-1H Damper Pedal (support half-pedaling)
- PS-1 Pedal Switch
- PS-3 Pedal Switch
