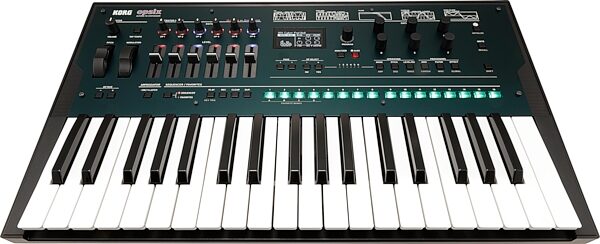

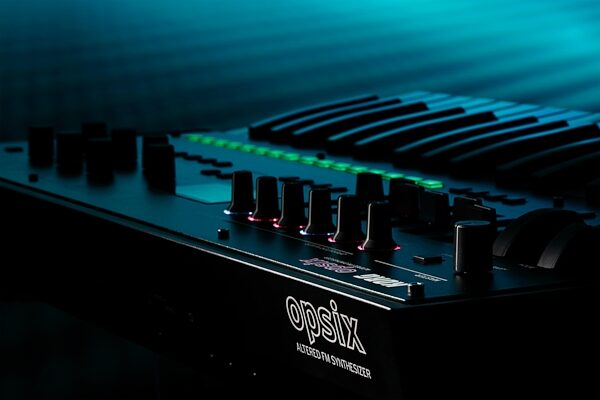

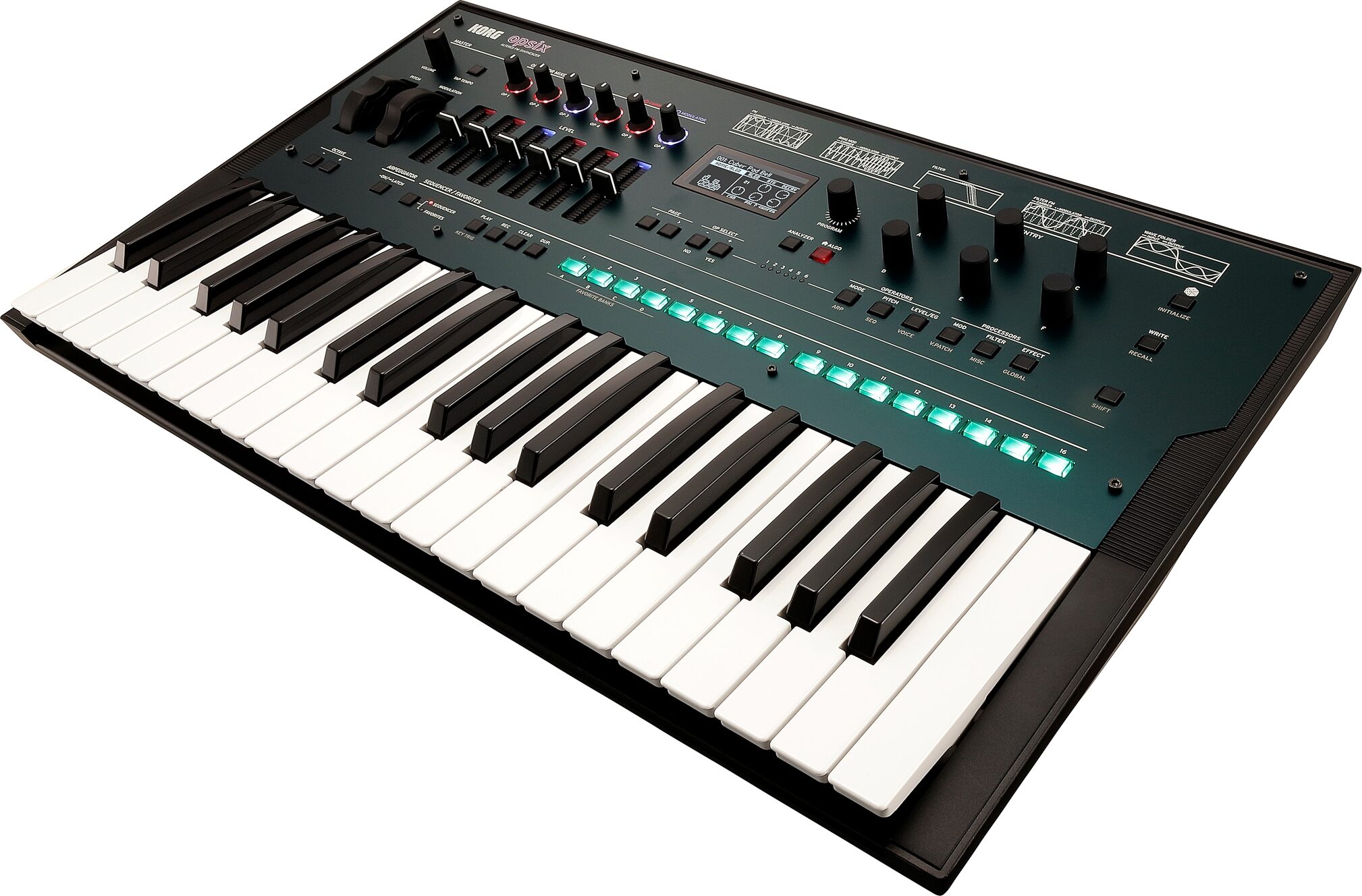

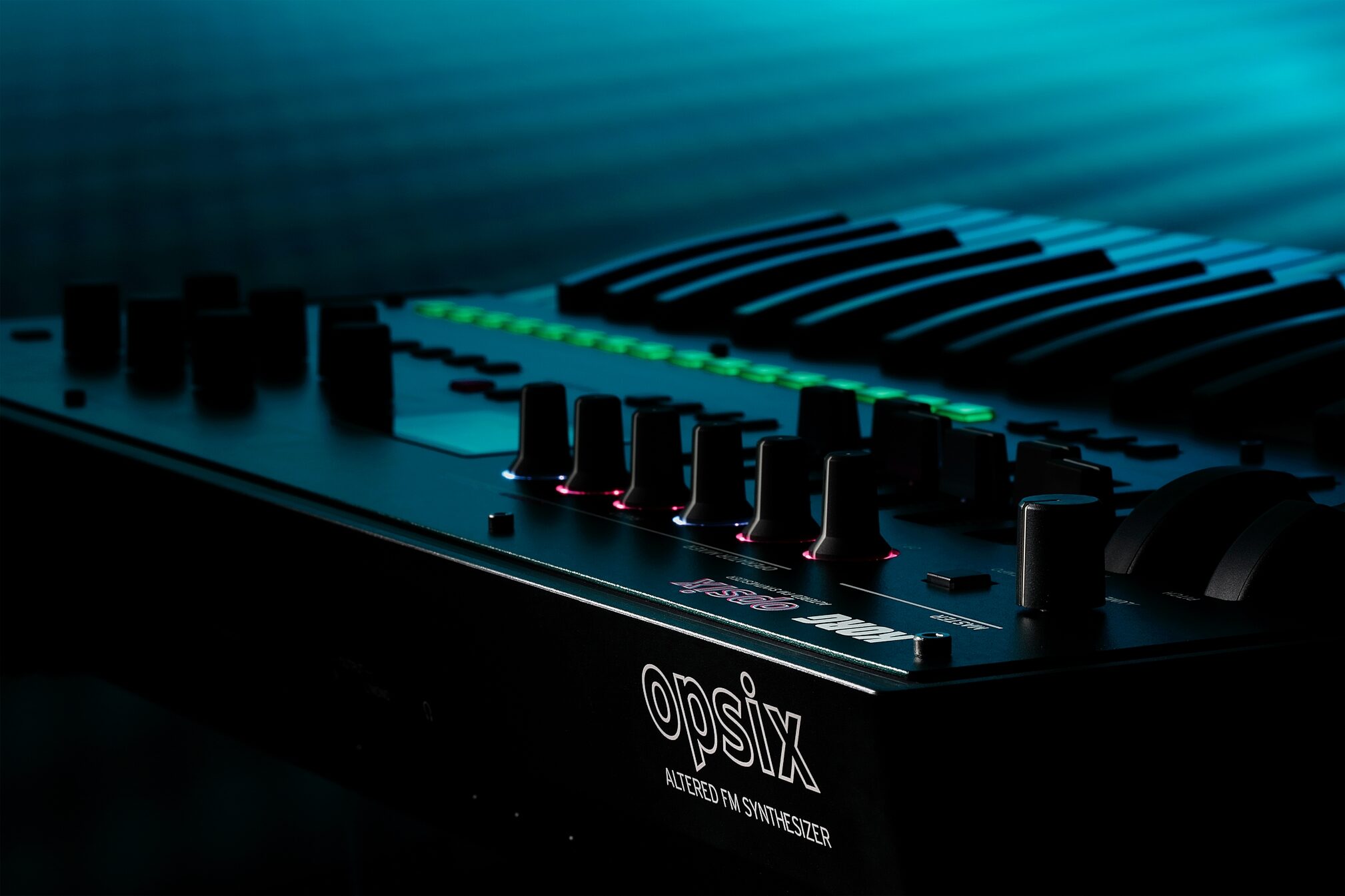

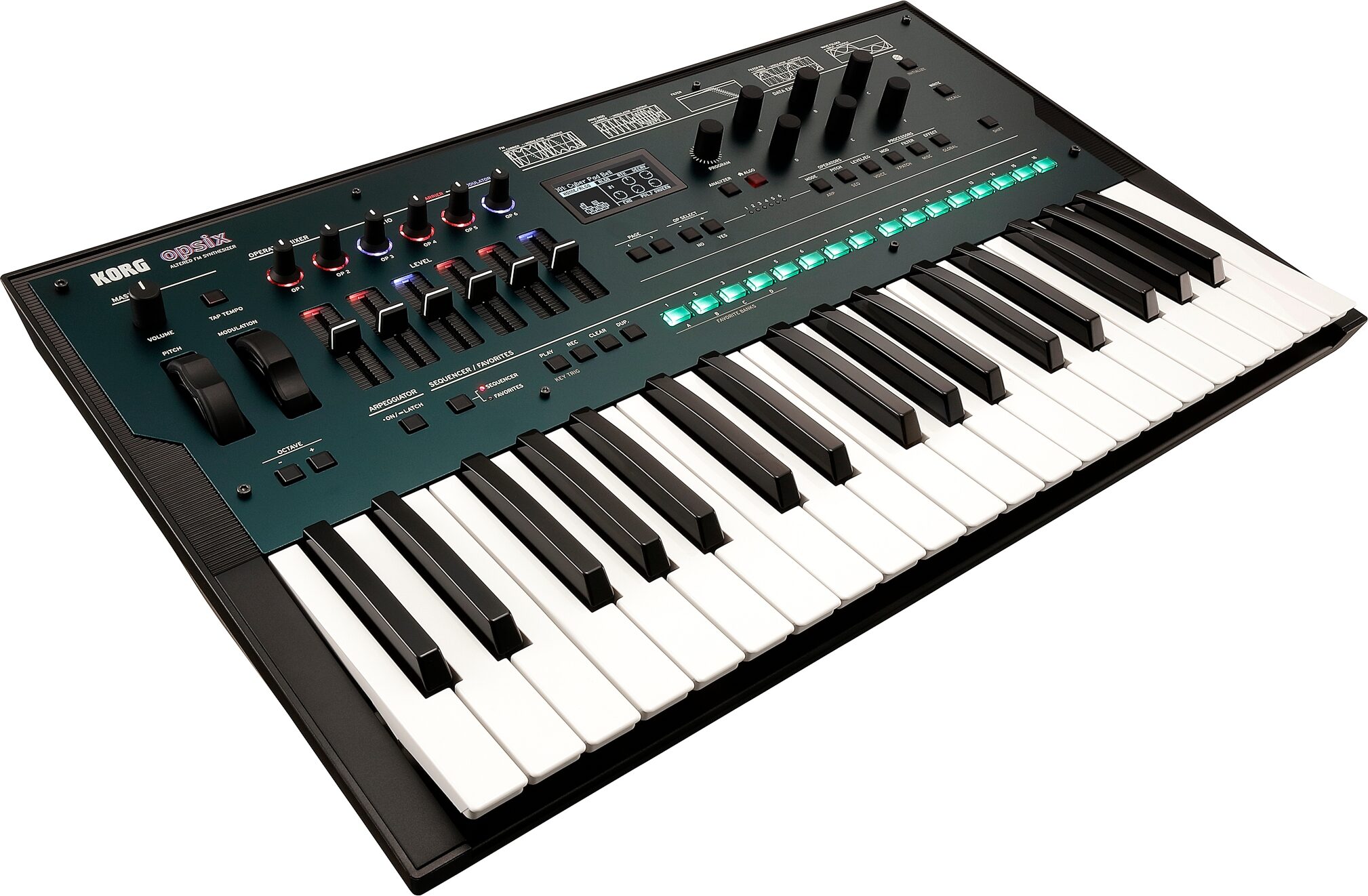

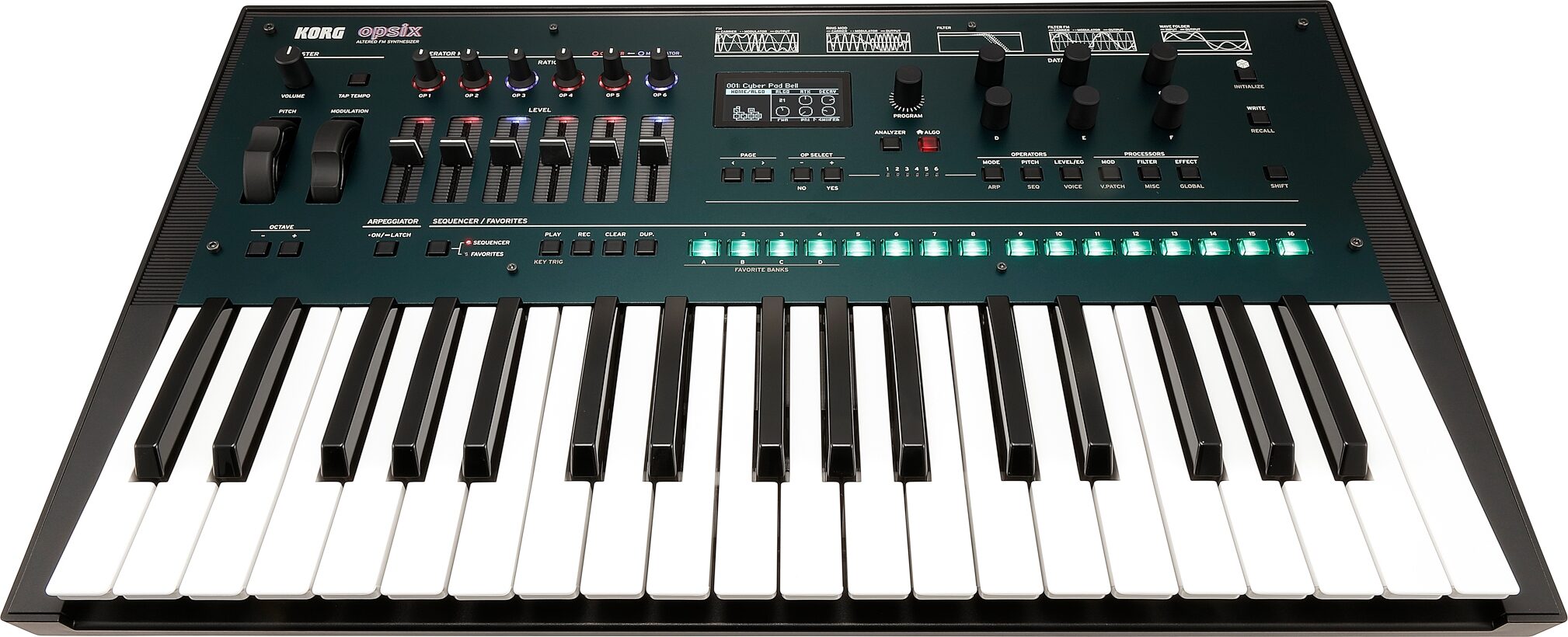

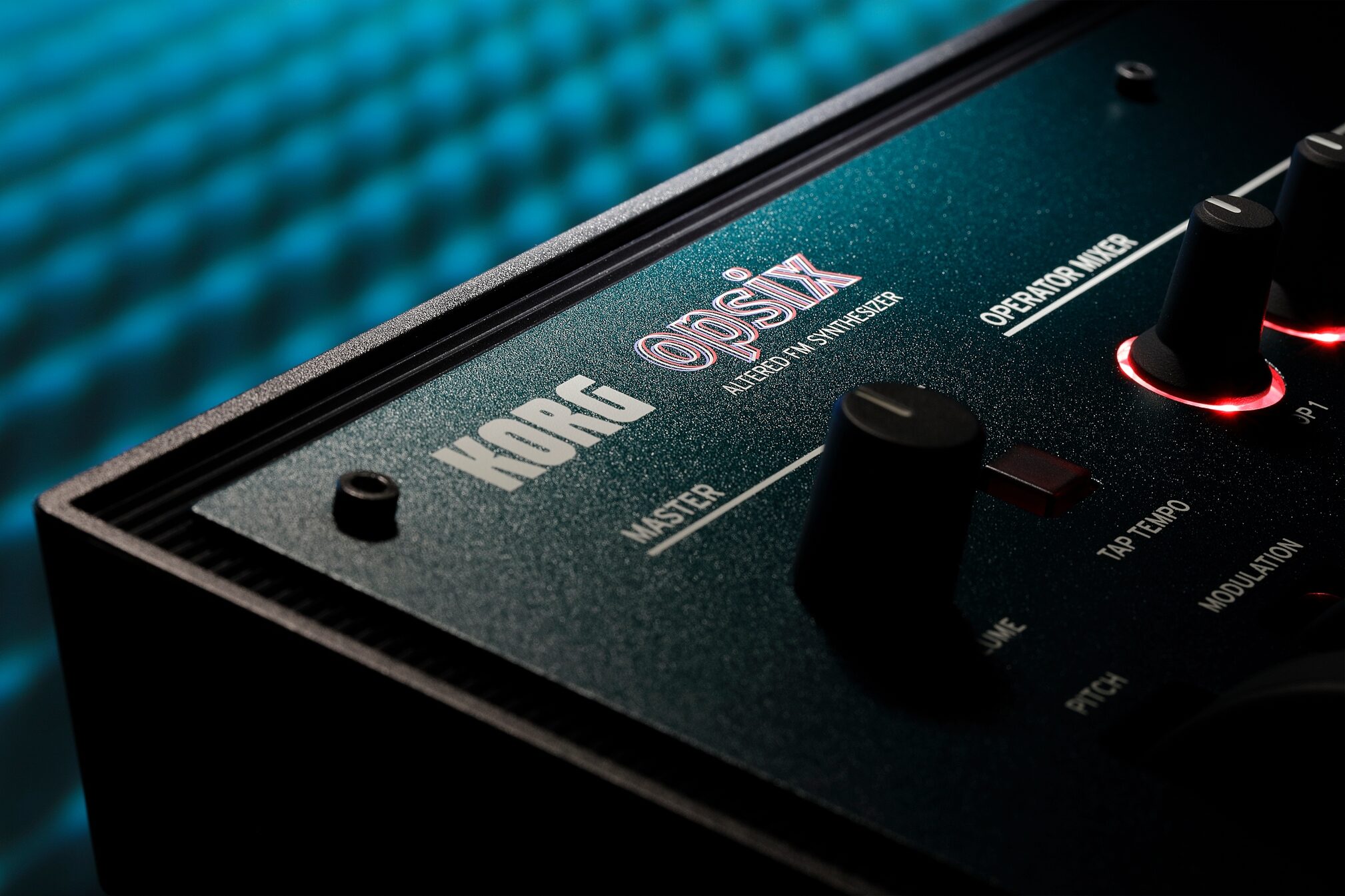

Korg Opsix Altered FM Synthesizer

- Keyboard: 37 keys (velocity and release-velocity sensitive)\
- Maximum Polyphony:
- 32 voices (or a max. of 24 voices, depending on the settings)
- Sound generating system: Altered FM sound generator
- Structure:
- 6 operators, 1 filter, 3 EGs, 3 LFOs, 3 effects, step sequencer, arpeggiator
- Algorithm:
- 40 presets + user algorithm (unique to each program)
- Operator:
- 5 modes (FM, Ring Mod., Filter, Filter FM, Wave Folder)
- Oscillator waveform:
- 21 waveforms (Sine, Sine 12bit, Sine 8bit, Triangle, Saw, Saw HD, Square, Square HD, Additive Saw3, Additive Sqr3, Additive Tri3, Additive 12345, Additive 1+2, Additive 1+3, Additive 1+4, Additive 1+5, Additive 1+6, Additive 1+7, Additive 1+8, Noise S/H, Noise White)
- Filter:
- 11 types (LPF 12, LPF 24, LPF MS-20, LPF POLY6, HPF 12, HPF 24, HPF MS-20, BPF 6, BPF 12, BRF 6, BRF 12)\EG:
- ADSR\LFO:
- 23 waveforms (Triangle, Saw Down, Saw Up, Square, Sine, Sample&Hold, Guitar, Exp. Triangle, Exp. Saw Down, Exp. Saw Up, Step4 Triangle, Step6 Triangle, Step4 Saw Down, Step6 Saw Down, StepRnd:Time, StepRnd:Lvl&Time, StepRnd:Level, Random:Time, Random:Lvl&Time, Triangle + , Saw Down + , Saw Up + , Square +)
- V.Patch:
- 12 routings
- Effect:
- 30 types (Chorus, Unison Ensemble, Phaser, Phaser (BPM) , Auto Pan, Auto Pan (BPM), Flanger, Flanger (BPM) , Rotary Speaker, Auto Wah, Exciter, Enhancer, LFO Filter, 3-Band EQ, Distortion, Guitar Amp, Decimator, Grain Shifter, Master Limiter, Compressor, Delay, Delay (BPM) , Autopan Dly, Autopan Dly (BPM), Tape Echo, Tape Echo (BPM) , Early Reflection, Reverb, Shimmer Reverb, Spring Reverb)
- Sequencer:

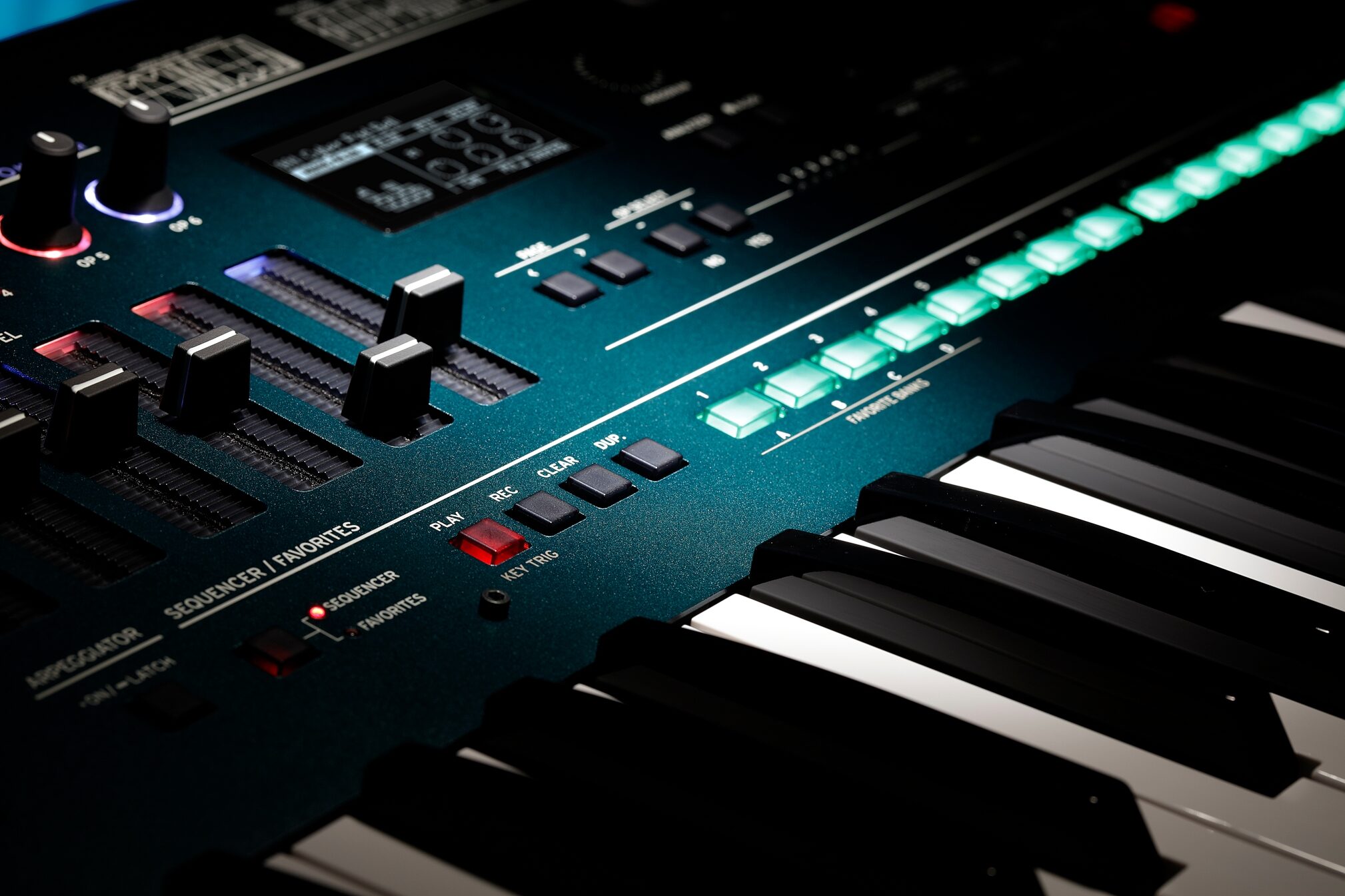

- Step Sequencer (up to 16 steps, up to 6 notes per step) , Motion Sequencer (up to 6 lanes)\Arpeggiator:
- 7 patterns (MANUAL, UP, DOWN, ALT1, ALT2, RANDOM, TRIGGER) fault)\
- Number of programs:
- 500 (250 preset programs and 250 user programs as the factory-set de
- FAVORITE:
- 64 (16 Slots \ 4 Banks)
-
- Controllers:

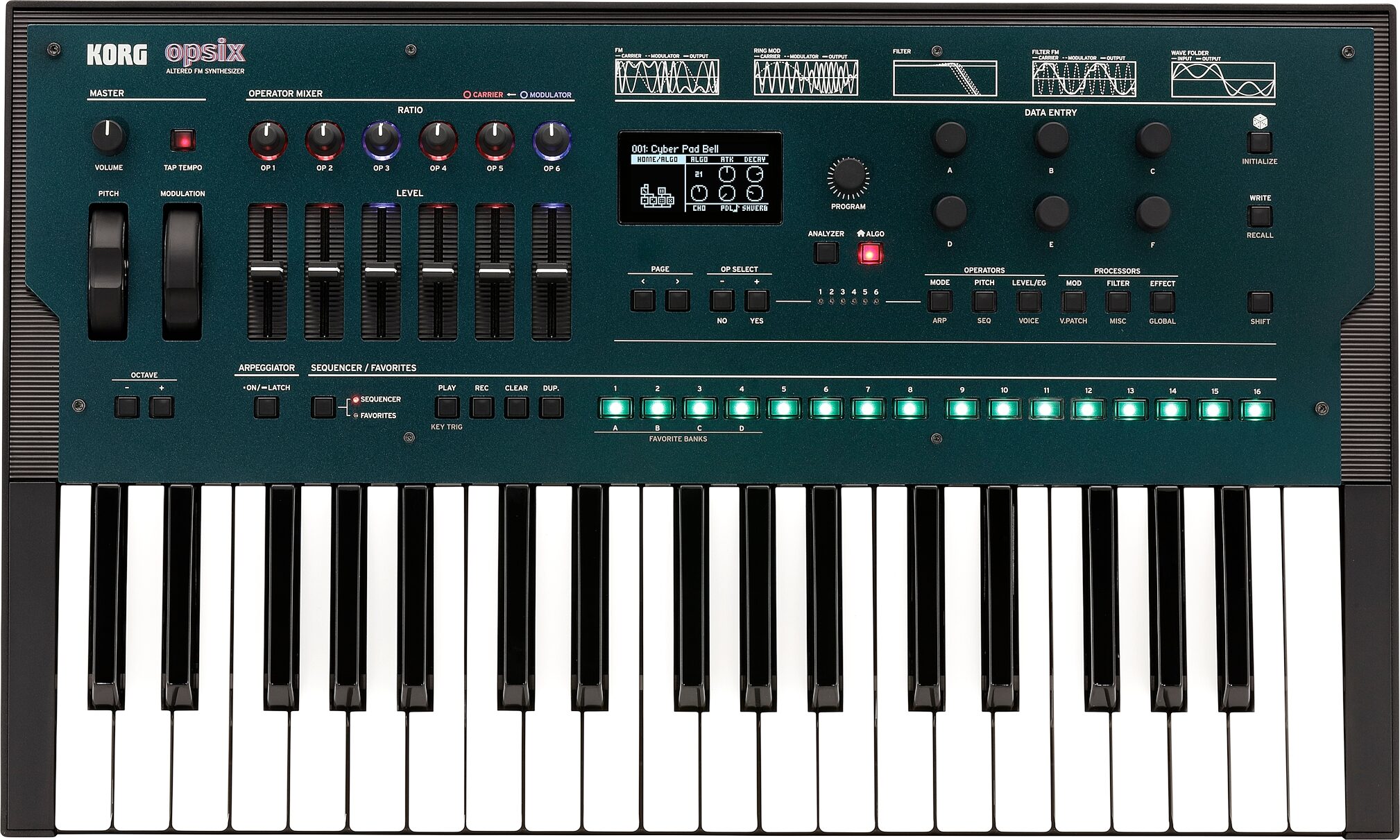

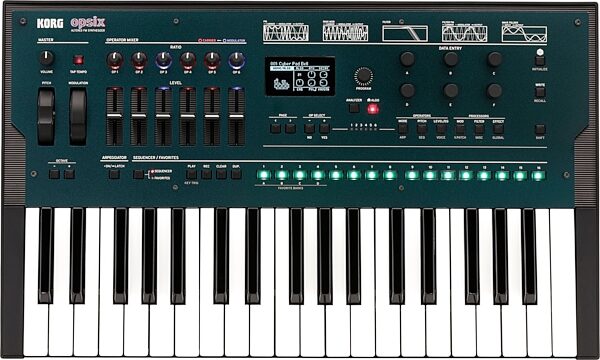

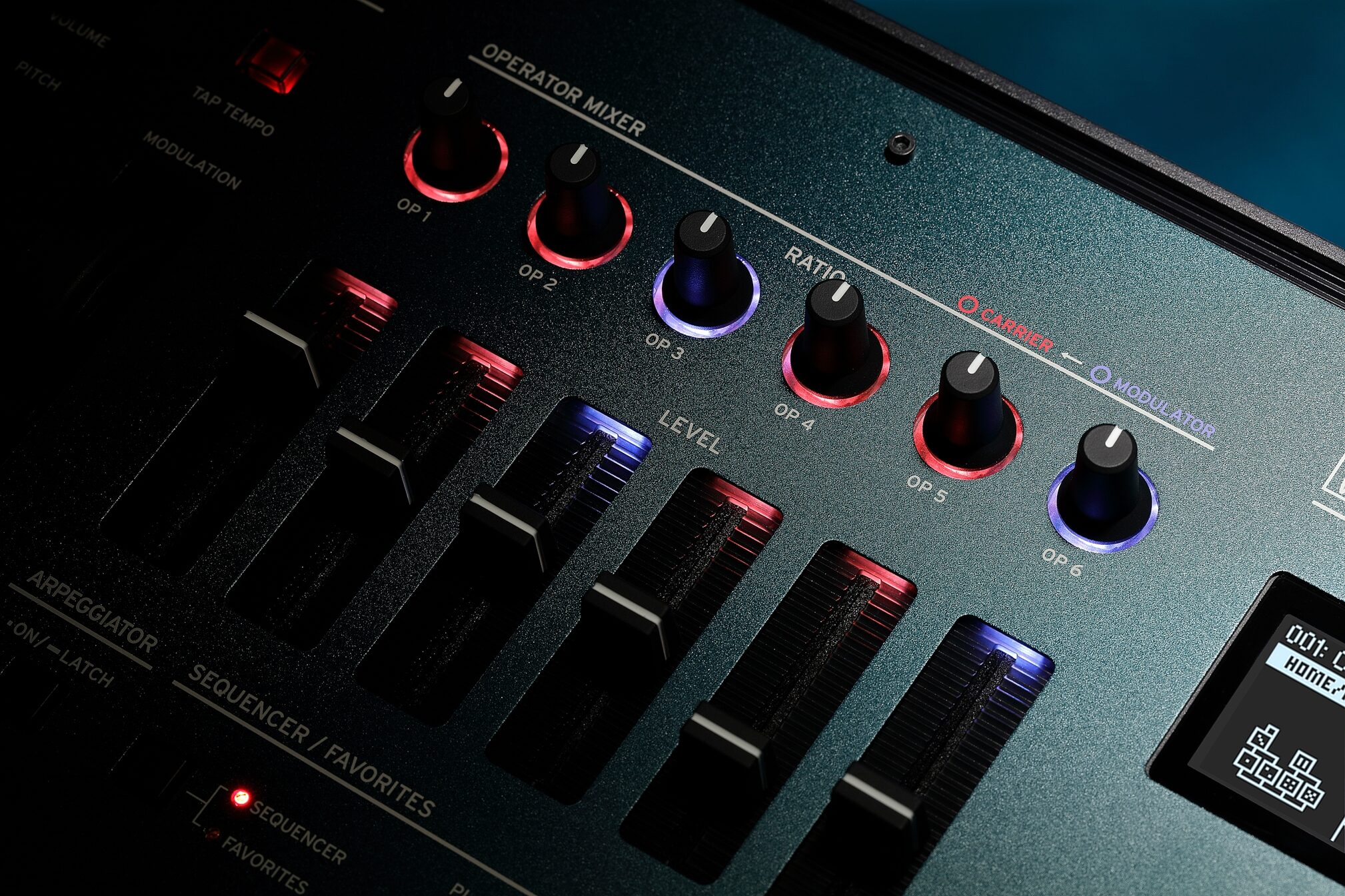

- MODULATION wheel, PITCH wheel, RATIO OP 1-6 knobs, LEVEL OP 1-6 sliders, DATA ENTRY A-F knobs
-
- Inputs/outputs:

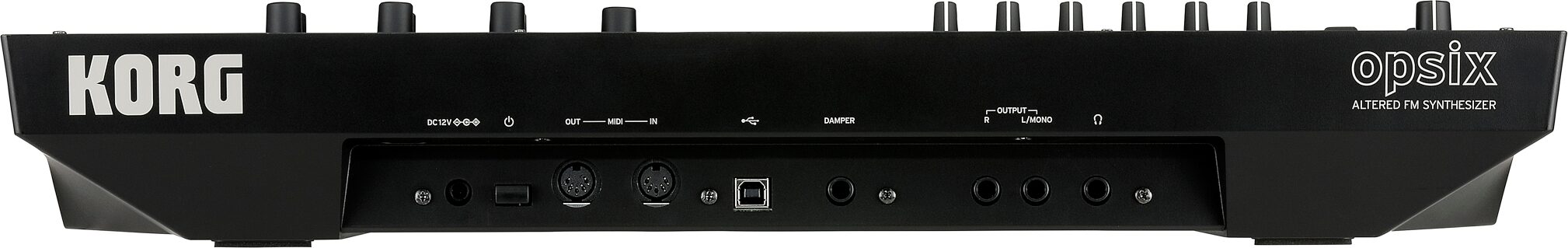

- Headphone (6.3 mm stereo phone jack), OUTPUT L/MONO and R (impedance-balanced 6.3 mm TRS phone jacks), DAMPER (6.3 mm phone jack, half-damper not supported), MIDI IN and OUT connectors, USB B port
-
- Power supply: AC adapter (DC12V)
- Power consumption: 5 W
- Dimensions (W \ D \ H):
- 565 \ 338 \ 90 mm / 22.24" \ 13.31" \ 3.54"\
- Weight:
- 2.9 kg / 6.93 lbs.
-
- Included items:
- AC adapter, Precautions, Quick Start Guide\
- Accessories (sold separately):
- DS-1H damper pedal, PS-1 pedal switch, PS-3 pedal switch
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 10.32 lbs
Shipping Dimensions: 24 x 19 x 6 in
Manufacturer Part Number (MPN): OPSIX
