KNA VV-2 Portable Violin Piezo Pickup

Amplify your violin or viola with the easy-to-install KNA VV-2, a passive piezo pickup that mounts to the instrument using cork-lined barrel clamps.

Overview

VV-2 is a perfect violin pickup for players seeking pure tone and simplicity with the ability to adjust output volume from the stage.

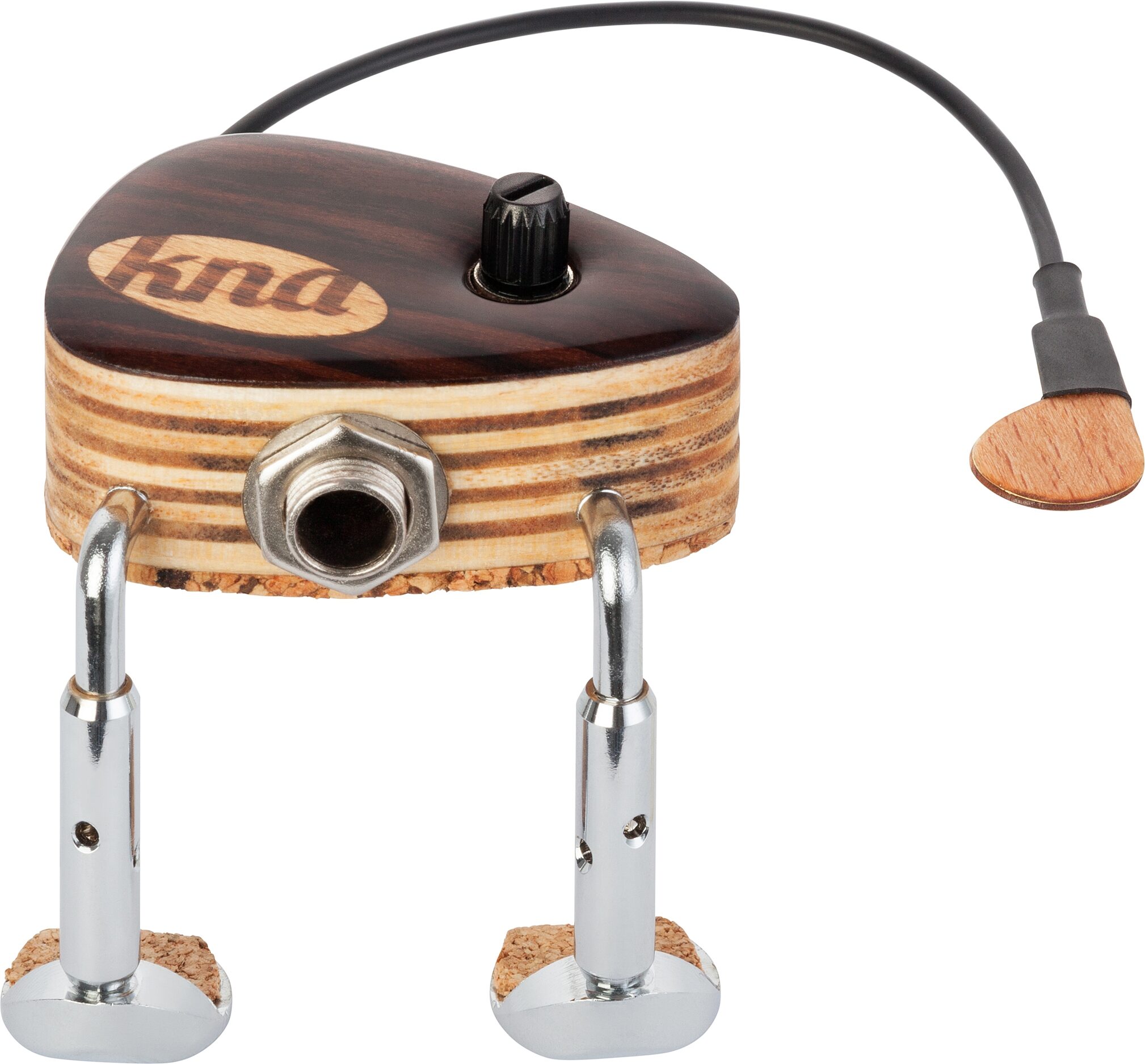

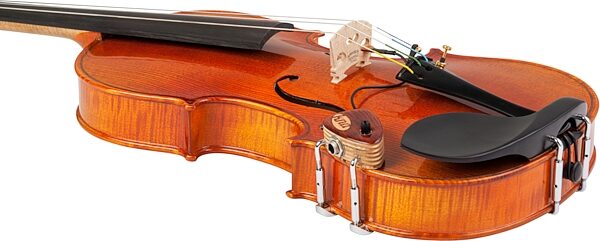

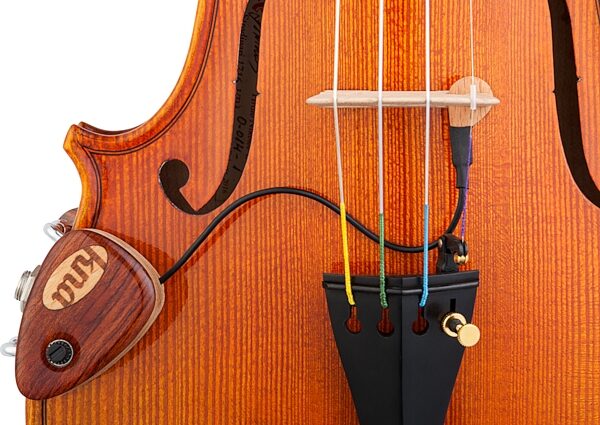

A passive piezo sensor installs at the bridge, much like an electric violin. This violin pickup with volume control features a potentiometer on the jack housing, which mounts safely to the instrument with cork-lined, fully adjustable barrel clamps.

In addition to being a violin piezo pickup, VV-2 works just as well for the frequencies of a viola.

Specs

Overall Weight: 30gr / 1.05 oz
Jack Housing Material: Laminate birch and rosewood top
Lead cable from jack housing to element: 13cm / 5.10"
Diameter of Piezo Element: 11.8mm / 0.46"
Thickness of the Piezo Element:
- 1.8mm +/- 0.10mm
- 0.07" +/- 0.003"
Maximum Impedance: 1500Ohm
Potentiometer: 500 kilo ohms
Clamps Adjustability (Min & Max):
- 32mm to 42mm
- 1.25" to 1.65"

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 0.25 lbs; Shipping Dimensions: 5 x 2 x 2 in; Manufacturer Part Number (MPN): VV-2
