J. Rockett Audio Juice Bar Power Distributor
zZounds Gear Experts Say...
Power your effects pedals with the J Rockett Audio Devices Juice Bar! Safe, versatile power with mA consumption monitoring and built-in voltage conversion.
Overview

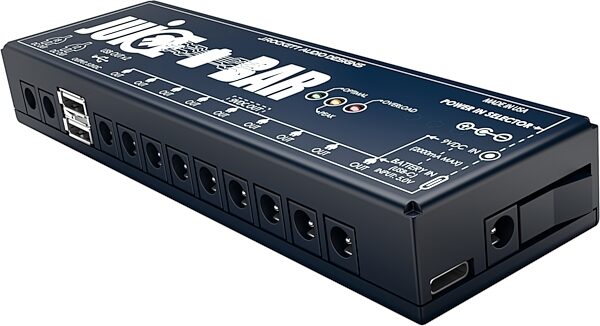

The Juice Bar is a power distributor and voltage converter that works with many power options. It can be powered with a battery bank, 5v USB C charger such as an iPhone charger or 9v wall wart supply like the Juice Power Supply or 1Spot.
The Juice Bar allows you to measure mA consumption to keep you within your respective power supply's available output power. The Juice Bar has a built in 9v, 12v and 18v output. You can expand any output slot with a Juice Joint. The outputs on the Juice Bar are not isolated which means they do not have power on each output but rather it has a global power source that powers all outputs.
The Juice Bar allows you to measure mA consumption to keep you within your respective power supply's available output power. The Juice Bar has a built in 9v, 12v and 18v output. You can expand any output slot with a Juice Joint. The outputs on the Juice Bar are not isolated which means they do not have power on each output but rather it has a global power source that powers all outputs.
Specs
- Input Voltage: 9V - 24V DC (barrel jack input), 5V DC (USB-C input)
- Output Voltage: 9V, 12V, 18V, 5V USB
- Total Output Power: 2000mA (2 Amp)
- Number of Outputs: 13 total (9x 9V, 2x USB, 1x 12V, 1x 18V)
- Output Connector Type: 2.1mm barrel jacks, USB ports
- Polarity: Negative tip (standard guitar pedal polarity)
- Isolation: Non-isolated (global power source)
- Protection Features: Built-in mA draw tester with visual indicator (green/orange/red LED)
- Output Voltage: 9V, 12V, 18V, 5V USB
- Total Output Power: 2000mA (2 Amp)
- Number of Outputs: 13 total (9x 9V, 2x USB, 1x 12V, 1x 18V)
- Output Connector Type: 2.1mm barrel jacks, USB ports
- Polarity: Negative tip (standard guitar pedal polarity)
- Isolation: Non-isolated (global power source)
- Protection Features: Built-in mA draw tester with visual indicator (green/orange/red LED)
Dimensions and Weight in Packaging
Open Box (Very Good), Black
- Shipping Weight: 1 lbs
- Shipping Dimensions: 8 x 2 x 2 in
- Manufacturer Part Number (MPN): JUB 9520-056
Open Box (Like New), Black
- Shipping Weight: 1 lbs
- Shipping Dimensions: 8 x 2 x 2 in
- Manufacturer Part Number (MPN): JUB 9520-056
Open Box (Very Good), Black, With Cables
- Shipping Weight: 1.5 lbs
- Shipping Dimensions: 11 x 7 x 3 in
- Manufacturer Part Number (MPN): JUB 9520-056B
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 631-905-8371
Email: support@rockettpedals.com
Web: https://rockettpedals.com/contact-us-3/
Phone: 631-905-8371
Email: support@rockettpedals.com
Web: https://rockettpedals.com/contact-us-3/
