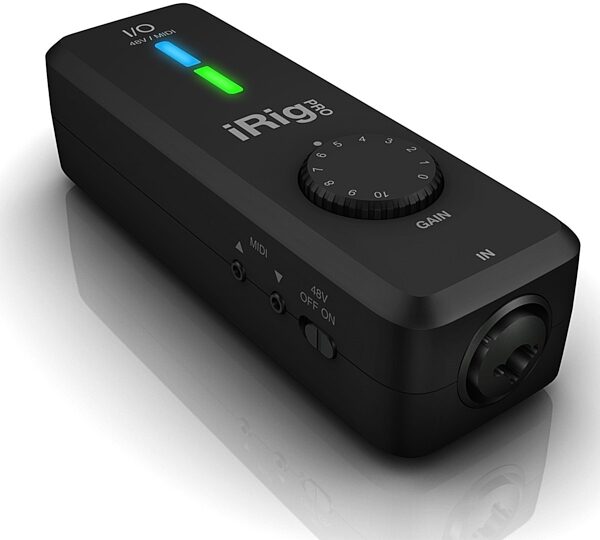

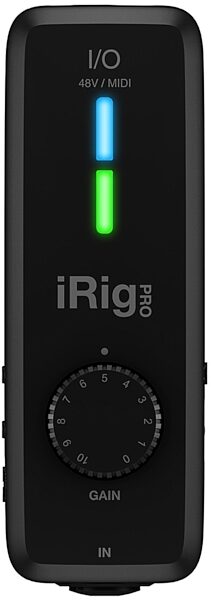

IK Multimedia iRig Pro I/O USB and iOS Audio/MIDI Interface

Microphone Input

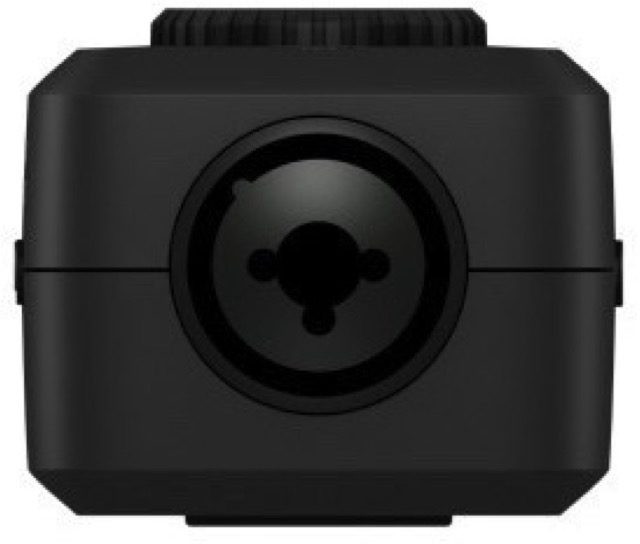

- Microphone Input: balanced female 3-pin, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
- Microphone Input Level: from 6 mVpp to 1.4 Vpp
- Microphone Input Impedance: 1.6 kOhms
- Gain Range: 40 dB
- Phantom Power: +48V +/- 4V
- Frequency Response: 20 Hz - 20 kHz +/-1.5dB
- Input Noise: -103 dB(A), -97 dB RMS

Instrument Input
- Instrument Input: unbalanced, Hi-Z, TS 1/4" Jack, Tip: signal / Shield: ground
- Instrument Input Level: from 30 mVpp to 6.9 Vpp
- Instrument Input Impedance: 1 MOhms
- Gain Range: 27 dB
- Frequency Response: 20 Hz - 20 kHz +/-1.5dB
- Input Noise: -103 dB(A), -97 dB RMS
- Stereo Headphone Output

Headphone Connector:
- 1/8" TRS Jack
- Tip right / Ring left / Shield ground
- Headphone Level Control: numbered thumbwheel
- Headphone Level Power: 100mW into 50 Ohms

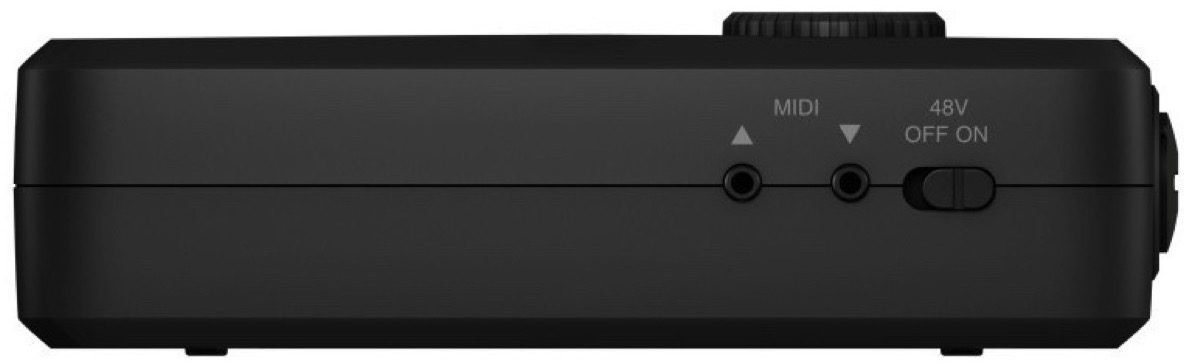

MIDI Input/Output
- Connector: 2x2.5mm TS Jack

Other Input/Output

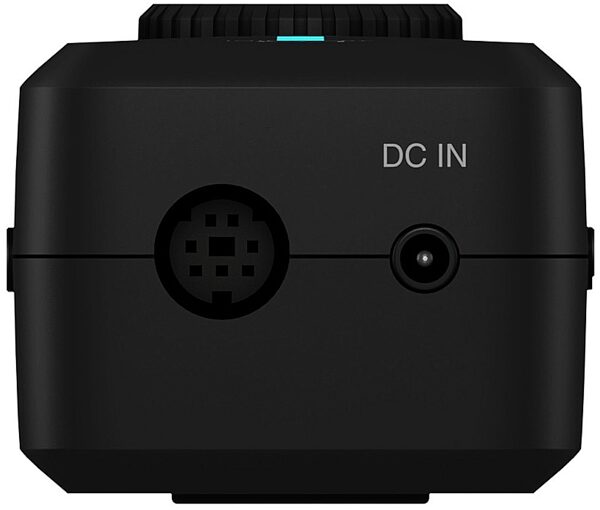

DC barrel: 1x DC barrel. For power and device charging.
Device Connector: mini-DIN

Conversion: 24-bit A/D, 24-bit D/A
Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
Power:
- USB bus powered when used with a computer
- Battery powered (2xAA included) when used with an iOS device
- DC power supply (not included, sold separately)

Dimensions
- Size: 1.69" x 5" x 1.46"
- Weight: 4lbs .23oz (batteries excluded)
- Lightning to Mini-DIN connection cable: 23.62"
- USB to Mini-DIN connection cable: 23.62"
- 2.5mm jack to MIDI cable: 63"

iOS Device Compatibility: Compatible with iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch 6th generation, iPod touch 5th generation, iPad Pro (12.9-inch), iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad mini, iPad 4th generation. iOS 6 or later is required.

Computer Compatibility
- Mac: Mac OS X 10.6 or later. One free USB port.
- Windows: Support using the ASIO4ALL driver on Windows XP/Vista/7/8/10.

Android Devices:Compatible with Android devices running Android 5 or later and with USB digital audio capabilities.

Note:Micro-USB-OTG to Mini-DIN cable (sold separately) is required.
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1 lbs
Shipping Dimensions: 7 x 7 x 2 in
Manufacturer Part Number (MPN): IP-IRIG-PROIO-IN
Warehouse Resealed
Shipping Weight: 1 lbs
Shipping Dimensions: 7 x 7 x 2 in
Manufacturer Part Number (MPN): IP-IRIG-PROIO-IN
