IK Multimedia iLoud MTM Powered Studio Monitor

An upgrade to IK Multimedia's impressive iLoud Micro Monitors, the iLoud MTM harnesses a midrange-tweeter-midrange design for bass response down to 40 Hz.
The IK Multimedia iLoud MTM uses the most advanced DSP techniques to provide total control over the speaker's performance, delivering results simply not obtainable with traditional analog designs.

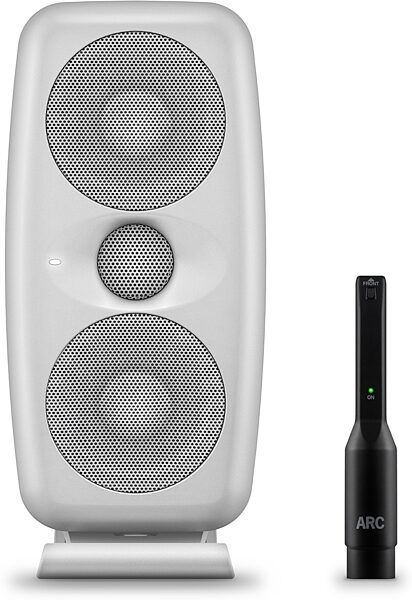

Built-in ARC Room Calibration with Measurement Mic Included

IK Multimedia's ARC room calibration system comes built into your iLoud MTM monitors. Just connect the included measurement microphone, set it up in your listening position, and run the calibration process. You'll get more accurate monitoring that's tuned specifically to your space for the most accurate phase coherency and flattest frequency response possible -- no matter what kind of space you're working in. And if you move to a different studio space or rearrange your room, simply run the calibration routine again to make sure your iLoud MTM monitors are delivering the accuracy you need.

The Next Generation of iLoud Micro Monitors

IK Multimedia's iLoud Micro Monitor wowed the world with the bass performance it delivered from a 3" speaker that "defied physics." But iLoud MTM offers even more, with even bass response down to an astonishing 40 Hz ideal for modern music styles. Most conventional studio monitors, even high-end designs, suffer from skewed phase response caused by traditional, phase-shifting crossovers and driver/enclosure phase alterations. The end result is an unfocused stereo image, blurry transients, and overall lack of detail. iLoud MTM uses a midrange-tweeter-midrange symmetrical design, with read more a pair of 3.5" high performance woofers and one 1" high definition, back-chamber loaded tweeter, which provides ultra-precise, defined, point source sound that can#t be achieved by traditional 2-way systems at close distances.

High Tech Under the Hood

Today's studios can be anywhere, from acoustician-designed spaces to a spare bedroom. Too many speaker manufacturers keep designing for ideal acoustic environments, ideal positioning and large listening distances. But many musicians simply don't have that luxury. It's often overlooked -- your studio monitors' tweeters need to point at your ears. This is even more critical in modern studios where more and more musicians are using them at very close distances, like on a desktop beside their laptop or computer screen. iLoud MTM uses audiophile-grade high resolution algorithms and the top-of-the line A/D converters to carefully manage cross-overs, filtering, time alignment, equalization, dynamics control and auto-calibration. Totally DSP-controlled and precision time-aligned, iLoud MTM also manages the off-axis response to manage the effects of room reverberations.
read less
- Type: 2-Way/3-speakers bi-amped, digitally controlled studio monitor
- LF Drivers: 2 x 3.5" polypropylene custom made mid-woofers
- HF Driver: 1" low distortion, back chambered silk dome tweeter
- Acoustic Design: DSP tuned bass reflex
- Number of amps per speaker: 2
- Amplifiers type: High efficiency Class-D
- Total power: 100W RMS
- LF power: 70W RMS
- HF power: 30W RMS
- Crossover Type: Linear Phase Variable Order
- Crossover Frequency: 3.1 kHz
- Frequency response: from 50 Hz to 24 kHz +/- 2dB (40 Hz -6dB when uncal, -3 dB when cal)
- Phase response: System remains coherent within +/- 15 degrees from 200Hz to 20 kHz
- Sensitivity at +4dBu: 0dBu signal generates a 100 dB SPL @ 1 m
- Sensitivity at -10dBV: -11dBu signal generates a 100 dB SPL @ 1 m
- Maximum SPL @ 1m, one speaker playing, on axis: 103dB from 200Hz up sine wave, 95dB at 100Hz sine, 93dB pink noise
- Placement setup: Manual switches for LF Extension, LF trim, HF trim, Desk position
- LF extension: switch Sets -3dB point of the frequency response at 40, 50 or 60 Hz
- LF switch: Low shelf, +2dB or -3dB from 100Hz down
- HF switch: high shelf, +2dB or -2dB from 8 kHz up
- Desk switch: -4dB at 160Hz and +1dB at 1.8 kHz
- Calibration: Fully automatic and built-in digital calibration, microphone included
- Measurement Microphone: Omnidirectional, Mems based precision measurement microphone
- Control: Full DSP control

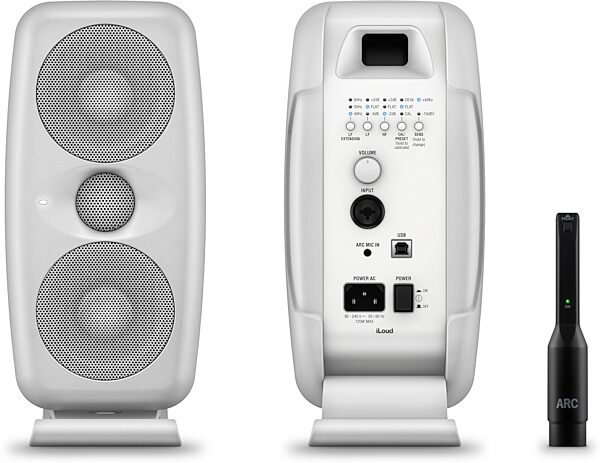

- Connectors: 1x combo XLR-1/4# TRS balanced input; 1/8# TS ARC microphone input, 1 x USB type-B (service use only), AC POWER socket
- Power requirement: 90 to 240 V AC, auto-ranging, 50 or 60Hz, 120W max power consumption
Dimensions and Weight in Packaging
Black, Single Speaker
Shipping Weight: 8 lbs
Shipping Dimensions: 13 x 10 x 9 in
Manufacturer Part Number (MPN): IKM ILOUDMTM
Scratch and Dent, Black, Single Speaker
Shipping Weight: 6.8 lbs
Shipping Dimensions: 12 x 9 x 8 in
Manufacturer Part Number (MPN): DSP IKMILOUDMTM
Blemished, Black, Single Speaker
Shipping Weight: 8 lbs
Shipping Dimensions: 13 x 10 x 9 in
Manufacturer Part Number (MPN): MBP IKMILOUDMTM
Warehouse Resealed, Black, Single Speaker
Shipping Weight: 8 lbs
Shipping Dimensions: 13 x 9 x 9 in
Manufacturer Part Number (MPN): NFS IKMILOUDMTM
White, Single Speaker
Shipping Weight: 8 lbs
Shipping Dimensions: 13 x 10 x 9 in
Manufacturer Part Number (MPN): IKM ILOUDMTMWH
Black, Pair
Shipping Weight: 16 lbs
