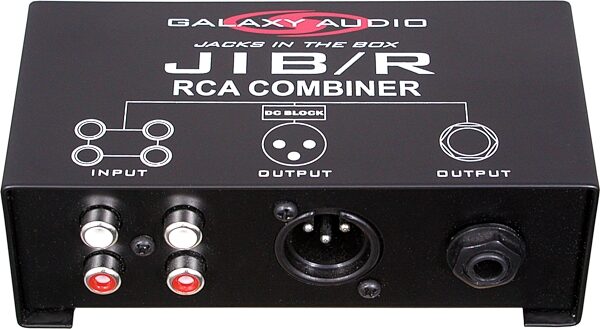

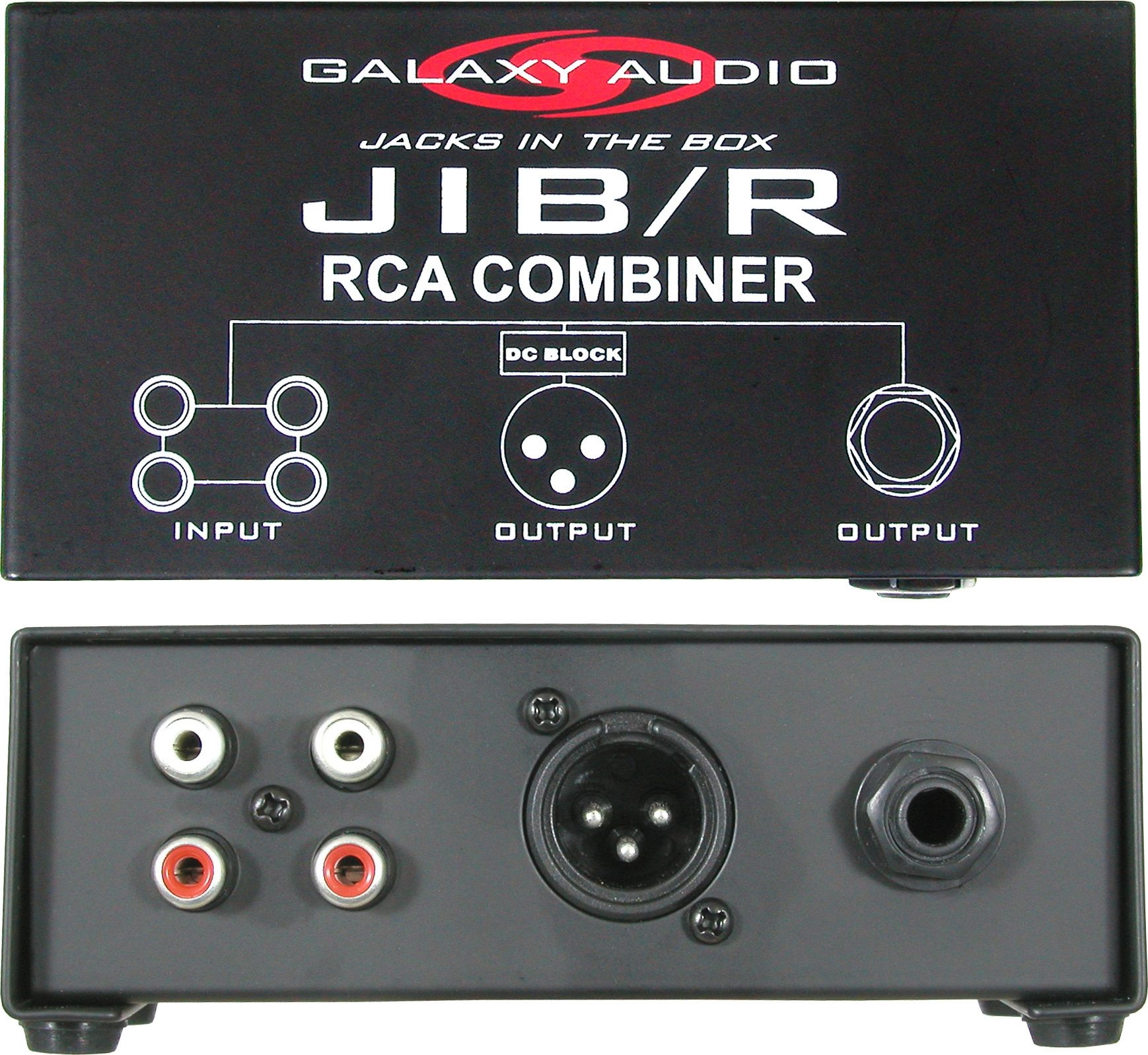

Galaxy Audio JIB/R RCA Combiner

Out of mixer channels? Sum two stereo sources -- like a CD player and tape deck -- to a single mono XLR or 1/4" balanced output with the Galaxy Audio JIB/R.

Overview

Ever wanted to plug a tape player & a CD player into a mixing console, but didn't have enough channels? The Galaxy Audio JIB/R will allow you to sum two stereo sources such as a tape, CD, mini disc, or Mp3 player, and combine them into one mono XLR or 1/4" output. This allows one channel to be freed up for other important inputs. The JIB/R also has a phantom block circuit which prevents phantom power going to the input sources.

Features

- Combines (sums) two stereo CD or tape players into one mono (XLR or 1/4 inch) output
- Frees mixer channels
- Phantom block on the XLR prevents phantom power from reaching CD/tape players connected to the RCA jacks

Specs

- Input: Two Dual RCA
- Output: One Female XLR, One 1/4"
- Construction: Metal
- Dimensions: 5" x 2.5" x 1.75" (127 x 63.5 x 44.45 mm)
- Weight: 11.2 oz (317.5 g)

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 0.75 lbs; Shipping Dimensions: 8 x 7 x 2 in; Manufacturer Part Number (MPN): JIBR
