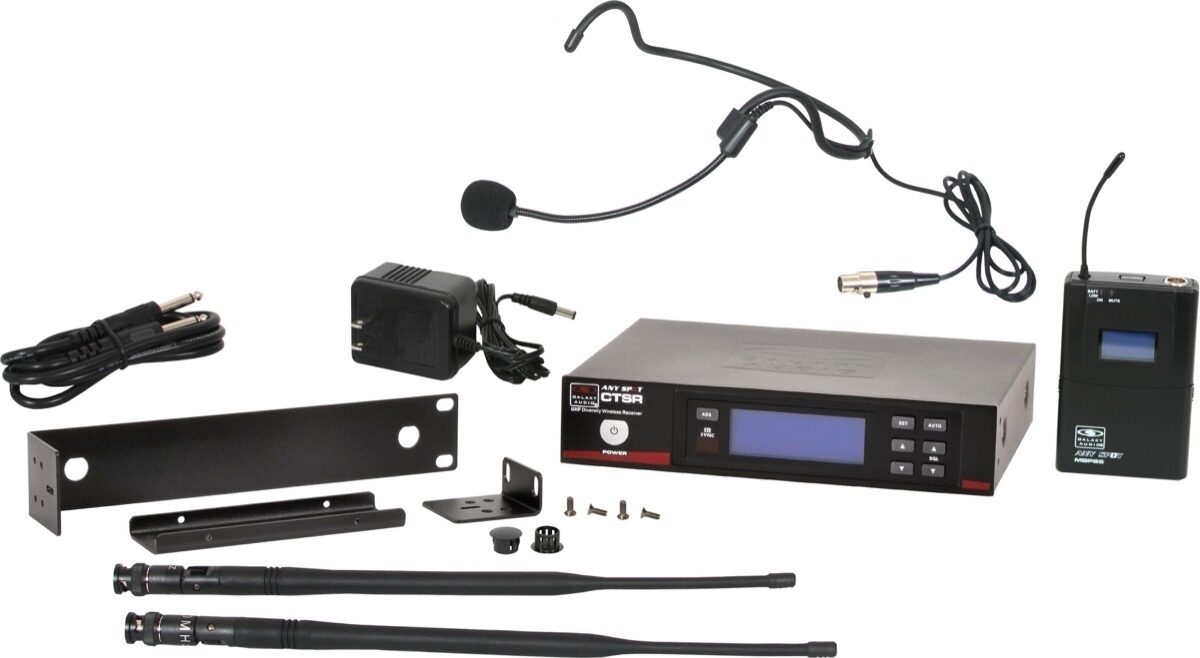

Galaxy Audio CTSR/85HS Wireless Headset Microphone System

Available Frequencies: 920
Frequency Ranges:
CODE D 584 - 607 MHz
CODE J 514 - 537 MHz
Transmitter Output: 5 mW, 10 mW, 20 mW
Band: UHF
Operating Range: Under Typical Conditions 300' (92 m), actual range depends on RF signal absorption, reflection, and interference.
Audio Frequency Response: (+/-3 dB) 60 Hz - 16 Hz
Total Harmonic Distortion: (+/-30 kHz deviation, 1 kHz tone): <1%
Dynamic Range: >90 dB A-weighted
Operating Temperature Range: 14 degrees F to 122 degrees F, battery characteristics may limit this range
Audio Output Level (+/-30kHz deviation 1kHz tone): XLR Connector (into 600 Ohms load) 6 dBV
1/4" Connector (into 3 k Ohms load): 0 dBV
Output Connection: 1 Male XLR Balanced, 1/4" Unbalanced
Output Impedance: XLR Connector 200 Ohms
1/4" Connector: 1 k Ohms
XLR Output: Impedance Balanced
Pin 1: Ground (cable shield)
Pin 2: Audio +
Pin 3: No Audio -
Sensitivity: -102 dBm
Image Rejection: >90 dB
Casing: Metal Chassis EIA STANDARD 1/2 U
Dimensions: 1.7" x "8.3" x 6.3" (45 x 212 x 160 mm) (HxWxD)
Weight: 31.7 oz (900 g)
Power Requirements: 12 V DC at 500 mA, supplied by external power supply

MBP85 BODY PACK TRANSMITTER

Max Audio Input Level: -6 dBV (-3 gain)
Gain Adjust: -3 dB, 0 dB, +3 dB, +6 dB, +9 dB
RF Output: 5 mW, 10 mW, 20 mW
Input Impedance: 470 k Ohms
Dimensions: 3.85" x 2.51" x 0.90" (98 x 62 x 23 mm) (HxWxD)
Weight: 3.17 oz (90 g)
Power Requirements: 2 "AA" size alkaline or rechargeable batteries
Battery Life: About 12 hours (alkaline)
Dimensions and Weight in Packaging
Band D (584-607 MHz)
Shipping Weight: 5.25 lbs
Shipping Dimensions: 17 x 13 x 3 in
Manufacturer Part Number (MPN): CTSR/85HSD
If you have additional warranty questions, please contact the manufacturer at 800-369-7768
