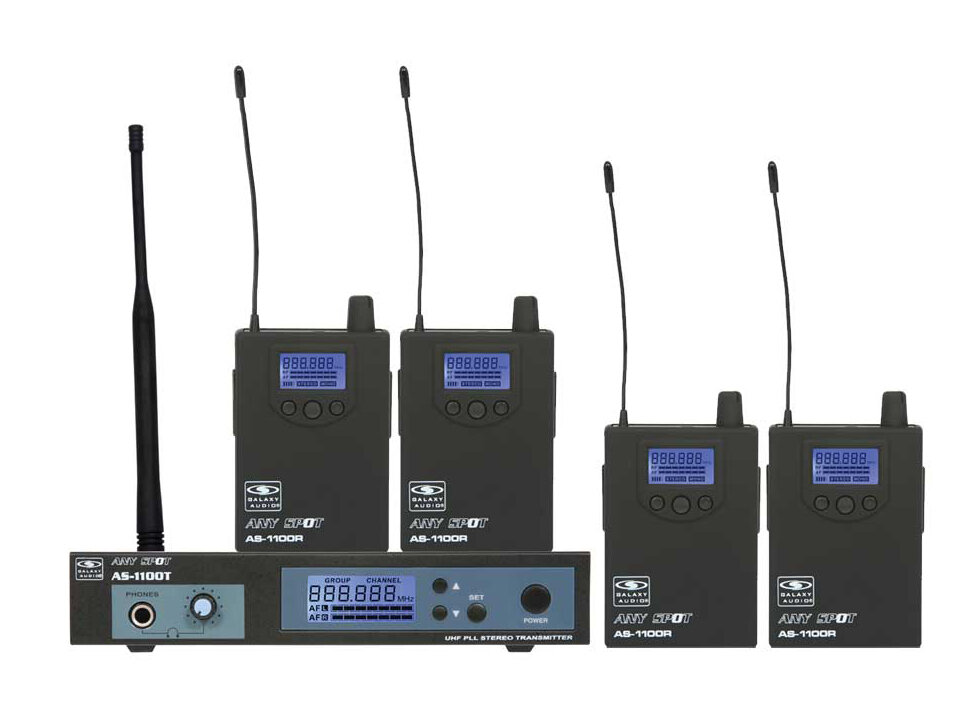

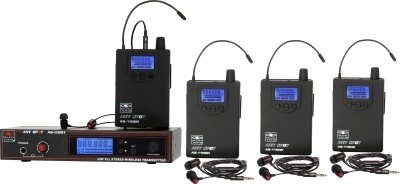

AS110T Transmitter- Max Audio input level: +6dBV
- Gain Adjustment Range: 40dB
- Input Impedance: 100K
- Dimensions (HxWxD): 1.5 x 8.3 x 3.78 in. (38mm x 212mm x 96mm)
- Weight: 21oz. (605 g)
- Power Requirements: 12-18 V dc at 300mA supplied by external power supply
XLR input:
- Impedance balanced
- Pin1 Ground (cable shield)
- Pin 2 Audio
- Pin 3 No Audio
AS1100R Receiver- Audio Output Level: 100mW
- Sensitivity: -94dBm for 30dB
- Image Rejection: >55dB
- Dimensions (HxWxD): 3.74 x 2.6 x 1 in. (95mm x 65mm x 25mm)
- Weight: 3.5oz (100 g) without batteries
- Power Requirements: 2 (AA)size alkaline or rechargeable batteries
- Battery Life: About 5 hours
- Dimensions and Weight in Packaging
- Band D (584-607 MHz)
-
Shipping Weight: 5.75 lbs
-
Shipping Dimensions: 17 x 14 x 6 in
-
Manufacturer Part Number (MPN): GAA AS11004D
- Band N (518-542 MHz)
-
Shipping Weight: 6 lbs
-
Shipping Dimensions: 18 x 14 x 6 in
-
Manufacturer Part Number (MPN): AS1100-4N
- Band P2 (470-489 MHz)
-
Shipping Weight: 6.25 lbs
-
Shipping Dimensions: 17 x 13 x 6 in
-
Manufacturer Part Number (MPN): AS-1100-4P2
