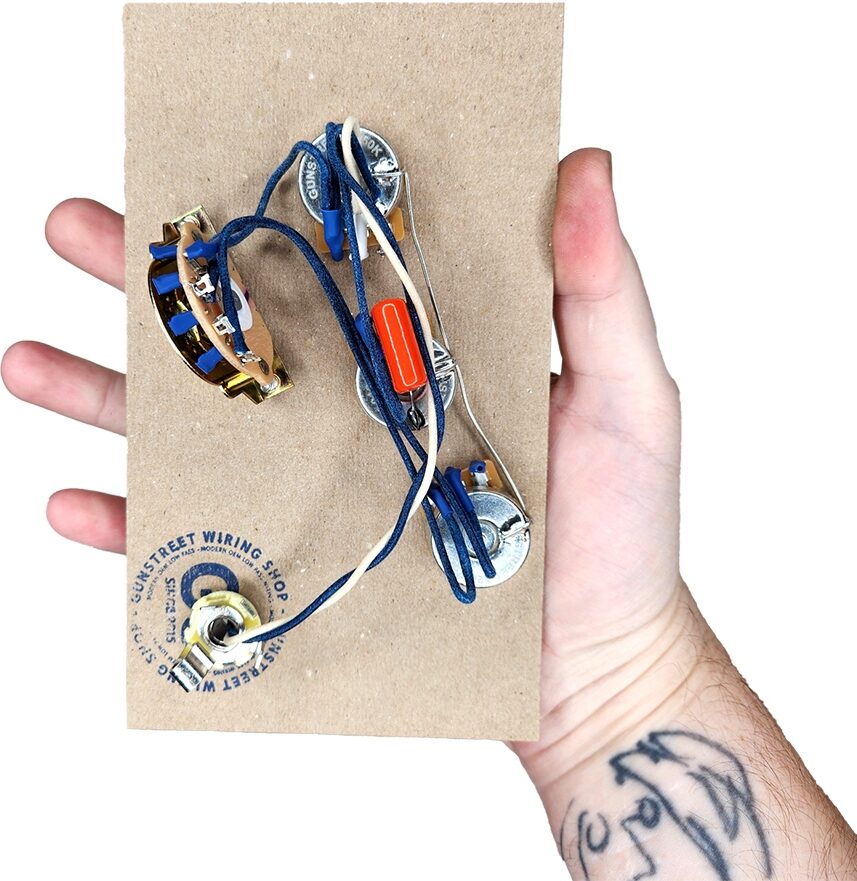

Gunstreet 5-Way Blender Stratocaster Wiring Harness

The Gunstreet 5-way Blender Stratocaster wiring harness enables you to get both the neck and the bridge as well as all three pickups on at once.

Gunstreet kits are a perfect drop-in replacement for your Stratocaster style guitar, whether you want to change how your instrument sounds, or just want to improve the durability they have something perfect for you!

Blue Modern Wiring: (Low pass Filter) This comes standard in most instruments and is what most people are familiar with when it comes to functionality. This style is what you call a low pass filter, meaning as you roll the volume down more highs will disappear.


- Perfect drop-in replacement for Stratocaster style guitars
- Blue Modern Wiring: (Low pass Filter)
- Standard low pass filter wiring
- Highs will disappear as you roll the volume down
- The unique Blender Circuit turns the second tone knob into a blend knob
- Blend in either the bridge or neck pickups

The Blender Circuit
This set up gives you 7 total sounds by turning your second tone knob into a blend knob. You can blend in either the bridge or neck pickups. This gives you the option to have Neck and Bridge together, or all the pickups on at once.

Control Layout:
- Knobs: Master Volume, Master Tone Control, Blend control
- Blend Knob "OFF"
- Bridge
- Bridge/Middle
- Middle
- Middle/Neck
- Neck
- Blend knob "ON"
- Bridge/Neck
- All Pickups On
- Middle
- All Pickups On
- Bridge/Neck

The Gunstreet Promise
Gunstreet takes their quality very seriously. That's why they only use real trained technicians who hand build each kit, and then send it through their proprietary testing process where read more they audio test every control, switch, or option to make sure that when you receive the item it's free of any hums, crackles, or pops!

All kits include a diagram as well as a simple "how to" on the Gunstreet website.
read less

Oak 5 Way Switch Specs
-Body cavity depth: 1-3/8th" (34.93mm)
-Mounting Screw Spacing: 1 5/8" (41.28mm)
-Lever Stem: 0.50x.190

DHE Gunstreet Pots
-Taper Style: Custom Audio Taper
-Knob type: 18 spline Coarse knurling
-Shaft diameter: 3/8" (9.52mm)
-Thread type: 3/8"-32
-Threaded portion: 3/8" (9.52mm)
-Required mounting hole diameter: 3/8" (9.52mm)
-Value: 250k -/+ 20%

Capacitor Specs
-Brand: CDE
-Model: "Orange Drop"
-Value: .047uF

Rean Output Jack Specs
-Mounting hole diameter: 3/8" (9.52mm)
-Thread: 3/8 x 32
-Threaded portion height: 1/4" (6.35mm

Switching from an Import pot to Gunstreet US spec Pot will require you to have 3/8th pot holes on your pickguard
Choosing Gunstreet kits will require an 18th tooth "Coarse" Knurled knob
Some low budget Import guitar cavities are designed for Mini 12mm pots. To install a 24mm Fullsized pot may require routing out some of the cavity
HSS Strats. Most manufactures recommend 250k with this layout to keep the "Brand sound" so their standard setup is the right one you want.
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 0.15 lbs
Shipping Dimensions: 8 x 4 x 3 in
Manufacturer Part Number (MPN): GSWH-STRT-C-MB
