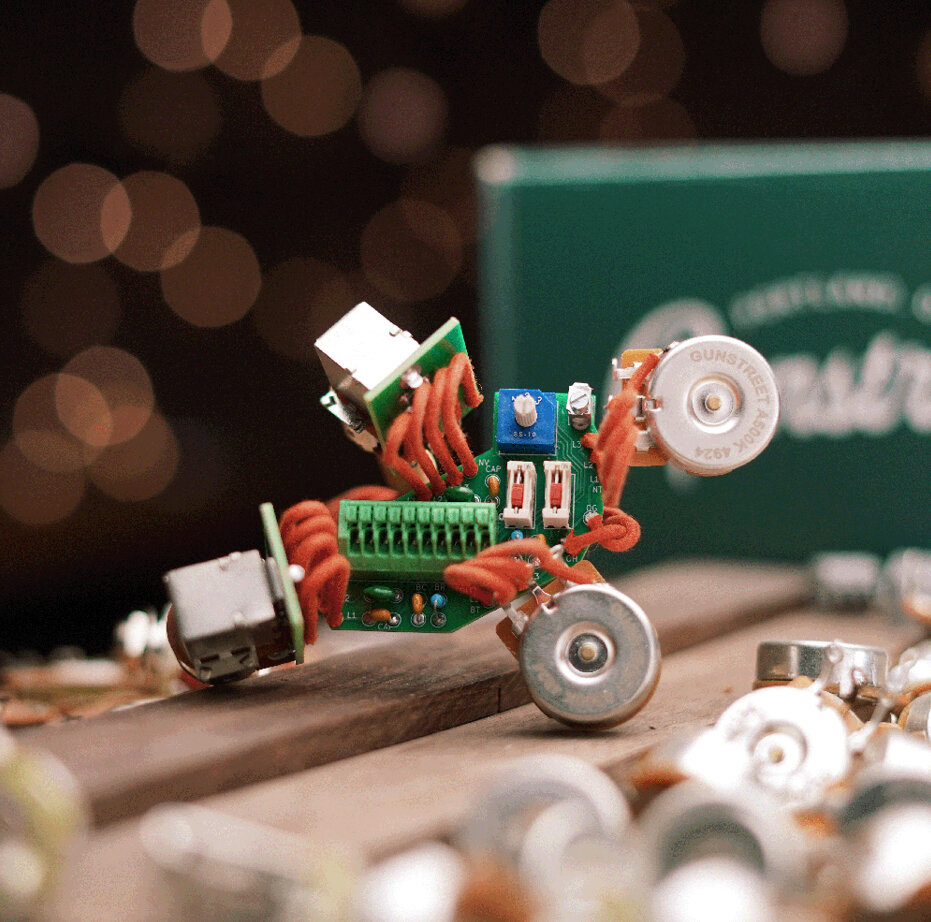

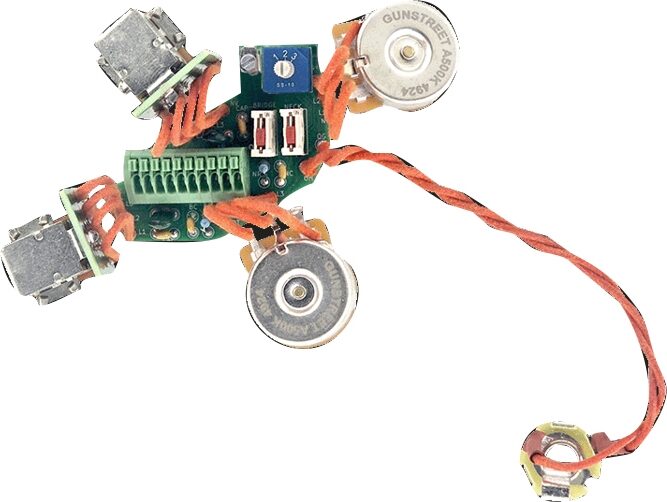

Gunstreet GSWH-SL-LPSTND-C-CCT Classic Les Paul Coil-Tapping Solderless Wiring Harness

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
open zoom image for Gunstreet GSWH-SL-LPSTND-C-CCT Classic Les Paul Coil-Tapping Solderless Wiring Harness, New, Action Position Back
open zoom image for Gunstreet GSWH-SL-LPSTND-C-CCT Classic Les Paul Coil-Tapping Solderless Wiring Harness, New, Action Position Back
Gunstreet GSWH-SL-LPSTND-C-CCT Classic Les Paul Coil-Tapping Solderless Wiring Harness, New, Action Position Back Gunstreet GSWH-SL-LPSTND-C-CCT Classic Les Paul Coil-Tapping Solderless Wiring Harness, New, Action Position Back
zZounds Gear Experts Say...
Clean up those controls and scratchy pots! A drop-in replacement for Les Pauls, this Gunstreet wiring harness unlocks single-coil-style and P90-style sounds.

Tap into new sounds without sacrificing the classic character of your Les Paul. The Gunstreet Classic Les Paul Coil Tapping Solderless Wiring Harness expands on Gunstreet's standard solderless LP kit by bringing three single-coil sounds to your fingertips.

Classic Cut: Split your humbucker to unlock all the cut and presence you’d expect from a "true" single coil.

P90: Transform your humbucker with the dynamic mids, grit, and versatility of a P90.

Sparkle Tap: Tap into the superlative sparkle and twang of vintage single coil sounds.

How Gunstreet's VVC (Volume Voicing Circuit) Works:
- Down: Saves more low end as you are using the Volume
- Up: Saves more high end as you are using the Volume

- Pot Shaft Diameter: 3/8" (9.52MM)
- Pot Taper style: Custom Audio taper
- Pot Shaft Length: 3/4th "Long Shaft" (19.05MM)
- Pot Knob Pattern: 18 tooth Coarse
- Pot Value: 500k +/-17%
- Switch Mounting hole diameter: 1/2" (12.70mm)
- Switch Thread height: 7/32" (5.56mm)
- Switch Tip Threading: 8-32
- Capacitor Values: 0.022uf -/+10%
- Mono jack Required mounting hole diameter: 3/8" (9.53mm)

Requirements:
- This kit Requires a 4 conductor Pickup Lead
- Converting an Import guitar to US spec will require you to enlarge the stock pot holes to be 3/8th diameter
- VERY IMPORTANT: Gunstreet Pots require an 18-tooth "Coarse" knurled knob. If you are swapping from a CTS pot to a Gunstreet pot, new knobs will be required.
- Proper installation of the correct knobs is crucial to prevent damage. Applying more than 30 lbs of upward or downward force can damage the potentiometer, or shaft. Remember, never forcefully pull a stuck knob; instead, "walk it off."
- As long as your pot holes are 3/8th diameter, this kit was designed to fit the standard thicknesses of both US and Import LP tops.

Dimensions and Weight in Packaging

Base Item

  • Shipping Weight: 0.58 lbs
  • Shipping Dimensions: 8 x 5 x 3 in
  • Manufacturer Part Number (MPN): GSWH-SL-LPSTND-C-CCT

For support or warranty questions, please contact the manufacturer:
Web: https://gunstreet.co/pages/contact-us
