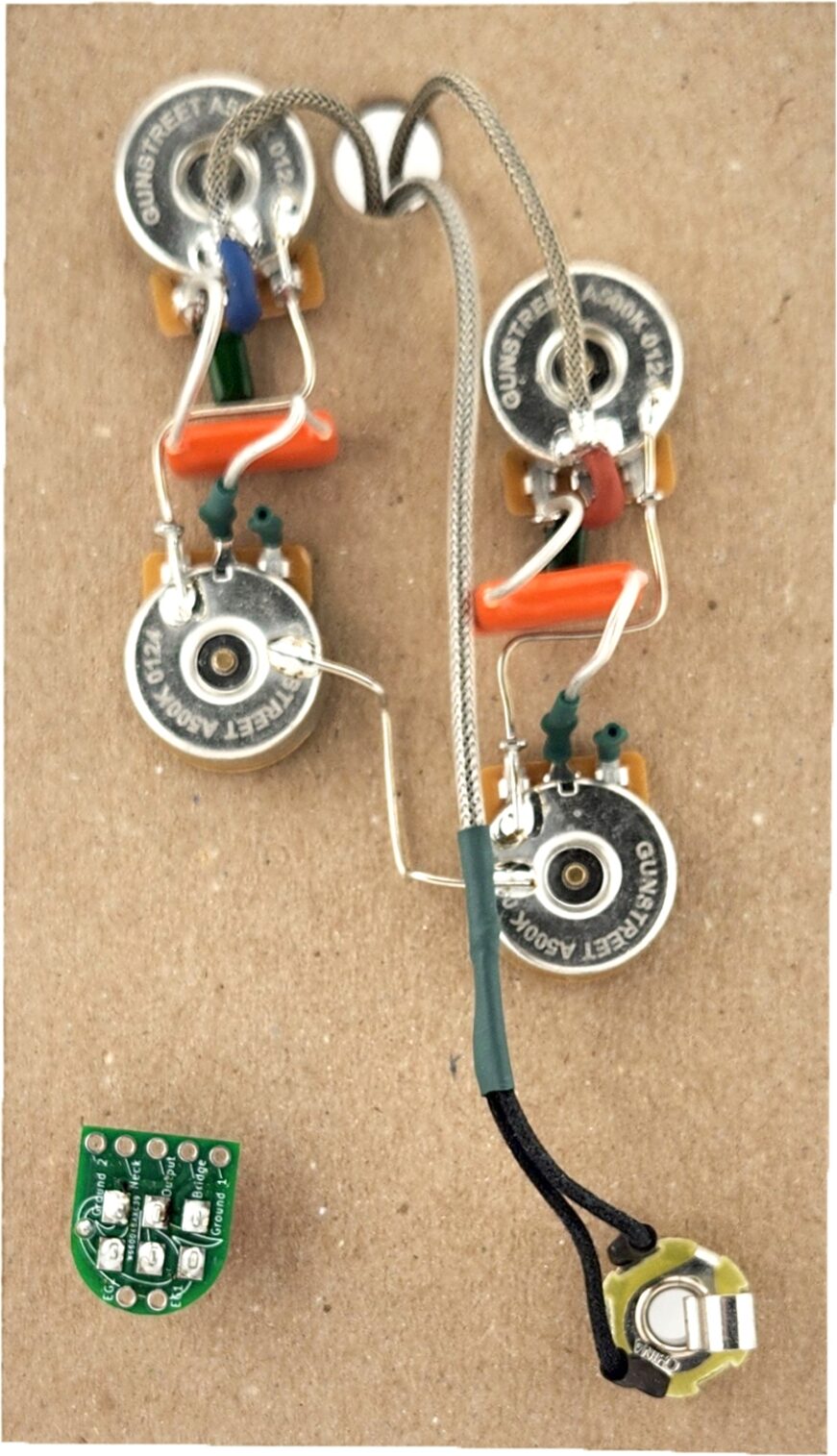

Gunstreet Les Paul Standard Wiring Harness (Green Wiring)

An easy drop-in replacement for your Les Paul-style guitar, this Gunstreet wiring harness offers a modern treble bleed circuit and long shaft pots.

Greenstreet kits are a perfect drop-in replacement for your Les Paul style guitar, whether you want to change how your instrument sounds, or just want to improve the durability they have something perfect for you!

Filter Circuit: Green Treble Bleed (Modern High pass Filter) Often called a "Volume bleed", this circuit changes the modern wiring into a high pass filter. Get this kit if you like to use both your volume and tone control a lot and want more highs at lower volumes.


- Perfect drop-in replacement for Les Pau Standard style guitars
- Green Treble Bleed Mod (Modern High pass Filter)
- Changes the modern wiring into a high pass filter
- Delivers more highs at lower volumes
- Great if you like to use both your volume and tone control a lot
- 3/4th "Long Shaft" DHE "Gunstreet" Pots

The Gunstreet Promise
Gunstreet takes their quality very seriously. That's why they only use real trained technicians who hand build each kit, and then send it through their proprietary testing process where they audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!

All kits include a diagram as well as a simple "how to" on the Gunstreet website.

3/4th "Long Shaft" DHE "Gunstreet" Pots
-Taper style: Custom Audio
-Shaft Diameter: 3/8" (9.52MM)
-Shaft Length: Long shaft: 3/4th (19.05MM)
-Knob Pattern: 18 spline coarse knurling
-Nut thread: 3/8 x 32
-Value: 500k -/+20%

-Switchcraft Toggle
-Required Body cavity depth: 7/8"" (22.23MM)
-Mounting hole diameter: 1/2" (12.70mm)
-Thread height: 11/32" (8.74MM)
-Thread Pattern: 15/32x 32
-Switch tip Thread: 8-32

Neutrik Rean mono jack
-Required mounting hole diameter: 3/8" (9.53mm)
-Thread: 3/8 x 32
-Thread height: 1/4th" (6.35mm)


Converting an Import guitar to their US spec pots will require you to enlarge the stock pot holes to be 3/8th
Most Gibson curved tops require a "3/4th Long Shaft"
Greenstreet Custom pots will require an 18th tooth "Coarse" Knurled knob
Swapping from CTS will require new knobs
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 0.15 lbs
Shipping Dimensions: 8 x 4 x 3 in
Manufacturer Part Number (MPN): GSWH-LPSTND-CLSH-V
