Gemini iPMX 2-Channel Stereo Mixer

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

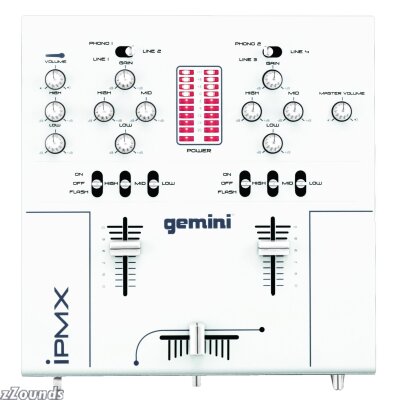

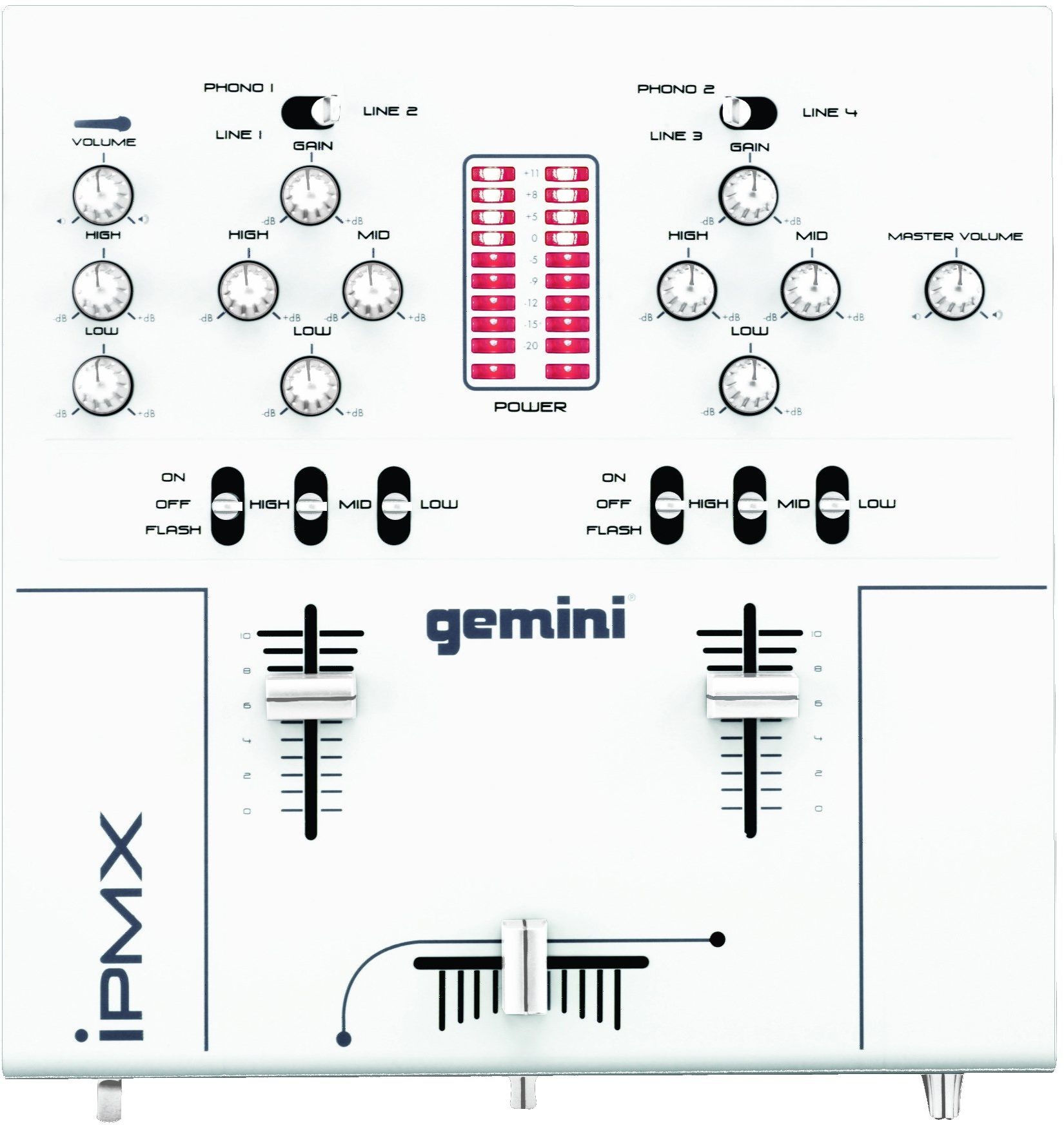

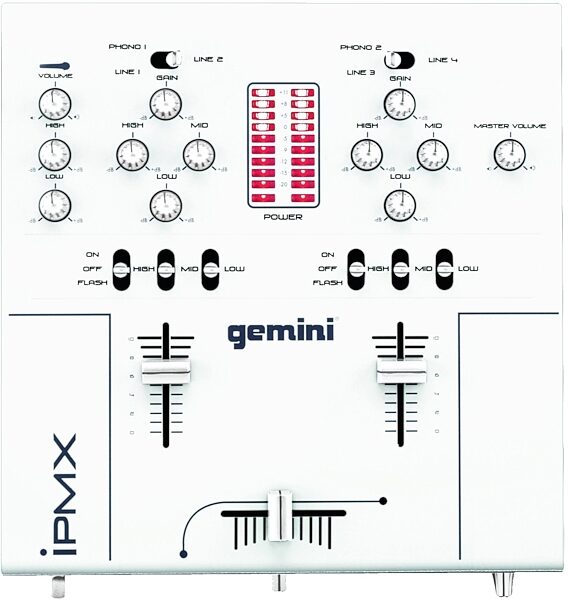

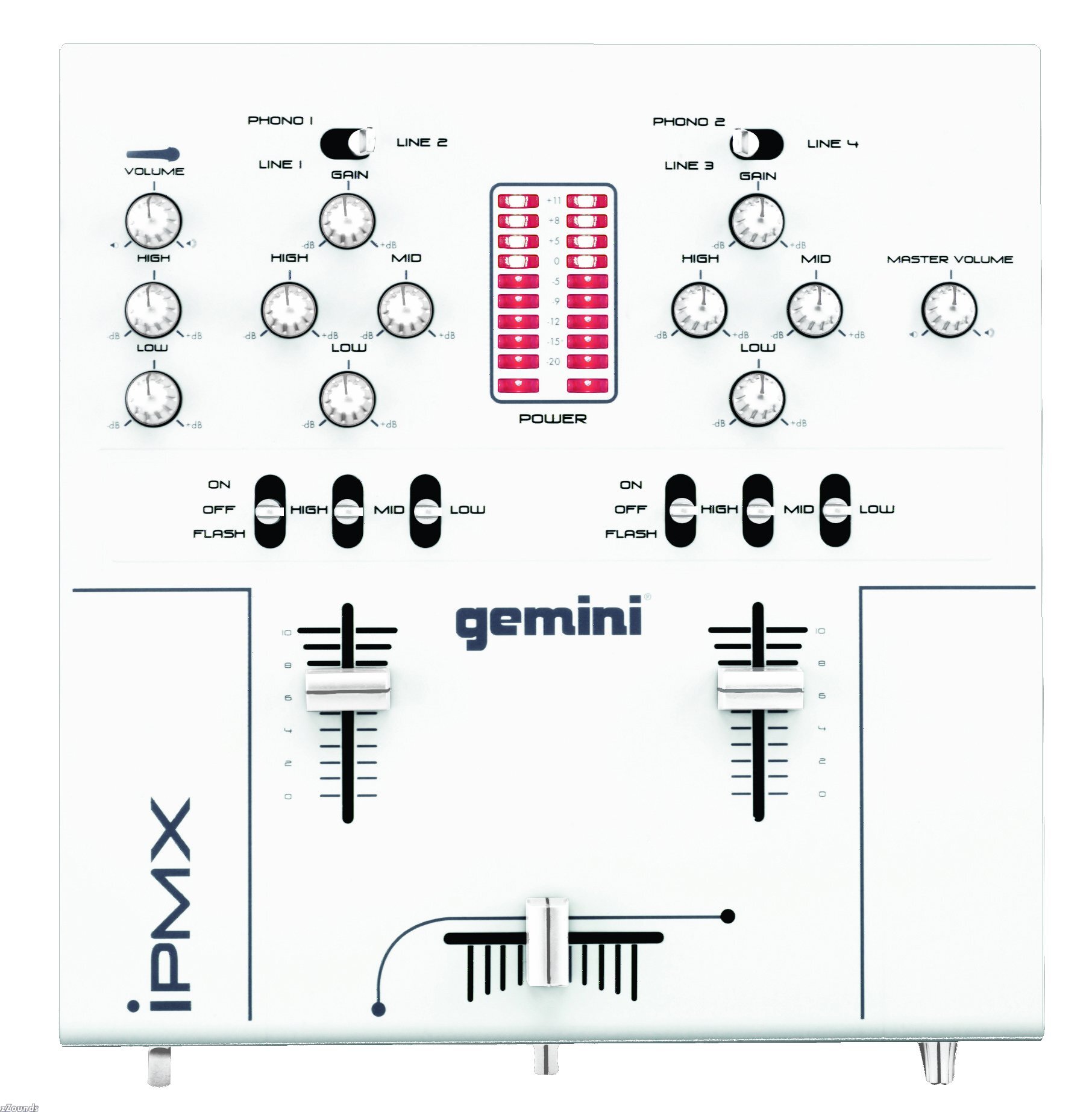

Gemini iPMX 2-Channel Stereo Mixer, Main

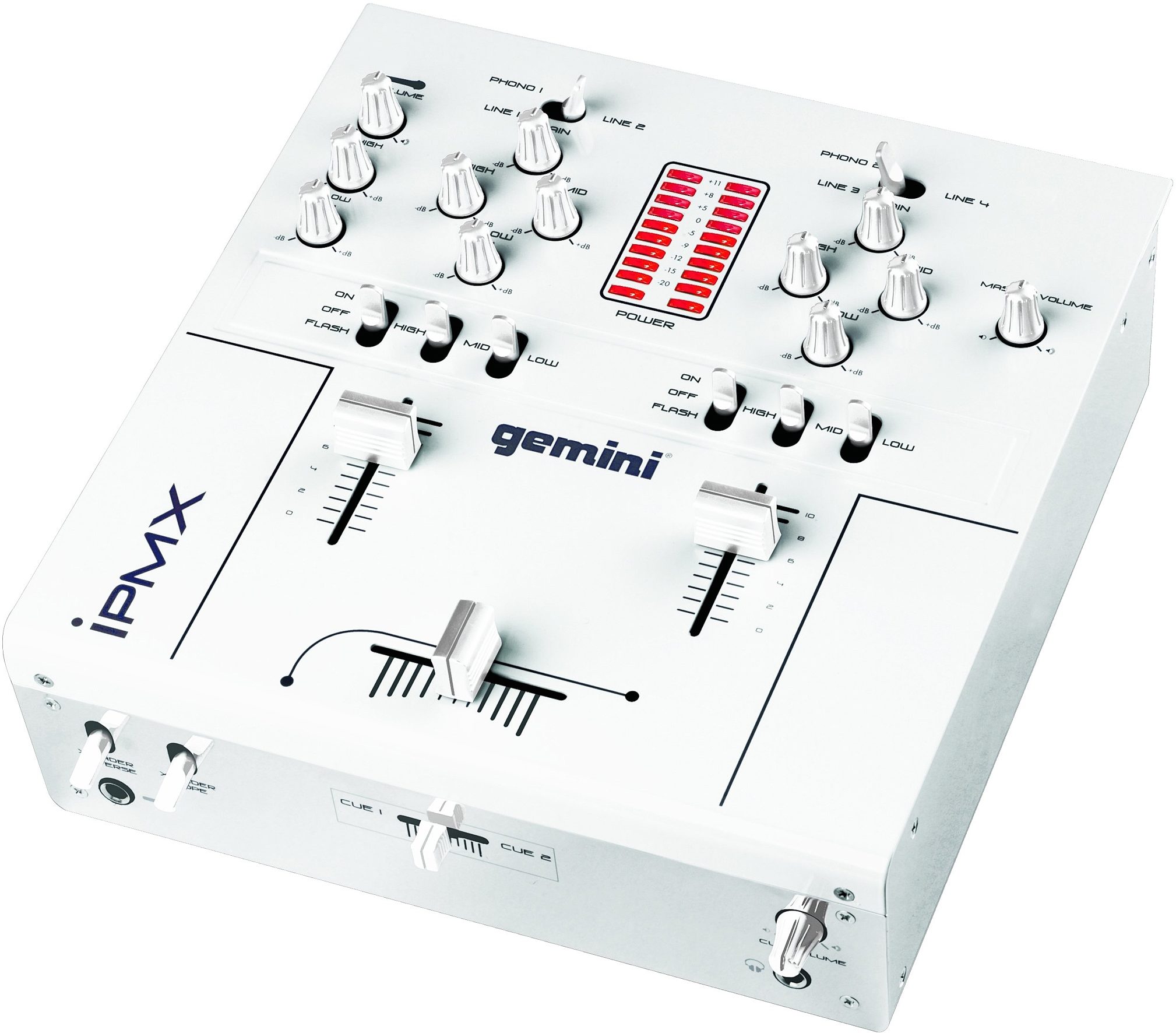

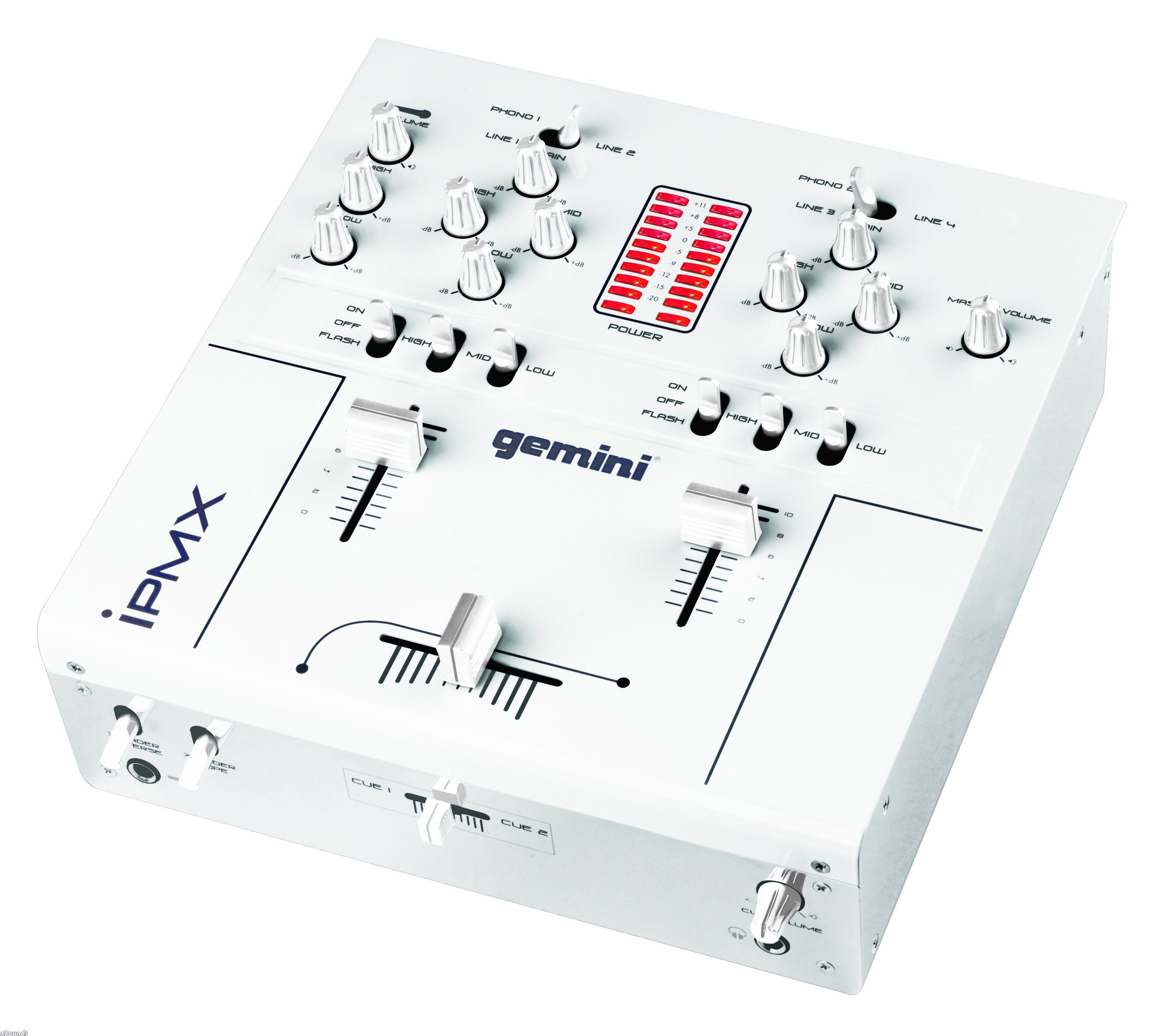

Gemini iPMX 2-Channel Stereo Mixer, Angle

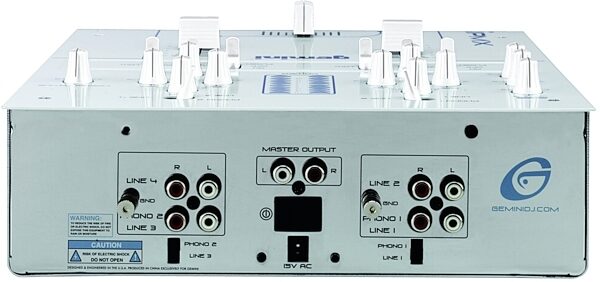

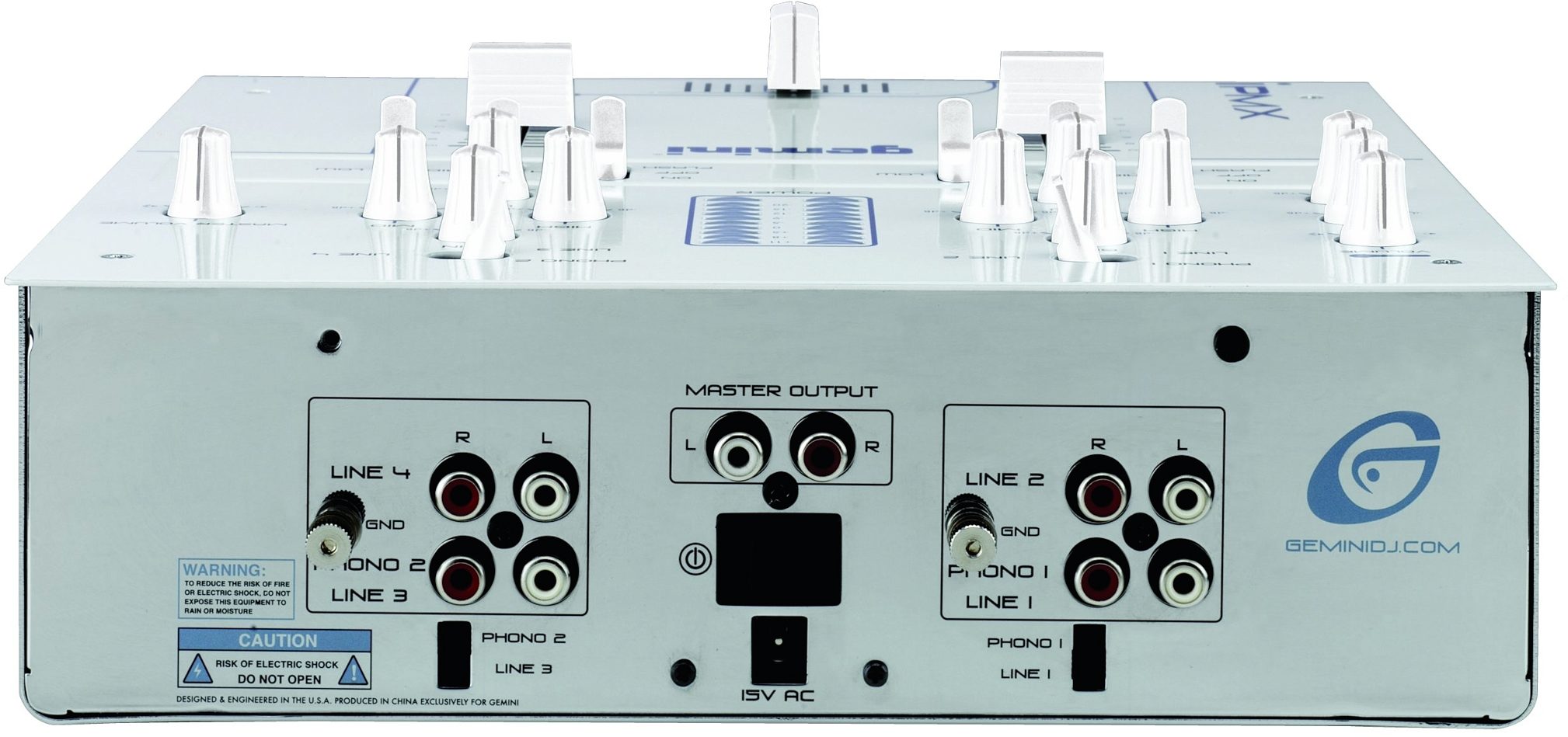

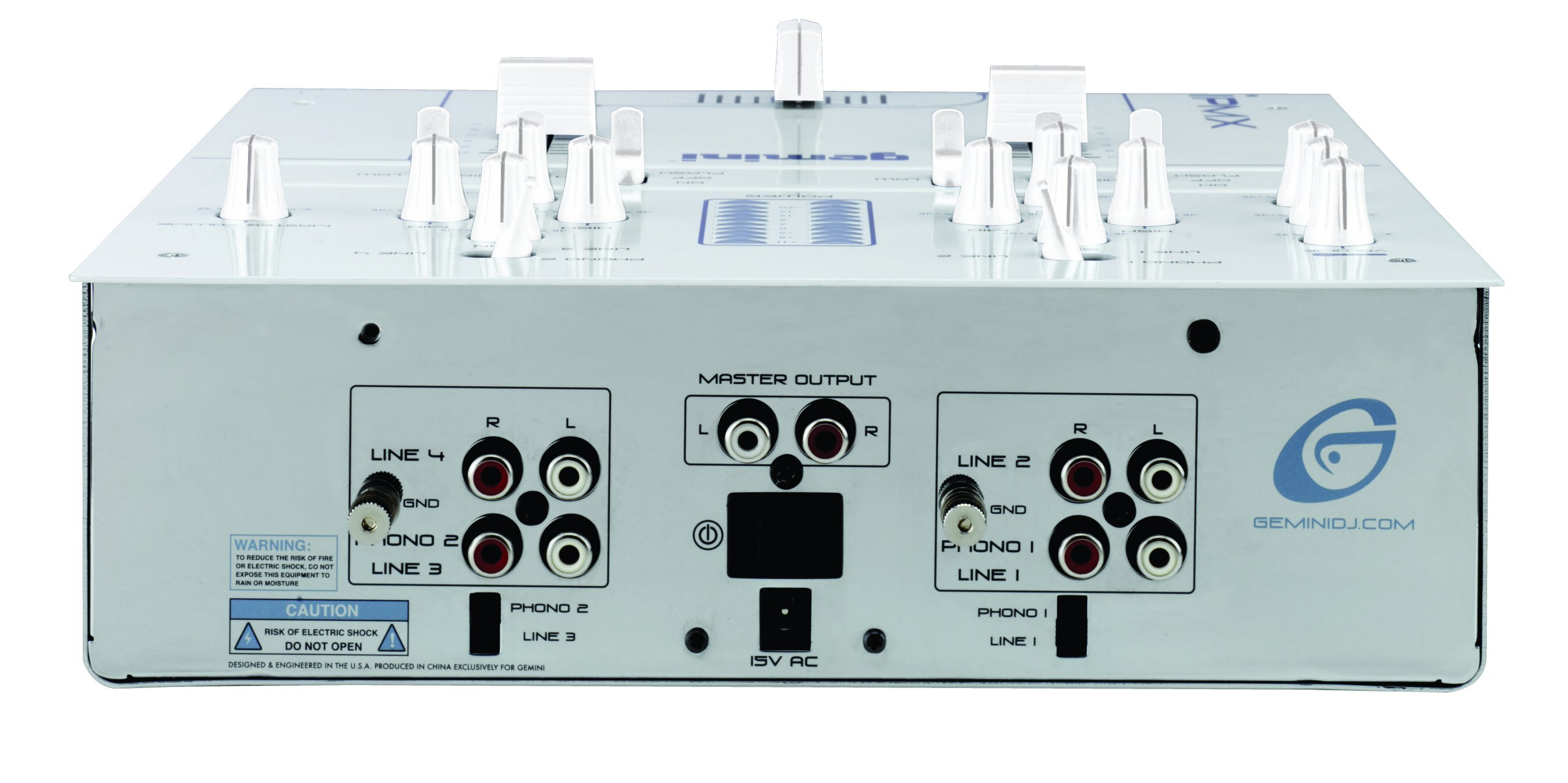

Gemini iPMX 2-Channel Stereo Mixer, Back

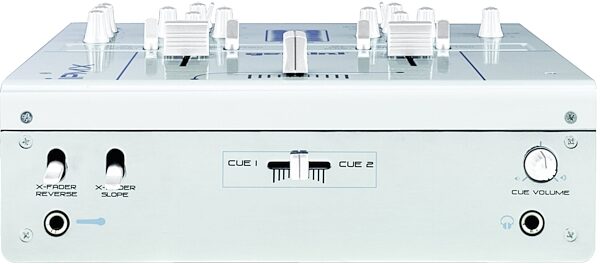

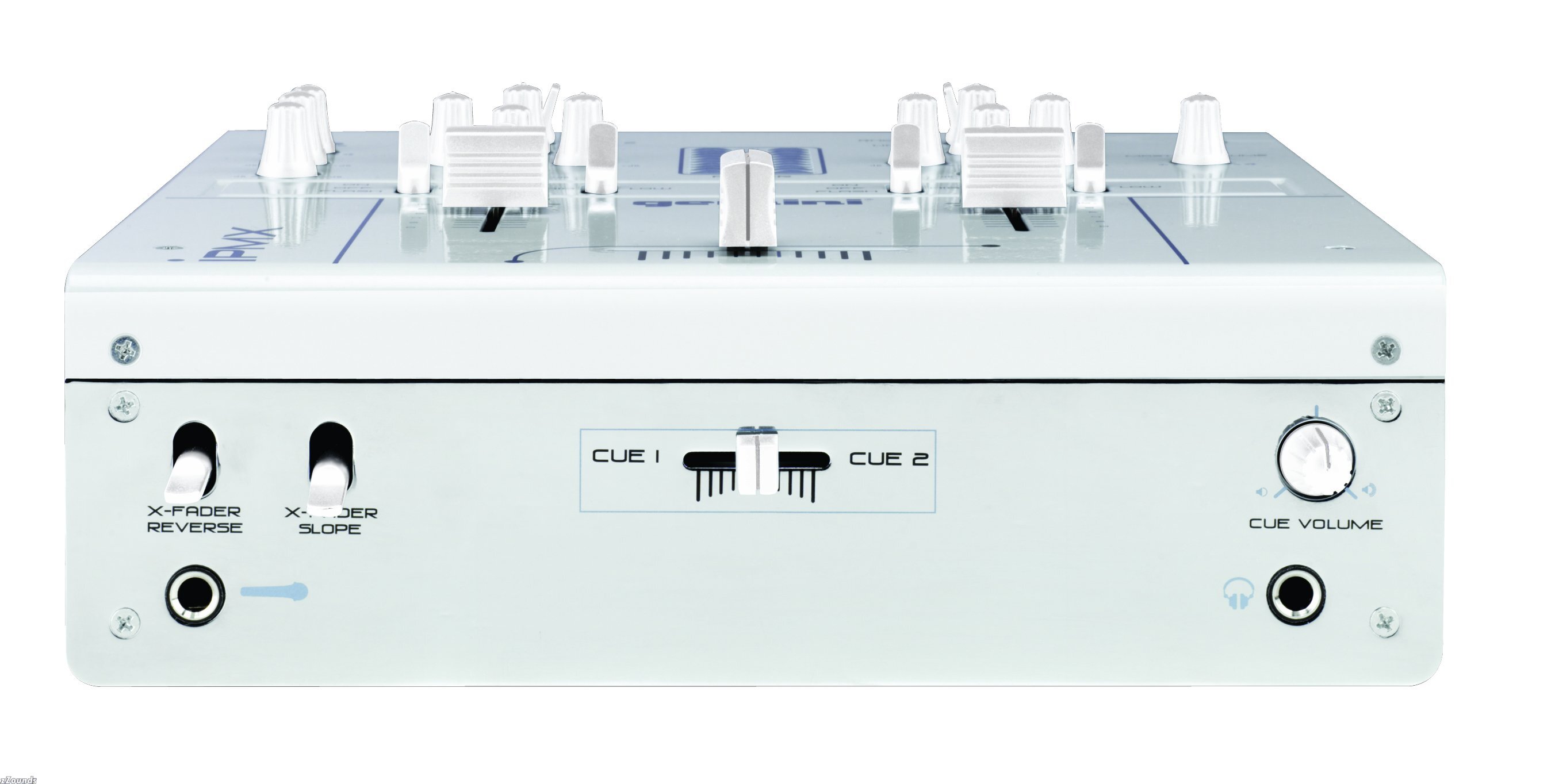

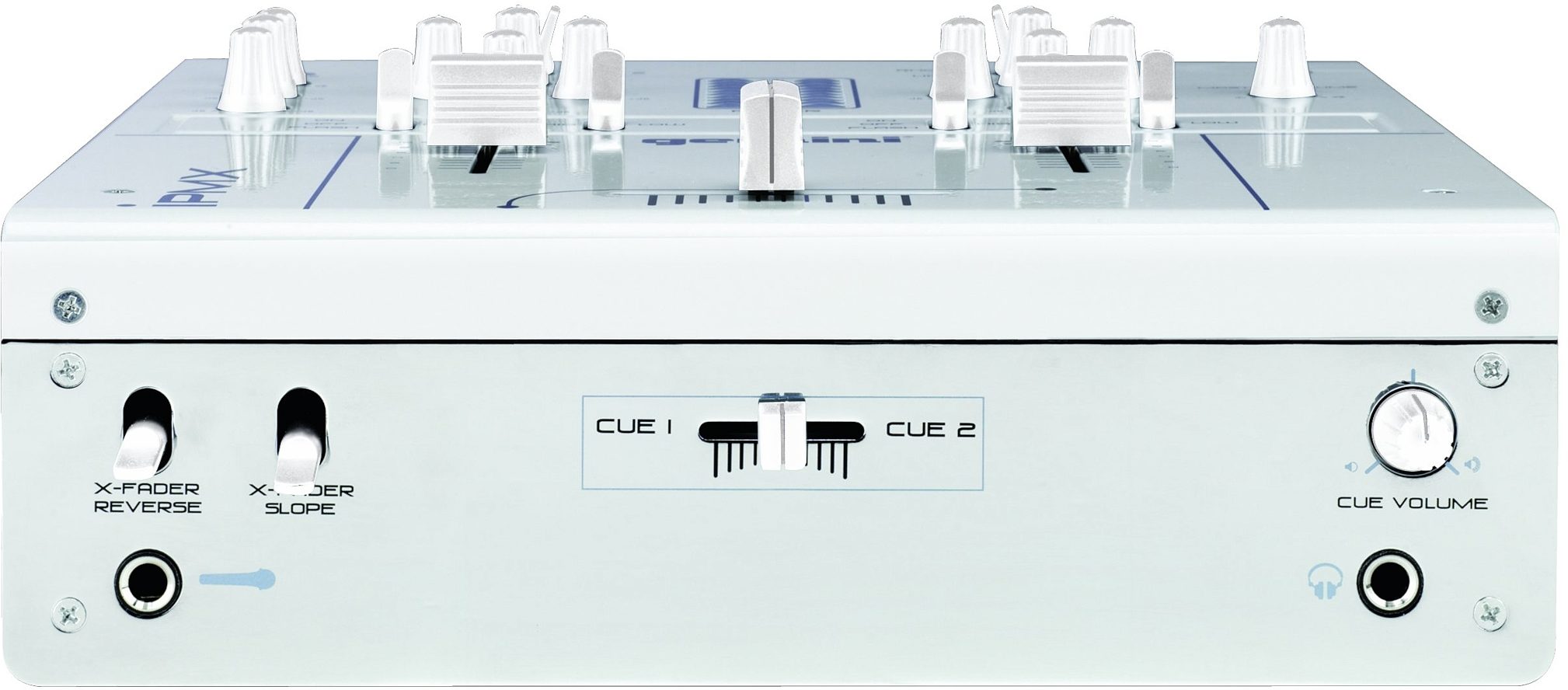

Gemini iPMX 2-Channel Stereo Mixer, Front
Gemini iPMX 2-Channel Stereo Mixer, Main Gemini iPMX 2-Channel Stereo Mixer, Angle Gemini iPMX 2-Channel Stereo Mixer, Back Gemini iPMX 2-Channel Stereo Mixer, Front
zZounds Gear Experts Say...
4 line, 2 convertible phono/line, RCA inputs. 3 band rotary line EQ with cut feature. EQ kill switches w/ flash effect.

Introducing the stylish IPMX, professional 10 in. 2 channel stereo mixer from Gemini. The IPMX is the perfect battle mixer from the clubs to the streets, designed with the latest advancements to enhance your DJ experience. With a beautifully designed white colored chassis and silver painted backing, the new IPMX comes equipped with three band EQ kill switches with flash effect, 4 line inputs, 2 convertible phono/line inputs, hamster/reverse and curve fader controls, and an easily removable cross fader, for fader replacement.

Features
Professional 10 in. 2 stereo channel mixer

4 line, 2 convertible phono/line, RCA inputs

3 band rotary line EQ with cut feature

EQ kill switches w/ flash effect

Easy removable face plate for user replaceable rail glide cross fader

Ergonomically designed to be flush with turntable

Smooth curved face plate

Front located hamster/reverse & cross fader curve control switches

Rotary gain channel control

Dual mode display with bright LED

Front located rotary cue volume control & cue section fader allowing cue mix

Face plate located 2 band rotary mic EQ & volume controls

Front located 1/4 in. mic input & headphone output

Dual ground screws for easy connectivity

Inputs:
-- DJ mic: 1.5 mV 1 kOhm balanced

-- Phono: 3 mV 47 kOhm

-- Line: 150 mV 10 kOhm

Outputs:
-- Amp: 0 dB 1V 400 Ohm

-- Max: 20V peak to peak

General:
-- Bass (channels 1-2): +12dB/-36dB

-- Mid (channels 1-2): +12dB/-36dB

-- High (channels 1-2): +12dB/-36dB

-- Gain (channels 1-2): 0 to -20 dB

-- Frequency response: 20 Hz-20 kHz +/- 2 dB

-- Distortion: less than 0.02%

-- S/N ratio: better than 80 dB

-- Headphone impedance: 32 Ohm

-- Power source adapter: 115V/15V AC 0.5A (230V/15V AC 0.5A)

Weights & dimensions:
-- Unit dimensions: W 10 in. x H 3.3 in. x D 10.25 in. (254 x 84 x 260mm)

-- Weight: 6.2 lbs ( 2.81 kg)

For support or warranty questions, please contact the manufacturer:
Phone: 732-346-0061 or 844-GEMINI-9
Email: hello@geminisound.com
Web: https://support.geminisound.com
