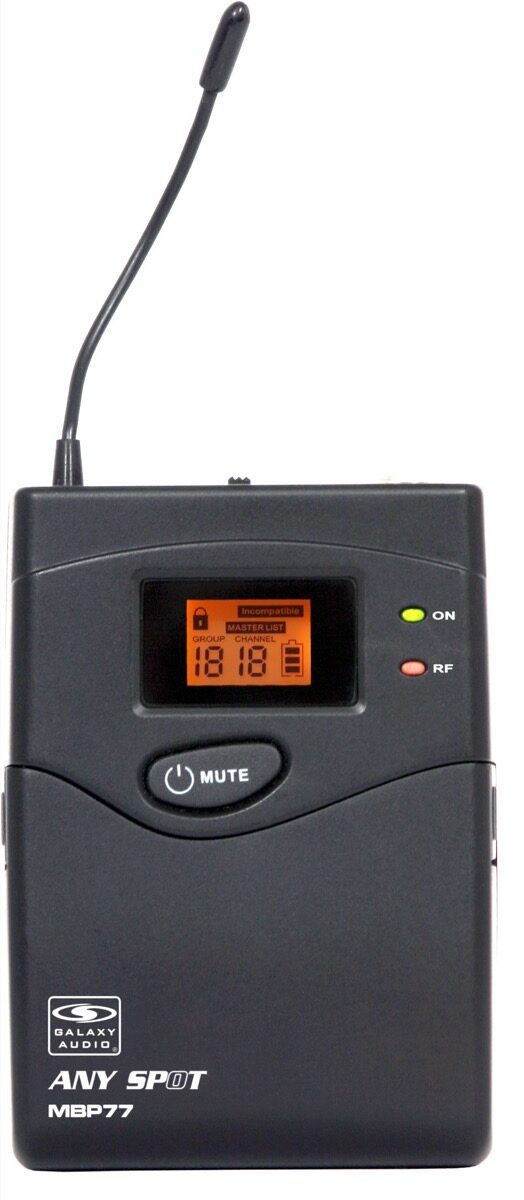

Galaxy Audio MBP77 Body Pack Transmitter

Need another bodypack transmitter for your Galaxy Audio DHX wireless microphone system? The MBP77 pack features IR Sync for easy pairing to your receiver.

Overview

Body Pack Transmitter for the DHX/DHXR4 Wireless Microphone Systems

Features:

- LCD Display
- 3 Bar Battery Life Indicator
- Channel Selector
- On / Off / Mute Button
- IR Sync Transmitter to Receiver
- Mic/0/-10dB
- 10 mW
- Manually Set Frequency
- Works with WMC-CGR Charger Station
- Operated on 2 AA Batteries (up to 6 hours Alkaline)
- Dimensions: 3.5" x 2.6" x 1" (89 x 65 x 24 mm) (HxWxD)
- Weight: 3 oz (85 g)

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

Max Audio Input Level:
0 dBV maximum at mic gain position.
+10 dBV maximum at 0 dB gain position.
+20 dBV maximum at -10 dB gain.
Gain Adjust: Mic / 0 dB / -10 dB
RF Output: 20 mW
Input Impedance: 470 k Ohms
Dimensions: 3.5" x 2.6" x 1" (89 x 54 x 24 mm) (HxWxD)
Weight: 3.0 oz (85 g) (without batteries)
Power Requirements: 2 "AA" size alkaline or rechargeable batteries
Battery Life: About 6 hours (alkaline)

Dimensions and Weight in Packaging
Band D 584-607 MHz: Shipping Weight: 0.25 lbs; Shipping Dimensions: 7 x 3 x 2 in; Manufacturer Part Number (MPN): MBP77D
Band N 518-542 MHz: Shipping Weight: 0.25 lbs; Shipping Dimensions: 7 x 3 x 2 in; Manufacturer Part Number (MPN): MBP77N

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
