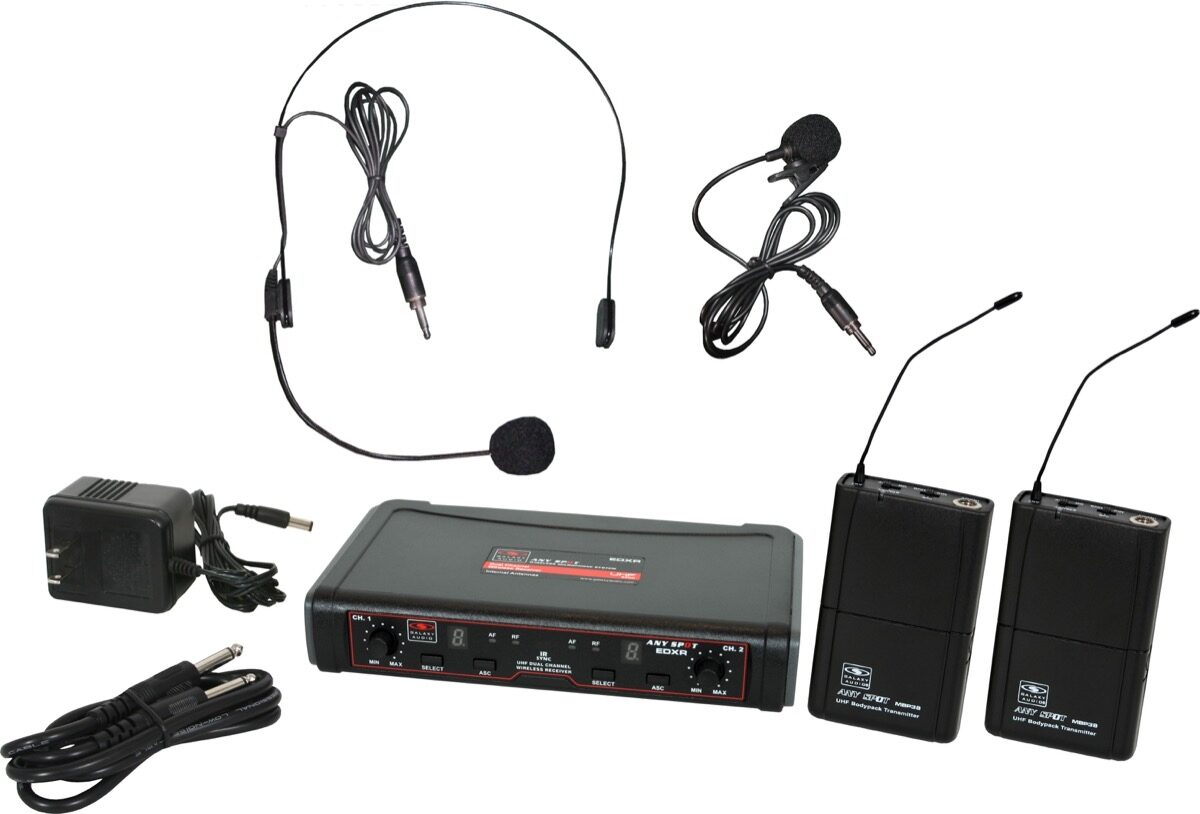

Galaxy Audio EDXR/38SV Headset and Lavalier Microphone Dual-Channel Wireless System

Available Channels: 16
Frequency Range:
CODE D 584-607 MHz
CODE N 518-542 MHz
Transmitter Output Level: 10 mW
Band: UHF
Operating Range Under Typical Conditions 200': (61 m), actual range depends on RF signal absorption, reflection, and interference.
Audio Frequency Response: (+/-3 dB) 60 Hz ~ 16 kHz
Total Harmonic Distortion: (+/-30 kHz deviation 1 kHz tone): <1%
Dynamic Range: >90 dB A-weighted
Operating Temperature Range: 14 degrees F to 122 degrees F, battery characteristics may limit this range.

EDXR RECEIVER

Audio Output Level XLR Connector (into 600 Ohms load): -12 dBV
1/4" Connector (into 3 k Ohms load): -18 dBV
Output Impedance: XLR Connector 200 Ohms
1/4" Connector: 1 k Ohms
Sensitivity: -92 dBm
Image Rejection: >92 dB
Dimensions: 1.7" x 8.3" x 5" (42 x 210 x 127 mm) (HxWxD)
Weight: 13.6 oz (390 g)
Power Requirements: 12-18 V dc at 300mA, supplied by external power supply
Dimensions and Weight in Packaging
Band D 584-607 MHz
Shipping Weight: 3.25 lbs
Shipping Dimensions: 17 x 12 x 3 in
Manufacturer Part Number (MPN): EDXR/38SVD
Band N 518-542 MHz
Shipping Weight: 3.5 lbs
Shipping Dimensions: 18 x 12 x 3 in
Manufacturer Part Number (MPN): EDXR/38SVN
