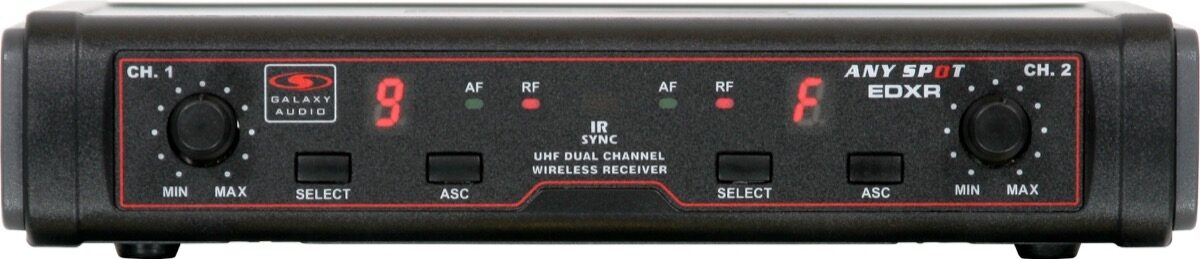

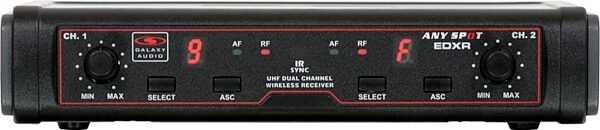

Galaxy Audio EDXR Wireless Receiver

With an internal antenna for each of its two channels, the Galaxy Audio EDXR wireless receiver uses reliable UHF transmission for dependable performance.
The EDX Series is a professional dual channel UHF wireless microphone system. The EDX features 2 internal antennas (1 for each receiver), 16 selectable channels on each receiver, and IR Sync from receiver to transmitter. The EDX has 2 discreet male XLR outputs and 1 combined 1/4" output on the back of the unit. The output is controlled by a volume control for each receiver, located on the front of the unit.

Features

- 200' Range
- 16 Selectable UHF Frequencies
- Internal Antennas
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Available Channels: 16
Frequency Range: CODE D 584-607 MHz
CODE N: 518-542 MHz
Transmitter Output Level: 10 mW
Band: UHF
Operating Range Under Typical Conditions: 200' (61 m), actual range depends on RF signal absorption, reflection, and interference.
Audio Frequency Response: (+/-3 dB) 60 Hz ~ 16 kHz
Total Harmonic Distortion: (+/-30 kHz deviation 1 kHz tone): <1%
Dynamic Range: >90 dB A-weighted
Operating Temperature Range: 14 degrees F to 122 degrees F (-10 degrees C to 50 degrees C), battery characteristics may limit this range.
Audio Output Level: XLR Connector (into 600 Ohms load) -12 dBV
1/4" Connector: (into 3 k Ohms load) -18 dBV
Output Impedance XLR Connector: 200 Ohms
1/4" Connector: 1 k Ohms
Sensitivity: -92 dBm
Image Rejection: >92 dB
Dimensions: 1.7" x 8.3" x 5" (42 x 210 x 127 mm) (HxWxD)
Weight: 13.6 oz (390 g)
Power Requirements: 12-18 V dc at 300mA, supplied by external power supply
Dimensions and Weight in Packaging
Band D 584-607 MHz
Shipping Weight: 3.75 lbs
Shipping Dimensions: 18 x 12 x 3 in
Manufacturer Part Number (MPN): GAA EDXRD
Band N
Shipping Weight: 3.86 lbs
Shipping Dimensions: 18 x 11 x 4 in
Manufacturer Part Number (MPN): GAA EDXRN
