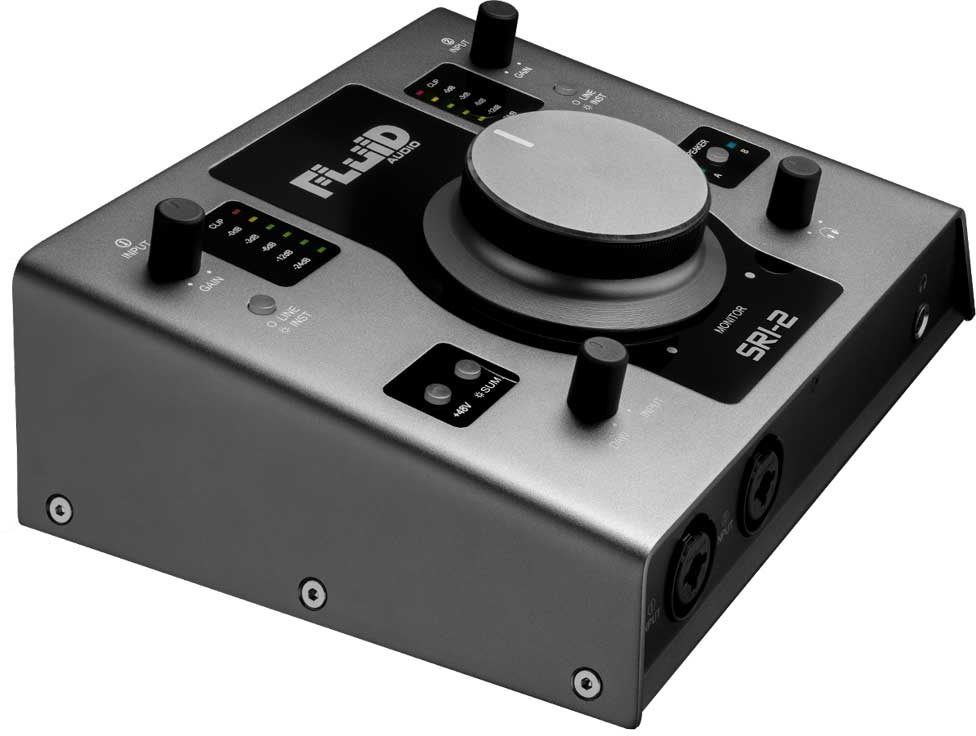

Fluid Audio SRI-2 2X2 USB Audio Interface

MIC INPUT 1/2 (Balanced):
- Maximum Input Level: +7 dBu
- Input Impedance: 100 Ohm
- GAIN Range: +6 dB – +46 dB
- Frequency Response: +/- 0.1 dB, 20 Hz to 20 kHz
- Dynamic Range: 104 dB, A‐weighted
- THD+N: 0.0016%, 1 kHz, ‐1 dBFS, 20 Hz/20 kHz BPF
- Noise EIN: <‐120dBu (A‐Weighted)

HI‐Z INPUT 1/2 (Balanced):
- Maximum Input Level: +4 dBu
- Input Impedance: 1M Ohm
- GAIN Range: +12 dB – +52 dB
- Frequency Response: ±0.1 dB, 20 Hz to 20 kHz
- THD+N: 0.0031%, 1 kHz, ‐1 dBFS, 20 Hz/20 kHz BPF
- Dynamic Range: 104 dB, A‐weighted

LINE INPUT 1/2 (Balanced):
- Maximum Input Level: +25 dBu
- Input Impedance: 20k Ohm
- GAIN Selection: ‐11dB – +29 dB
- Frequency Response: ±0.1 dB, 20 Hz to 20 kHz
- THD+N: 0.005%, 1 kHz, ‐1 dBFS, 20 Hz/20 kHz BPF
- Dynamic Range: 104 dB, A‐weighted

MAIN OUTPUT L/R (Balanced):
- Maximum Output Level: +6 dBFS
- Output Impedance: 75 Ohm
- Frequency response: +0.1/‐0.1 dB, 20 Hz to 20 kHz
- Dynamic range: 102 dB, A‐weighted
- THD+N: 0.0014%, 1 kHz, 0 dBFS, 20 Hz/20 kHz BPF

PHONES:
- Maximum Output Level: 75 mW +75 mW, @ 32 Ohm
- Dynamic range: 100 dB, A‐weighted
- THD+N: 0.006%, 1 kHz, ‐1 dBFS, 20 Hz/20 kHz BPF
- Impedance <10 Ohm
- Maximum Output Level dBu: +12dBu

USB Specification: USB 2.0, 24‐bit, 44.1 kHz/48 kHz/88.2 kHz/96 kHz/176.4 kHz/192 kHz

XLR INPUT Polarity:
- Pin 1: Ground
- Pin 2: Hot (+)
- Pin 3: Cold (‐)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 2.75 lbs
Shipping Dimensions: 11 x 8 x 4 in
Manufacturer Part Number (MPN): SRI-2
