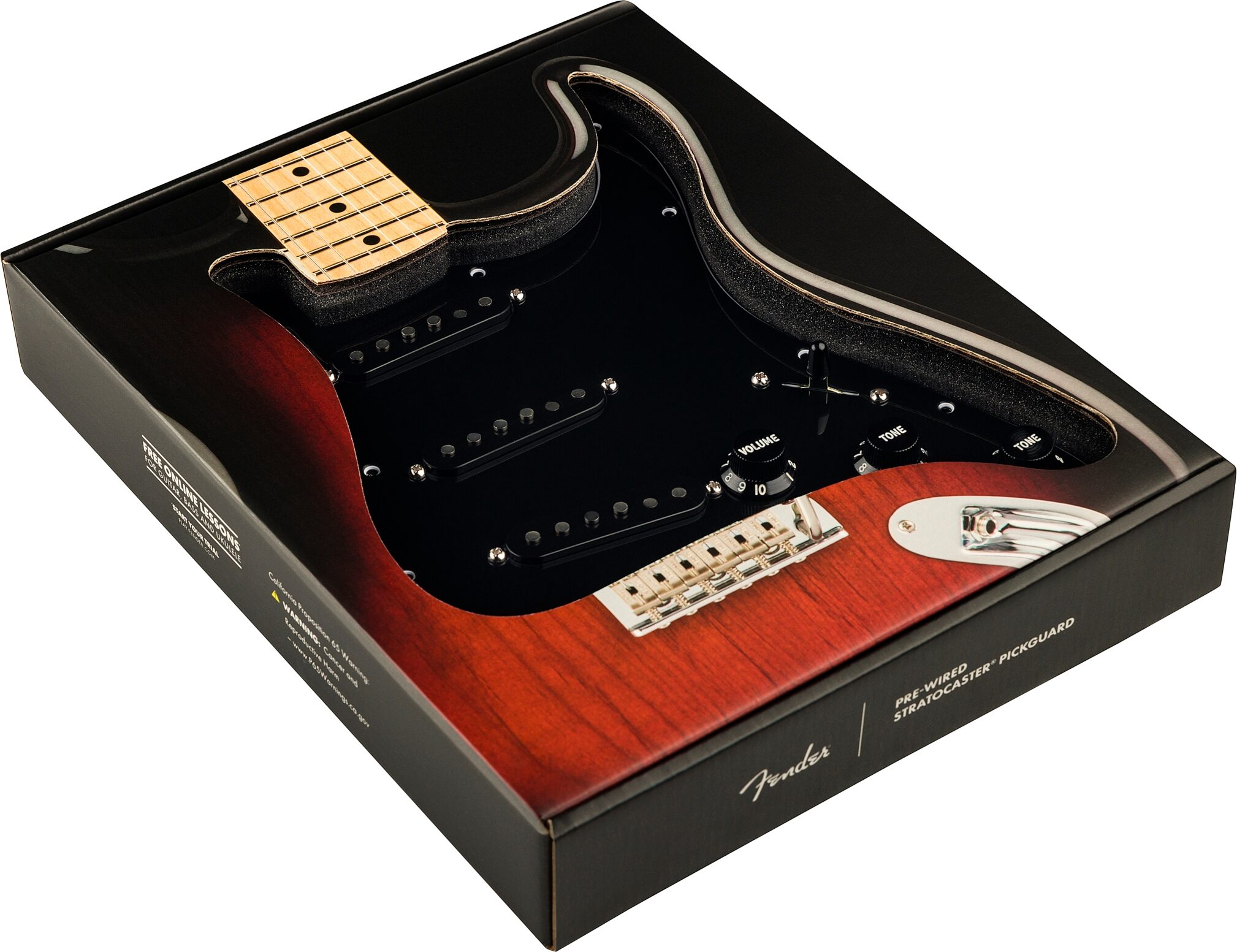

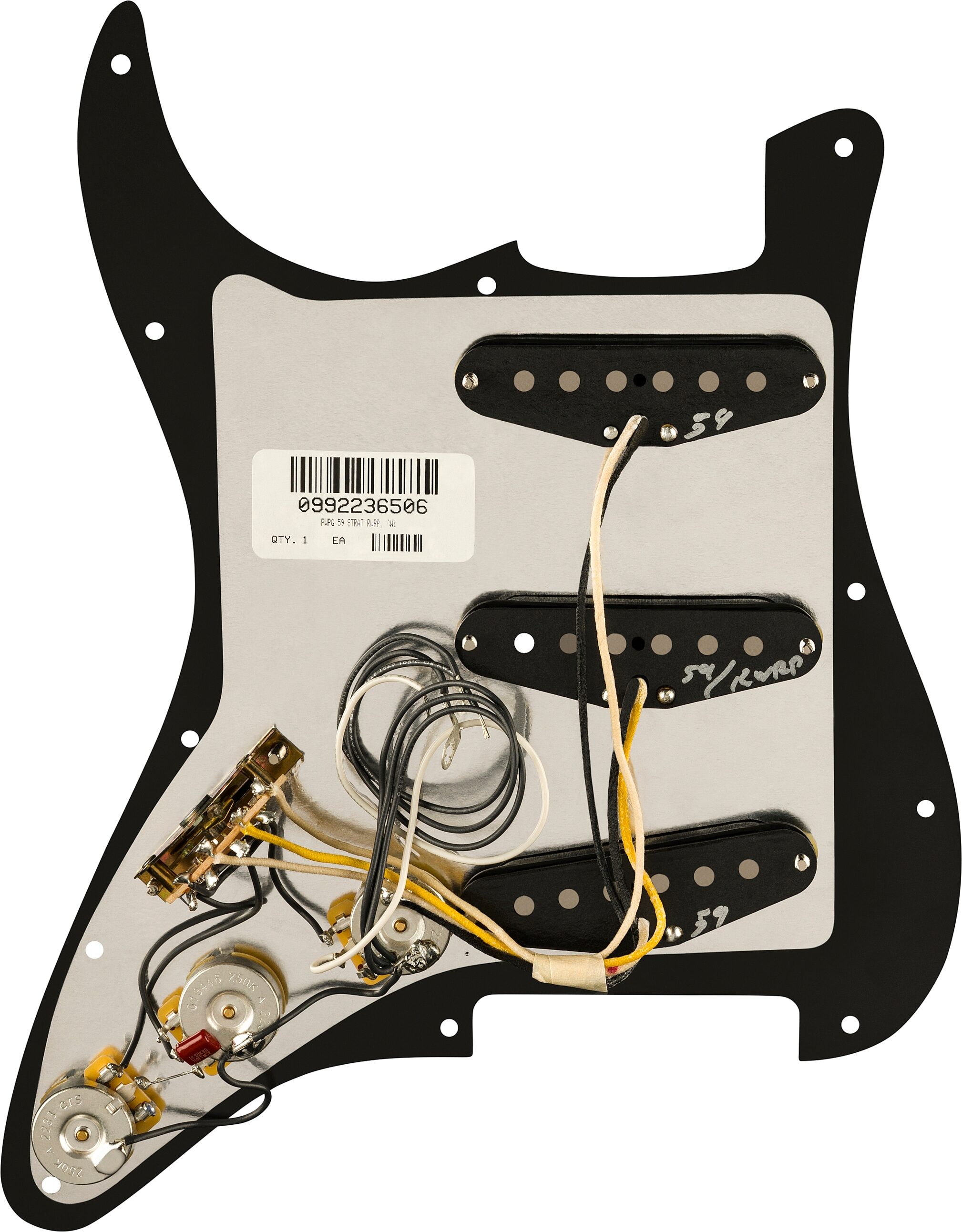

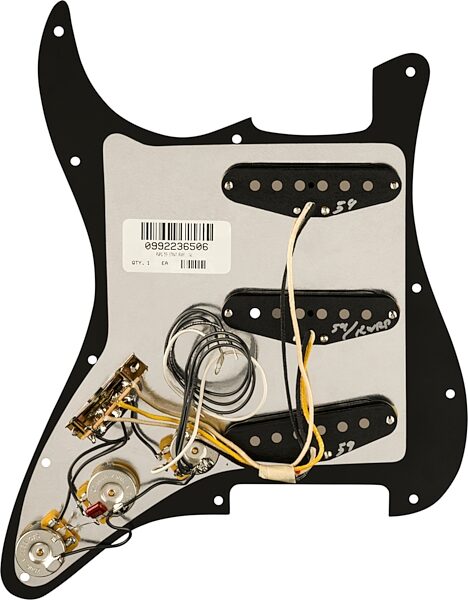

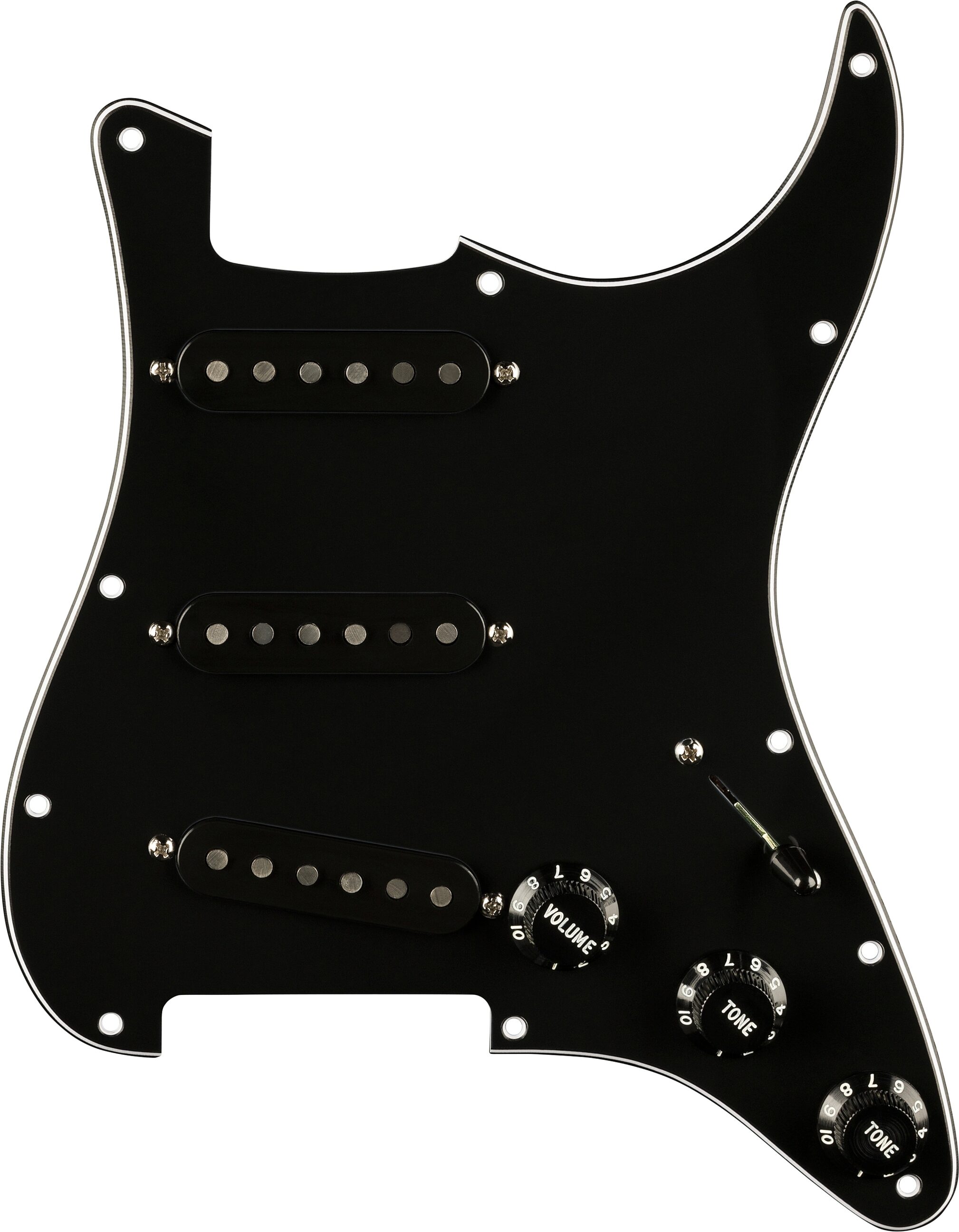

Fender Pre-Wired '59 Strat Pickguard

This prewired Stratocaster pickguard is loaded with wax-potted Pure Vintage '59 pickups, 250K CTS potentiometers, and formvar-coated wire.

Customize your tone with Fender(R) Pre-Wired Stratocaster(R) pickguards. Made with premium components in the same factory as the iconic guitars, this drop-in pickguard is easy to install. Simply remove your old guard, solder the output jack and ground wires, screw in the guard and you're ready to rock with pure Fender sound.

Built to evoke the original era of the Fender Stratocaster, these single-coil '59 Strat pickups produce round, warm tone with a sweet edge. From vintage bobbin construction to genuine original-era cloth wiring, all Fender Pure Vintage pickups are wound to precise specifications for authentic, traditional Fender tone and performance. The addition of a reverse wound reverse polarity middle pickup eliminates 60-cycle hum in positions 2 and 4 and adds the classic Stratocaster quack to those positions.

Features:

- Formvar-coated magnet wire improves overall brightness
- Alnico 5 magnets add more focus and enhanced dynamics
- Staggered pole pieces balance volume and output across every string
- Wax-potted
- Reverse-wound middle pickup to eliminate hum
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Series: Fender Pickups
- Model Name: Pre-Wired Strat Pickguard, Pure Vintage '59 w/RWRP Midde
- Color: Black 11 Hole
- Orientation: Right-Hand
- Bobbin Material: Fiber
- Cover Color: Black
- DC Resistance: 5.8K
- Inductance: 2.6 Henries
- Lead Wire: Cloth-covered
- Magnet Type: Alnico 5
- Magnet Wire: Formvar-coated
- Pole Pieces: Staggered
- Output: Vintage
- Configuration: SSS
- Bridge Pickup: Pure Vintage '59 Single-Coil Strat
- Middle Pickup: Pure Vintage '59 RWRP Single Coil Strat
- Neck Pickup: Pure Vintage '59 Single-Coil Strat
- Controls: Master Volume, Tone 1. (Neck Pickup), Tone 2. (Bridge/Middle Pickup)
- Potentiometers: CTS 250K
- Control Knobs: Black Stratocaster-Style Skirt
- Switch Tip: Black
- Instrument Type: Stratocaster
- Mounting Type: 11-Hole Modern
- Hardware Finish: Chrome
- Tone: Vintage
- Shielded?: Yes
Dimensions and Weight in Packaging
Black, 11 Hole
Shipping Weight: 1.5 lbs
Shipping Dimensions: 14 x 11 x 2 in
Manufacturer Part Number (MPN): 0992236506

For support or warranty questions, please contact the manufacturer:
Phone: 800-488-1818

Black, 11 Hole
