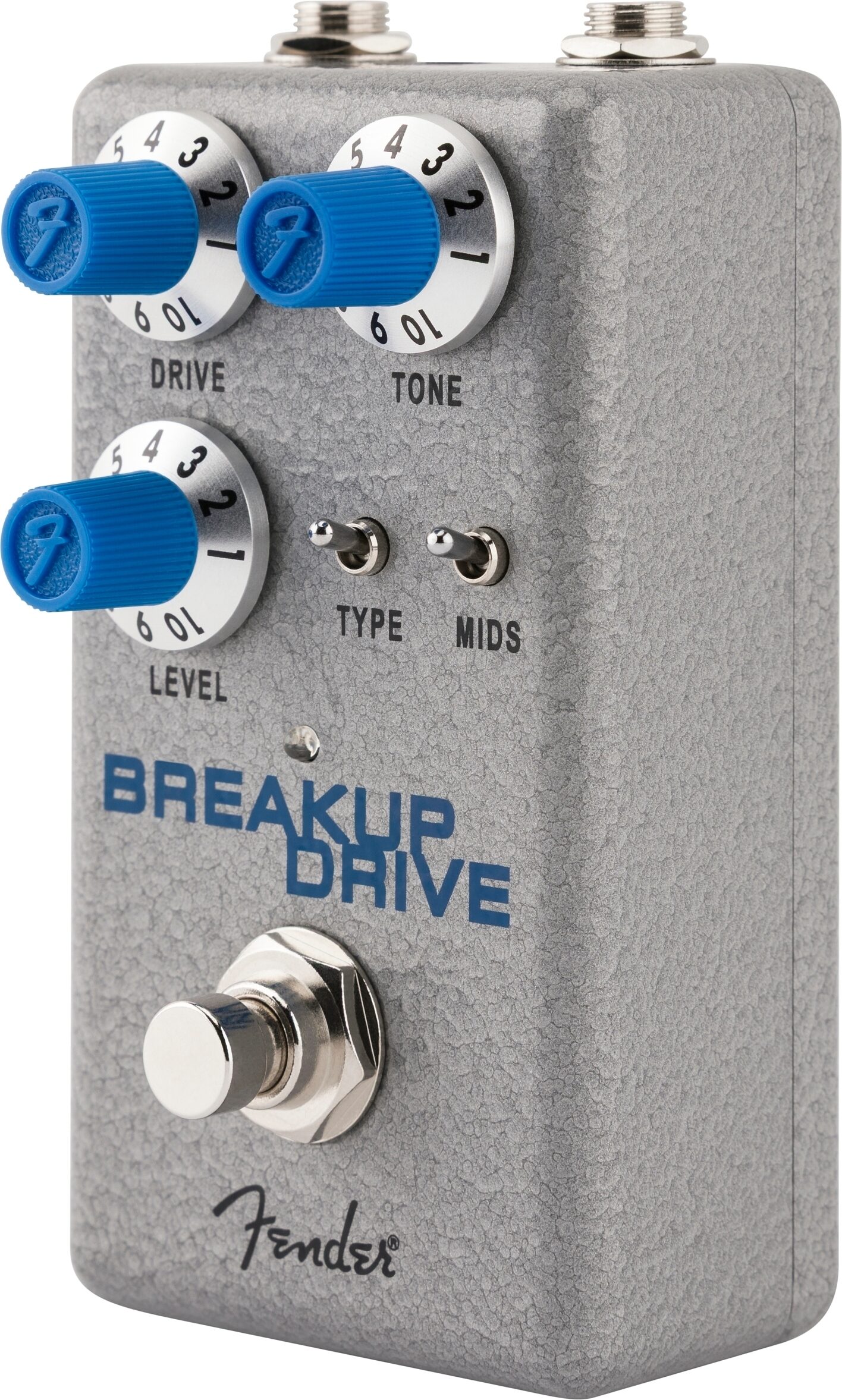

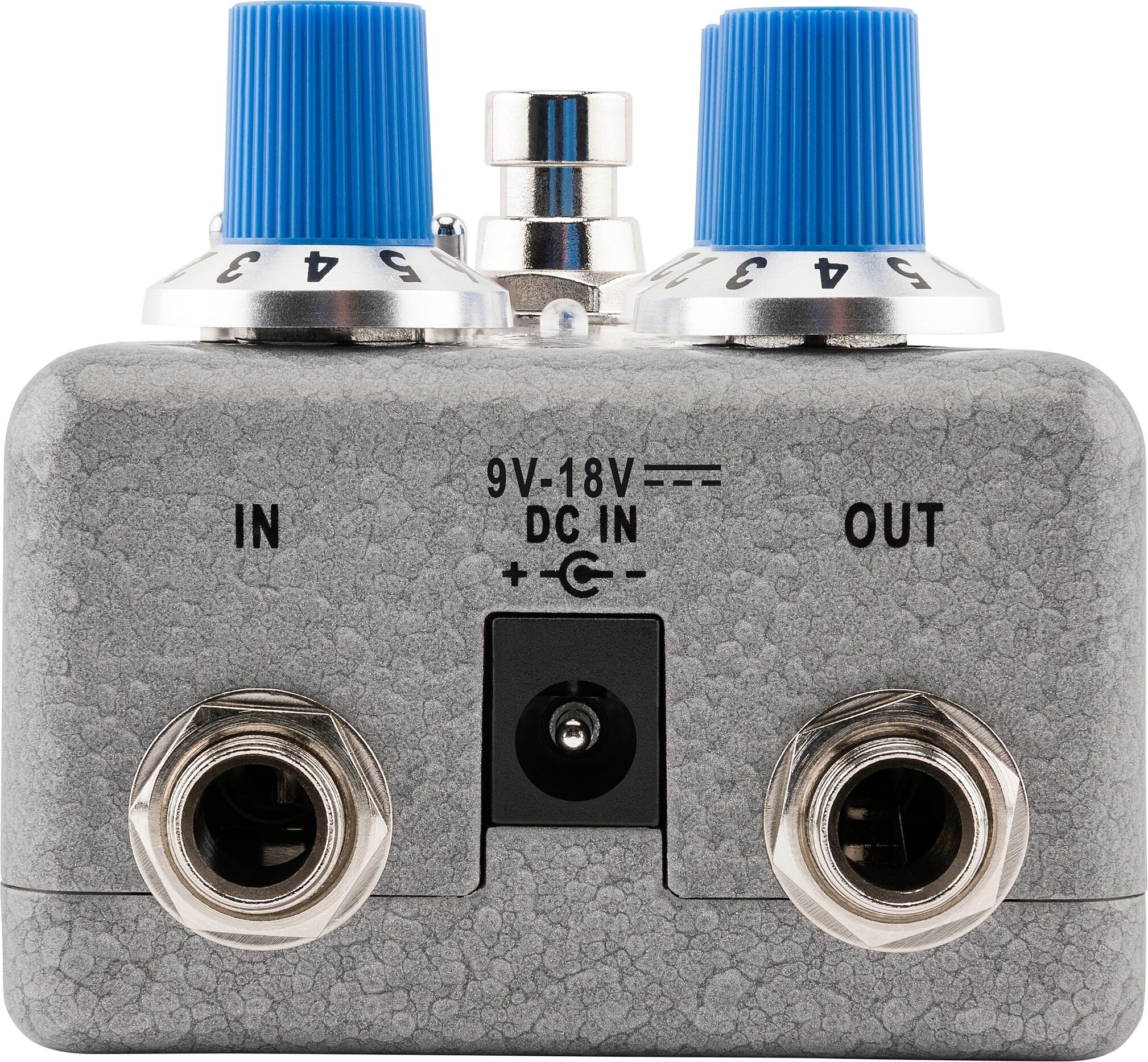

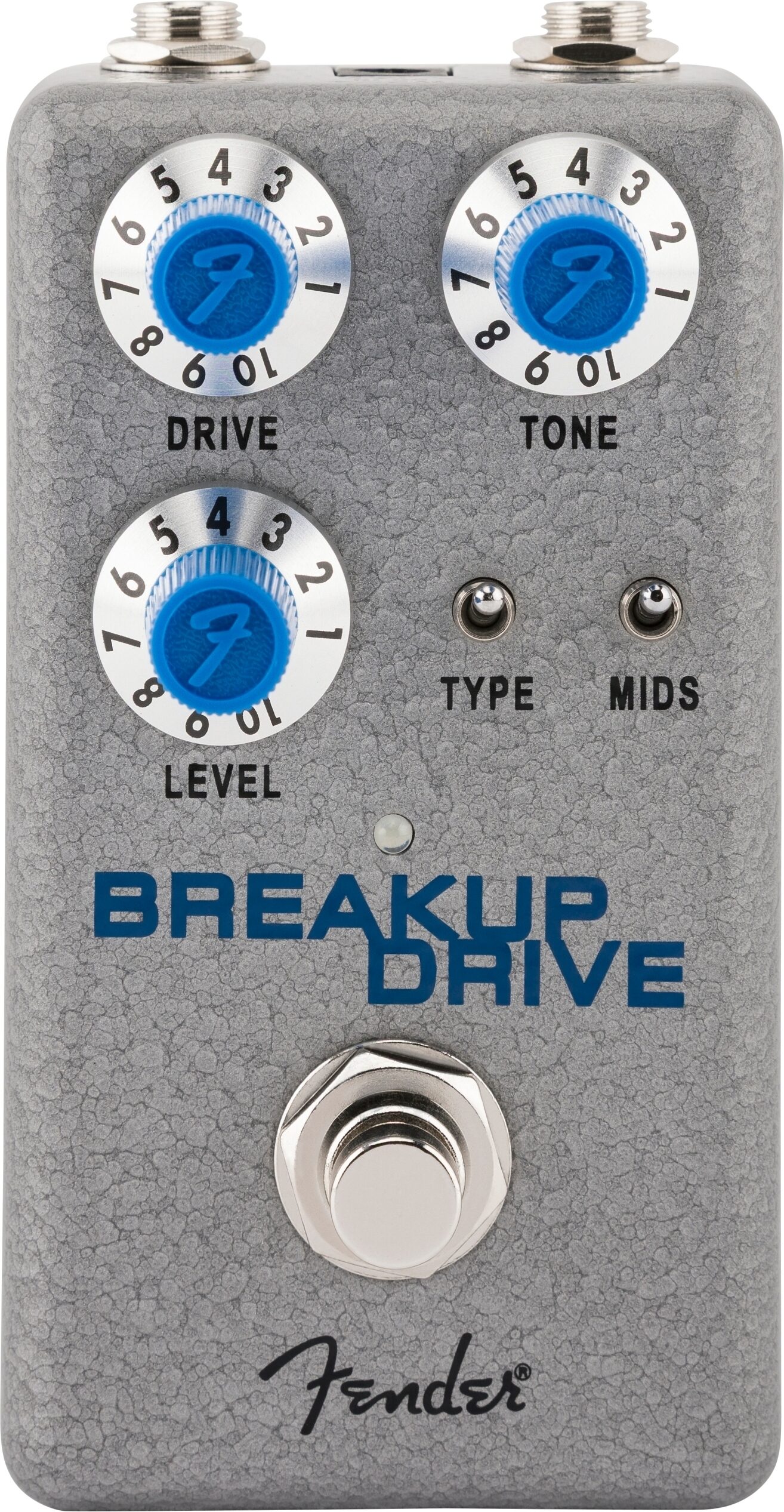

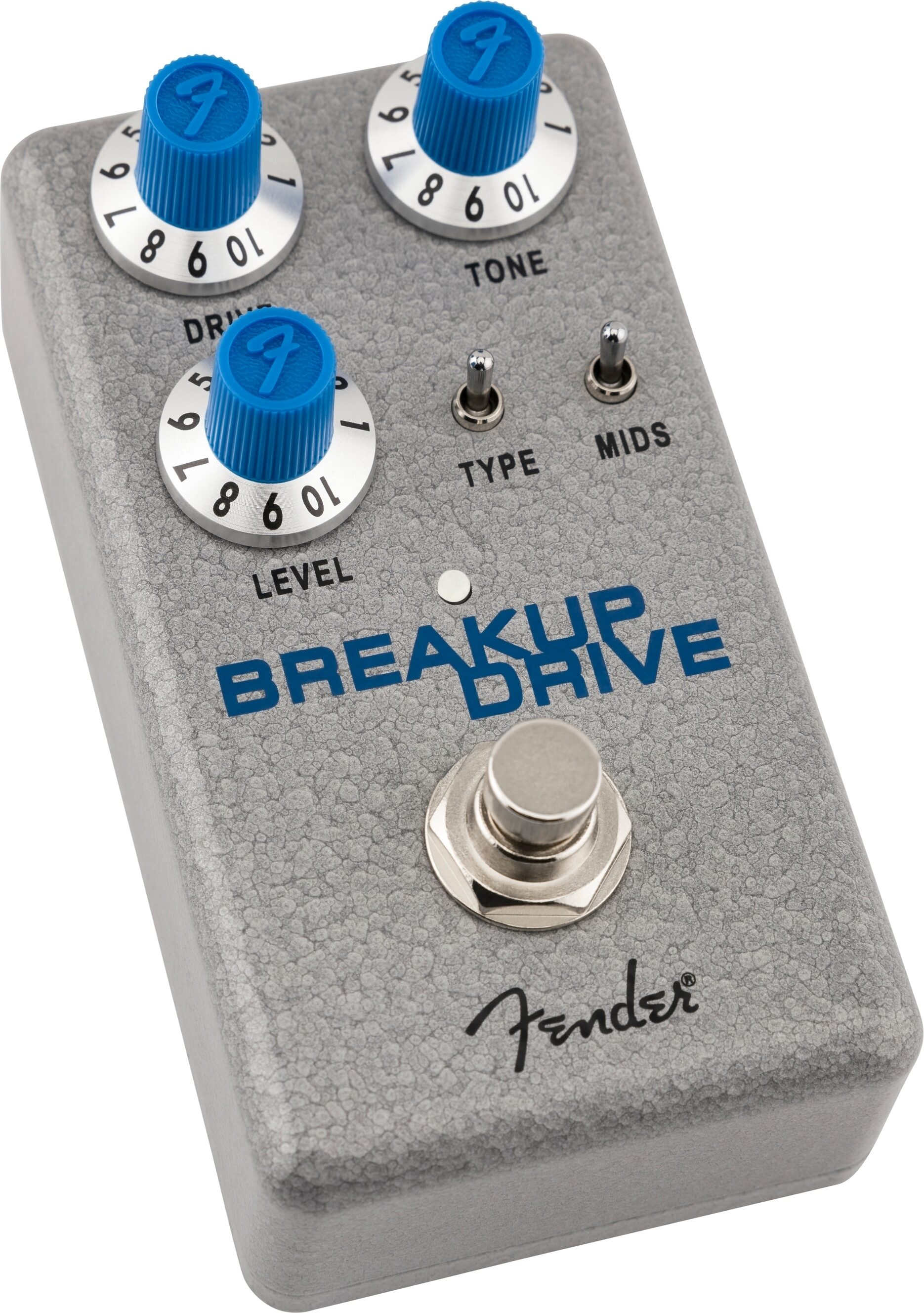

Fender Hammertone Breakup Drive Pedal

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

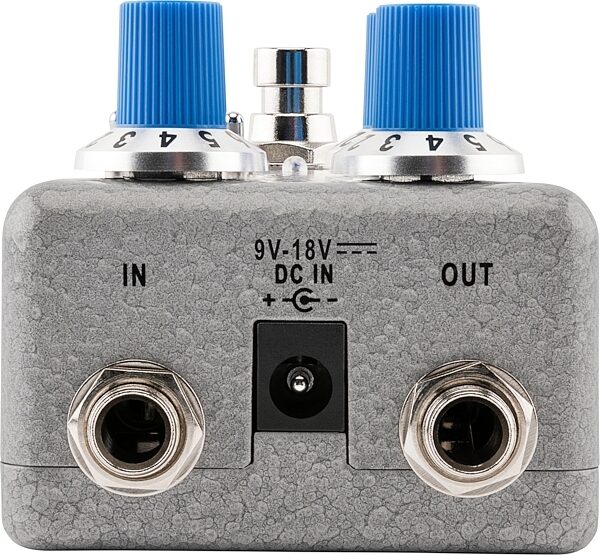

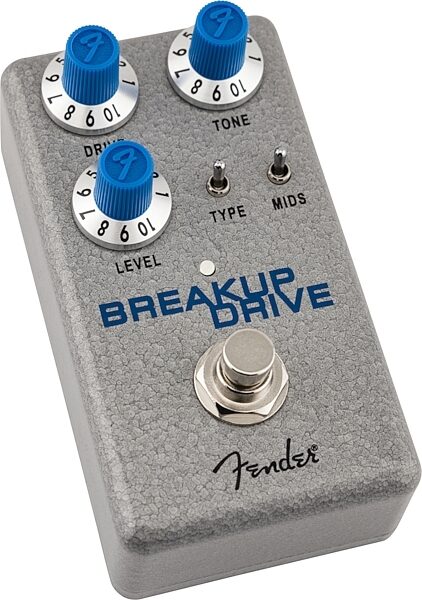

open zoom image for Fender Hammertone Breakup Drive Pedal, New, Action Position Back
open zoom image for Fender Hammertone Breakup Drive Pedal, New, Action Position Back
open zoom image for Fender Hammertone Breakup Drive Pedal, New, Action Position Back
open zoom image for Fender Hammertone Breakup Drive Pedal, New, Action Position Back
Fender Hammertone Breakup Drive Pedal, New, Action Position Back Fender Hammertone Breakup Drive Pedal, New, Action Position Back Fender Hammertone Breakup Drive Pedal, New, Action Position Back Fender Hammertone Breakup Drive Pedal, New, Action Position Back
zZounds Gear Experts Say...
Break on through to the other side of saturation with the Breakup Drive. Selectable JFET voicings and a Mids switch allow you to dial in just the right tone.

Dial in responsive, tube-like drive tones with the Fender Hammertone Breakup Drive. The perfect contender for an always-on pedal, this JFET based overdrive is designed with one focus in mind: replicating the dynamic response of hot tubes right at the edge of saturation. Two selectable clipping modes tailor the drive's character between light breakup and medium-gain overdrive, each supplying an expressive response that cleans up with lighter picking and breaks up more the harder you strum. An expansive tone control and switchable pre-gain mid boost provide powerful frequency shaping tools to hone your final tone. From flavoring your core clean tone to delivering dynamic overdrive on tap, the Hammertone Breakup Drive has you covered.

Features:

- Two selectable JFET based dynamic clipping stages
- Interactive tone control provides a wide range of EQ flavors
- Mids switch selects between flat response and pre-drive mid boost
- Soft-touch relay true bypass with auto bypass when no power is present
- Top mounted jacks and road-ready aluminum enclosure
- Powered by 9-Volt Battery or Center Negative AC Adaptor, Not Included
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Series: Fender Hammertone Pedals
- Model Name: Hammertone Breakup Drive
- Model Number: 0234580000
- Material: Aluminum
- Color: Gray
- Input Jack: 1/4" High Impedance
- Output Jack: 1/4" Low Impedance
- Controls: DRIVE gain level, TONE Boost/Cut, LEVEL output signal volume TYPE Switch selects clipping saturation stage, MIDS Switch adds 9dB mid-boost
- Control Knobs: Custom Color "F" Logo Knobs
- LED: Blue LED Indicator
- Footswitch: Soft-touch relay true bypass
- Power Requirements: 9-Volt Battery or Center Negative AC Adaptor (Not Included)
- Power Supply: 85mA min @ 9V-18VDC regulated adapter, 5.5 x 2.1 mm barrel connector (not included)
- Power Consumption: 85mA
- Input Impedance: 1M Ohm
- Output Impedance: 470 Ohm
- Dimensions: 2.44" x 4.4" x 2.2" (62mm x 111.8mm x 55.9mm)
- Weight: 0.50 lbs (0.23kg)

Dimensions and Weight in Packaging

Base Item

  • Shipping Weight: 0.58 lbs
  • Shipping Dimensions: 5 x 3 x 3 in
  • Manufacturer Part Number (MPN): 0234580000
