ESP LTD EC-1001FM Electric Guitar

Unleash your beastly alter-ego with this flame maple-topped stunner. Each of its Fishman Fluence pickups offers two switchable voices for tons of variety.

What's special about this item?

Feature: What it does:
3-piece mahogany neck Stable and strong; withstands the test of time
Macassar ebony fretboard High-density wood; smooth playing feel
Mahogany body Rich, warm, focused sound; added sustain
Set-neck construction Solid joinery for great sustain and feel

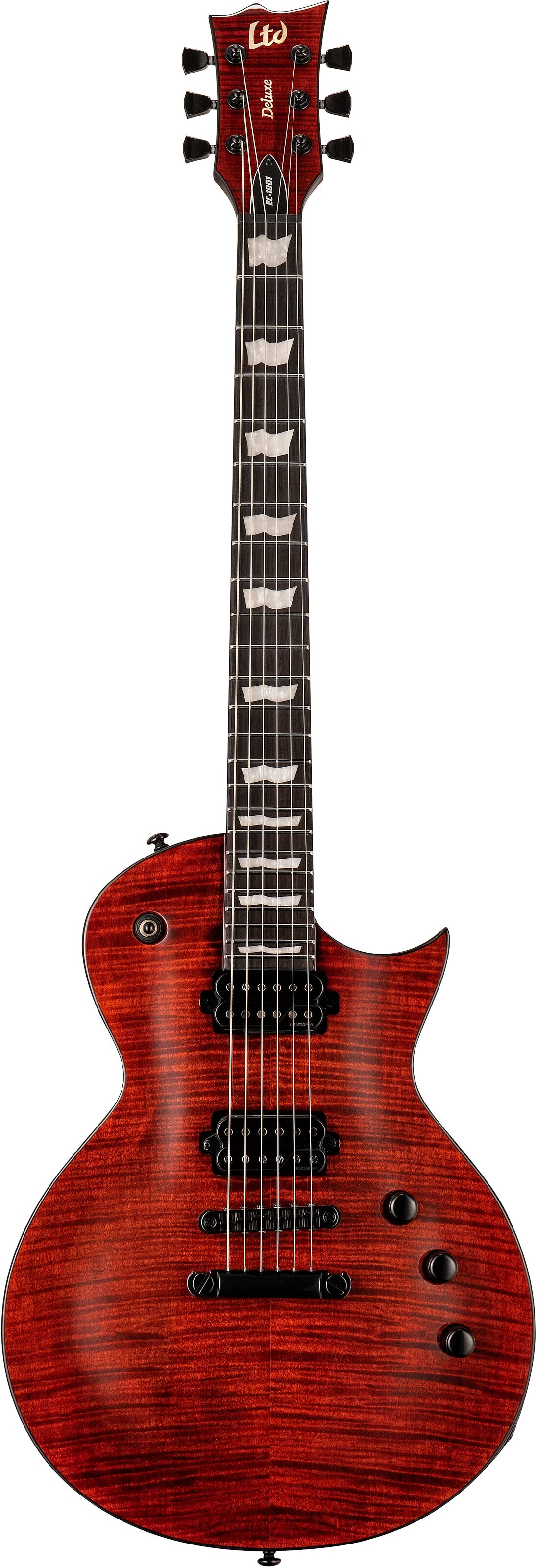

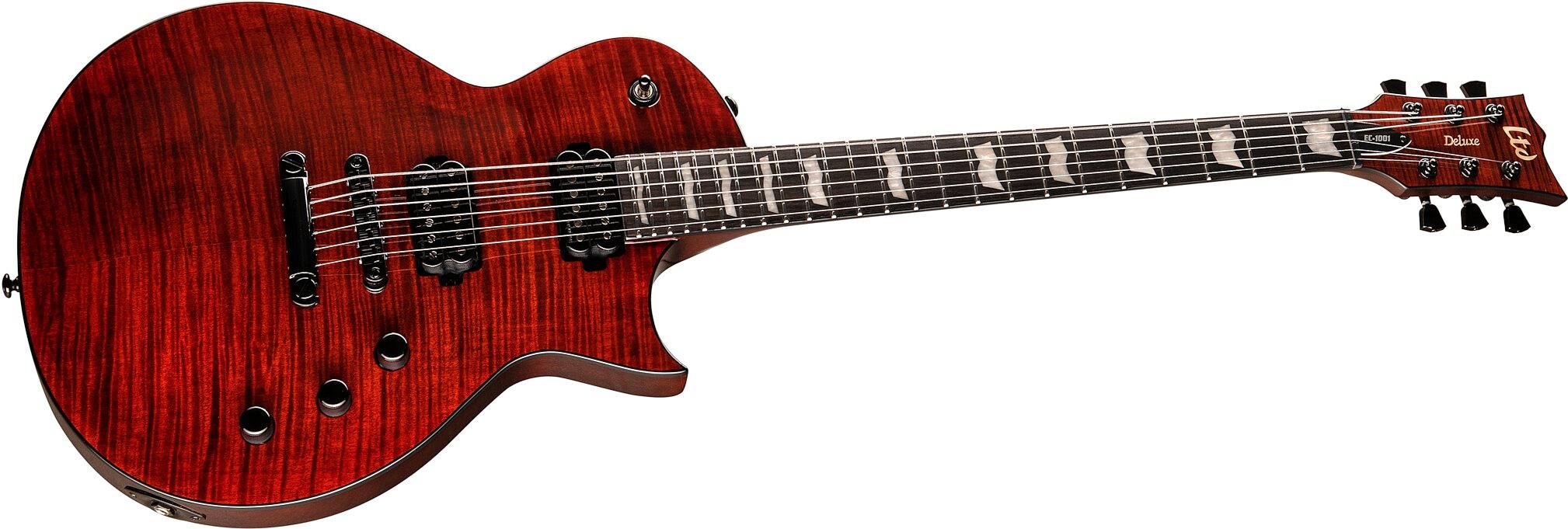

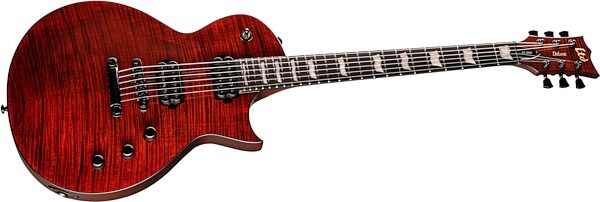

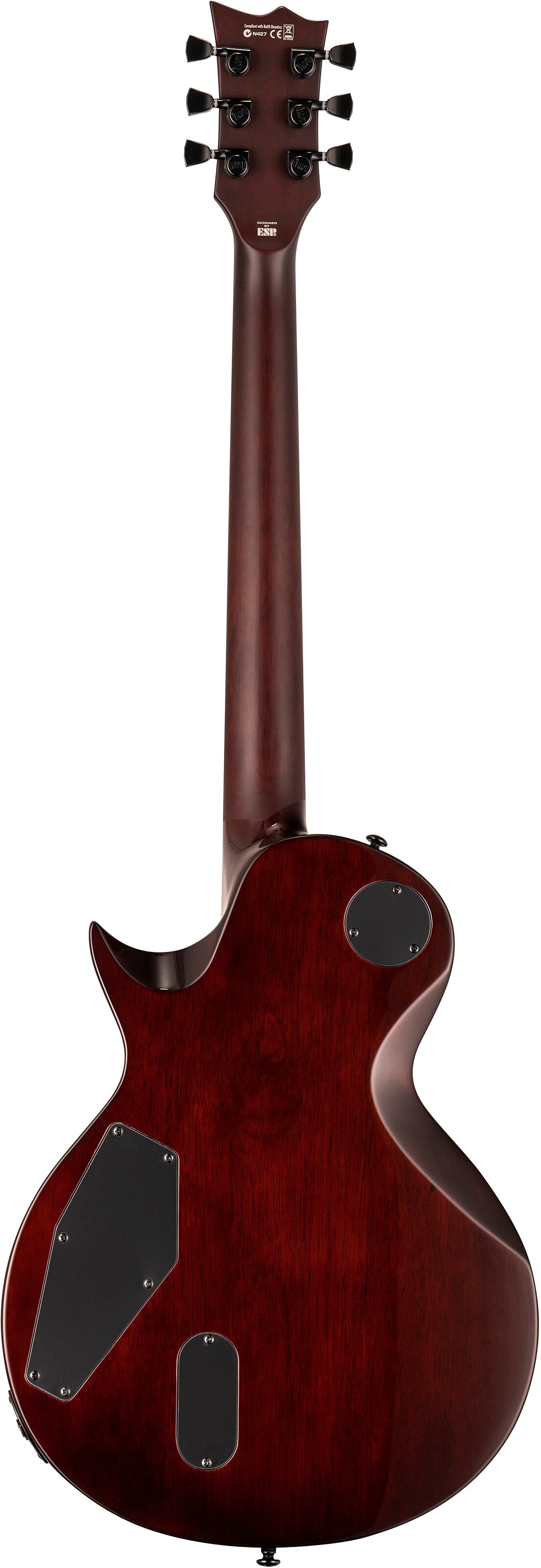

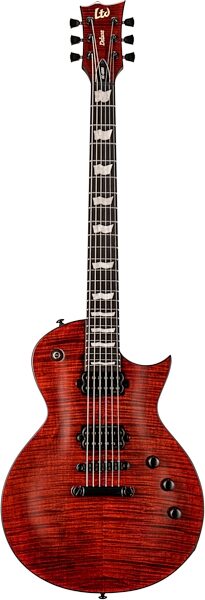

Guitars in the LTD Deluxe EC-1000 Series are designed to offer the tone, feel, looks, and quality that working professional musicians require in an instrument, while remaining affordable enough for serious players. The EC-1001 Tiger Eye has a mahogany body with flamed maple top in the exquisite Tiger Eye finish, with outstanding black binding and matching black hardware.

Other features of this guitar include a mahogany neck that features a satin finish on the back, with a Macassar ebony fingerboard and 24 extra-jumbo stainless steel frets, and a set of direct-mount Fishman Fluence Open Core Classic Humbucker pickups, with push-pull controls to select voicings.

Construction: Set-Thru
Scale: 24.75"
Body: Mahogany
Neck: 3Pc Mahogany
Fingerboard: Macassar Ebony
Fingerboard Radius: 350mm
Finish: Tiger Eye
Nut Width: 42mm
Nut Type: Molded
Neck Contour: Thin U
Frets/Type: 24 XJ Stainless Steel
Hardware Color: Black
Strap Button: Standard
Tuners: LTD Locking
Bridge: Tonepros Locking TOM & Tailpiece
Neck PU: Fishman Fluence Open Core Classic Humbucker Black *(Pull Tone for Voice 1, Pull Neck Volume for Voice 2)
Bridge PU: Fishman Fluence Open Core Classic Humbucker Black *(Pull Tone for Voice 1, Pull Neck Volume for Voice 2)
Electronics Layout: Bridge Volume/Neck Volume(Push/Pull)/Tone(Push/Pull)/Toggle Switch
Strings: D'Addario XL110 (.010/.013/.017/.026/.036/.046)
Dimensions and Weight in Packaging
Tiger Eye
Shipping Weight: 10.5 lbs
Shipping Dimensions: 42 x 18 x 4 in
Manufacturer Part Number (MPN): LEC1001FMTEF
Scratch and Dent, Tiger Eye
Shipping Weight: 10 lbs
Shipping Dimensions: 44 x 16 x 4 in
Manufacturer Part Number (MPN): LEC1001FMTEF

For support or warranty questions, please contact the manufacturer:
Phone: 800-423-8388

Reviewers gave this product an overall rating of 4 out of 5 stars. (1 ratings)
Submitted May 24, 2021 by a customer from

"Very nice guitar, but..."

Overall: 4 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
I received this gorgeous guitar Friday 5-21-2021! The fit and finish is immaculate. The action was a tad high but I set it down and it can get really low. So low in fact that I raised it back up some to my preference. Plays like a dream and sounds fantastic. Now the negative points. Issue #1 - The fluence open core classic pickups have 3 voices. PAF, hotrodded, and single coil. My guitar was wired to have only voices one and two. No single coil. The single coil wires for each pickup wasn't even wired in. The neck volume pot push/pull worked the neck pickup and the tone worked the bridge respectively for voice two, only. I find that a little bizarre. I rewired it and now it all works as intended voice wise. Issue #2 and the biggest issue - The neck pickup has barely any routing clearance under it. The routing is fine per typical depth, but these fluence pickups are pretty tall. Once I set the action down I had to completely remove the foam pads from under the neck pickup in order to get the pickup low enough to not touch the strings. The neck pickup is completely bottomed out atm and needs to go even lower but it's physically impossible. The way it sits right now the top of the neck pickup is almost dead even with the top of the fret board. I can't do anything about that because I'm not routing it deeper or paying to have it done. I'll remind that this is AFTER removing the foam under the pickup. It is manageable now but needs more travel because at this height the neck pickup read more is a little too loud for my taste but will be ok and probably fine for the average user, but now I have zero adjustability for the neck pickup. Overall I love this guitar and would buy another in a heart beat!

read less
10 of 10 people (100%) people found this review helpful. Did you?
