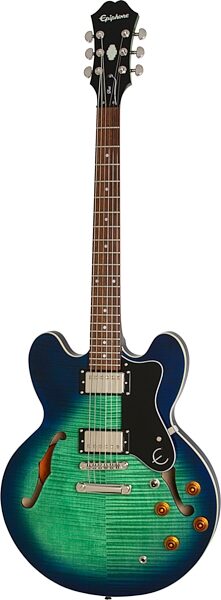

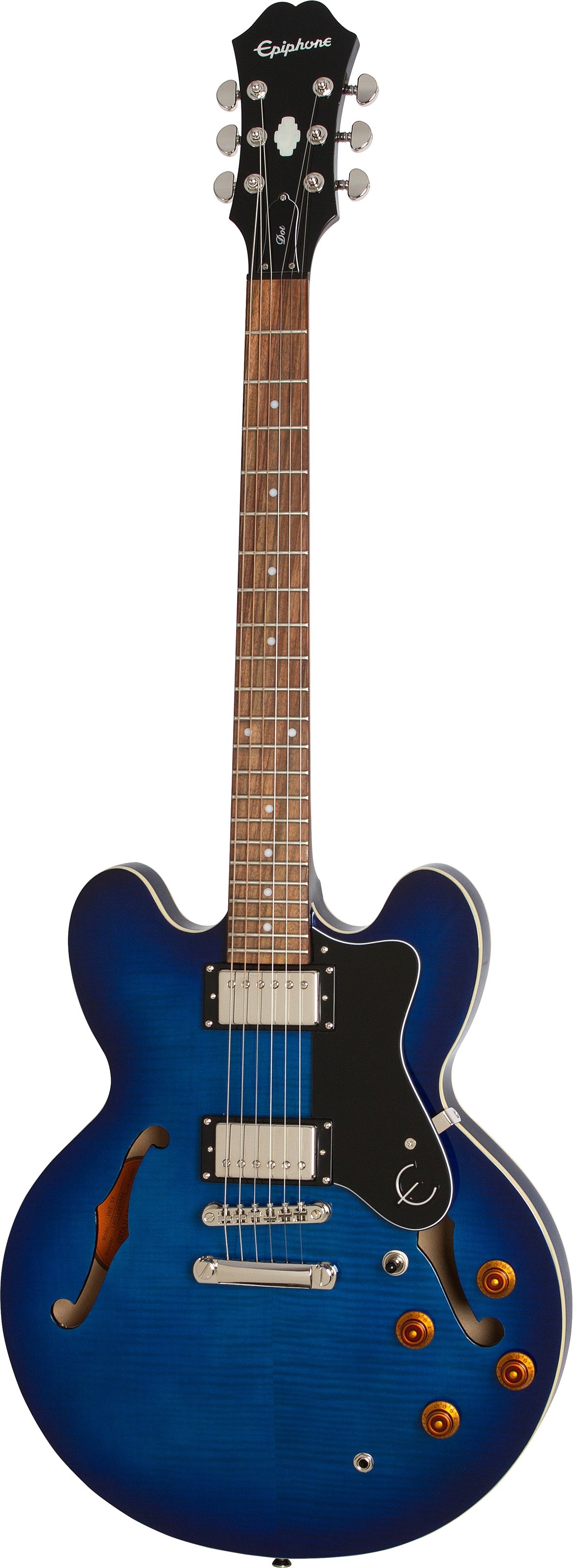

Epiphone Dot Deluxe Electric Guitar
The Epiphone Limited Edition Dot Deluxe honors the immortal ES-335, the thin semi-hollow body archtop with "Dot" inlays that brought archtop style and sound to the rock 'n' roll era. Featuring Alnico Classic Humbuckers, Grover Rotomatic Machine Heads, and a Flame Maple Veneer top and body in Aquamarine and Blueburst color finishes. Available for a limited time only.
ES-style Semi-Hollow Body Archtop
The Limited Edition Dot Deluxe features the same dimensions and build style as vintage ES-style semi-hollow body archtops with a Flame Maple Veneer top and body in Aquamarine and Blueburst color finishes. Both the body top and back have single ply cream binding. Both colors finishes come with a black pickguard with a metal "E". The Solid Mahogany neck has a SlimTaper D-profile and is glued to the body using a traditional dovetail joint. The Pau Ferro fingerboard has "Dot" inlays, a 24.75" scale, 22 medium jumbo frets, a 12" radius, and a 2-way adjustable truss rod.
Alnico Classic PRO Humbuckers
The Limited Edition Dot Deluxe features Alnico Classic PRO humbuckers made with Alnico-V magnets, which produce a slightly higher output especially in the mid and highs. Each pickup has it own Volume and Tone control with Top Hat Amber knobs with full-size 500K O potentiometers matched with Epiphone's rugged, all-metal, 3-way toggle pickup selector switch for long-lasting performance.
When winding humbuckers, Epiphone utilizes a double vacuum waxing process that ensures quiet operation free from microphonic hum. The pickup is first placed in the specialized wax vacuuming system before the cover is placed on the unit to ensure that the wax fully penetrates to the very center of the pickup and solidifies all parts. After the cover is placed on, it is again given a second vacuum wax bath until the unit is completely saturated with wax. Epiphone also uses high quality ABS plastic bobbins, 1010 Cold Rolled Steel pole shoes and pole screws, the finest magnet wire available.
Rock Solid Hardware
The Limited Edition Dot Deluxe comes with Grover Rotomatic machine heads with an 18:1 turning ratio and a LockTone Tune-o-matic bridge and Stopbar combo for incredible sustain and solid intonation. A deluxe hard gigbag is available through Authorized Epiphone Dealers.
The Limited Edition Dot Deluxe is available for a limited time only from Authorized Epiphone Dealers and come with Epiphone's Limited Lifetime Guarantee and Gibson Brands 24/7/365 Customer Service.
- Historic 335-style "Dot" semi-hollow body archop
- Alnico Classic Humbuckers
- Flame Maple Veneer top and body
- Grover Rotomatic Machine Heads
zZounds is an authorized dealer of Epiphone products.
Gloss- Top Material:
Flame Maple Veneer- Body Material:
Flame Maple Veneer- Neck Material:
Solid Mahogany- Neck Shape:
SlimTaper; D-profile- Neck Joint:
Dovetail; Glued-in- Scale Length:
24.75"- Fingerboard Material:
Pau Ferro- Headstock:
Sloped Dovewing; "Epiphone" logo in Pearloid- Headstock Inlay:
Epiphone "DOT" in Pearloid- Fingerboard Radius:
2-way Adjustable via headstock- Trussrod Cover:
PVC; 3-Ply (B/W/B); "DOT" in white silkprint- Frets:
22; medium/jumbo- Binding:
- Body Top: 1-ply; Cream
- Body Back: 1-ply; Cream- Nut Width:
Nickel- Machine Heads:
Grover Rotomatic; 18:1 ratio- Neck Pickup:
Epiphone Alnico Classic Humbucker- Bridge Pickup:
Epiphone Alnico Classic Plus Humbucker- Controls:
2- Volume; 2 - Tone; 1 - Three Way Pickups Selector- Knobs:
"Top Hats"; Amber- Bridge:
LockTone Tune-o-matic- Tailpiece:
LockTone Stopbar- Pickguard:
PVC; 3-Ply (B/W/B)- Strap Buttons:
- Weight, Dimensions, and Manufacturer Part Numbers
Manufacturer Part Number (MPN):
Manufacturer Part Number (MPN):
