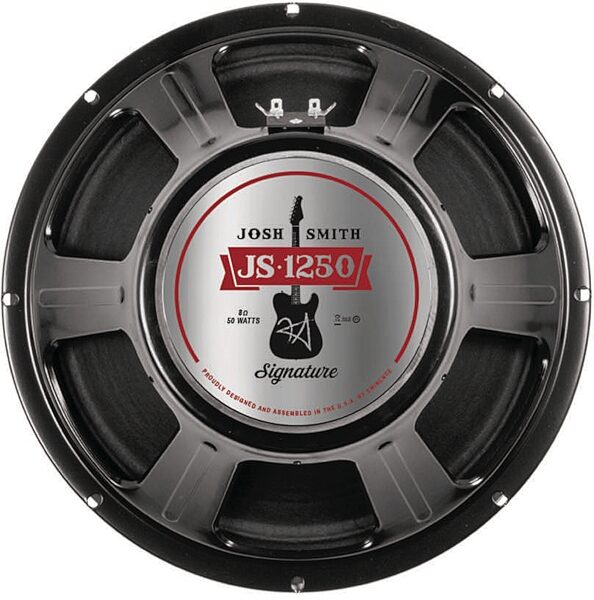

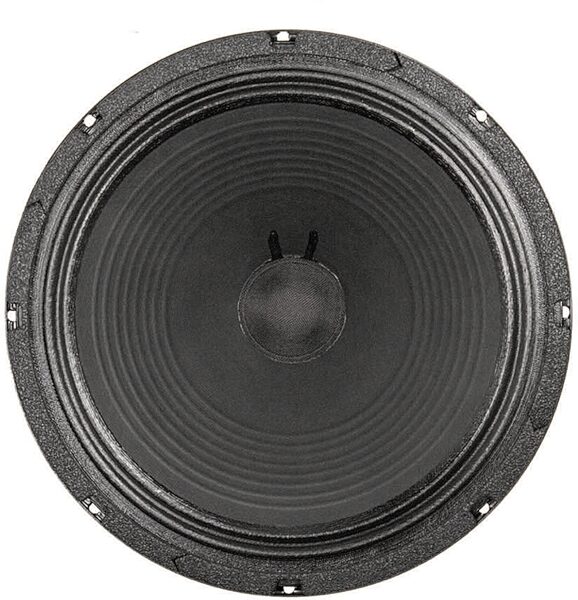

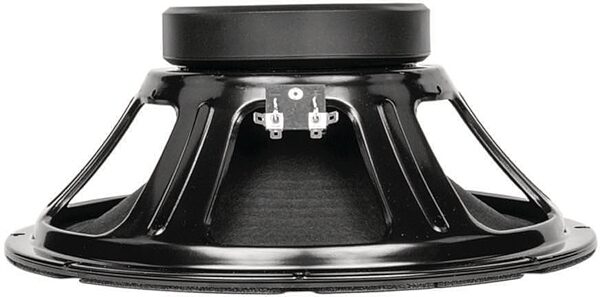

Eminence Josh Smith Signature Guitar Speaker (50 Watts)

The perfect 3-way combination of the Eminence Tonespotter, Wizard and Red Fang alnico, this Josh Smith Signature provides lows, clean highs and natural grit.

Respected as much for his tone as his guitar skills, Josh Smith's concept for the ultimate guitar speaker involved combining the lows of the Eminence Tonespotter, the clean highs of the Wizard, and the natural grit and sparkle of the Red Fang alnico. The result is an extremely versatile 12" speaker with vintage tone and the ability to handle the power of modern amps.

"Ultimately I was looking for something that could work in any application, from clean Fender tones, as well as dirty Vox tones. I asked Eminence to combine several qualities of my favorite speakers into one, and they knocked it out of the park. I use it in all my amps." - Josh Smith
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Nominal Basket Diameter: 12", 305 mm
- Nominal Impedance: 8 O
- Program Power: N/A
- Watts: 50 W
- Resonance: 92 Hz
- Usable Frequency Range: 80 Hz - 5.2 kHz
- Sensitivity: 101.4 dB
- Magnet Weight: 38 oz.
- Gap Height: 0.313", 7.95 mm
- Voice Coil Diameter: 1.75", 44 mm

Thiele & Small Parameters:
- Resonant Frequency (fs): 92 Hz
- DC Resistance (Re): 6.42 O
- Coil Inductance (Le): 0.5m H
- Mechanical Q (Qms): 15.69
- Electromagnetic Q (Qes): 0.63
- Total Q (Qts): 0.61
- Compliance Equivalent Volume (Vas): 41.21 liters / 1.46 cu.ft.
- Peak Diaphragm Displacement Volume (Vd): 41.04 cc
- Mechanical Compliance of Suspension (Cms): 0.11 mm/N
- BL Product (BL): 12.91 T-M
- Diaphragm Mass Inc. Airload (MMs): 28 grams
- Efficiency Bandwidth Product (EBP): 145
- Maximum Linear Excursion (Xmax): 0.79 mm
- Surface Area of Cone (Sd): 519.5 cm2
- Maximum Mechanical Limit (Xlim): 0.00 mm

Mounting Information:
- Recommended Enclosure Volume
- Sealed: Acceptable
- Vented: Acceptable
- Driver Volume Displaced: 0.07 cu.ft. / 2 liters
- Overall Diameter: 12.17", 309.12 mm
- Baffle Hole Diameter: 11.13", 282.7 mm
- Front Sealing Gasket: Yes
- Rear Sealing Gasket: No
- Mounting Holes Diameter: 0.24", 6.1mm
- Mounting Holes B.C.D.: 11.75", 298.5mm
- Depth: 5.23", 132.84 mm
- Net Weight: 8 lbs, 3.63 kg
- Shipping Weight: 9.8 lbs, 4.45 kgs

Materials of Construction:
- Coil Construction: Copper voice coil
- Coil Former: Nomex
- Magnet Composition: Ferrite
- Basket Materials: Pressed steel basket
- Cone Composition: Full molded paper
- Cone Edge Composition: Paper
- Dust Cap Composition: Zurette
Dimensions and Weight in Packaging
12 inch, 8 Ohms
Shipping Weight: 9.25 lbs
Shipping Dimensions: 13 x 13 x 7 in
Manufacturer Part Number (MPN): JS-1250
