Eminence ASD-1001 High Frequency Speaker Driver (50 Watts, 1")

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

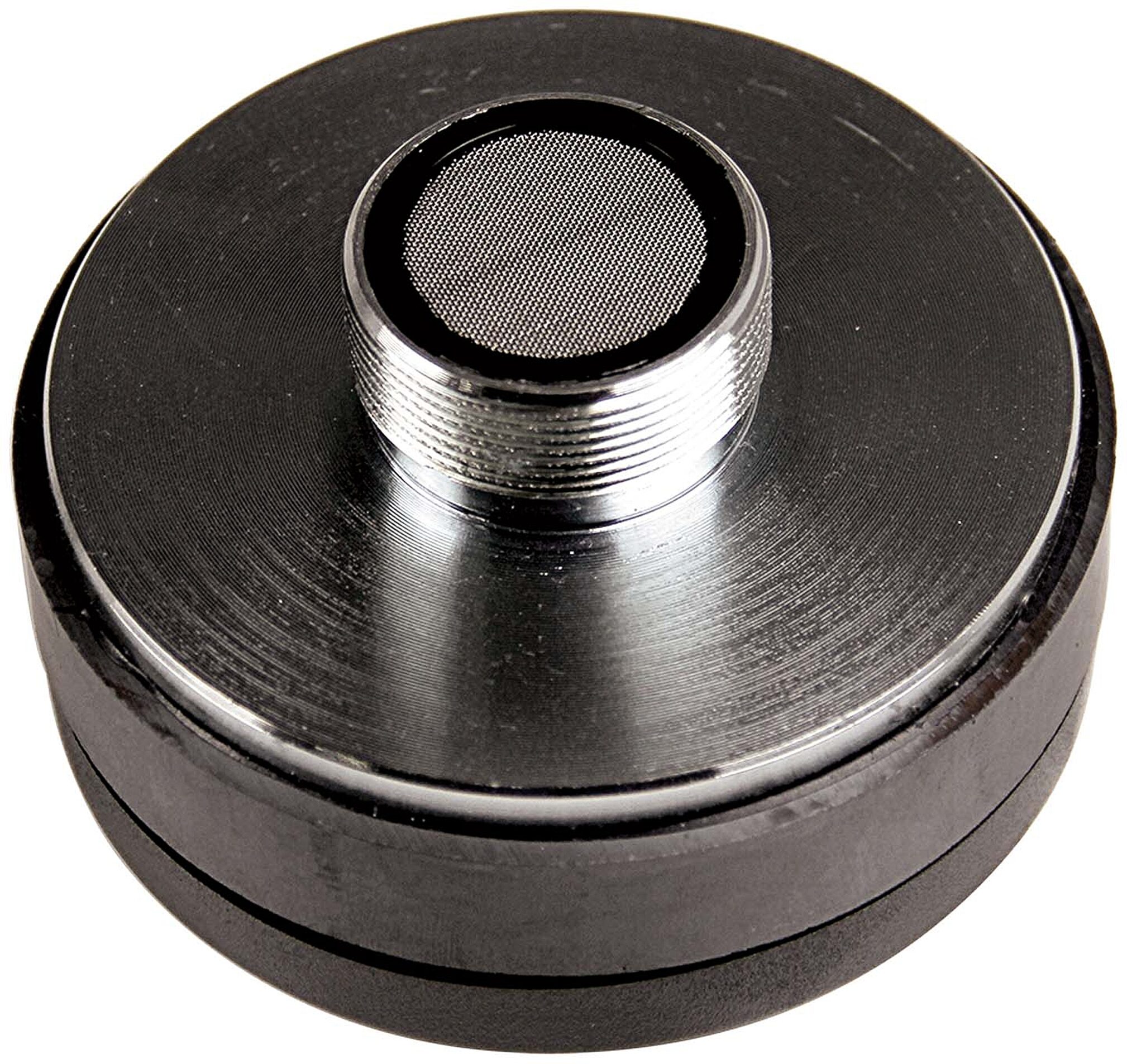

Eminence ASD-1001 High Frequency Speaker Driver (50 Watts, 1"), 8 Ohms, Main

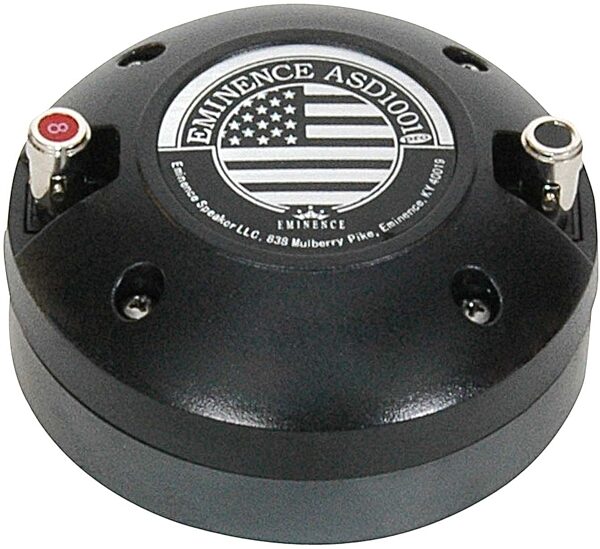

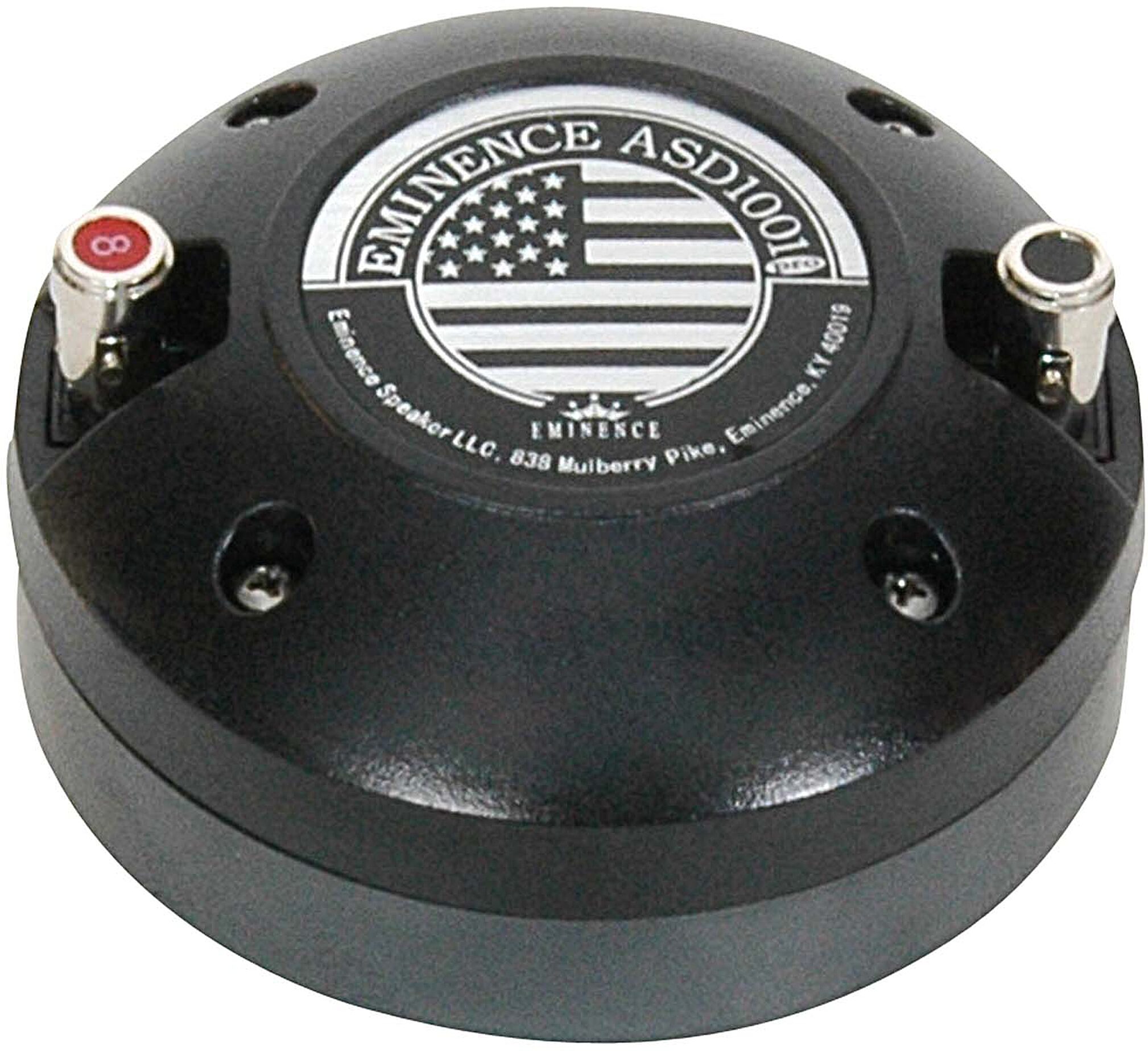

Eminence ASD-1001 High Frequency Speaker Driver (50 Watts, 1"), 8 Ohms, Action Position Back
Eminence ASD-1001 High Frequency Speaker Driver (50 Watts, 1"), 8 Ohms, Action Position Back
Eminence ASD-1001 High Frequency Speaker Driver (50 Watts, 1"), 8 Ohms, Main Eminence ASD-1001 High Frequency Speaker Driver (50 Watts, 1"), 8 Ohms, Action Position Back Eminence ASD-1001 High Frequency Speaker Driver (50 Watts, 1"), 8 Ohms, Action Position Back
Replace blown tweeters in your PA speakers with the Eminence ASD-1001. This 1" compression driver delivers clear, accurate highs from 2.5 kHz to 20 kHz.

The Eminence ASD1001 high-frequency driver is a very accurate and extremely clear sounding compression driver designed as a high-quality driver replacement for 1" screw-on type horns. With 50-watts of power rating, diamond titanium diaphragm, and an operating frequency range of 2.5kHz to 20kHz, the ASD1001 is a great choice for a wide range of front of house mains and monitor speaker cabinets, hi packs, both active and passive.

Take an in-depth tour of the Eminence speaker factory:
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Throat Size: 1", 25.4 mm
- Nominal Impedance*: 8 ohms
- Power Rating**: 50W @ 2.5kHz
- Free Air Resonace: 1.23kHz
- Usable Frequency Range: 2.5Hz-20kHz
- Sensitivity: 104.3dB (1W/1m across 2.5kHz-20kHz)
- Magnet Weight: 12oz, 0.34kg
- Voice Coil Diameter: 1.3" / 33 mm
- THIELE & SMALL PARAMETERS
- DC Resistance (Re): 6.7
- Coil Inductance (Le): 1.1mH
- MOUNTING INFO
- Overall Diameter: 3.5", 88.9 mm
- Mounting Holes Diameter: ~
- Mounting Holes B.C.D.: ~
- Mounting Thread: 1 3/8" 18 NEF ext.
- Depth: 2.45", 62mm
- Weight: 2 lbs, 0.9 kg
- MATERIALS OF CONSTRUCTION
- Diaphragm Material: Diamond Titanium
- Magnet Composition: Ferrite
Dimensions and Weight in Packaging
8 Ohms
Shipping Weight: 2.25 lbs
Shipping Dimensions: 4 x 4 x 3 in
Manufacturer Part Number (MPN): ASD1001

For support or warranty questions, please contact the manufacturer:
Phone: 502-845-5622
Email:
Web:

Reviewers gave this product an overall rating of 4.5 out of 5 stars. (2 ratings)
Submitted March 30, 2016 by George Scales in Detroit, MI
"Exellent high frequency driver replacement."
Overall: 4.5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
Purchased to replace the HF drivers in the Electo-Voice Eliminator monitor speaker pair.The HF drivers are A great replacement for the original HF drivers in these cabinets.
Musical Background:
30+years professionals bassist.
Musical Style:
r&b, Motown, blues, reggae, jazz, gospel
2 of 2 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
Rate and Review this Product
Read more reviews

8 Ohms

$39.99
