Electro-Voice RE3-BPOL Wireless Omnidirectional Lavalier Microphone System

Electro-Voice RE3-BPOL Wireless Omnidirectional Lavalier Microphone System, Band 5H (560 - 596 MHz), Main

Electro-Voice RE3-BPOL Wireless Omnidirectional Lavalier Microphone System, Band 5H (560 - 596 MHz), ve

zZounds Gear Experts Say...

Get an open, natural vocal sound with the Electro-Voice RE3-BPOL, a reliable UHF lavalier microphone system with cutting-edge wireless technology.

Overview

The Electro-Voice RE3-BPOL Wireless Omnidirectional Lavalier Microphone System is part of the next-generation UHF wireless product family from Electro-Voice. RE3 is designed to deliver superior audio performance with best-in-class wireless flexibility and ease-of-use -- five frequency bands are available in alignment with the latest global RF requirements. The compact RE3 bodypack features cast magnesium construction for maximum durability.

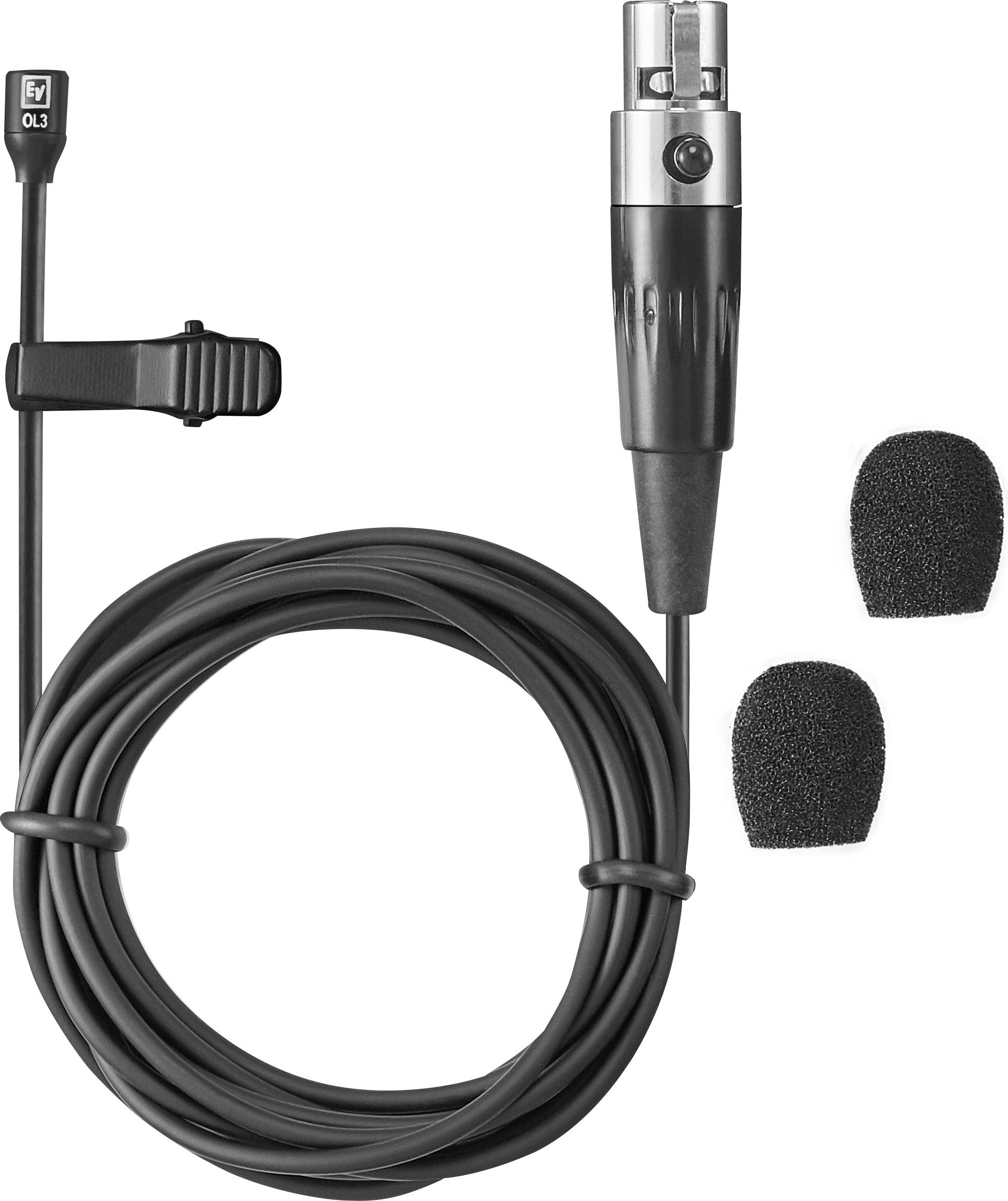

Includes RE3-ACC-OL3 Omnidirectional lavalier mic with TA4F

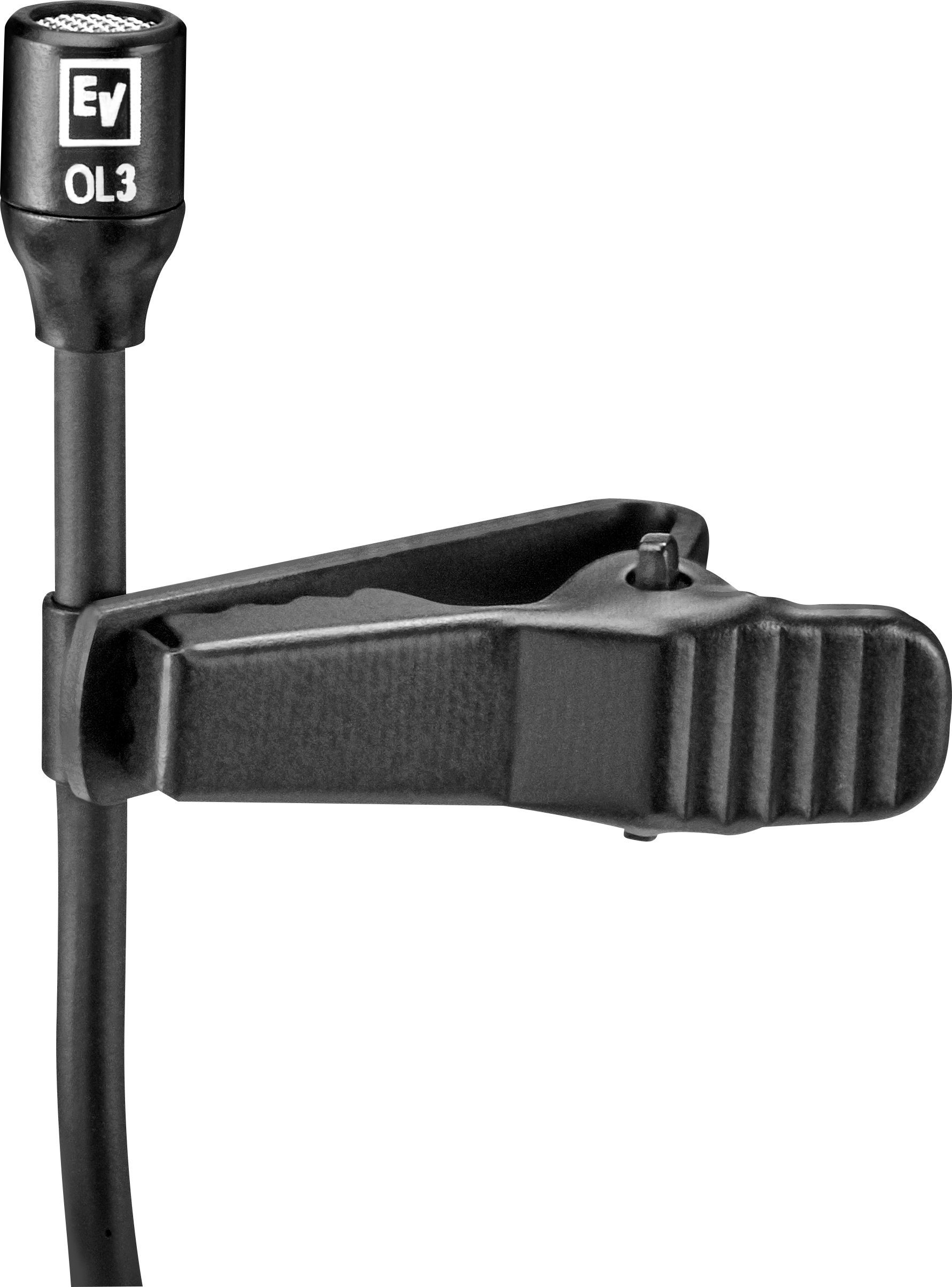

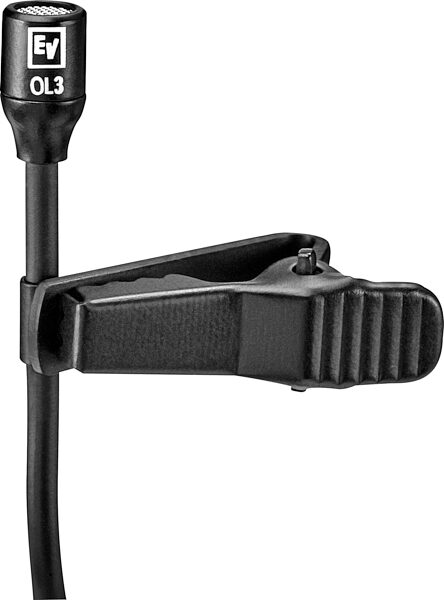

The OL3 is a robust, multi-purpose lavalier microphone. It is ideal for presentation, public speaking, and on-camera applications where its open and natural sonic characteristics deliver accurate and natural voice reproduction. The low-profile design makes it easy to physically manage, and eliminates unsightly presence other larger-sized lavaliers present. The omni-directional polar pattern has no proximity effect, and is ideal for delivering an open and natural sound, even when the user is turning their head side-to-side. The small clothing clip attaches the microphone securely to clothing items or surfaces. The included foam windscreen is effective in reducing wind noise. The 4-pin mini plug is compatible with all current Electro-Voice bodypack transmitters, as well as many other brands who use the 4-pin mini connector convention.

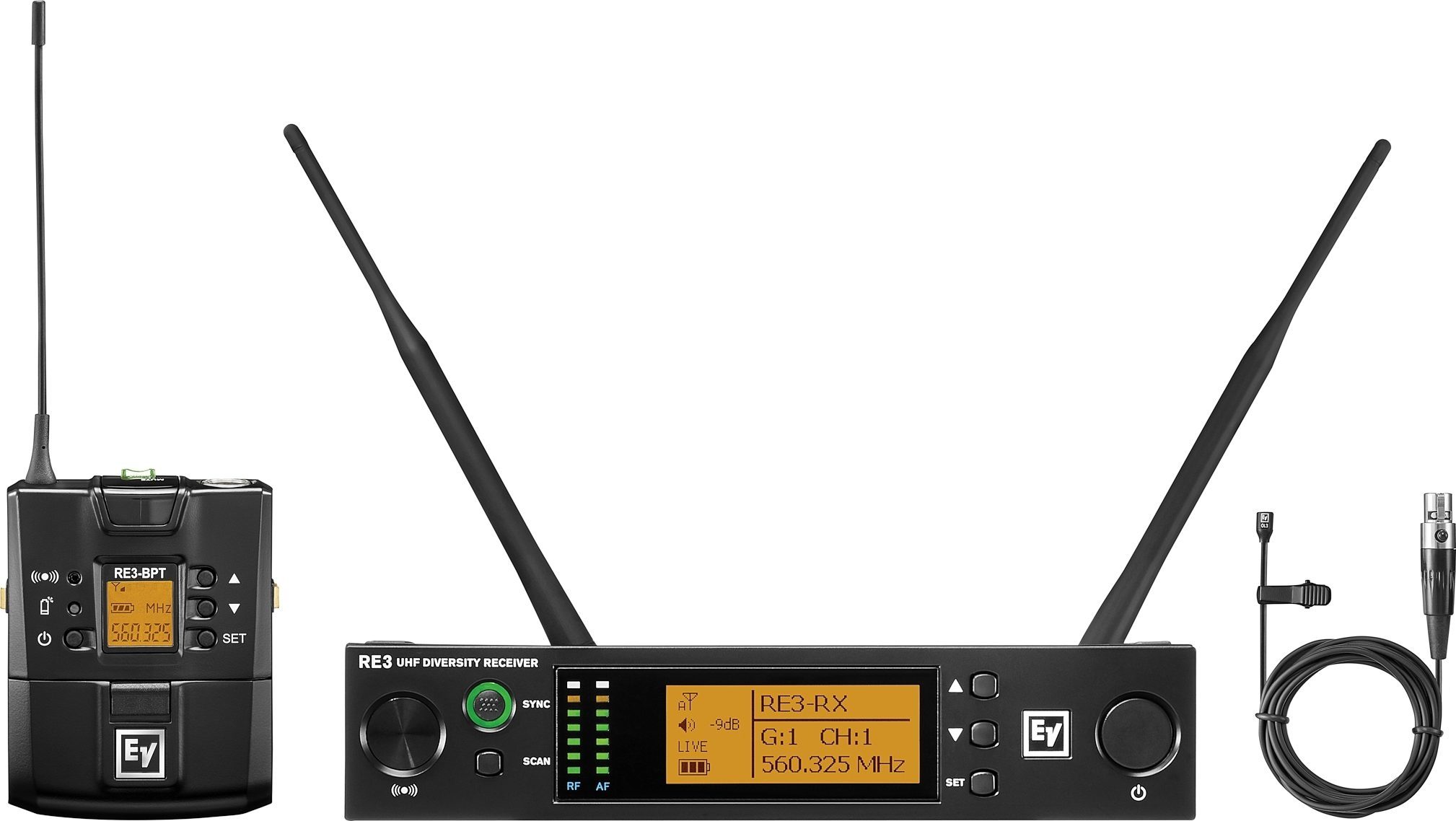

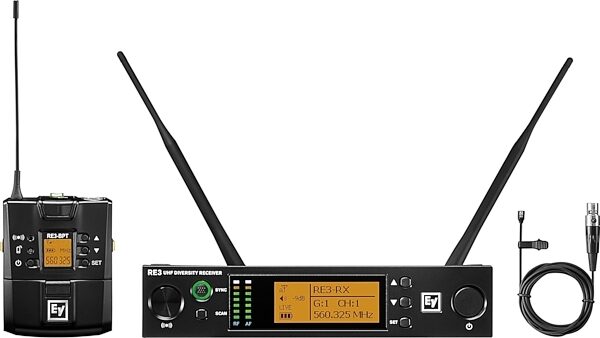

Set Includes:

- OL3 Omnidirectional Lavalier Microphone

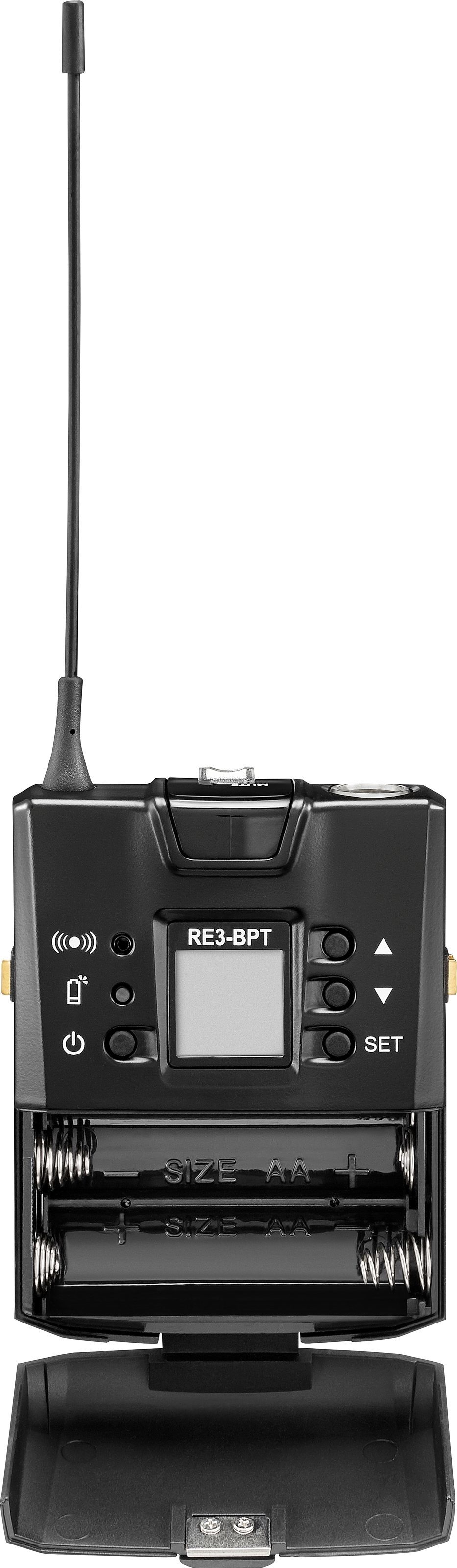

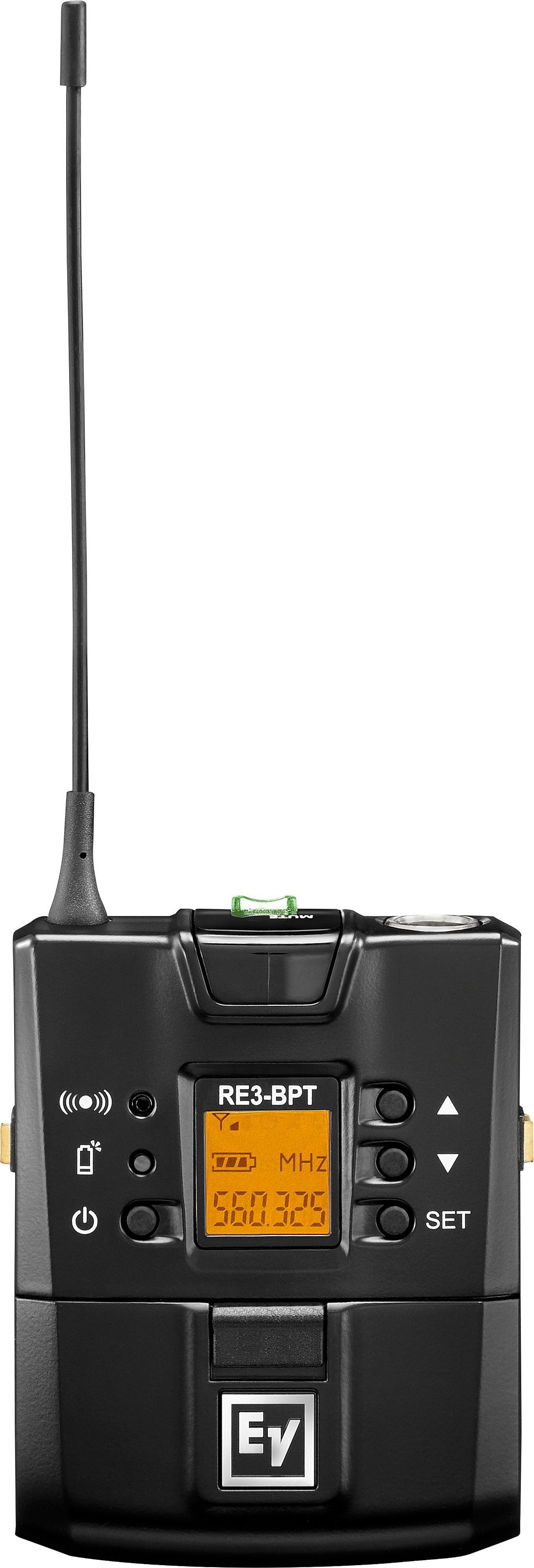

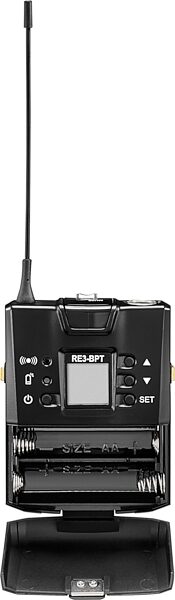

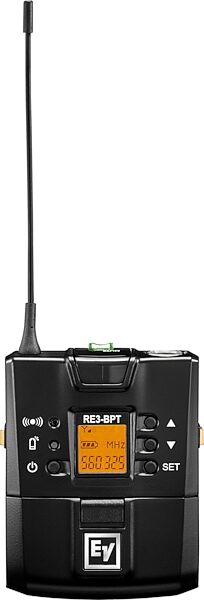

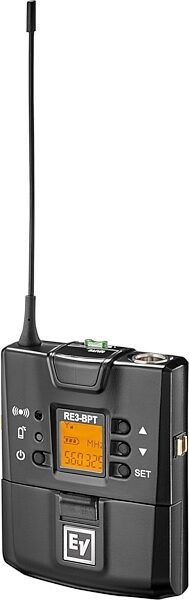

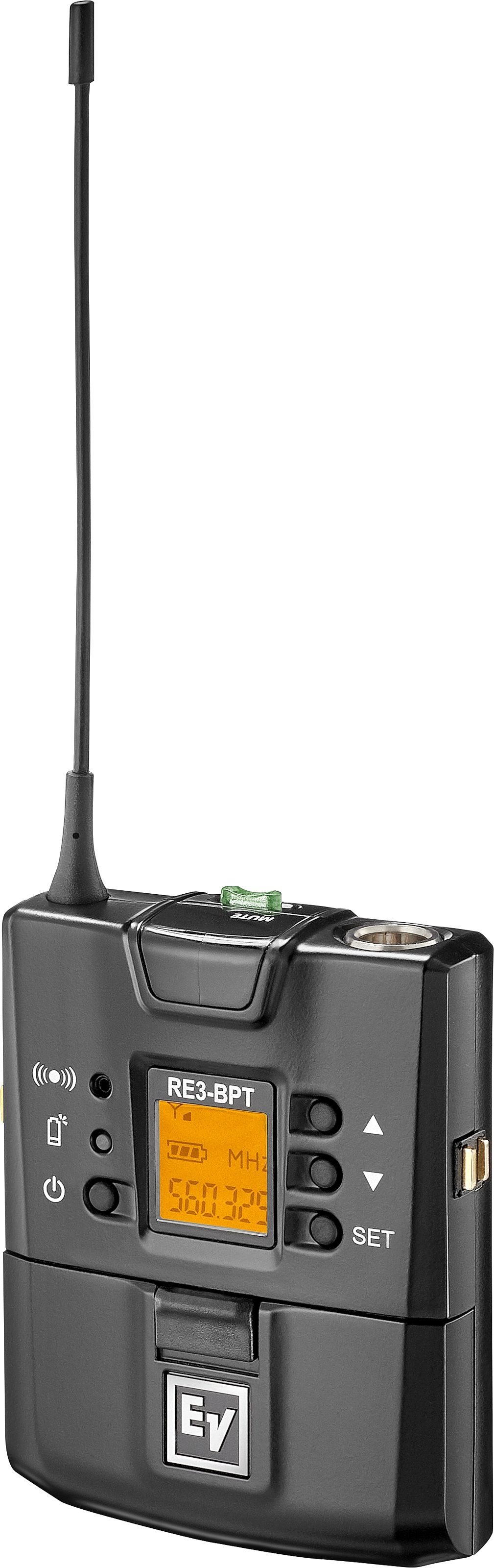

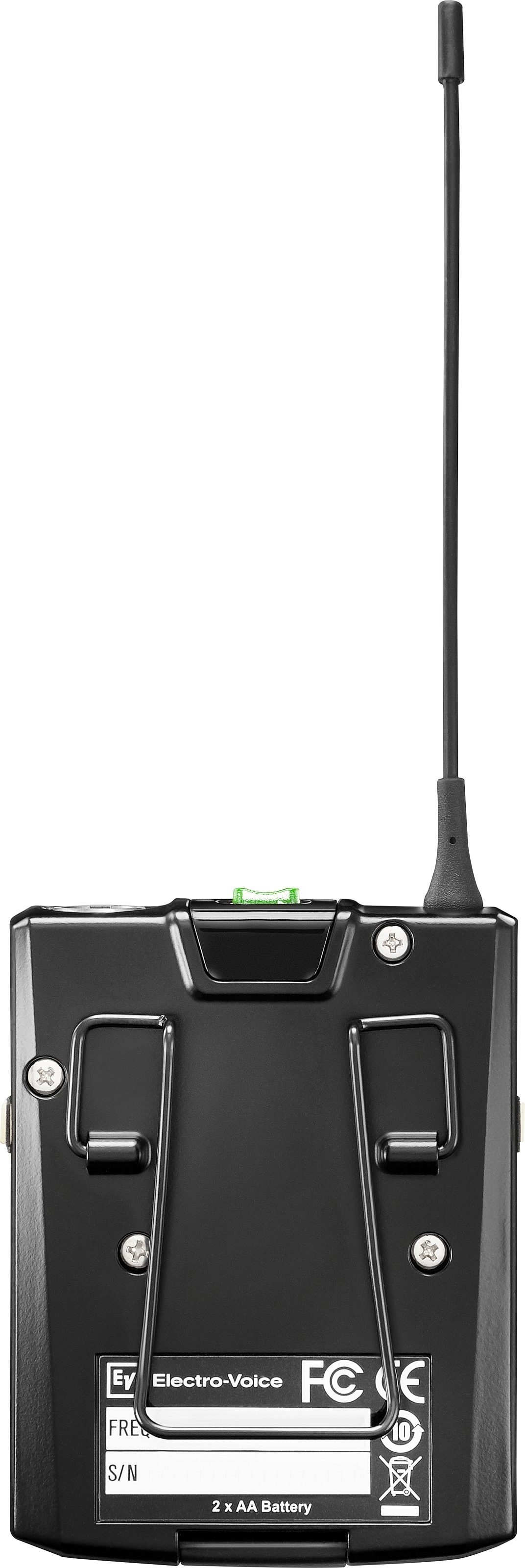

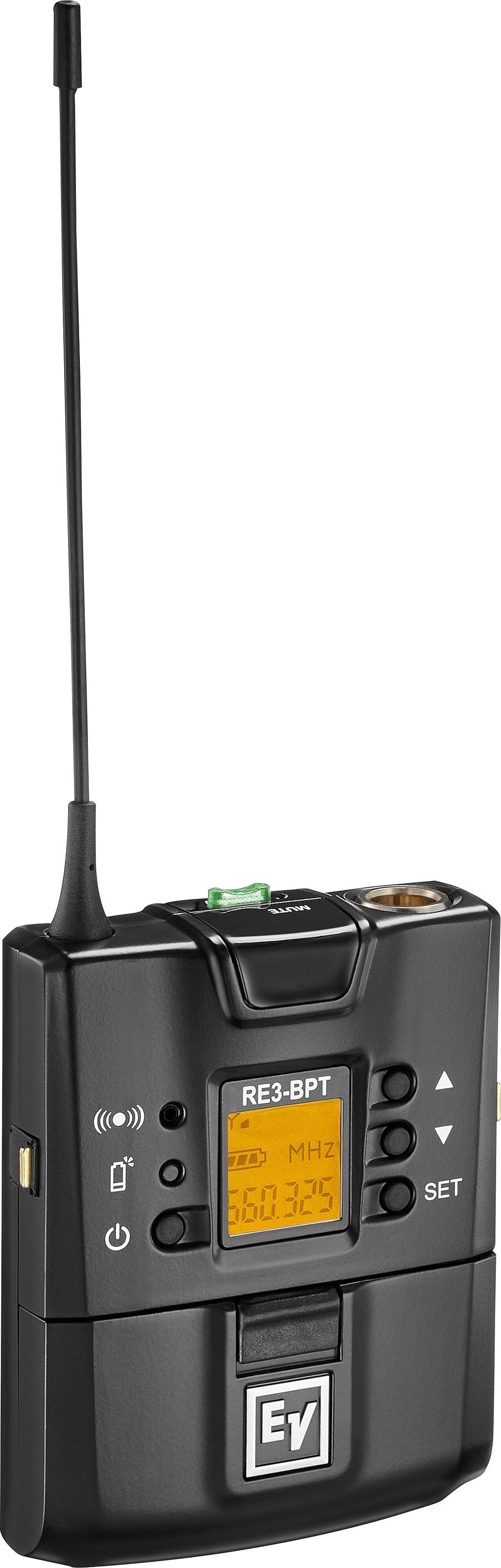

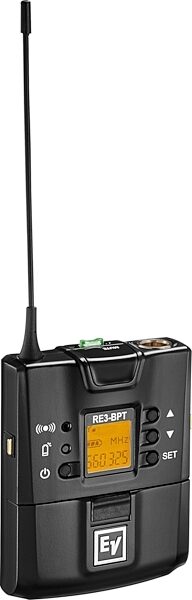

- RE3-BPT Bodypack Transmitter

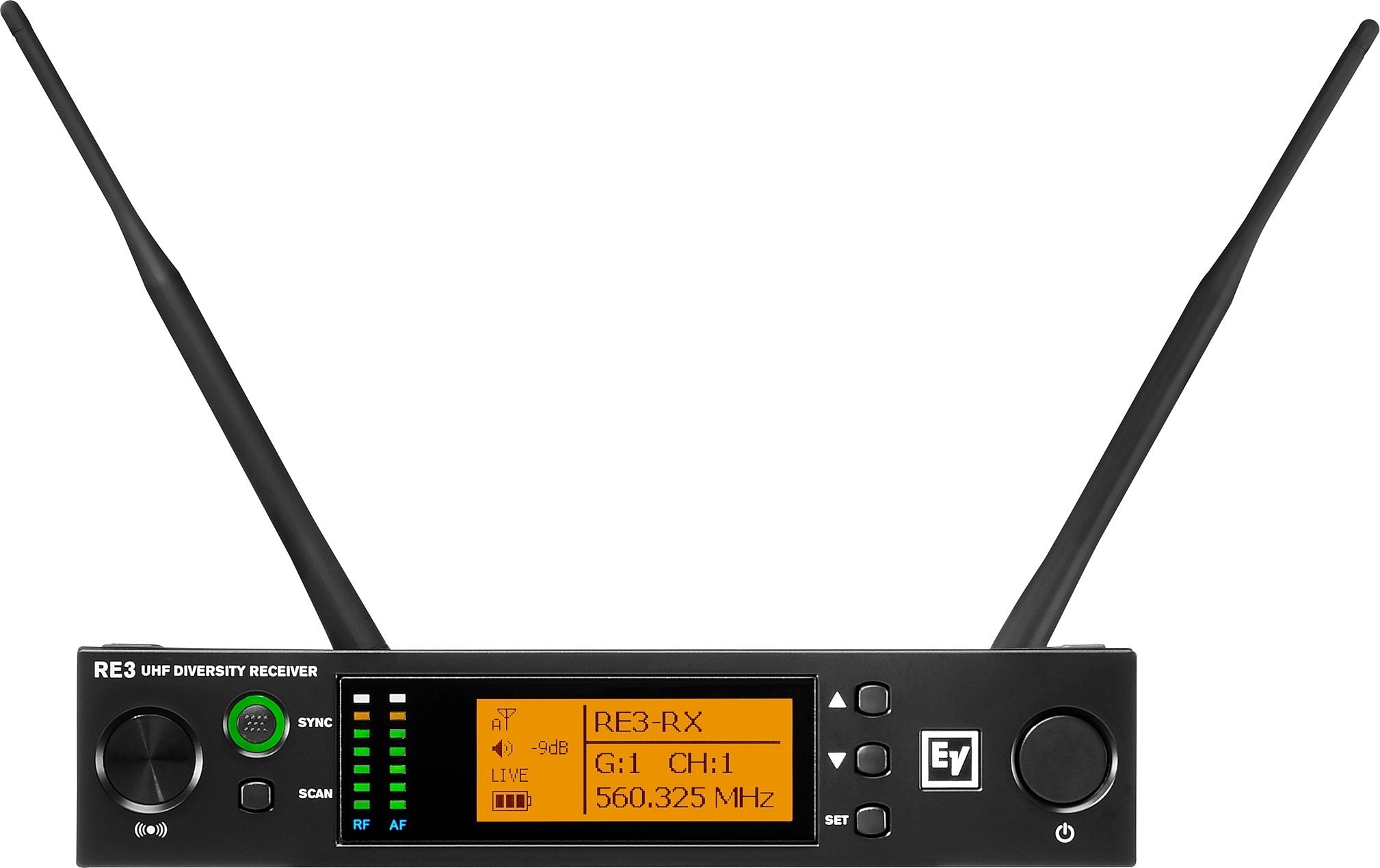

- RE3-RX Diversity Receiver
- Microphone stand adapter… read more
- Two receiver antennas
- Universal power supply
- Two AA batteries
- Receiver rack mounting hardware
- Owner's manual, documentation packet, declaration of conformity

Features:

- Small and unobtrusive low-profile design
- Omni-directional polar pattern delivers an open and natural sound
- No proximity effect
- Wide dynamic range and frequency response
- Clothing clip holds microphone securely and attaches easily to garments

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

- Microphone Type: Self-biased electret condenser lavalier
- Polar Pattern: Omnidirectional
- Frequency Response: 60 Hz - 15 kHz
- Operating Frequency Range: Multiple bands available: 5L (488-524 MHz), 5H (560-596 MHz), 6M (653-663 MHz)
- Number of Channels: 1440 selectable frequencies (5L and 5H bands), 400 selectable frequencies (6M band)
- Transmitter Type: UHF bodypack transmitter
- Transmitter RF Output Power: 5L band: Low 10mW / High 50mW, 5H band: Low 10mW / High 50mW, 6M band: Low 10mW / High 20mW
- Transmitter Battery Type: 2 x AA alkaline or NiMH rechargeable
- Transmitter Battery Life: Up to 8 hours
- Receiver Type: UHF diversity receiver
- Receiver Outputs: Balanced XLR, Unbalanced 1/4" TRS
- Receiver Antenna Type: Detachable 1/2 wave with BNC connector
- Receiver Power Requirements: DC 12-15V/500mA
- Audio Frequency Response: 63Hz-16kHz ±2dB (bodypack system)
- Signal-to-Noise Ratio: >100dB(A)
- Total Harmonic Distortion: <0.6% @ 1kHz

Dimensions and Weight in Packaging

Band 5H (560 - 596 MHz)

Shipping Weight: 6.25 lbs
Shipping Dimensions: 17 x 13 x 5 in
Manufacturer Part Number (MPN): F.01U.354.227

Open Box (Very Good), Band 5H (560 - 596 MHz)

Shipping Weight: 6.25 lbs
Shipping Dimensions: 17 x 13 x 5 in
Manufacturer Part Number (MPN): F.01U.354.227

Band 5L (488 - 524 MHz)

Shipping Weight: 6.25 lbs
Shipping Dimensions: 17 x 13 x 5 in
Manufacturer Part Number (MPN): F.01U.354.226

Band 6M (653 - 663 MHz)

Shipping Weight: 5.75 lbs
Shipping Dimensions: 17 x 13 x 5 in
Manufacturer Part Number (MPN): F.01U.354.228

Open Box (Very Good), Band 6M (653 - 663 MHz)

Shipping Weight: 5.75 lbs
Shipping Dimensions: 17 x 13 x 5 in
Manufacturer Part Number (MPN): F.01U.354.228

Consumer Alert

Most users do not need a license to operate this wireless system. Nevertheless, operating this system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
