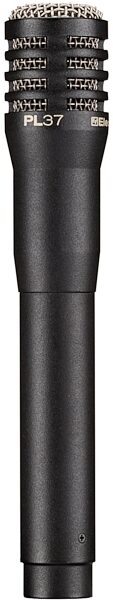

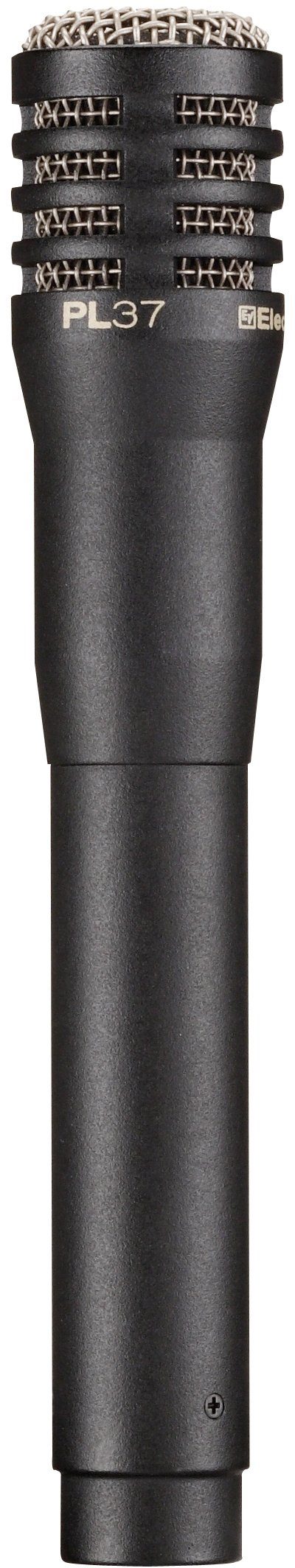

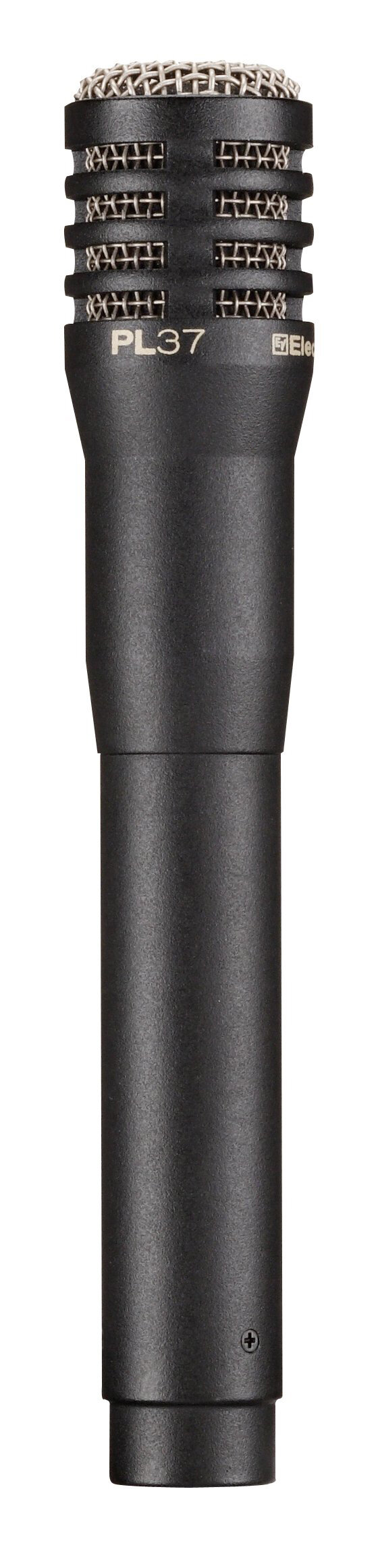

ElectroVoice PL37 Small Diaphragm Condenser Microphone

No longer available at zZounds

zZounds Gear Experts Say...

Tight cardioid polar pattern for isolation. High-output self-biased condenser element.

Overview

The PL37 is a professional-grade tight cardioid condenser microphone designed to deliver all of the crisp detail of cymbals, high-hats and percussion instruments in any size sound reinforcement system or recording studio. With its frequency response designed for overhead drum set and percussion miking, the PL37 delivers all of the "dialed-in" tone and percussive transient response detail professional drummers and sound system engineers require.

Features
Voicing for overhead cymbals, high-hat and percussion

Crisp frequency response

Fast transient response

Tight cardioid polar pattern for isolation

Superb rejection of off-axis information

High-output self-biased condenser element

Microphone Applications: Acoustic Strings, Hi-hat, Jazz, Overhead, Rock, Woodwinds

Specs

Element: Condenser (self-biased)

Polar Pattern: Cardioid

Impedance, Low-Z balanced: 200 Ohms

Connector Type: 3-pin XLR

Open Circuit Voltage: 6 mV/Pascal

Audio Frequency Response: 50 Hz - 16,000 Hz

Dynamic Range: < 107 dB

Maximum SPL (1% THD): 132 dB

Mic Type: Instrumental

Power Requirement: 11 to 52 VDC, 4 mA

Wired/Wireless: Wired

Finish: Textured Satin Black

Case Material: Die cast zinc

Weight Net: 176 g ( 6.21 oz )
