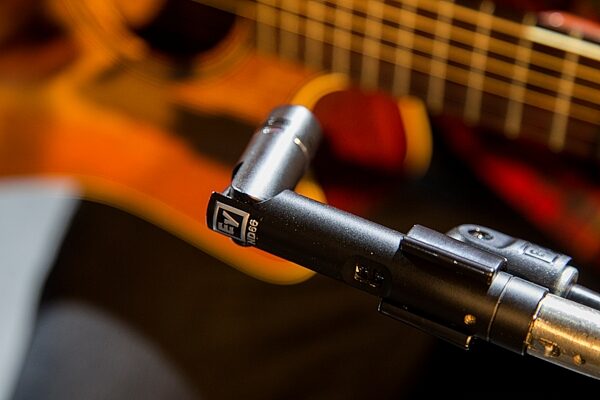

Electro-Voice ND66 Small-Diaphragm Condenser Cardioid Instrument Microphone

Smart features like -10 and -20 dB pads and high-pass filters make the EV ND66 pencil condenser a great mic on drum overheads, stringed instruments and more.

The Electro-Voice ND66 is a robust, high-performance small-diaphragm condenser instrument microphone. The ND66 contains a self-biased small-diaphragm condenser element which is vividly responsive to the complex dynamic nature of percussive and stringed instruments, delivering a clean, crisp and detailed sound.

With the ND66 exclusive locking rotating head, achieve ideal mic placement in virtually any situation by merely pushing a button, rotating the head into position, then releasing the button to lock the head's position. ND66 contains selectable -10 and -20dB pads which provide the necessary gain reduction to prevent the mic element from overloading when micing very loud or high-transient sound sources. ND66 contains selectable high pass filters which are strategically chosen at 75Hz and 150Hz to eliminate bothersome low frequencies from the signal path.


- Premium small-diaphragm condenser element
- Clean, crisp, and detailed condenser sound
- Easy mic placement with locking rotating head
- Selectable -10dB and -20dB pads
- Selectable 75Hz and 150Hz high pass filters
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Element Type: Self-biased Condenser
- Frequency Response, Free Field: 50Hz to 20kHz
- Polar Pattern: Cardioid
- Voltage @ 1kHz:10 mV / Pascal
- Maximum SPL: 146 dB SPL, 0dB Pad
- Self Noise: 20 dB SPL "A" weighted (0dB=20 micropascals)
- Dynamic Range: 126 dB
- Signal-to-Noise Ratio: 74 dB (@ 94 dB SPL)
- Polarity: Pin 2 positive, reference to pin 3 with positive pressure on diaphragm
- Power Requirements: Phantom Supply Requirement: 48 VDC
- Impedance: 200 ohms
- Microphone Connector: 3-pin, XLR-type
- Finish: Black polyurethane paint
- Material: Zinc die cast
- Included: (1) Gig bag, (1) stand clip, and (1) Euro thread adapter
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1 lbs
Shipping Dimensions: 10 x 5 x 3 in
Manufacturer Part Number (MPN): F.01U.314.727
