Electro-Voice EVOLVE 50 Column PA
The Electro-Voice EVOLVE 50 Portable Column System is a three component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP.
The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12" subwoofer capable of a functional frequency output down to 37 Hz.
The bi-directional aluminum pole's connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components.
Eight 3.5" neodymium drivers in the column array coupled with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120* of horizontal coverage, and 40* of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag.
See how the EVOLVE 50 fits together in this video from Electro-Voice:
The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.
The Electro-Voice QuickSmart Mobile application utilizes Bluetooth(R) Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High resolution Bluetooth(R) audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment.
Features:- Clean, compact design - built to blend in:
Lightweight column speaker array with cable-free connection quickly secures pole to sub.
- Easy transport and setup:
Ergonomically designed handles on both the array and the sub to enhance portability. Angled interface gives user easy access to make adjustments and connections on input panel.
- Real PA performance:
Legendary EV audio quality via eight 3.5-inch full-range drivers and a 12-inch subwoofer, powered by a three-channel amp for high output. Cutting-edge components and tuning provide full-sized sound in a super-streamlined, plug-and-play format.
- Wide, even coverage:
Custom waveguides provide ultra-wide 120* horizontal coverage and array-formed 40* asymmetrical vertical pattern control. No energy is wasted -- exceptional audience coverage and clarity from front to back.
- High-quality Bluetooth audio:
For convenient streaming of background music or musical accompaniment direct from any mobile device.
- Wireless control and monitoring:
With the the Bluetooth QuickSmartMobile app, you can quickly configure up to six EVOLVE 50 systems simultaneously, and receive immediate notification during critical performance conditions.
- Easy DSP presets:
QuickSmartDSP provides best-in-class processing via EV's signature single-knob user interface with LCD. Easy setup via four presets (Music, Live, Speech, Club), three-band EQ, five user-programmable presets, output delay, phantom power, input level control and metering, and master volume control to optimize gain structure.
zZounds is an authorized dealer of Electro-Voice products.
Includes a carry bag for the sub pole and column array.

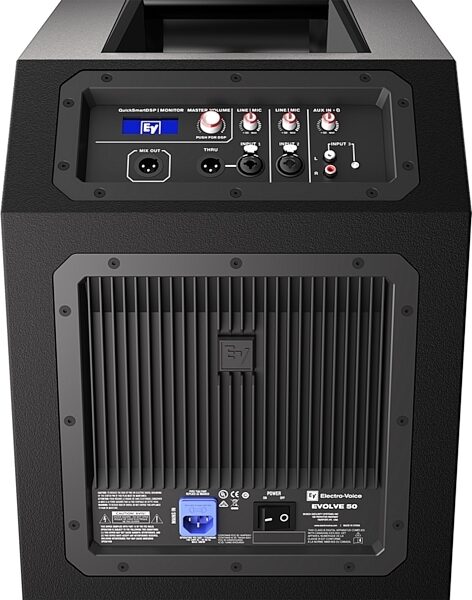

- Connector Type: 2x XLR/TRS combo jack input 1x 3.5 mm Input 1x Stereo RCA input 1x Wireless Bluetooth audio input 1x XLR THRU output 1x XLR MIX OUT output
- Coverage (Nominal -6 dB) H: 120 *
- Coverage (Nominal -6 dB) V: 40 *
- Crossover Frequency: 200 Hz
- Depth: Sub; 471mm (18.5 in) Column; 172mm (6.9 in) Pole; 55mm (2.2 in) mm
- Enclosure Material: Wood
- Family: EVOLVE 50
- Frequency Range (-10 dB): 37 Hz - 20
- Frequency Response (-3 dB): 43 Hz - 20 Hz
- Grill: Steel with black powder coat
- HF Power Handling: 500 Watts
- LF Power Handling: 500 Watts
- Max. SPL/1m (calc): 127 dB
- Maximum SPL: (1% THD) Sub; 230mm (20.9 in) Column; 825mm (32.5 in) Pole; 929mm (36.6 in) dB
- Power Consumption: 100 - 240 V AC, 50 - 60 Hz, 1.5 - 0.6A
- Power Rating: 1000 W
- Powered or Passive: Powered
- Shipping Weight: 31.3 kg
- Speaker Type: Full-Range
- Weight Net: 26.25 kg
- Width: Sub; 345mm (13.6 in) Column: 102mm (4.0 in) Pole: 48.5mm (1.9 in) mm
- Woofer Size: 12 inch
- Weight, Dimensions, and Manufacturer Part Numbers
- Black, Pair
