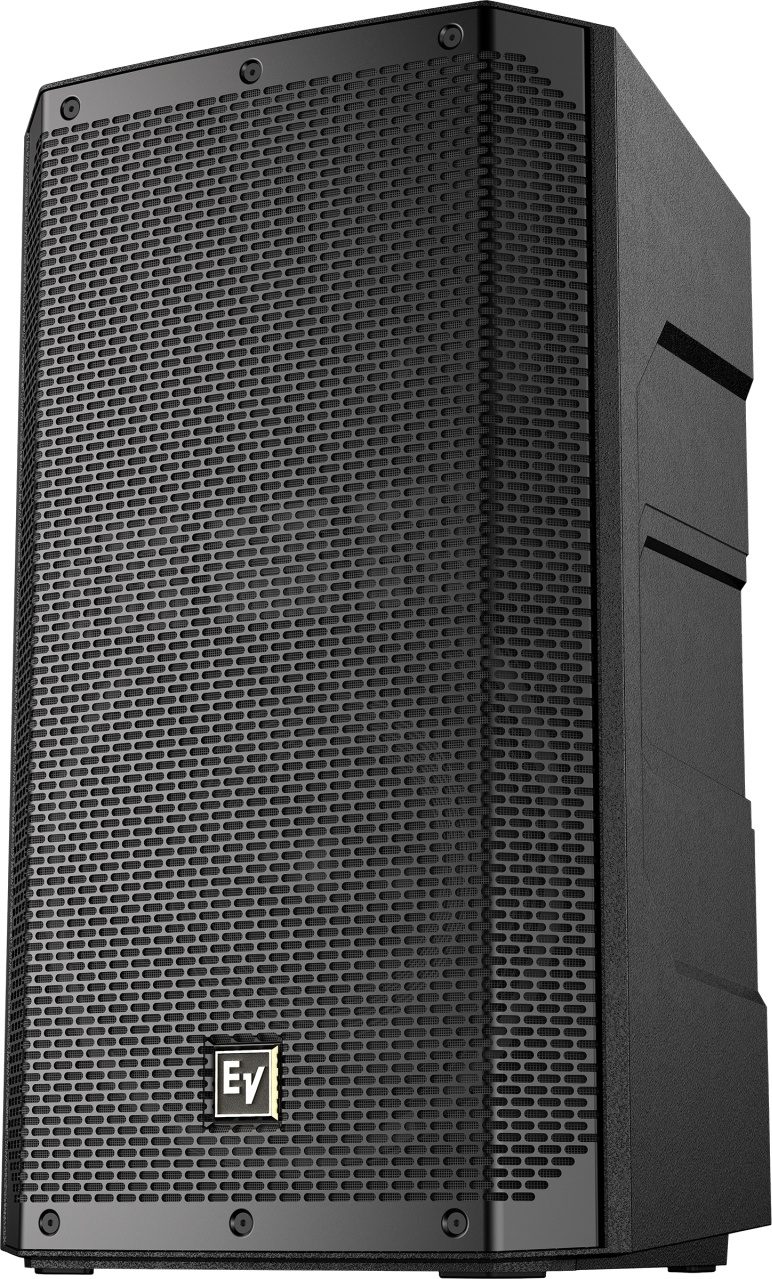

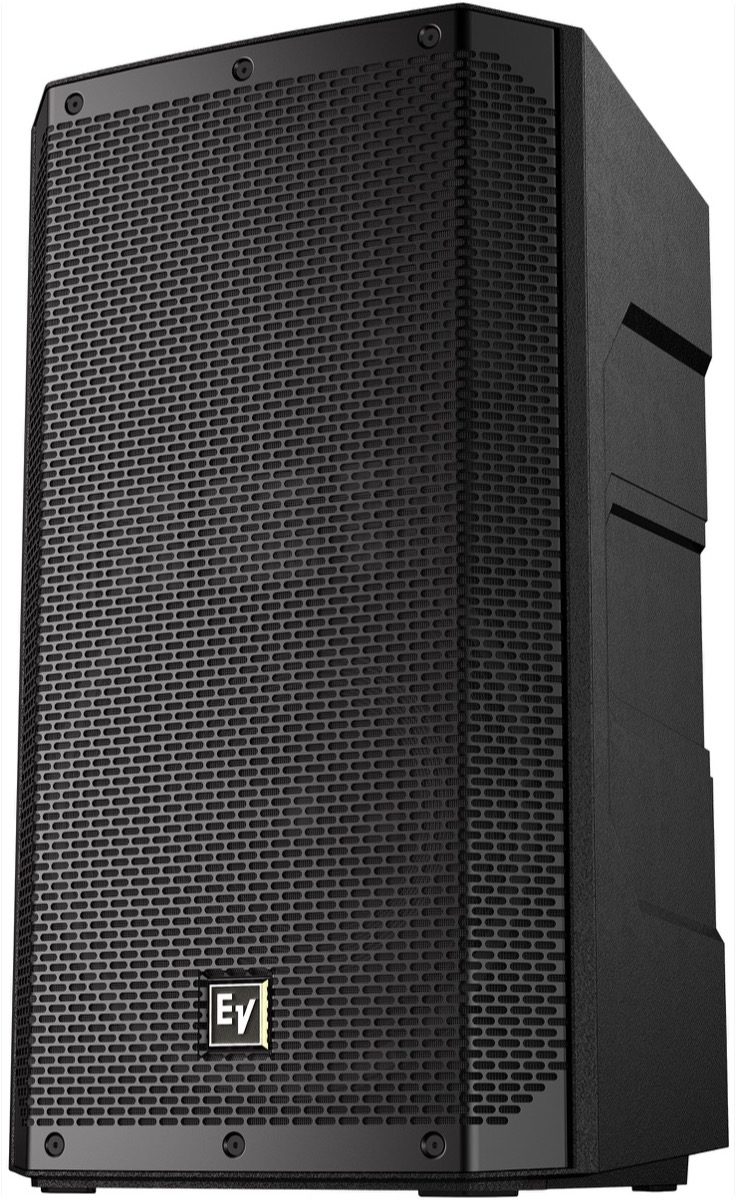

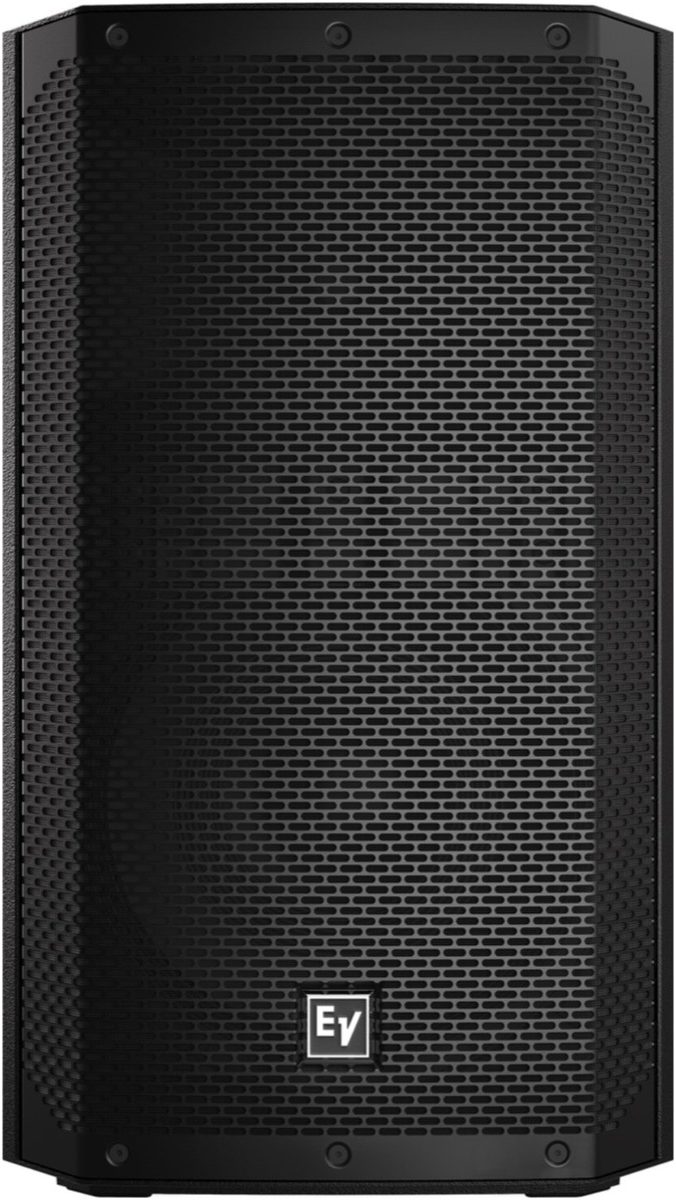

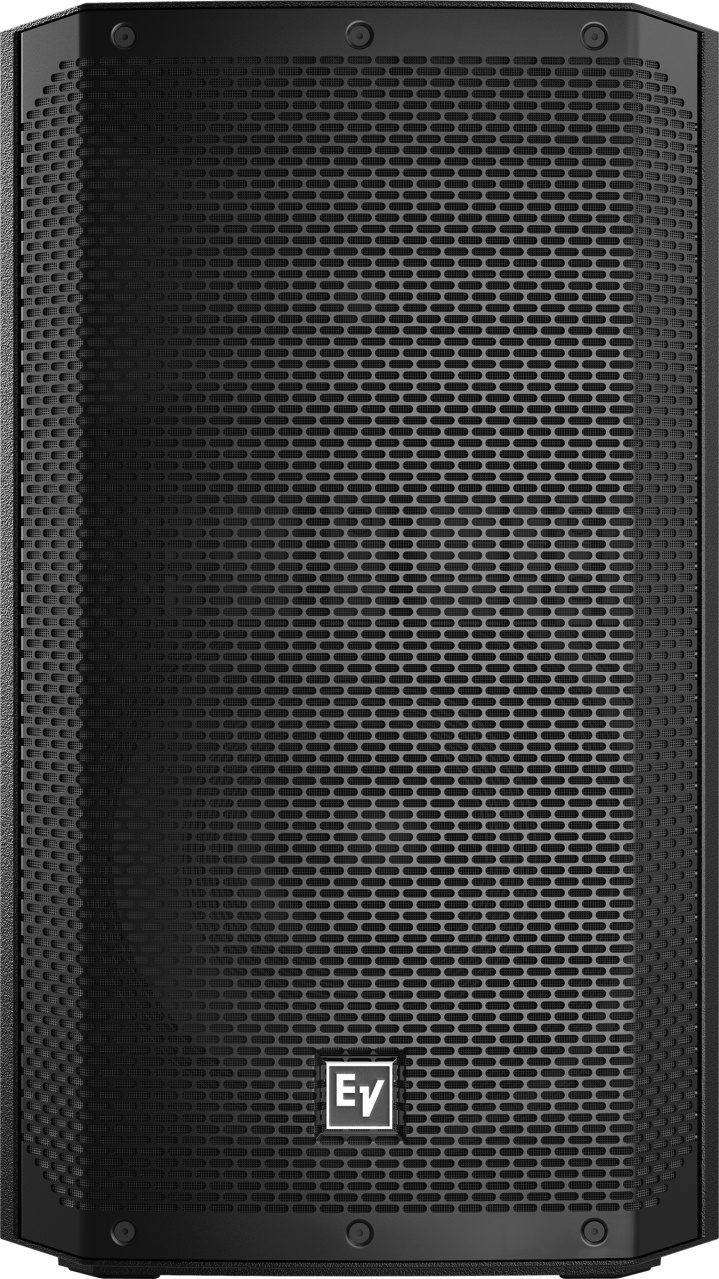

Electro-Voice ELX200-12 Passive, Unpowered Speaker, 1x12"

Build a powerful PA system with this full-range 12" passive loudspeaker. The ELX200-12 handles up to 1200 watts peak power, and features M10 rigging points. Unpowered. Requires separate power amplifier.

Part of the ELX series, the Electro-Voice ELX200-12 passive PA speaker is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components -- tested to levels far exceeding the industry norm -- make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors' products in its category.

Every aspect of ELX200 is designed for ideal results as part of the whole -- the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.

EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system's highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness -- both acoustically and physically; maximum efficiency with maximum toughness.


- 1200 W (peak), 128 dB peak read more SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
- 1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-frequency response.
- High-output EVS-12M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
- EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
- Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less

- Coverage (Nominal -6 dB) V: 60*
- Crossover Frequency: 1700Hz
- Depth: 344mm (13.54")
- Enclosure Material: Polypropylene Composite
- Family: ELX200
- Frequency Range (-10 dB): 51 Hz - 20 kHz
- Frequency Response (-3 dB): 57 Hz - 16 kHz
- Grill: 18 AWG steel with powdercoat
- Height: 629mm (24.76")
- HF Transducer: DH-1C 1-inch titanium compression driver
- LF Transducer: EVS-12M 300 mm (12 in)
- Max. SPL/1m: (calc) 130dB
- Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.8A
- Power Rating: 1200W
- Powered or Passive: Passive
- Shipping Weight: 17.7kg (39.02 lbs)
- Speaker Type: Full-Range
- Suspension: (3) M10 suspension points
- Weight Net: 15.6kg (34.39 lbs)
- Width: 363mm (14.29")
- Woofer Size: 12inch
Dimensions and Weight in Packaging
Black, Single Speaker
Shipping Weight: 38.75 lbs
Shipping Dimensions: 26 x 17 x 17 in
Manufacturer Part Number (MPN): F.01U.326.056
Blemished, Black, Single Speaker
Shipping Weight: 38.75 lbs
Shipping Dimensions: 26 x 17 x 17 in
Manufacturer Part Number (MPN): F.01U.326.056

Note: Unpowered speaker, requires separate power amplifier.
