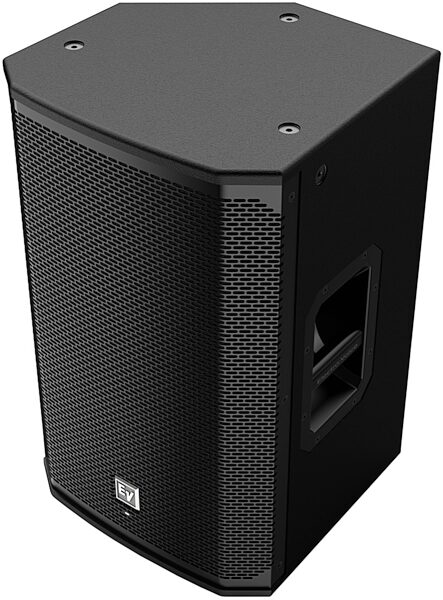

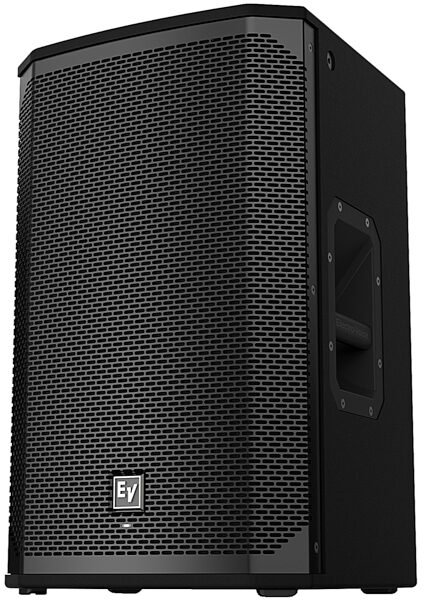

Electro-Voice EKX-12 Passive, Unpowered 2-Way Speaker, (1x12")

Perfect as floor monitors or as main speakers in smaller venues, these 12" passive loudspeakers from Electro-Voice's EKX series crank out up to 131 dB SPL. Unpowered. Requires separate power amplifier.

The Electro-Voice EKX-12 is the 12" passive two-way PA speaker from EV's EKX series, which combines legendary EV sound quality and reliability -- all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.

Inside the EKX-12, EV-engineered components and the Signal Synchronized Transducers waveguide design work together to provide precise coverage and superior sound quality at high SPLs. EV's award-winning industrial design -- with robust wood enclosures and durable EVCoat finish -- ensures that EKX speakers look as great as they sound.


- EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
- EV-patented Signal Synchronized Transducers(TM) waveguide design provides precise and consistent coverage.
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.

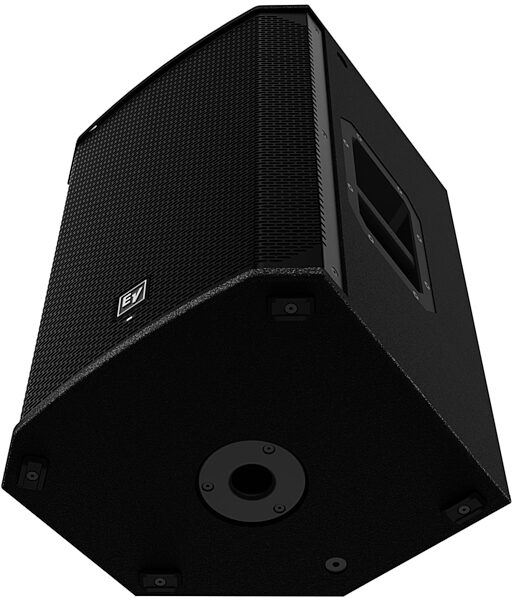

- Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
- 90* x 60* pattern for best coverage on mid-size stages. 40* monitor angle with rubber feet.

Note: Unpowered speaker, requires separate power amplifier.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Axial Sensitivity (SPL, 1 W @ 1 m): 95 dB
- Connector Type: Dual NL4
- Coverage (Nominal -6 dB) H: 90 *
- Crossover Frequency: 1.6 k Hz
- Enclosure Material: 15 mm, plywood with EVCoat
- Frequency Response (-10 dB): 55 Hz - 20 k Hz Full Space Measurement
- Frequency Response (-3 dB): 82 Hz - 18 k Hz Full Space Measurement
- Grill: 18 AWG steel with powder coat
- HF Transducer: DH-1M 1-inch titanium compression driver
- LF Transducer: EVS-12M 300 mm (12 in)
- Maximum SPL: 131 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
- Minimum Impedance: 7.5 Ohm
- Nominal Impedance: 8 Ohm
- Power Handling (Continuous / Peak): 350 W/1400 W
- Recommended High-Pass Frequency: 55 Hz
- Shipping Weight: 21.4 kg (47.18 lbs)
- Mounting/Suspension: (8) M10 threaded mounting points
- Height: 14RU 607 mm (23.9")
- Width: 375 mm (14.76")
- Depth: 356 mm (14.02")
- Weight Net: 17.4 kg (38.36 lbs)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 48.25 lbs
Shipping Dimensions: 27 x 17 x 17 in
Manufacturer Part Number (MPN): F.01U.303.364
Shipping Weight: 96.5 lbs
Note: Unpowered speaker, requires separate power amplifier.
