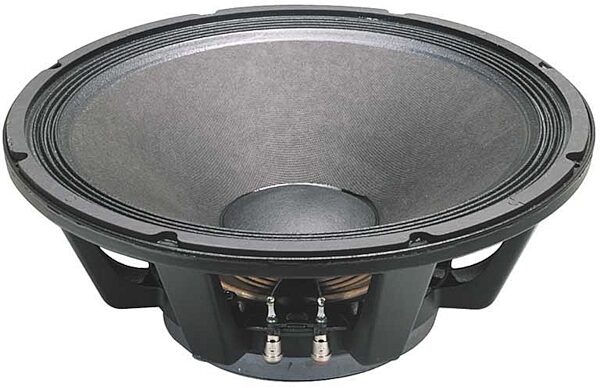

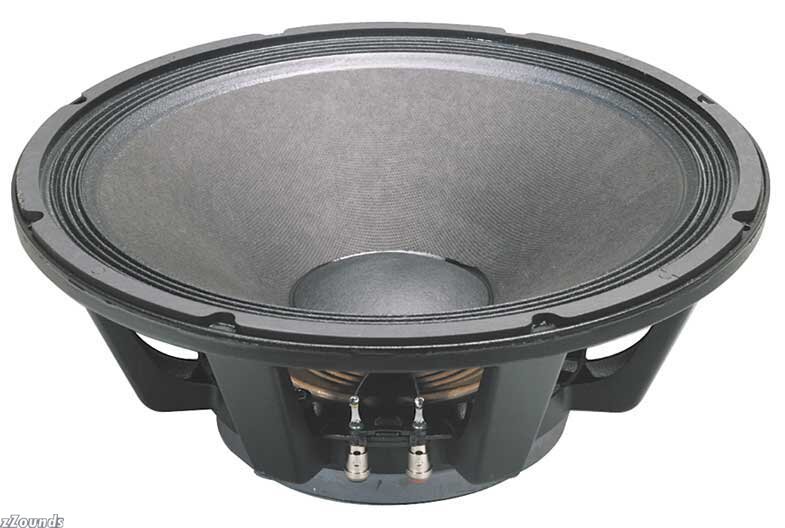

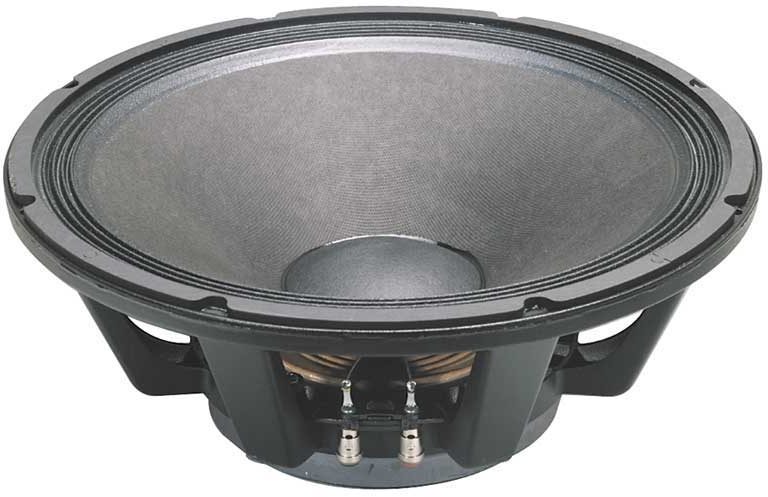

Electro-Voice DL15BFH Speaker (15 in., 350 Watts)

No longer available at zZounds

zZounds Gear Experts Say...

Upgrade your 2-way system with this high-performance woofer from ElectroVoice. It features 350-watt power handling and 96 dB sensitivity.

Overview

The ideal 15 in. for high-power bass boxes or 2-way systems. EV's RMD technology provides smooth vocal performance with low-frequency impact. Specs include a high power rating of 350 watts, 45 - 2,000 Hz frequency response, 8 ohms, 12 lbs.

Woofers

EV component woofers are high-efficiency designs highly refined from years of development and field experience. They employ extended-length voice coils for high-impact reproduction of dynamic low-frequency program. All woofers feature proprietary heat-transfer systems for unmatched power capacity and reliability. Kevlar(R)-fiber-composite cones are used to provide structural strength to resist collapse during explosive dynamic peaks and to provide internal mechanical damping to minimize resonances that can change the character of the sound at high levels. The DL15BFH woofer is made of a cast aluminium frame with push terminals, and features Ring-Mode Decoupling (RMD).

Specs

Specifications

Power Handling: 350 Watts

Impedance: 8 ohms

Cone diameter: 15 in. (381 mm)

Coil diameter: 2.5 in. (63.5 mm)

Frequency range: 45-2,000 Hz

Long-term power rating (EIA): 350 W

Short-term power rating: 1,400 W

Sensitivity (1 W @ 1 m): 96 dB

Maximum SPL: 121.4 dB

Efficiency: 3.93%

Frame front diameter: 15.16 in. (305.0 mm)

Magnet diameter: 6.13 in. (155.6 mm)

Overall depth: 6.00 in. (152.4 mm)

Mounting bolt circle diameter: 14.563 in. (369.9 mm)

Baffle cutout diameter: 14.063 in. (357.2 mm)

Net weight: 12.0 lbs (5.4 kg)
