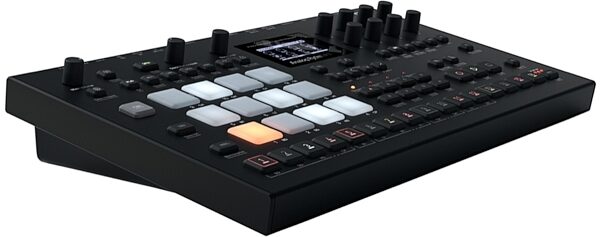

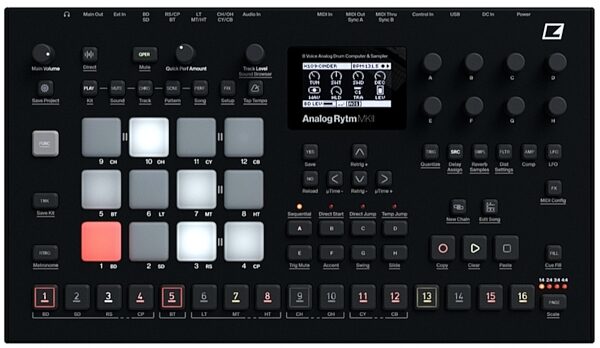

Elektron Analog Rytm MKII Drum Machine

Drum voice features (×8)

- Fully analog signal path
- 1 x specialized analog percussion sound generator
- 1 x sample playback engine
- 1 x analog overdrive circuit
- 1 x 2-pole analog multi-mode filter
- 1 x panning VCA pair
- 1 x filter envelope
- 1 x amp envelope
- 2 x individual effect sends
- 1 x assignable LFO
- 1 x dedicated LFO fade envelope

Storage

- 128 Projects (+Drive)
- 128 Kits per Project
- 128 Patterns per Project
- 16 Songs per Project
- 4096 Sounds (+Drive Sound Library)
- 128 Sounds per Project
- 127 samples per Project
- 1 GB +Drive sample storage

Sequencer

- 12 drum tracks
- 1 FX track
- Sequencer MIDI Out
- Up to 64 steps per pattern
- Individual length per track
- Individual scale per track
- Parameter locks
- Instant Pattern, Kit and Sound reload
- Live friendly Performance mode
- Trig mute, swing, slide, accent functions
- Track transpose
- Trig conditions
- Micro timing
- Chromatic mode
- Scene mode
- Sample-per-step change
- Sound-per-step change
- Assignable Retrig
- Full real-time control

Send effects

- Delay
- Reverb

Master effects

- Analog stereo distortion
- Analog stereo compressor

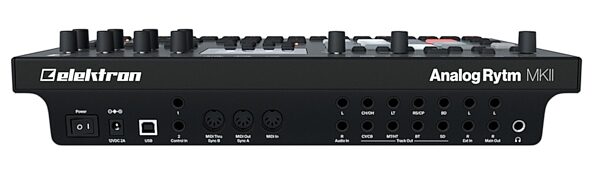

Hardware

- 12 large, velocity, pressure sensitive, and backlit pads
- 128 x 64 pixel OLED screen
- MIDI In/Out/Thru with DIN Sync out
- 2 x 1/4” impedance balanced audio out jacks
- 1 x 1/4” stereo headphone jack
- 8 x 1/4” impedance balanced individual track output jacks
- 2 x 1/4” balanced audio in jacks
- 2 x 1/4” ext in jacks
- 2 x 1/4” CV/Expression inputs
- 48 kHz, 24-bit D/A, and A/D converters
- Flash-EEPROM upgradable OS
- Electrically isolated USB 2.0 High Speed port

Balanced audio outputs

- Headphones out level: +15 dBu (55 Ω)
- Main outputs level: +15 dBu
- Individual outputs level: +15 dBu
- Output impedance: 440 Ω unbalanced

Unbalanced external inputs

- Input level: +15 dBu maximum
- Audio input impedance: 9 kΩ

Balanced audio inputs

- Input level: +15 dBu maximum
- Audio input impedance: 19 kΩ
- Digital S/N ratio: 110 dB (20–20,000 Hz)

CV/Expression inputs

- Input voltage on tip: -5 V–+5 V. Supplies +5 V on ring
- Accepts CV, Expression pedals

Electrical specifications

- Unit power consumption: 14 W typical, 20 W maximum.
- Recommended power supply: 12 V DC, 2A

Physical specifications

- Aluminum enclosure
- Dimensions: W385 × D225 × H82 mm (15.2 × 8.85 ×  3.3″) including knobs, jacks and feet
- Weight: approximately 2.4 kg (5.3 lbs)

Miscellaneous

- 3 year Elektron warranty

Included in the box

- Power Supply PSU-3b
- Elektron USB cable
- Quick Guide
Dimensions and Weight in Packaging
Black
Shipping Weight: 7.75 lbs
Shipping Dimensions: 19 x 12 x 6 in
Manufacturer Part Number (MPN): ADS8mkII
