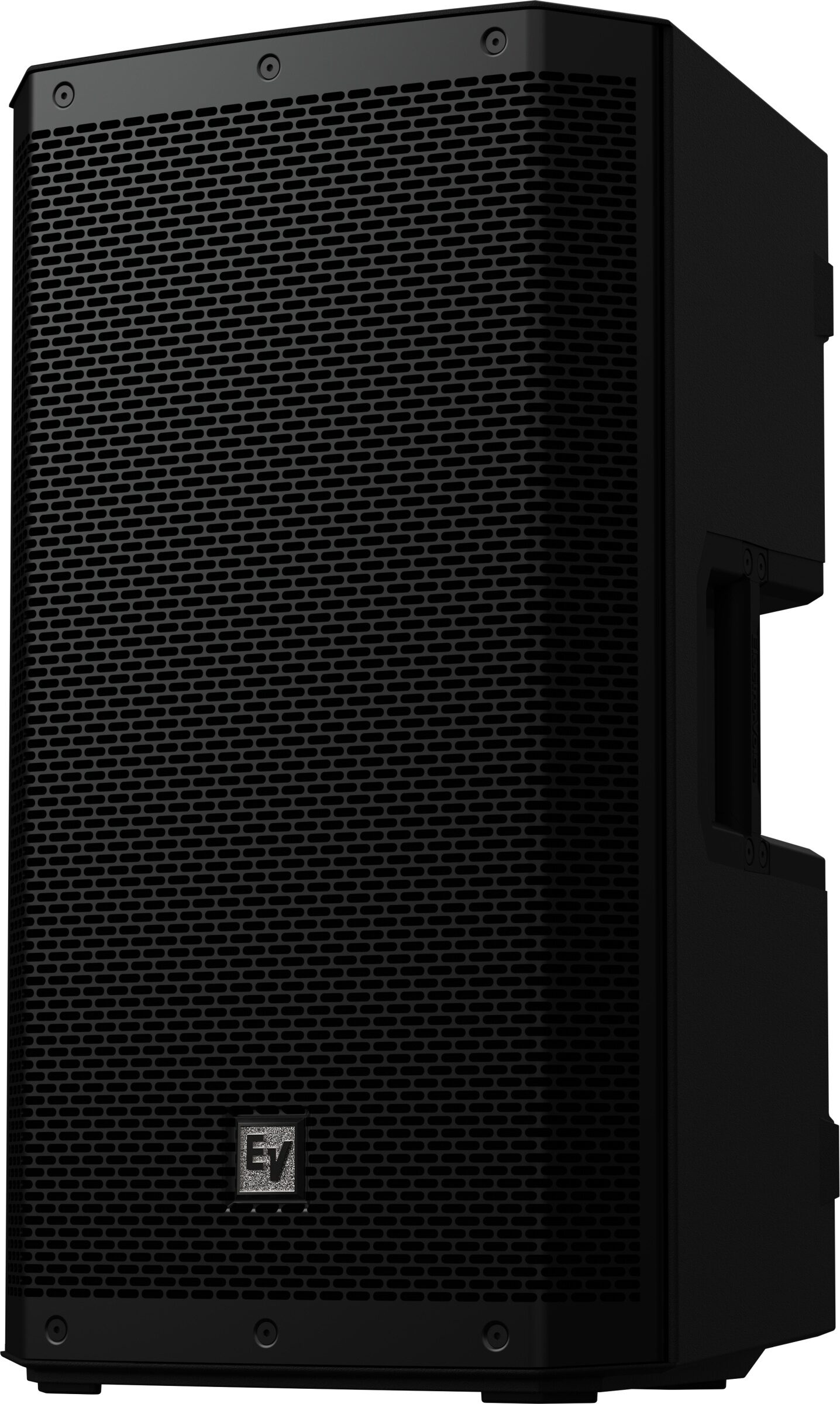

Electro-Voice ZLX-12-G2 2-Way Passive, Unpowered Loudspeaker (1x12")

Get Electro-Voice performance at an affordable price with the ZLX-12-G2, a lightweight passive speaker with deep bass response and wide, even coverage. Unpowered. Requires separate power amplifier.

Overview

ZLX-G2 loudspeakers are offered in 8, 12, and 15-inch woofer sizes. Building on the tried and tested ZLX series, ZLX-G2 loudspeakers feature an improved angled cabinet design allowing for a 55-degree monitor angle. 12 and 15-inch models additionally include a "kickback" 25-degree monitor angle. ZLX-G2 loudspeakers offer the best-in-class acoustic output. Electro-Voice patented SST baffle design ensures improved bass, small size, and even coverage across all frequencies.

ZLX-12-G2 uses industry standard NL4 connections. The two NL4 connectors are in parallel and pass through all pins.

Unpowered. Requires separate power amplifier.

Features:

- Includes 55-degree monitor angle plus 23-degree kickback angle.
- Recommended to use with Dynacord DSP power amplifiers.
- SONICUE integration - optimized speaker settings for best performance.
- Connections easily accessible even in monitor position.

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

-Frequency response (-3 dB): 69 Hz - 18,500 Hz
-Frequency range (-10 dB): 55 Hz - 20,000 Hz
-Axial sensitivity (dB SPL 1W/1m): 93 dB SPL 1W/1m
-Maximum SPL (at a distance of 1m): 130 dB
-High pass frequency: 48 Hz
-Crossover frequency: 2 kHz
-Coverage angle HxV: 90* x 60*
-Power handling (continuous): 250 W
-Power handling (peak) : 1,000 W
-Nominal impedance: 8 Ohm
-LF transducer: WECA2128
-LF transducer size: 12 in
-LF transducer magnet material: Ferrite
-HF transducer: DH-1K
-HF transducer type: Compression driver
-HF transducer size: 1.5 in
-HF transducer diaphragm material: Titanium
-Dimensions (HxWxD): 621.1 x 356.2 x 356 mm (24.45 x 14.02 x 14.01 in)

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 35.9 lbs; Shipping Dimensions: 27 x 17 x 16 in; Manufacturer Part Number (MPN): F.01U.385.531
Warehouse Resealed: Shipping Weight: 35.9 lbs; Shipping Dimensions: 26 x 17 x 16 in; Manufacturer Part Number (MPN): F.01U.385.531

Note: Unpowered speaker, requires separate power amplifier.
