Elation LightJockey 2 Lighting Control Software
No longer available at zZounds
zZounds Gear Experts Say...

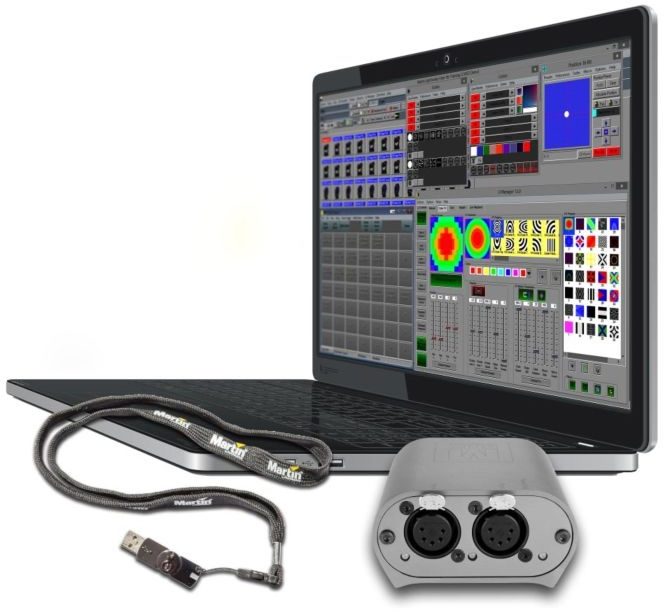

Design and run your light show from your Windows PC! Elation LightJockey 2 software comes with a USB to DMX interface box, and USB dongle for your licenses.
Overview
Elation LightJockey 2 is a flexible, easy-to-use Windows-based controller package that includes a USB Interface Box (laptop not included). One of the industry's most popular PC-based controllers for well over a decade, LightJockey 2 offers lighting designers greater flexibility, spontaneity and ease of use in a user-focused control package.
Specs
- M-DMX Interface Box Length: 92 mm (3.6 in.)
- M-DMX Interface Box Width: 82 mm (3.2 in.)
- M-DMX Interface Box Height: 41 mm (1.6 in.)
- M-DMX Interface Box Weight: 245 g (0.54 lbs.)
- M-DMX Interface Box Ambient Temperature: 0-50 C (32-122 F)
- M-DMX Interface Box Protection Rating: IP20
- Control And Programming:
- Trig Sources: Manual, auto, audio input with FFT analyzer, DMX in, MIDI, Light Jockey Manager
- Cue list time code synchronization (CLTCS) options
- Internal timer, including 24-hour clock
- Audio CD time code from CD-ROM drive
- Digital Audio (MP3, WAV, etc.) time code using built-in media player
- MIDI Time code, SMPTE with suitable SMPTE/MTC interface
- Programming:
- Number of Fixtures: Up to 100, or 680 RGB fixtures
- Number of DMX Universes: 4
- Fixture library: All (DMX) fixtures, user-definable profiles, generic DMX profiles
- Control: Graphical control of all fixture parameters
- Visualization: Real-time realistic 3D visualizer MSD 6 Lite# for off-site programming (One-Year version)
- Macros: Pan and tilt, relative or absolute movement, shape generator with different shapes and delay styles
- Playback:
- Cue contains 12 sequences with global or individual fade time adjustment
- Master intensity control + 8 configurable intensity groups
- Manual override with direct access to all functions
- Independent background cue with 5 parallel sequences
- Blackout and fade out function
- Go button for manual cue lists
- Assignable keyboard hotkeys for faster access
- Smoke control independent from programming
- Follow spot function
- Cue list for synchronization with timer, digital audio or Audio CD-ROM timecode
- Audio analyzer for trigging sequences by audio
- Function and DMX channel override via DMX IN (M-DMX output can be converted to input in software)
- System Requirements (PC not included):
- 1 GB RAM
- Intel Core i3 or better
- Monitor resolution of 1024x768
- USB 2.0 port for DMX interface hardware
- 500 MB drive space available
- Windows 7, 8, 10
- Included Items:
- One-Key USB dongle with 64-universe M-PC, 4-universe LightJockey 2 licenses, and ShowDesigner 6 Lite 3D Visualizer one-year license
- M-DMX USB-DMX Interface Box
- USB cable
- M-DMX Interface Box Width: 82 mm (3.2 in.)
- M-DMX Interface Box Height: 41 mm (1.6 in.)
- M-DMX Interface Box Weight: 245 g (0.54 lbs.)
- M-DMX Interface Box Ambient Temperature: 0-50 C (32-122 F)
- M-DMX Interface Box Protection Rating: IP20
- Control And Programming:
- Trig Sources: Manual, auto, audio input with FFT analyzer, DMX in, MIDI, Light Jockey Manager
- Cue list time code synchronization (CLTCS) options
- Internal timer, including 24-hour clock
- Audio CD time code from CD-ROM drive
- Digital Audio (MP3, WAV, etc.) time code using built-in media player
- MIDI Time code, SMPTE with suitable SMPTE/MTC interface
- Programming:
- Number of Fixtures: Up to 100, or 680 RGB fixtures
- Number of DMX Universes: 4
- Fixture library: All (DMX) fixtures, user-definable profiles, generic DMX profiles
- Control: Graphical control of all fixture parameters
- Visualization: Real-time realistic 3D visualizer MSD 6 Lite# for off-site programming (One-Year version)
- Macros: Pan and tilt, relative or absolute movement, shape generator with different shapes and delay styles
- Playback:
- Cue contains 12 sequences with global or individual fade time adjustment
- Master intensity control + 8 configurable intensity groups
- Manual override with direct access to all functions
- Independent background cue with 5 parallel sequences
- Blackout and fade out function
- Go button for manual cue lists
- Assignable keyboard hotkeys for faster access
- Smoke control independent from programming
- Follow spot function
- Cue list for synchronization with timer, digital audio or Audio CD-ROM timecode
- Audio analyzer for trigging sequences by audio
- Function and DMX channel override via DMX IN (M-DMX output can be converted to input in software)
- System Requirements (PC not included):
- 1 GB RAM
- Intel Core i3 or better
- Monitor resolution of 1024x768
- USB 2.0 port for DMX interface hardware
- 500 MB drive space available
- Windows 7, 8, 10
- Included Items:
- One-Key USB dongle with 64-universe M-PC, 4-universe LightJockey 2 licenses, and ShowDesigner 6 Lite 3D Visualizer one-year license
- M-DMX USB-DMX Interface Box
- USB cable
