Edirol UA3D Stereo USB Audio Interface

No longer available at zZounds

zZounds Gear Experts Say...

2 Analog and Digital (optical) In/Out. Powered by Computer via USB Cable. Includes WinDVD and Cool Edit Pro LE (Windows Version Software) Included.

Overview

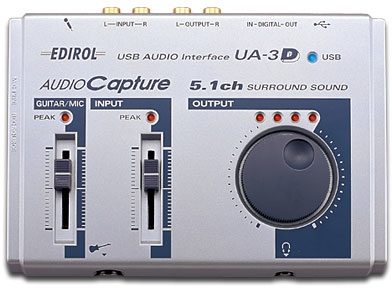

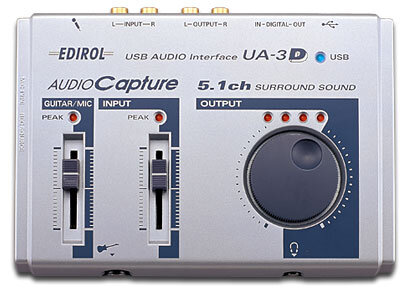

Edirol UA-3D USB Audio Interface with 5.1 Channel Surround System
USB connectivity brought a revolution in audio interfaces for your computer. Now, Dolby Digital and DTS brings surround as well! The UA-3D is compact and portable, because it's powered by your computer. Whether you choose analog or optical ins and outs, the interface is the next step in audio quality. Includes Win DVD playback software and Cool Edit Pro LE for easy audio edits.

5.1 ch Surround System (Dolby Digital and DTS)
Enjoy surround sound* with "WinDVD" software and the UA-3D. Experience theater style movies with this complete package.
* A DVD-ROM and a DTS or Dolby Digital decoder/amplifier is required for 5.1 surround sound.

Noise free

Keep original sound quality with USB audio capture.
UA-3D's external AD/DA converters provides high quality recording and playback.

USB bus Powered
Ideal for laptop computers. Power supply from computer via USB cable. No need for AC adaptor. Connect your audio equipment to your Mac or PC with the UA-3D and just one USB cable!

2 Analog and Digital (Optical) In/Out
Guitar and microphone inputs
WinDVD and Cool Edit Pro LE (Windows version software) included

Features
5.1 channel Surround
Dolby Digital output

Channels
1 stereo record
1 stereo playback
Full duplex

Signal Processing
AD/DA 16-bit

Sample Rate
Digital In 32/44.1/48 kHz
Digital Out 32/44.1/48 kHz

Frequency Response
20 Hz to 20 kHz

Audio Driver Compatibility
MME
Sound Manager

Inputs
Dynamic or plug-in
Powered… read more mic x 1
Guitar (Hi-Z) x 1
Line (RCA pin) x 2
S/P DIF Optical

Outputs
Line (RCA pin) x 2
S/P DIF Optical
Headphones (mini-stereo) x 1

Bundled Software
Win DVD
CoolEdit ProLE

Power Supply
USB Bus powered

Included
User Manual
USB Cable
CD-ROM

Specs

System Requirements

Macintosh

OS: MacOS 9.0.4 or later

Computer: Apple Macintosh series with on-board USB

CPU/Clock: PowerPC G3/300 MHz or higher

Memory(RAM): 96MB or more (Application memory 32 MB or more)

Hard Disk: 120 MB or more

Display/Colors: 800x600 or higher

Windows

OS: Microsoft Windows 98/98SE/ME/2000/XP

Computer: Windows compatible computer with a USB connector*

CPU/Clock: Pentium II processor 233MHz or higher (win98/SE/ME)

Pentium II processor 400MHz or higher (win2000)

Memory(RAM): 64MB or more

Hard Disk: 120 MB or more

Display/Colors: 800x600 or higher/65,536 colors (16 bit High Color) or more.

* Must have a compatible USB host controller.

EDIROL designs its USB devices in accordance with USB specifications and has passed all compatibility tests, which are continuously held and organized by USB Implementers Forum (USB-IF).
