Edirol UA1000 10-Chanel 24/96 Audio Interface

No longer available at zZounds

Edirol UA1000 10-Chanel 24/96 Audio Interface, Front

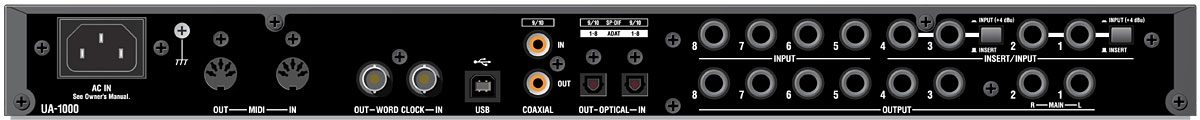

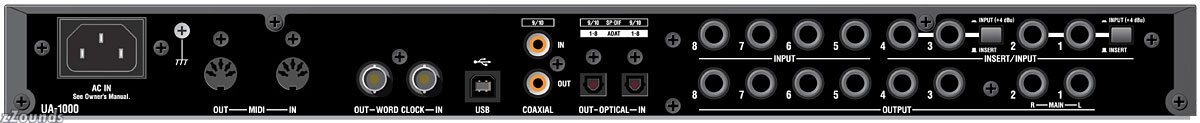

Edirol UA1000 10-Chanel 24/96 Audio Interface, Rear

zZounds Gear Experts Say...

The world's first Hi-Speed USB audio interface.

Overview

Ideal as the centerpiece of a project studio and equally at home in your mobile studio, the UA-1000 is the world's first multi-port Hi-Speed USB (USB 2.0) audio recording interface.

One USB cable for connection to the USB 2 port of your computer, and off you go! The UA-1000 delivers exceptional audio capabilities on 10 separate channels via a wide variety of connections, offering high quality microphone preamps using premium analog components. These include XLR/TRS combo jacks, Hi-Z guitar, SP/DIF, 8 channel ADAT, MIDI, and even inserts for effect send/return.

Features
Hi-Speed USB 2.0 supports 480 Mbps transfer speed, allowing the UA-1000 to offer 10 In X 10 Out 24bit/96Khz full duplex performance via hassle-free USB connection.

4 x frontmounted XLR/TRS combo jacks, with Phantom power

High quality microphone preamps using premium analog components

S/PDIF (Optical/Coaxial), 8-channel ADAT, MIDI, Word Clock

4 x Inserts I/O for effects sends and returns

ASIO 2.0 and WDM drivers

Zero latency direct monitoring

Striking blue 1u metal rackmount

Specs

Main Functions
Multiple 10-in/10-out
Digital Audio Interface

Unique Feature: Hi-Speed USB

Connection: USB 2

Channels: 10 inputs, 10 outputs, Full duplex

Signal Processing: AD/DA 24-bit, Internal 40-bit

Sample Rate: Up to 96 kHz

Frequency Response
96 kHz: 20 Hz to 40 kHz (+0 dB/-2dB)
88.2 kHz: 20 Hz to 40 kHz (+0 dB/-2dB)
48 kHz: 20 Hz to 22 kHz (+0 dB/-2dB)
44.1 kHz: 20 Hz to 20 kHz (+0 dB/-2dB)

Dynamic Range: IN 102dB (IHF-A,typ.), OUT 110dB (IHF-A,typ.)

Driver compatibility: ASIO 2.0, WDM, MME

Inputs/Outputs
Front Panel
Input Jack 1 to 4 (XLR type / 1/4 in. TRS phone type)
XLR type (balanced / phantom power)
1/4 in. TRS phone type (balanced)
Input Jack 3 supports Guitar Hi-Z.

Headphones Jack (Stereo 1/4 in. phone type)

Rear Panel
Insert/Input Jack 1 to 4 (1/4 in. phone type)
Insert: TRS
Input: unbalanced

Input Jack 5 to 8
(1/4 in. TRS phone type (balanced))

Output Jack 1 to 8
(1/4 in. TRS phone type (balanced))

Digital In Connectors (Coaxial, Optical)
Digital Out Connectors (Coaxial, Optical)

MIDI Connectors (In, Out)

Word Clock Connectors (In, Out) (BNC)

USB Connector

System Requirements
Windows
Microsoft Windows XP ONLY
Windows XP compatible PC equipped with a Hi-Speed USB (USB 2) port (Intel's Chipset is recommended)

Minimum Processor Speed:
Desktop PCIntel Pentium(R) 4 1.2 GHz or higher
Laptop PCIntel Pentium(R) 4 1.6 GHz or higher
Minimum RAM: 128 MB (256 MB or more recommended)

Edirol designs its USB devices in accordance with USB specifications and has passed all compatibility tests, which are continuously held and organized by USB Implementers Forum (USB-IF).
