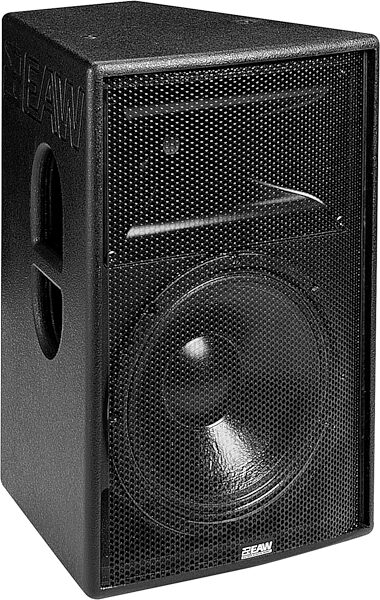

EAW FR129z 2-Way Speaker Cabinet (500 Watts, 1x12 in.)

No longer available at zZounds
zZounds Gear Experts Say...
2-way passive full range system in a compact vented trapezoidal enclosure.

A 2-way passive full range system in a compact vented trapezoidal enclosure. It incorporates a 12 in woofer and a 1 in exit/2 in voice coil compression driver mounted to a 90 degrees x 45 degrees constant directivity horn. It comes with handles, rubber foot-pads, a pole mount cup, and three 3/8-16 mounting points. An internal passive crossover network uses complex asymmetrical filters to divide the signal and performs critical equalization functions.

Applications
The FR129z provides high output full range response in a versatile, compact system. It offers entry-level access to a high quality, truly professional loudspeaker system for musicians and DJ's servicing small to medium venues. The FR129z is designed primarily for portable applications, but mounting points are provided for installation applications. The FR129z is optimized for use with the FR250z dual 15 in subwoofer system, which also serves as a pole mount base. In such a configuration, an optional 5 ft mounting pole positions the FR129z's HF horn above the heads of audience members for optimum coverage.

Features
Entry-level access to truly professional loudspeaker systems

12 in woofer in optimally vented enclosure, 1 in HF on 90 degrees horn

Handles, rubber footpads, threaded mounting points and pole mount cup standard

Works with FR250z subwoofer to create an instant PA

Physical
System Configuration: 2-way, full range

Product Group: G

LF Subsystem & Loading: One 12 in woofer, vented

HF Subsystem & Loading: One 1 in exit/2 in voice coil compression driver on CD horn

Operating Mode: Passive only

Enclosure Material: Exterior grade Baltic birch plywood

Finish: Wear resistant textured black paint

Connector: Two Neutrik NL4 Speakon

Suspension Hardware: Three 3/8-16 mounting/suspension points

Grille: Powder coated perforated steel

Companion Subbass: FR250z

Optional Accessories 1: 3/8-16 forged shoulder eyebolt, (104001)

Optional Accessories 2: 5 ft speaker pole, (179072)

Dimensions (±0.13 in / ±3 mm):
-- Height: 22.50 / 572

-- Front Width: 15.00 / 381

-- Rear Width: 7.36 / 187

-- Depth: 14.75 / 375

-- Trapezoid Angle (degrees): 15 per side

Weights (pounds / kilograms):
-- Net Weight: 46.0 / 20.9

-- Shipping Weight: 49.0 / 22.3

Performance
Frequency Response:
-- ±3 db: 80 Hz to 18 kHz

-- -10 dB: 60 Hz

-- Recommended High-Pass Frequency: 60 Hz, 24 dB / octave

Axial Sensitivity (dB SPL, 1 watt @ 1 m):
-- Full Range Passive: 97

Nominal Input Impedance (ohms):
-- Full Range Passive: 8

Power Handling (watts, continuous):
-- Full Range Passive: 500

Calculated SPL Limit (referenced to 1 m):
-- Full Range Passive Peak: 130.0

-- Full Range Long Term: 124.0

Nominal Dispersion (degrees @ - 6 dB):
-- Horizontal: 90 degrees

-- Vertical: 45 degrees
